How it works
Double-acting rotary actuator
Butterfly disc
Rotary positioner
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Acids
- Alkalis
- Chemical Environment
- Water Supply
- Heating
- Chemical Industry
- Oil And Gas Industry
Rotary disc gate valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Operating principle: The valves are opened and closed by turning the disc by 90°. Opening is performed by turning the handle anti-clockwise, closing - clockwise. The peculiarity of the gate valves of this series is the complete covering of the flow part and disc with PTFE material, which makes it possible to exclude the contact of the working medium with the materials of the main parts.
DNOVA pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
A distinctive feature of this series of valves is that the flow path and disc are completely coated with PTFE, which prevents the working medium from coming into contact with the materials of the main components.

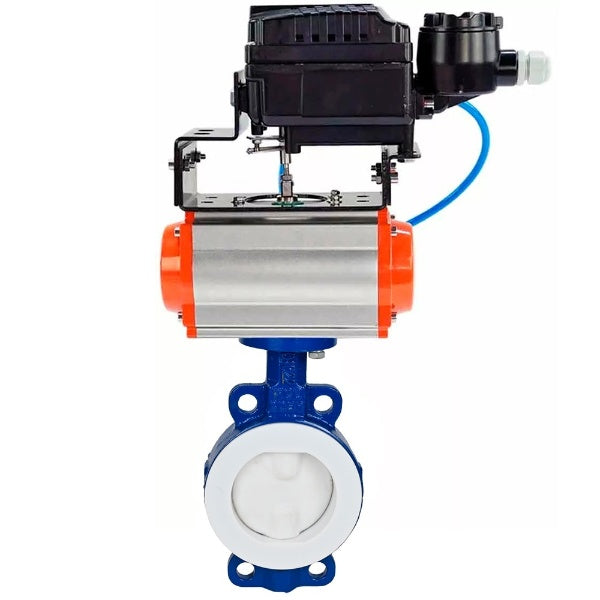

Technical characteristics of butterfly valves DNOVA WBV3434Pf-2W-Fb-H, body material - Carbon steel, disk material - Carbon steel, seal - PTFE
| Characteristic | Value |
|---|---|
| Type of valve | Rotary disc |
| Diameter | 50-300 mm |
| Nominal pressure | 16 bar |
| Operating temperature | -10 to +150°C |
| Application | water supply, heat supply, chemical industry, oil and gas industry, food industry, pulp and paper industry |
| Connection type | Wafer |
| Control type | Pneumatic actuator |
| Leakage class | A |
| Country of origin | China |
| Service life | 10 years |
| Warranty | 12 months |
Dimensions and dimensions of butterfly valves DNOVA WBV3434Pf-2W-Fb-H, body material - Carbon steel, disk material - Carbon steel, seal - PTFE
| DN | L, mm | D1, mm | D2, mm | Z-Ød, mm | H1, mm |
| DN50 | 43 | 125 | 100 | 2-Ø18 | 80 |
| DN65 | 46 | 145 | 120 | 2-Ø18 | 90 |
| DN80 | 46 | 160 | 135 | 4-Ø18 | 100 |
| DN100 | 52 | 180 | 155 | 4-Ø18 | 110 |
| DN125 | 56 | 210 | 185 | 4-Ø18 | 120 |
| DN150 | 56 | 240 | 210 | 4-Ø18 | 150 |
| DN200 | 60 | 295 | 265 | 4-Ø18 | 170 |
| DN250 | 68 | 355 | 320 | 4-Ø18 | 190 |
| DN300 | 78 | 410 | 375 | 4-Ø18 | 230 |
Table of parts and materials for butterfly valves DNOVA WBV3434Pf-2W-Fb-H, body material - Carbon steel, disk material - Carbon steel, seal - PTFE
| № | Part Name | Material |
|---|---|---|
| 1 | Body |
DN50÷200 – Carbon steel WCB, lined with PTFE; |
| 2 | Disc | DN50÷200 – Carbon steel WCB, lined with PTFE; DN150÷200 – Carbon steel WCB, lined with PTFE; DN250÷300 – Carbon steel WCB, lined with PFA (enhanced PTFE) |
| 3 | Shaft | DN50÷200 – Stainless steel 2Cr13; DN150÷250 – Stainless steel 2Cr13; DN300 – Steel 45 |
| 4 | Seat seal | PTFE |
Parts and materials sketch for butterfly valves DNOVA WBV3434Pf-2W-Fb-H, body material - Carbon steel, disk material - Carbon steel, seal - PTFE
Technical data of DA double-acting pneumatic actuators:
| Type of pneumatic actuator | DA - double-acting |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | filtered compressed air |
| Maximum particle diameter of the working medium, µm2 | ≤30 |
| Ambient temperature, °C | -20 to +80 |
| Swivel angle, ° | 0 - 90 |
| Swivel angle adjustment, % | ±5 |
| Position indicator | open/closed |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Average life, cycles closed/open | 70 000 (for non-aggressive media and medium pressure and temperature values) |
DA pneumatic actuators double-acting rotary actuators
Dimensions and mounting dimensions of DA double-acting pneumatic actuators:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm |
| DA-052 | 30 | 41,5 | 65,5 | 72 | 92 | 65 | 30 | 80 |
| DA-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 |
| DA-083 | 46 | 57 | 98,5 | 108,7 | 128,7 | 92 | 30 | 80 |
| DA-105 | 57,5 | 64 | 122,5 | 133 | 153 | 109,5 | 30 | 80 |
| DA-130 | 67,5 | 74,5 | 145,5 | 155 | 185 | 127,5 | 30 | 130 |
| DA-140 | 75 | 77 | 161 | 172 | 202 | 137,5 | 30 | 130 |
| DA-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 |
| DA-210 | 113 | 113 | 235,5 | 255 | 285 | 210 | 30 | 130 |
| DA-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 |
| DA-300 | 162 | 174 | 330 | 350 | 380 | 312 | 30 | 130 |
| DA-350 | 190 | 195 | 483 | 410 | 440 | 365 | 30 | 130 |
| Model | I, mm | J, mm | M, mm | N, mm | Z, mm | d, mm | K | L |
| DA-052 | 36 | 50 | 11x11 | 14 | 147 | 40 | M5x8 | M6x10 |
| DA-065 | 50 | 70 | 14x14 | 18 | 168 | 40 | M6x10 | M8x13 |
| DA-083 | 50 | 70 | 17x17 | 21 | 204 | 40 | M6x10 | M8x13 |
| DA-105 | 70 | 102 | 22x22 | 26 | 268 | 40 | M8x13 | M10x16 |
| DA-130 | 70 | 102 | 22x22 | 26 | 301 | 55 | M8x13 | M10x16 |
| DA-140 | 102 | 125 | 27x27 | 31 | 390 | 55 | M10x16 | M12x20 |
| DA-160 | 102 | 125 | 27x27 | 31 | 458 | 55 | M10x16 | M12x20 |
| DA-210 | - | 140 | 36x36 | 40 | 532 | 80 | - | M16x25 |
| DA-270 | - | 165 | 46x46 | 50 | 718 | 80 | - | M20x25 |
| DA-300 | - | 165 | 46x46 | 50 | 760 | 80 | - | M20x25 |
| DA-350 | 165 | 254 | 46x46 | 50 | 920 | 80 | M20x25 | 8xM16x25 |
Sketch of dimensions of DA double-acting pneumatic actuators
Materials of parts for DA double-acting pneumatic actuators:
| № | Part name | Material |
| 1 | Indicator screw | ABS plastic |
| 2 | Position indicator | ABS plastic |
| 3 | Spring clip | stainless steel 304 |
| 4 | Metal washer | stainless steel 304 |
| 5 | Pressure washer | engineering plastic |
| 6 | Housing | hard anodized extruded aluminum alloy |
| 7 | Pressure washer | engineering plastic |
| 8 | Limiter | alloy steel |
| 9 | Shaft sealing ring upper | NBR |
| 10 | Upper shaft sliding ring | engineering plastic |
| 11 | Shaft | nickel plated alloy steel |
| 12 | Shaft sliding ring lower | engineering plastic |
| 13 | Shaft O-ring lower | NBR |
| 14 | Plug | NBR |
| 15 | Seal ring of adjusting screws | NBR |
| 16 | Washer of adjusting screw | stainless steel 304 |
| 17 | Lock nut of adjusting screw | stainless steel 304 |
| 18 | Adjusting screw | stainless steel 304 |
| 19 | Piston | die-cast aluminum alloy |
| 20 | Piston guide plate | engineering plastic |
| 21 | Piston sliding ring | engineering plastic |
| 22 | Piston O-ring | NBR |
| 23 | Spring set | spring steel |
| 24 | Cover O-ring | NBR |
| 25 | End cap | cast aluminum with polyester coating |
| 26 | Cover screw | stainless steel 304 |
| 27 | Stop screw | stainless steel 304 |
| 28 | Adapter | carbon steel |
Material sketch of DA double-acting pneumatic actuators
Technical specifications of DNOVA YT-1000RSN electropneumatic rotary positioners
| Characteristic | Value |
|---|---|
| Model of electro-pneumatic positioner | YT-1000RSN |
| Control input signal | 4-20 mA |
| Internal resistance | 250 ± 15 Ohm |
| Input pressure | 1.4-7 bar |
| Lever stroke angle | 0-90° |
| Compressed air connection thread | 1/4" |
| Gauge connection thread | 1/8" |
| Cable entry | G1/2" |
| Protection type | IP66 |
| Operating temperature | -20°C to +70°C |
| Permissible ambient humidity | 10-90RH |
| Linearity | ±1% |
| Hysteresis | ±1% |
| Sensitivity | ±0.5% |
| Repeatability | ±0.5% |
| Compressed air consumption | 3 l/min (at 1.4 bar) |
| Air output consumption | 80 l/min (at 1.4 bar) |
| Housing material | Cast aluminum |
Overall and installation dimensions of electropneumatic rotary positioners DNOVA YT-1000RSN
| A, mm | 224.3 |
| B, mm | 165.5 |
| C, mm | 117.5 |
| D, mm | 132.3 |
| E, mm | 6 |
| F, mm | 122 |
| G, mm | 45 |
| H, mm | 45 |
| I, mm | 23 |
| J, mm | 27 |
| K, mm | 32.5 |
| L, mm | 35.5 |
| M, mm | 91.8 |
| N, mm | 37.2 |
| O, mm | 43.5 |
| P, mm | 26.5 |
| Q, mm | 33 |
| R, mm | 80.25 |
| S, mm | 62.5 |
| T, mm | 8 |
- Body material
- Carbon steel
- Maximum allowable temperature
- 180 °C
- Connection type
- Compact flanged
- Control type
- Pneumatic actuator
- Operating environment
- Water, Acids, Alkalis, and Chemical Environment
- Applications
- Water Supply, Heating, Chemical Industry, Oil And Gas Industry, Food Industry, and Pulp And Paper Industry
- Nominal pressure
- 16 bar
- Type of seal
- PTFE
- Disc material
- Carbon steel
- Manual override
- No
- Limit switches
- No
- Control signal
- 4-20 mA
- Type of pneumatic actuator
- double action
- Angle of rotation
- 90°
- Country of origin
- China
