How it works
Double-acting rotary actuator
Butterfly disc
5/2 double-solenoid pilot
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Acids
- Alkalis
- Chemical Environment
- Water Supply
- Heating
- Chemical Industry
- Oil And Gas Industry
Rotary disc gate valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Operating principle: The valves are opened and closed by turning the disc by 90°. Opening is performed by turning the handle anti-clockwise, closing - clockwise. The peculiarity of the gate valves of this series is the complete covering of the flow part and disc with PTFE material, which makes it possible to exclude the contact of the working medium with the materials of the main parts.
DNOVA pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
The peculiarity of the gate valves of this series is the complete covering of the flow part and disk with PTFE material, which makes it possible to exclude the contact of the working medium with the materials of the main parts.

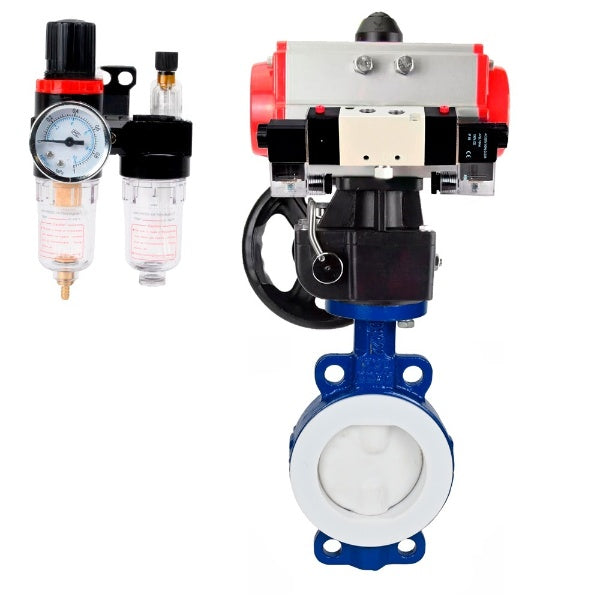

Technical characteristics of butterfly valves DNOVA WBV3434Pf-2W-Fb-H, body material - Carbon steel, disk material - Carbon steel, seal - PTFE
| Characteristic | Value |
|---|---|
| Type of valve | Rotary disc |
| Diameter | 50-300 mm |
| Nominal pressure | 16 bar |
| Operating temperature | -10 to +150°C |
| Application | water supply, heat supply, chemical industry, oil and gas industry, food industry, pulp and paper industry |
| Connection type | Wafer |
| Control type | Pneumatic actuator |
| Leakage class | A |
| Country of origin | China |
| Service life | 10 years |
| Warranty | 12 months |
Dimensions and dimensions of butterfly valves DNOVA WBV3434Pf-2W-Fb-H, body material - Carbon steel, disk material - Carbon steel, seal - PTFE
| DN | L, mm | D1, mm | D2, mm | Z-Ød, mm | H1, mm |
| DN50 | 43 | 125 | 100 | 2-Ø18 | 80 |
| DN65 | 46 | 145 | 120 | 2-Ø18 | 90 |
| DN80 | 46 | 160 | 135 | 4-Ø18 | 100 |
| DN100 | 52 | 180 | 155 | 4-Ø18 | 110 |
| DN125 | 56 | 210 | 185 | 4-Ø18 | 120 |
| DN150 | 56 | 240 | 210 | 4-Ø18 | 150 |
| DN200 | 60 | 295 | 265 | 4-Ø18 | 170 |
| DN250 | 68 | 355 | 320 | 4-Ø18 | 190 |
| DN300 | 78 | 410 | 375 | 4-Ø18 | 230 |
Table of parts and materials for butterfly valves DNOVA WBV3434Pf-2W-Fb-H, body material - Carbon steel, disk material - Carbon steel, seal - PTFE
| № | Part Name | Material |
|---|---|---|
| 1 | Body |
DN50÷200 – Carbon steel WCB, lined with PTFE; |
| 2 | Disc | DN50÷200 – Carbon steel WCB, lined with PTFE; DN150÷200 – Carbon steel WCB, lined with PTFE; DN250÷300 – Carbon steel WCB, lined with PFA (enhanced PTFE) |
| 3 | Shaft | DN50÷200 – Stainless steel 2Cr13; DN150÷250 – Stainless steel 2Cr13; DN300 – Steel 45 |
| 4 | Seat seal | PTFE |
Parts and materials sketch for butterfly valves DNOVA WBV3434Pf-2W-Fb-H, body material - Carbon steel, disk material - Carbon steel, seal - PTFE
Technical data of DA double-acting pneumatic actuators:
| Type of pneumatic actuator | DA - double-acting |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | filtered compressed air |
| Maximum particle diameter of the working medium, µm2 | ≤30 |
| Ambient temperature, °C | -20 to +80 |
| Swivel angle, ° | 0 - 90 |
| Swivel angle adjustment, % | ±5 |
| Position indicator | open/closed |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Average life, cycles closed/open | 70 000 (for non-aggressive media and medium pressure and temperature values) |
DA pneumatic actuators double-acting rotary actuators
Dimensions and mounting dimensions of DA double-acting pneumatic actuators:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm |
| DA-052 | 30 | 41,5 | 65,5 | 72 | 92 | 65 | 30 | 80 |
| DA-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 |
| DA-083 | 46 | 57 | 98,5 | 108,7 | 128,7 | 92 | 30 | 80 |
| DA-105 | 57,5 | 64 | 122,5 | 133 | 153 | 109,5 | 30 | 80 |
| DA-130 | 67,5 | 74,5 | 145,5 | 155 | 185 | 127,5 | 30 | 130 |
| DA-140 | 75 | 77 | 161 | 172 | 202 | 137,5 | 30 | 130 |
| DA-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 |
| DA-210 | 113 | 113 | 235,5 | 255 | 285 | 210 | 30 | 130 |
| DA-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 |
| DA-300 | 162 | 174 | 330 | 350 | 380 | 312 | 30 | 130 |
| DA-350 | 190 | 195 | 483 | 410 | 440 | 365 | 30 | 130 |
| Model | I, mm | J, mm | M, mm | N, mm | Z, mm | d, mm | K | L |
| DA-052 | 36 | 50 | 11x11 | 14 | 147 | 40 | M5x8 | M6x10 |
| DA-065 | 50 | 70 | 14x14 | 18 | 168 | 40 | M6x10 | M8x13 |
| DA-083 | 50 | 70 | 17x17 | 21 | 204 | 40 | M6x10 | M8x13 |
| DA-105 | 70 | 102 | 22x22 | 26 | 268 | 40 | M8x13 | M10x16 |
| DA-130 | 70 | 102 | 22x22 | 26 | 301 | 55 | M8x13 | M10x16 |
| DA-140 | 102 | 125 | 27x27 | 31 | 390 | 55 | M10x16 | M12x20 |
| DA-160 | 102 | 125 | 27x27 | 31 | 458 | 55 | M10x16 | M12x20 |
| DA-210 | - | 140 | 36x36 | 40 | 532 | 80 | - | M16x25 |
| DA-270 | - | 165 | 46x46 | 50 | 718 | 80 | - | M20x25 |
| DA-300 | - | 165 | 46x46 | 50 | 760 | 80 | - | M20x25 |
| DA-350 | 165 | 254 | 46x46 | 50 | 920 | 80 | M20x25 | 8xM16x25 |
Sketch of dimensions of DA double-acting pneumatic actuators
Materials of parts for DA double-acting pneumatic actuators:
| № | Part name | Material |
| 1 | Indicator screw | ABS plastic |
| 2 | Position indicator | ABS plastic |
| 3 | Spring clip | stainless steel 304 |
| 4 | Metal washer | stainless steel 304 |
| 5 | Pressure washer | engineering plastic |
| 6 | Housing | hard anodized extruded aluminum alloy |
| 7 | Pressure washer | engineering plastic |
| 8 | Limiter | alloy steel |
| 9 | Shaft sealing ring upper | NBR |
| 10 | Upper shaft sliding ring | engineering plastic |
| 11 | Shaft | nickel plated alloy steel |
| 12 | Shaft sliding ring lower | engineering plastic |
| 13 | Shaft O-ring lower | NBR |
| 14 | Plug | NBR |
| 15 | Seal ring of adjusting screws | NBR |
| 16 | Washer of adjusting screw | stainless steel 304 |
| 17 | Lock nut of adjusting screw | stainless steel 304 |
| 18 | Adjusting screw | stainless steel 304 |
| 19 | Piston | die-cast aluminum alloy |
| 20 | Piston guide plate | engineering plastic |
| 21 | Piston sliding ring | engineering plastic |
| 22 | Piston O-ring | NBR |
| 23 | Spring set | spring steel |
| 24 | Cover O-ring | NBR |
| 25 | End cap | cast aluminum with polyester coating |
| 26 | Cover screw | stainless steel 304 |
| 27 | Stop screw | stainless steel 304 |
| 28 | Adapter | carbon steel |
Material sketch of DA double-acting pneumatic actuators
Technical parameters of pneumatic valve DNOVA 4V320-0 8220V
| Characteristic | Value |
|---|---|
| Pneumatic Valve Model | 4V320-08 220V |
| Supply Voltage | 220V |
| Valve Type | Spool-type |
| Nominal Pressure | 12 bar |
| Operating Pressure | 1.5...8 bar |
| Ambient Temperature | -5 to +50 °C |
| Working Medium | Purified air (filtration 40 μm) |
| Actuation Frequency | 5 cycles/s |
| Protection Class | IP65 |
| Control Type | Double-solenoid |
| Body Material | Aluminum alloy and technopolymer |
| Response Time | 0.05 s |
| Working Channel Diameter | 1/4" |
Dimensions and dimensions of DNOVA 4V320-08 220V pneumatic directional control valve
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| H, mm | 82.4 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 82.4 |
| P, mm | 24 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
| V, mm | 4 |
Technical parameters of DNOVA AFC2000 air treatment unit
| Characteristic | Value |
|---|---|
| Operating Pressure | 8 bar |
| Maximum Pressure | 10 bar |
| Adjustable Pressure Range | 0.5...9 bar |
| Burst Pressure | 15 bar |
| Operating Temperature | -5°C to +60°C |
| Air Connection | 1/4" |
| Filtered Particle Size | 40 µm |
| Oil Viscosity | ISO VG 32 |
Dimensions and dimensions of DNOVA AFC2000 air treatment unit
| Model | AFC2000 |
| A, mm | 162 |
| B, mm | 88 |
| C, mm | 139 |
| D, mm | 31 |
| E, mm | 53.5 |
| F, mm | 12 |
| G, mm | 8 |
| H, mm | 7 |
| I, mm | 13.3 |
| J, mm | 39 |
| K, mm | 5 |
| L, mm | 40 |
| M, mm | 32 |
| N, mm | 53 |
| O, mm | 29 |
| P, mm | 6 |
| R, mm | 41.5 |
Technical data for DNOVA MON gearboxes (handwheels)
| Characteristic | Value |
|---|---|
| Operating Mode | Intermittent, Reversible |
| Working Medium | Filtered compressed air or non-aggressive gases, oils |
| Operating Temperature | -20°C to +80°C |
| Climatic Design | U, UHL, T, OM |
| Stroke | Mechanical limit 0-90° |
| Protection Degree | IP67 |
| Connection Type | ISO 5211 |
| Application | Water supply, heating, fire protection, heat points |
| Torque | 250-1200 Nm |
Dimensions and mounting dimensions of gearboxes (handwheels) DNOVA MON
| Model | D1 (mm) | D2 (mm) | D3 (mm) | D4 (mm) | C (mm) | M (mm) | b1 (mm) | N (mm) | b2 (mm) | A (mm) | B (mm) | F (mm) | T (mm) | Y (mm) | H (mm) | S (mm) | K (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HDM-1 | 50 | 70 | 50 | 70 | 88 | 16 | 14 | 22 | 14 | 90 | 55 | 115 | 44 | 145 | 120 | 53 | 10 |
| HDM-2 | 70 | 102 | 70 | 102 | 110 | 18 | 17 | 22 | 17 | 125 | 64 | 135 | 62.5 | 178 | 133 | 56.5 | 13 |
| HDM-3 | 102 | 125 | 102 | 125 | 129 | 22 | 22 | 28 | 22 | 140 | 71 | 166 | 70 | 212 | 180 | 68.7 | 12.5 |
| HDM-4 | 102 | 125 | 125 | 140 | 174 | 30 | 27 | 32 | 27 | 188.5 | 93 | 202 | 94 | 280 | 195 | 84 | 15 |
Gearbox (handwheel) component materials DNOVA MON
| № | Name | Material |
|---|---|---|
| 1 | Shaft for pneumatic actuator mounting | Steel 45 |
| 2 | Sealing ring | EPDM |
| 3 | Retaining spring | Spring steel |
| 4 | Upper end cover | Aluminum alloy |
| 5 | Screw | Steel 304 |
| 6 | Retaining clip (main linkage) | Steel 304 |
| 7 | Housing | Aluminum alloy |
| 8 | Sealing ring | EPDM |
| 9 | Gearbox | Cast iron |
| 10 | Adapter coupling | Cast iron |
| 11 | Gearbox shaft | Cast iron |
Dimension sketch of gearboxes (handwheels) DNOVA MON
- Body material
- Carbon steel
- Maximum allowable temperature
- 180 °C
- Connection type
- Compact flanged
- Control type
- Pneumatic actuator
- Operating environment
- Water, Acids, Alkalis, and Chemical Environment
- Applications
- Water Supply, Heating, Chemical Industry, Oil And Gas Industry, Food Industry, and Pulp And Paper Industry
- Nominal pressure
- 16 bar
- Type of seal
- PTFE
- Disc material
- Carbon steel
- Manual override
- Handwheel
- Limit switches
- No
- Supply voltage
- 220 V
- Type of pneumatic actuator
- double action
- Angle of rotation
- 90°
- Country of origin
- China
