How it works

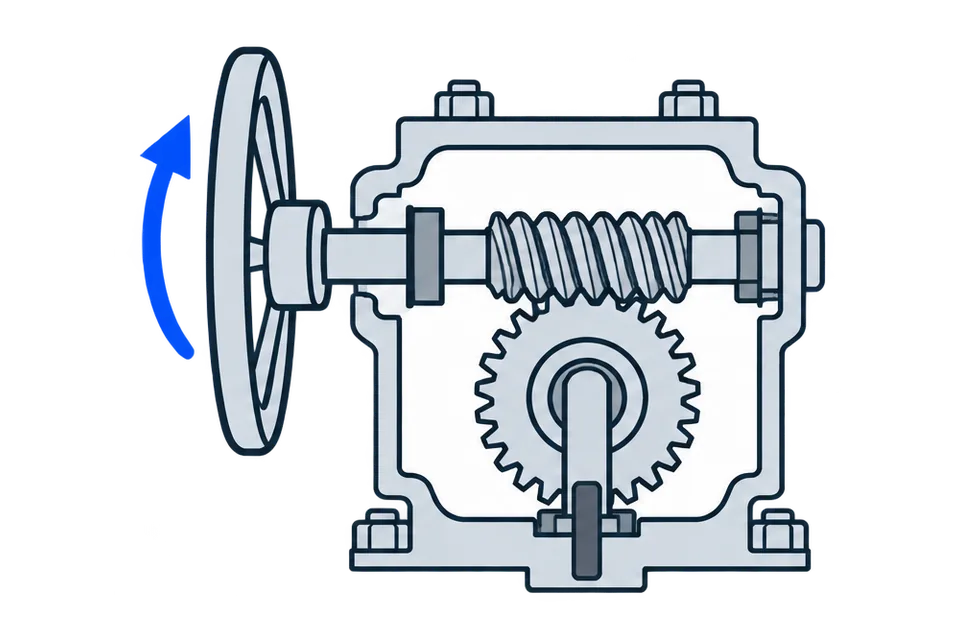

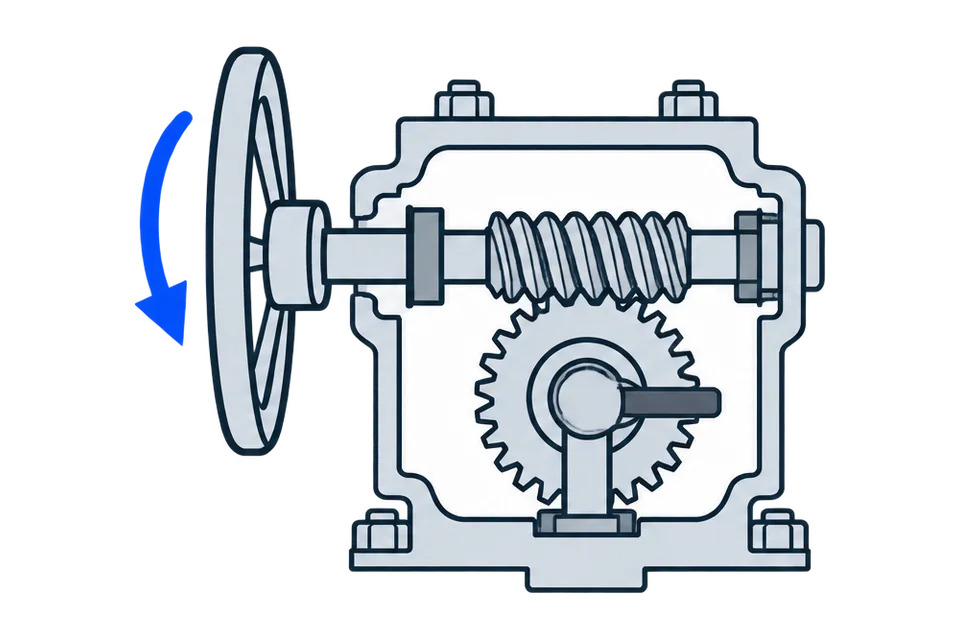

Manual quarter-turn gearbox
Butterfly disc
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Acids
- Alkalis
- Chemical Environment
- Water Supply
- Heating
- Chemical Industry
- Oil And Gas Industry
The butterfly valve is designed to be used as a shut-off or control valve to control flows in heat supply systems, water supply, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries.
Operating principle: The valves open and close by turning the disk 90°. Opening is done by turning the handle counterclockwise, closing - clockwise. A special feature of the valves of this series is the complete coating of the flow part and the disk with PTFE material, which eliminates contact of the working medium with the materials of the main parts.
The DNOVA HGBF reducer allows you to manually set the required positioning of the shut-off element by a quarter of a turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn drives.
A distinctive feature of this series of valves is that the flow path and disc are completely coated with PTFE, which prevents the working medium from coming into contact with the materials of the main components.
Technical characteristics of butterfly valves DNOVA WBV3434Pf-2W-Fb DN50-250 PN16 carbon steel WCB, PTFE:
| Characteristic | Meaning |
| Shutter type | rotary disc |
| Diameter | 50-250 mm |
| Nominal pressure | 16 bar |
| Working environment temperature | from -10 to +150°C |
| Application | water supply, heat supply, chemical industry, oil and gas industry, food industry, pulp and paper industry |
| Connection type | interflange |
| Control type | Manual (handle, gearbox) |
| Sealing class | A |
| Service life | 10 years |
| Guarantee | 12 months |
Technical characteristics of DNOVA HGBF RQN gearboxes:
| Characteristic | Meaning |
| Working environment temperature | from -30 to +120 °C |
| Application | water supply, heat supply, chemical industry, oil and gas industry, food industry, pulp and paper industry |
| Connection type | ISO 5211 |
Sketch of dimensions of butterfly valves DNOVA WBV3434Pf-2W-Fb DN50-250 PN16 carbon steel WCB, PTFE
Overall and installation dimensions of butterfly valves DNOVA WBV3434Pf-2W-Fb DN50-250 PN16 carbon steel WCB, PTFE:
| Diameter | L, mm | D1, mm | D2, mm | Z-Ød, mm | H1, mm |
| DN50 | 43 | 125 | 100 | 2-Ø18 | 80 |
| DN65 | 46 | 145 | 120 | 2-Ø18 | 90 |
| DN80 | 46 | 160 | 135 | 4-Ø18 | 100 |
| DN100 | 52 | 180 | 155 | 4-Ø18 | 110 |
| DN125 | 56 | 210 | 185 | 4-Ø18 | 120 |
| DN150 | 56 | 240 | 210 | 4-Ø18 | 150 |
| DN200 | 60 | 295 | 265 | 4-Ø18 | 170 |
| DN250 | 68 | 355 | 320 | 4-Ø18 | 190 |
| DN300 | 78 | 410 | 375 | 4-Ø18 | 230 |
Sketch of dimensions of gearboxes DNOVA HGBF RQN
Overall and installation dimensions of DNOVA HGBF RQN gearboxes:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | H, mm | d1, mm | D2, mm | D3, mm |
| HGB-1 | 165 | 127 | 84 | 66 | 12 | 47 | 73 | 35 | 81 | 50/70 |
| HGB-2 | 185 | 142 | 102 | 79 | 12 | 52 | 78 | 42 | 92 | 70(89) |
| HGB-3 | 250 | 190 | 140 | 112 | 16 | 68 | 108 | 55 | 125 | 70/102/125 |
| HGB-4 | 300 | 220 | 164 | 120 | 20 | 71 | 111 | 70 | 140 | 102/140(125) |
Sketch of materials of butterfly valves DNOVA WBV3434Pf-2W-Fb DN50-250 PN16 carbon steel WCB, PTFE
Materials of parts of butterfly valves DNOVA WBV3434Pf-2W-Fb DN50-250 PN16 carbon steel WCB, PTFE:
| № | Part Name | Material |
|---|---|---|
| 1 | Body |
DN50÷200 – Carbon steel WCB, lined with PTFE; |
| 2 | Disc | DN50÷200 – Carbon steel WCB, lined with PTFE; DN150÷200 – Carbon steel WCB, lined with PTFE; DN250÷300 – Carbon steel WCB, lined with PFA (enhanced PTFE) |
| 3 | Shaft | DN50÷200 – Stainless steel 2Cr13; DN150÷250 – Stainless steel 2Cr13; DN300 – Steel 45 |
| 4 | Seat seal | PTFE |
Sketch of gearboxes DNOVA HGBF RQN
Design of DNOVA HGBF RQN gearboxes:
| No. | Name | Material |
| 1 | Transparent indicator cover | PC Plycarton resin |
| 2 | Screw | steel 304 |
| 3 | Screw | steel 304 |
| 4 | Lid | aluminum ADC 12 |
| 5 | Worm gear reducer | cast iron QT450 |
| 6 | Adjusting screw | steel 304 |
| 7 | Rack | steel 45 |
| 8 | Case | butadiene-acrylonityl rubber |
| 9 | Sleeve | PZ2175 based on ketones |
| 10 | Bearing | alloy steel |
| 11 | Frame | aluminum ADC 12 |
| 12 | Bearing | alloy steel |
| 13 | Seal | rubber |
| 14 | Washer | steel 304 |
| 15 | Screw | steel 304 |
| 16 | Axis | steel 45 |
| 17 | Limit switch | - |
| 18 | Sealing ring | butadiene-acrylonityl rubber |
- Body material
- Carbon steel
- Maximum allowable temperature
- 180 °C
- Connection type
- Compact flanged
- Control type
- Gearbox
- Operating environment
- Water, Acids, Alkalis, and Chemical Environment
- Applications
- Water Supply, Heating, Chemical Industry, Oil And Gas Industry, Food Industry, and Pulp And Paper Industry
- Nominal pressure
- 16 bar
- Type of seal
- PTFE
- Disc material
- Carbon steel
- Limit switches
- No
- Country of origin
- China
