Description

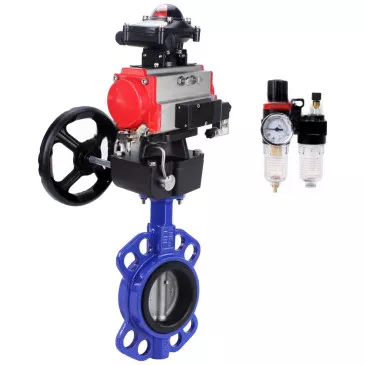

Butterfly valves DNOVA WBV3432V-2W-Fb-H are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Pneumatic valve DNOVA 4V320-10 220V is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
The DNOVA APL-410N EX limit switch unit is an electrotechnical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Thanks to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.
The DNOVA MON manual doubleturn actuator with worm gear and HDM reduction reducer enables manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.
The AFC2000 air treatment unit is designed to purify compressed air from dripping moisture and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from a reservoir in the compressed air stream to pneumatic system elements with a large capacity range from 500 liters/minute to 10,000 liters/minute. The lubricator adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.
Technical parameters of Butterfly valves DNOVA WBV3432V-2W-Fb-H, body - carbon steel WCB
| Name | Value |
|---|---|
| Nominal pressure PN, bar | 16 |
| Operating medium temperature, °C | -29 to 180 |
| Pipeline connection | Wafer |
| Valve type | Butterfly |
| Control type | Pneumatic actuator |
| Country of origin | China |
Table of parts and materials for butterfly valves DNOVA WBV3432V-2W-Fb-H, body - carbon steel WCB
| № | Name | Material |
| 1 | Body | WCB steel or AISI 316L stainless steel |
| 2 | Cuff | VITON |
| 3 | Disc | AISI 316L stainless steel |
| 4 | Stem | SS 416/2Cr13 stainless steel |
| 5 | Pin | AISI 316L stainless steel |
| 6 | Bushing | EPDM |
| 7 | Sealing ring | EPDM |
| 8 | Fixing plate | Carbon steel |
Sketch of parts and materials of Butterfly valves DNOVA WBV3432V-2W-Fb-H, body - carbon steel WCB
Technical data of DA double-acting pneumatic actuators:
| Type of pneumatic actuator | DA - double-acting |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | filtered compressed air |
| Maximum particle diameter of the working medium, µm2 | ≤30 |
| Ambient temperature, ⁰C | -20 to +80 |
| Swivel angle, ° | 0 - 90 |
| Swivel angle adjustment, % | ±5 |
| Position indicator | open/closed |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Average life, cycles closed/open | 70 000 (for non-aggressive media and medium pressure and temperature values) |
DA pneumatic actuators double-acting rotary actuators
Dimensions and mounting dimensions of DA double-acting pneumatic actuators:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm |
| DA-052 | 30 | 41,5 | 65,5 | 72 | 92 | 65 | 30 | 80 |
| DA-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 |
| DA-083 | 46 | 57 | 98,5 | 108,7 | 128,7 | 92 | 30 | 80 |
| DA-105 | 57,5 | 64 | 122,5 | 133 | 153 | 109,5 | 30 | 80 |
| DA-130 | 67,5 | 74,5 | 145,5 | 155 | 185 | 127,5 | 30 | 130 |
| DA-140 | 75 | 77 | 161 | 172 | 202 | 137,5 | 30 | 130 |
| DA-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 |
| DA-210 | 113 | 113 | 235,5 | 255 | 285 | 210 | 30 | 130 |
| DA-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 |
| DA-300 | 162 | 174 | 330 | 350 | 380 | 312 | 30 | 130 |
| DA-350 | 190 | 195 | 483 | 410 | 440 | 365 | 30 | 130 |
| Model | I, mm | J, mm | M, mm | N, mm | Z, mm | d, mm | K | L |
| DA-052 | 36 | 50 | 11x11 | 14 | 147 | 40 | M5x8 | M6x10 |
| DA-065 | 50 | 70 | 14x14 | 18 | 168 | 40 | M6x10 | M8x13 |
| DA-083 | 50 | 70 | 17x17 | 21 | 204 | 40 | M6x10 | M8x13 |
| DA-105 | 70 | 102 | 22x22 | 26 | 268 | 40 | M8x13 | M10x16 |
| DA-130 | 70 | 102 | 22x22 | 26 | 301 | 55 | M8x13 | M10x16 |
| DA-140 | 102 | 125 | 27x27 | 31 | 390 | 55 | M10x16 | M12x20 |
| DA-160 | 102 | 125 | 27x27 | 31 | 458 | 55 | M10x16 | M12x20 |
| DA-210 | - | 140 | 36x36 | 40 | 532 | 80 | - | M16x25 |
| DA-270 | - | 165 | 46x46 | 50 | 718 | 80 | - | M20x25 |
| DA-300 | - | 165 | 46x46 | 50 | 760 | 80 | - | M20x25 |
| DA-350 | 165 | 254 | 46x46 | 50 | 920 | 80 | M20x25 | 8xM16x25 |
Sketch of dimensions of DA double-acting pneumatic actuators
Materials of parts for DA double-acting pneumatic actuators:
| № | Part name | Material |
| 1 | Indicator screw | ABS plastic |
| 2 | Position indicator | ABS plastic |
| 3 | Spring clip | stainless steel 304 |
| 4 | Metal washer | stainless steel 304 |
| 5 | Pressure washer | engineering plastic |
| 6 | Housing | hard anodized extruded aluminum alloy |
| 7 | Pressure washer | engineering plastic |
| 8 | Limiter | alloy steel |
| 9 | Shaft sealing ring upper | NBR |
| 10 | Upper shaft sliding ring | engineering plastic |
| 11 | Shaft | nickel plated alloy steel |
| 12 | Shaft sliding ring lower | engineering plastic |
| 13 | Shaft O-ring lower | NBR |
| 14 | Plug | NBR |
| 15 | Seal ring of adjusting screws | NBR |
| 16 | Washer of adjusting screw | stainless steel 304 |
| 17 | Lock nut of adjusting screw | stainless steel 304 |
| 18 | Adjusting screw | stainless steel 304 |
| 19 | Piston | die-cast aluminum alloy |
| 20 | Piston guide plate | engineering plastic |
| 21 | Piston sliding ring | engineering plastic |
| 22 | Piston O-ring | NBR |
| 23 | Spring set | spring steel |
| 24 | Cover O-ring | NBR |
| 25 | End cap | cast aluminum with polyester coating |
| 26 | Cover screw | stainless steel 304 |
| 27 | Stop screw | stainless steel 304 |
| 28 | Adapter | carbon steel |
Material sketch of DA double-acting pneumatic actuators
Technical parameters of pneumatic valve DNOVA 4V320-10 220V
| Name | Value |
|---|---|
| Type of pneumatic valve | Spool-type |
| Model of pneumatic valve | 4V320-10 220V |
| Operating pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220 V |
| Actuation frequency, cycles/sec | 5 |
Technical parameters of limit switch unit DNOVA APL-410N EX
| Name | Value |
|---|---|
| Limit switch box model | APL-410N EX |
| Service life, years | 10 |
Parts and materials table for DNOVA APL-410N EX limit switch unit
| № | Part Name | Material |
|---|---|---|
| 1 | Visual Indicator | ABS plastic / polycarbonate |
| 2 | Visual Indicator Cover | Polycarbonate |
| 3 | Label | |
| 4 | Cover Screws | Stainless steel |
| 5 | Limit Switch Box Cover | Die-cast aluminum |
| 6 | Shaft | Stainless steel |
| 7 | Limit Switches | |
| 8 | Cams (Eccentrics) | Polycarbonate |
| 9 | Limit Switch Box Body | Die-cast aluminum |
| 10 | Terminal Block | |
| 11 | Ground Terminal | Stainless steel |
| 12 | Cable Entry Hole (Threaded) | |
| 13 | Bracket | Stainless steel |
Technical parameters of handwheels DNOVA MON
| Name | Value |
|---|---|
| Mounting Method | Horizontal/Vertical |
| Protection Rating, IP | 67 |
| Connection Type | ISO 5211 |
Parts and materials table for handwheel DNOVA MON
| № | Name | Material |
|---|---|---|
| 1 | Stem for Pneumatic Actuator Installation | Steel 45 |
| 2 | O-Ring | EPDM |
| 3 | Retaining Spring | Spring Steel |
| 4 | Upper End Cap | Aluminum Alloy |
| 5 | Screw | Steel 304 |
| 6 | Retaining Bracket (Main Link) | Steel 304 |
| 7 | Housing | Aluminum Alloy |
| 8 | O-Ring | EPDM |
| 9 | Gearbox | Ductile Iron QT50 |
| 10 | Adapter Coupling | Ductile Iron QT40 |
| 11 | Gearbox Stem | Ductile Iron QT40 |
Main parameters of air treatment unit DNOVA AFC2000
| Name | Value |
|---|---|
| Operating Pressure, bar | 8 |
| Maximum Pressure, bar | 10 |
| Adjustable Pressure Range, bar | 0.5 ÷ 9 |
| Burst Pressure, bar | 15 |
| Air Connection | 1/4" |
| Operating Temperature, °C | -5 to +60 |
| Filtered Particle Size, µm | 40 |
| Oil Viscosity | ISO VG 32 |
| Weight, kg | 0.395 |
| Package Contents | Filter-water separator, pressure regulator, lubricator, bracket |
Sketch of BPV DNOVA AFC2000
