Description
Butterfly valves are designed to be used as shut-off or control valves for managing flows in heating systems, water supply systems, and technological processes in the food, chemical, oil and gas, pulp and paper, and other industries.
The reducer allows manual positioning of the shut-off element at a quarter turn, serving as an alternative to pneumatic, electric, or hydraulic quarter-turn actuators.

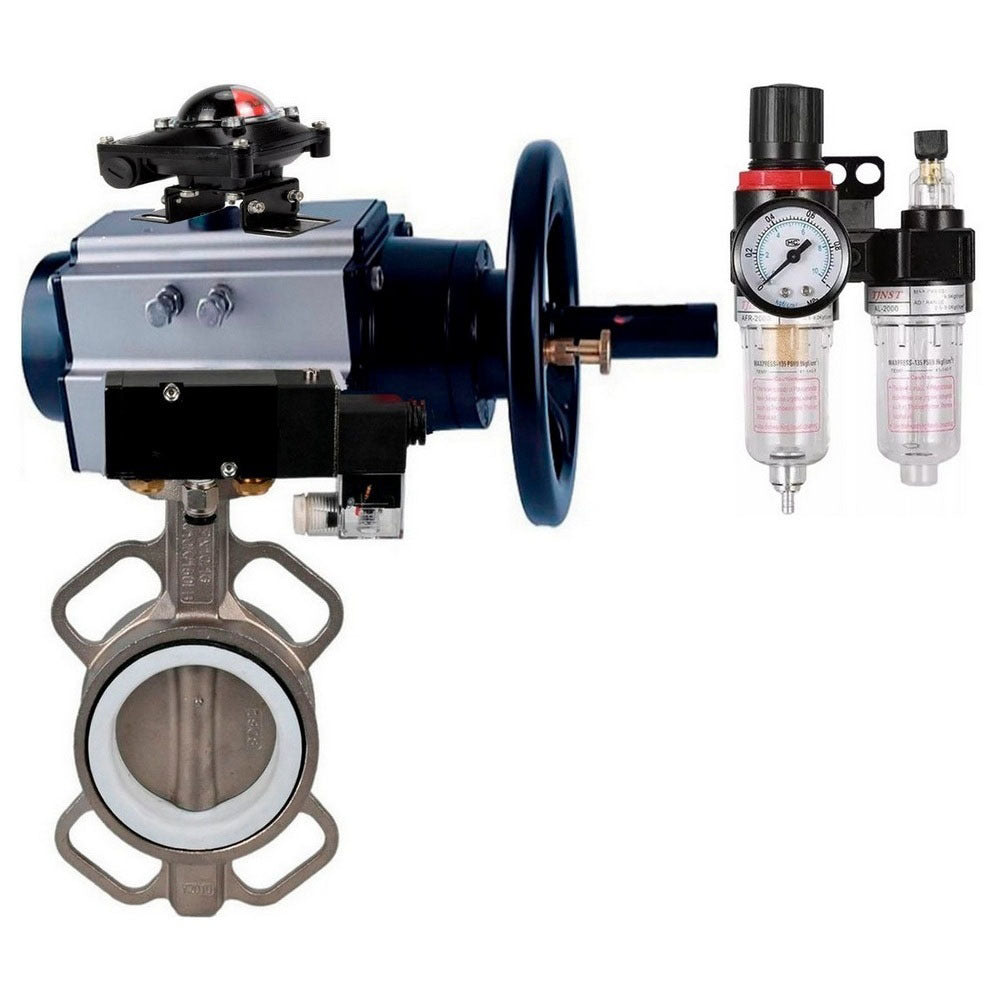

Technical parameters water butterfly valve DNOVA WBV3432N-2W-Fb body material - Carbon steel, disk material - Stainless steel AISI 316L/1.4404, seal - NBR with pneumatic actuator double acting PA-DA-105-1, pneumatic distributor 4V320-10 220V, limit switch APL-510N-EX:
|
Name |
Value |
|
Working pressure, bar |
16 |
|
Application |
Water supply, heat supply |
|
Pipeline connection |
Interflanged |
|
Gate type |
Rotary disk |
|
Control type |
Pneumatic actuator |
|
Country of manufacture |
China |
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4ʺ |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Parameters of pneumatic valve 4V320-10 220V:
| Name | Value |
| Type of pneumatic valve | Spool valve |
| Working pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220 V |
| Total power, V-A | 4.5 |
| Control | Two-way electromagnetic |
| Response frequency, cycle/sec | 5 |
Main technical characteristics of DNOVA APL-510N-EX limit switch unit:
| Cable glands | 2 x NPT3/4" |
| Protection degree of enclosure, IP | 67 |
| Nominal voltage, V | 250 |
| Approved ambient temperature, °C | from -40 to +80 |
| Service life, years | 10 |
Dimensions and dimensions of DNOVA APL-510N-EX limit switch unit:
| H, mm | L, mm | B, mm | D, mm | D1, mm | M, mm |
| 77 | 112 | 88 | 10 | 5 | 20x1.5 |
Technical parameters of DNOVA AFC2000 air treatment unit:
| Name | Value |
| Working pressure, bar | 8 |
| Adjustable pressure range, bar | 0.5 ÷ 9 |
| Filterable particle size, µm | 40 µm |
| Weight, kg | 0.395 |
Specifications
