In detail
What it is made of
How it works

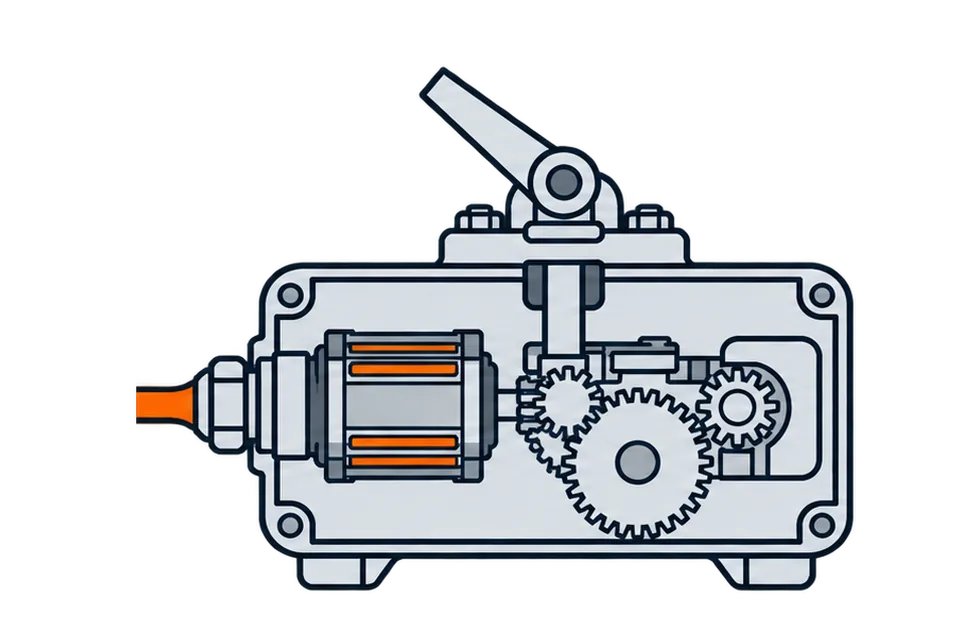

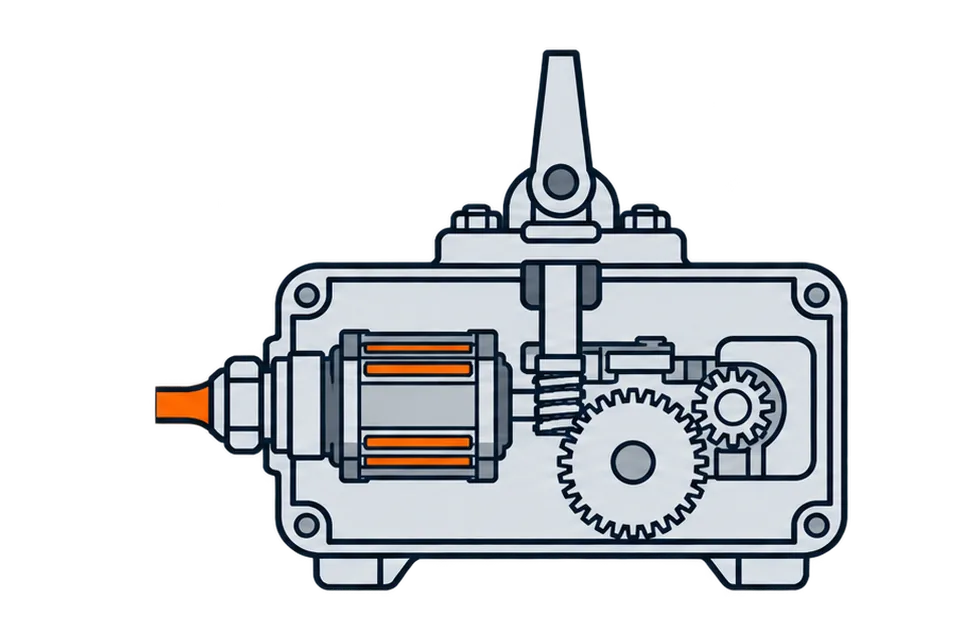

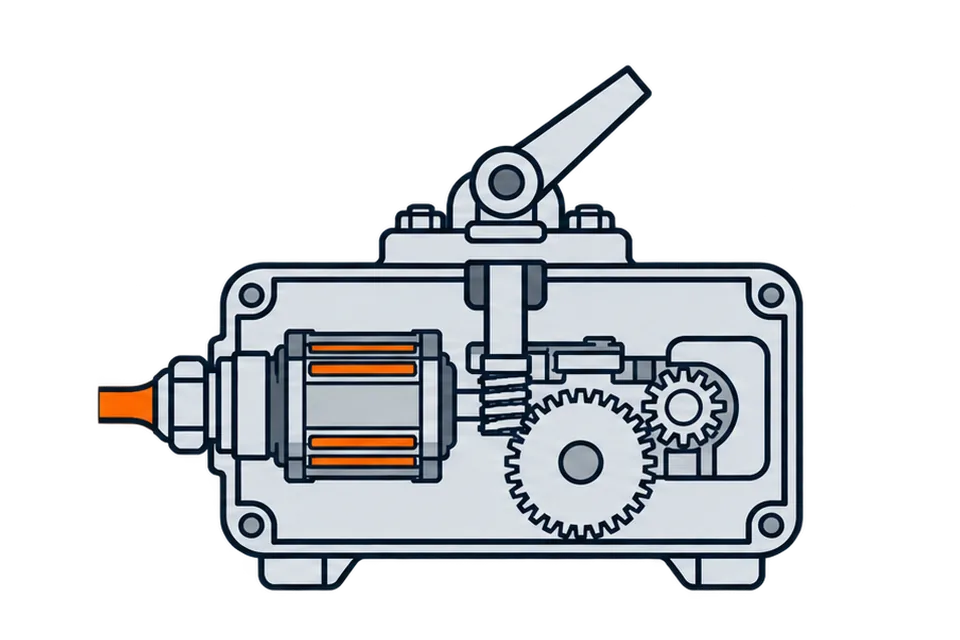

Modulating quarter-turn actuator
Butterfly disc
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Air
- Cold And Hot Water
- Neutral Media
- Water Supply
- Heating
- Chemical Industry
- Oil And Gas Industry
- Food Industry
Quarter-turn disc gate valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Quarter-turn actuators are designed for remote and local control of 0° ~ 270° rotation of a shut-off valve of such types as ball valve, etc.
Operating principle: electric actuators are installed directly on pipeline valves. The mounting dimensions comply with the international standard ISO 05211 / DIN3337. Four microswitches are used to limit the travel of the output shaft to the end positions of the valve actuator. The actuators are designed for operation in nominal short-time mode S2.
Technical parameters of water butterfly valve DNOVA WBV3432E-2W-Fb-H, body material - Carbon steel, disk material - stainless steel AISI 316L, seal - EPDM, electric actuator QT-N-xEM-B1 220V:
|
Characteristic |
Value |
|
Type of valve |
Rotary disc |
|
Diameter |
40–250 mm |
|
Nominal pressure |
16 bar |
|
Working medium temperature |
From -20 to +120°C |
|
Application |
Water supply, heat supply, chemical industry, oil and gas industry, food industry, pulp and paper industry |
|
Type of connection |
Interflanged |
|
Type of control |
Electric actuator |
|
Tightness class |
A |
|
Country of manufacture |
China |
|
Service life |
10 years |
|
Warranty |
12 months |
Technical characteristics of quarter-turn actuators DNOVA QT-N-xEM-B1 220V:
|
Parameter |
Value |
|
Type of electric actuator |
Quarter-turn |
|
Supply voltage |
220V |
|
Ambient temperature |
From -20 to +70 °C |
|
Application |
Water supply, heat supply, chemical industry, oil and gas industry, food industry, pulp and paper industry |
|
Type of connection |
ISO 5211 |
Dimensions and installation sizes of water butterfly valve DNOVA WBV3432E-2W-Fb-H, body material - Carbon steel, disk material - stainless steel AISI 316L, seal - EPDM, electric actuator QT-N-xEM-B1 220V:
| DN | H1, mm | H2, mm | Dm, mm | Dk, mm | L, mm | ØC, mm |
| DN40/50 | 66 | 126 | 73 | 90 | 43 | 125 |
| DN50 | 66 | 126 | 73 | 90 | 43 | 125 |
| DN65 | 74 | 137 | 85 | 103 | 46 | 145 |
| DN80 | 91 | 146 | 100 | 116 | 46 | 160 |
| DN100 | 105 | 166 | 131 | 151 | 52 | 180 |
| DN125 | 121 | 182 | 155 | 174 | 56 | 210 |
| DN150 | 134 | 198 | 184 | 205 | 56 | 240 |
| DN200 | 169 | 223 | 234 | 255 | 60 | 295 |
| DN250 | 200 | 270 | 288 | 315 | 68 | 355 |
| DN300 | 240 | 299 | 340 | 375 | 78 | 410 |
Overall and installation sizes of quarter-turn actuators DNOVA QT-N-xEM-B1 220V:
| Model | X, mm | Z, mm | Y, mm | H, mm | G, mm |
| QT-003 | 123 | 113 | 123 | - | - |
| QT-005 | 160 | 121 | 146 | 40 | 114 |
| QT-008 | 188 | 127 | 145 | 40 | 114 |
| QT-010 | 189 | 129 | 163 | 40 | 114 |
| QT-015 | 189 | 129 | 163 | 40 | 114 |
| QT-030 | 268 | 164 | 212 | 40 | 114 |
| QT-040 | 268 | 164 | 212 | 40 | 114 |
| QT-060 | 268 | 164 | 255 | 40 | 114 |
Materials of parts of water butterfly valve DNOVA WBV3432E-2W-Fb-H, body material - Carbon steel, disk material - stainless steel AISI 316L, seal - EPDM, electric actuator QT-N-xEM-B1 220V:
| № | Name | Material |
| 1 | Housing | WCB steel or AISI 316L stainless steel |
| 2 | Cuff | EPDM, PTFE, NBR |
| 3 | Disc | AISI 316L stainless steel |
| 4 | Rod | SS 416/2Cr13 stainless steel |
| 5 | Pin | AISI 316L stainless steel |
| 6 | Bushing | EPDM |
| 7 | Sealing ring | EPDM |
| 8 | Fixing plate | carbon steel |
Construction of quarter-turn actuators DNOVA QT-N-xEM-B1 220V:
|
№ |
Name |
|
1 |
Output shaft |
|
2 |
Cable lock |
|
3 |
Mechanical limiter |
|
4 |
Manual wrench |
|
5 |
Body |
|
6 |
Modular box |
|
7 |
Cover |
|
8 |
Viewing window |
|
9 |
Dust protection |
- Body material
- Carbon steel
- Maximum allowable temperature
- 120 °C
- Connection type
- Compact flanged
- Control type
- Electric actuator
- Operating environment
- Air, Cold And Hot Water, and Neutral Media
- Applications
- Water Supply, Heating, Chemical Industry, Oil And Gas Industry, Food Industry, and Pulp And Paper Industry
- Nominal pressure
- 16 bar
- Type of seal
- EPDM
- Disc material
- Stainless steel AISI 316L
- Explosion-proof
- No
- Manual override
- Hexagon
- Limit switches
- Yes
- Type of electric actuator
- Quarter-turn
- Control signal
- 0-10 V
- Supply voltage
- 220 V
- Angle of rotation
- 90°
- Country of origin
- China
