Description
Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
Pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
The limit switch unit is designed for visual and electrical signaling of the end positions of the valve shut-off device: valve, crane or disk gate. It is mounted on top of the pneumatic actuator surface and connected to the actuator shaft in DIN standard. The sealed box usually contains two sensors, which monitor the position of the actuator shaft and signalize in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors.
The HDM worm gear manual doubleturn actuator with reduction gearbox allows manual adjustment of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.

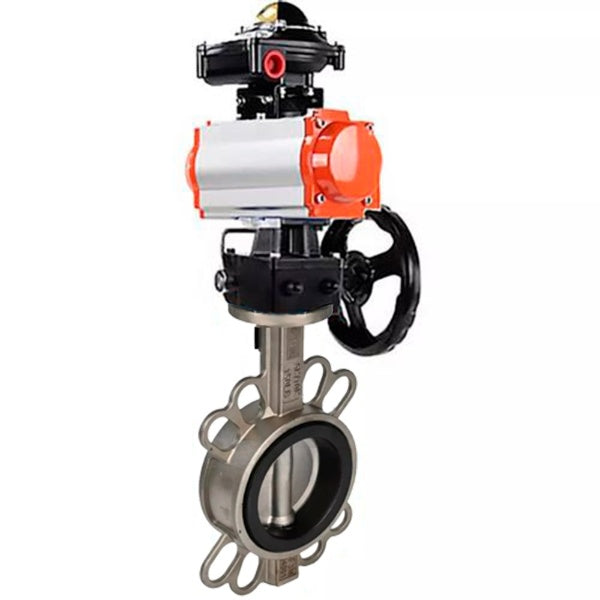

Technical parameters of Water Butterfly Valve DNOVA WBV3131N-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - NBR, pneumatic actuator PA-DA double action, LSU APL-410N EX, handwheel MON:
| Characteristic | Meaning |
| Gate type | rotary disk |
| Diameter | 50-250 mm |
| Nominal pressure | 16 bar |
| Working medium temperature | -10 to +90°C |
| Application | water supply, heat supply, chemical industry, oil and gas industry, food industry, pulp and paper industry |
| Connection type | interflange |
| Control type | pneumatic actuator |
| Sealing class | A |
| Manufacturer's country | China |
| Service life | 10 years |
| Warranty | 12 months. |
Butterfly valves WBV3131N-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - NBR, pneumatic actuator PA-DA double action, LSU APL-410N EX, handwheel MON
Dimensions and dimensions of butterfly valves DNOVA WBV3131N-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - NBR, pneumatic actuator PA-DA double action, LSU APL-410N EX, handwheel MON:
| Diameter | A, mm | B, mm | C, mm | PCD, mm | ØD, mm | H, mm | Q° |
| DN50 | 72.5 | 130.5 | 43 | 125 | 19 | 220 | 45 |
| DN65 | 77.5 | 146.5 | 46 | 145 | 19 | 220 | 45 |
| DN80 | 92 | 156 | 46 | 160 | 19 | 220 | 22.5 |
| DN100 | 109 | 168.5 | 52 | 180 | 19 | 260 | 22.5 |
| DN125 | 127 | 190.5 | 56 | 210 | 19 | 260 | 22.5 |
| DN150 | 141 | 213.5 | 56 | 240 | 23 | 260 | 22.5 |
| DN200 | 166 | 246.5 | 60 | 295 | 23 | - | 15 |
| DN250 | 203 | 283 | 68 | 355 | 28 | - | 15 |
Sketch Butterfly valves WBV3131N-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - NBR, pneumatic actuator PA-DA double action, LSU APL-410N EX, handwheel MON
Materials of butterfly valves DNOVA WBV3131N-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - NBR, pneumatic actuator PA-DA double action, LSU APL-410N EX, handwheel MON:
| № | Part name | Material |
| 1 | Body | stainless steel 304 |
| 2 | Disk | stainless steel 304 |
| 3 | Seat seal | NBR |
| 4 | Stem | stainless steel SS 416 |
| 5 | Handle | carbon steel |
Sketch of parts and materials Butterfly valves WBV3131N-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - NBR, pneumatic actuator PA-DA double action, LSU APL-410N EX, handwheel MON
Technical data of DA double-acting pneumatic actuators:
| Type of pneumatic actuator | DA - double-acting |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2...8 |
| Working medium | filtered compressed air |
| Maximum particle diameter of the working medium, µm2 | ≤30 |
| Ambient temperature, ⁰C | -20 to +80 |
| Swivel angle, ° | 0 - 90 |
| Swivel angle adjustment, % | ±5 |
| Position indicator | open/closed |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Average life, cycles closed/open | 70 000 (for non-aggressive media and medium pressure and temperature values) |
DA pneumatic actuators double-acting rotary actuators
Dimensions and mounting dimensions of DA double-acting pneumatic actuators:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm |
| DA-052 | 30 | 41,5 | 65,5 | 72 | 92 | 65 | 30 | 80 |
| DA-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 |
| DA-083 | 46 | 57 | 98,5 | 108,7 | 128,7 | 92 | 30 | 80 |
| DA-105 | 57,5 | 64 | 122,5 | 133 | 153 | 109,5 | 30 | 80 |
| DA-130 | 67,5 | 74,5 | 145,5 | 155 | 185 | 127,5 | 30 | 130 |
| DA-140 | 75 | 77 | 161 | 172 | 202 | 137,5 | 30 | 130 |
| DA-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 |
| DA-210 | 113 | 113 | 235,5 | 255 | 285 | 210 | 30 | 130 |
| DA-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 |
| DA-300 | 162 | 174 | 330 | 350 | 380 | 312 | 30 | 130 |
| DA-350 | 190 | 195 | 483 | 410 | 440 | 365 | 30 | 130 |
| Model | I, mm | J, mm | M, mm | N, mm | Z, mm | d, mm | K | L |
| DA-052 | 36 | 50 | 11x11 | 14 | 147 | 40 | M5x8 | M6x10 |
| DA-065 | 50 | 70 | 14x14 | 18 | 168 | 40 | M6x10 | M8x13 |
| DA-083 | 50 | 70 | 17x17 | 21 | 204 | 40 | M6x10 | M8x13 |
| DA-105 | 70 | 102 | 22x22 | 26 | 268 | 40 | M8x13 | M10x16 |
| DA-130 | 70 | 102 | 22x22 | 26 | 301 | 55 | M8x13 | M10x16 |
| DA-140 | 102 | 125 | 27x27 | 31 | 390 | 55 | M10x16 | M12x20 |
| DA-160 | 102 | 125 | 27x27 | 31 | 458 | 55 | M10x16 | M12x20 |
| DA-210 | - | 140 | 36x36 | 40 | 532 | 80 | - | M16x25 |
| DA-270 | - | 165 | 46x46 | 50 | 718 | 80 | - | M20x25 |
| DA-300 | - | 165 | 46x46 | 50 | 760 | 80 | - | M20x25 |
| DA-350 | 165 | 254 | 46x46 | 50 | 920 | 80 | M20x25 | 8xM16x25 |
Sketch of dimensions of DA double-acting pneumatic actuators
Materials of parts for DA double-acting pneumatic actuators:
| № | Part name | Material |
| 1 | Indicator screw | ABS plastic |
| 2 | Position indicator | ABS plastic |
| 3 | Spring clip | stainless steel 304 |
| 4 | Metal washer | stainless steel 304 |
| 5 | Pressure washer | engineering plastic |
| 6 | Housing | hard anodized extruded aluminum alloy |
| 7 | Pressure washer | engineering plastic |
| 8 | Limiter | alloy steel |
| 9 | Shaft sealing ring upper | NBR |
| 10 | Upper shaft sliding ring | engineering plastic |
| 11 | Shaft | nickel plated alloy steel |
| 12 | Shaft sliding ring lower | engineering plastic |
| 13 | Shaft O-ring lower | NBR |
| 14 | Plug | NBR |
| 15 | Seal ring of adjusting screws | NBR |
| 16 | Washer of adjusting screw | stainless steel 304 |
| 17 | Lock nut of adjusting screw | stainless steel 304 |
| 18 | Adjusting screw | stainless steel 304 |
| 19 | Piston | die-cast aluminum alloy |
| 20 | Piston guide plate | engineering plastic |
| 21 | Piston sliding ring | engineering plastic |
| 22 | Piston O-ring | NBR |
| 23 | Spring set | spring steel |
| 24 | Cover O-ring | NBR |
| 25 | End cap | cast aluminum with polyester coating |
| 26 | Cover screw | stainless steel 304 |
| 27 | Stop screw | stainless steel 304 |
| 28 | Adapter | carbon steel |
Material sketch of DA double-acting pneumatic actuators
Technical parameters of the handwheel MON:
| Name | Value |
| Climatic version | U,UHL,T,OM |
| Degree of protection, IP | 67 |
| Connection type | ISO 5211 |
Manual doubler MON
Dimensions and dimensions of the handwheel MON:
| Model | MON1-250-T26-ISO | MON2-450-T28-ISO | MON3-700-T38-ISO | MON4-1200-T54-ISO |
| b1, mm | 14 | 17 | 22 | 27 |
| N, mm | 22 | 22 | 28 | 32 |
| b2, mm | 14 | 17 | 22 | 27 |
| M, mm | 16 | 18 | 22 | 30 |
| D1, mm | Ø50 | Ø70 | Ø102 | Ø102 |
| 4-M1, mm | 4-M6 | 4-M8 | 4-M10 | 4-M10 |
| D2, mm | Ø70 | Ø102 | Ø125 | Ø125 |
| 4-M2, mm | 4-M8 | 4-M10 | 4-M12 | 4-M12 |
| E, mm | 70x70 | 95x95 | 114x114 | 129x129 |
| D3, mm | Ø50 | Ø70 | Ø102 | Ø125 |
| 4-Ø1, mm | 4-Ø6.5 | 4-Ø8.5 | 4-Ø10.5 | 4-Ø12.5 |
| D4, mm | Ø70 | Ø102 | Ø125 | Ø140 |
| 4-Ø2, mm | 4-Ø8.5 | 4-Ø10.5 | 4-Ø12.5 | 4-Ø16.5 |
| A, mm | 90 | 125 | 140 | 188.5 |
| B, mm | 55 | 64 | 71 | 93 |
| ØC, mm | Ø88 | Ø110 | Ø129 | Ø174 |
| F, mm | 115 | 135 | 166 | 202 |
| T, mm | 44 | 62.5 | 70 | 94 |
| Y, mm | 145 | 178 | 212 | 280 |
| H, mm | 120 | 133 | 180 | 195 |
| S, mm | 53 | 56.5 | 68.7 | 84 |
| K, mm | 10 | 13 | 12.5 | 15 |
| Ø hand wheel, mm | 180 | 200 | 280 | 320 |
Sketch of dimensions and dimensions of the MON handwheel MON
MON handwheel materials:
| № | Name | Material |
| 1 | Stem for mounting the pneumatic actuator | Steel 45 |
| 2 | Sealing ring | EPDM |
| 3 | Fixing spring | Spring steel |
| 4 | Upper end cover | Aluminum alloy |
| 5 | Screw | Steel 304 |
| 6 | Locking bracket (main rod) | Steel 304 |
| 7 | Housing | Aluminum alloy |
| 8 | Sealing ring | EPDM |
| 9 | Gear unit | Cast iron BCh50 |
| 10 | Transition coupling | Cast iron BCh40 |
| 11 | Gear stem | Cast iron BCh40 |
Materials of the handwheel
Technical parameters of limit switch unit APL-410N EX:
| Name | Value |
| Model of limit switch unit | APL-410N EX |
| Maximum voltage of limit switch, V | 250 |
| Working environment temperature, °C | -40 to +80 |
| Service life, years | 10 |
Limit switch unit APL-410N EX
Dimensions and dimensions of limit switch unit APL-410N EX:
| Model | D, mm | D1, mm | H, mm | L, mm | B, mm | M, mm |
| APL-410N EX | 9.5 | 5 | 174 | 177 | 178 | 8 |
Sketch of dimensions and dimensions of limit switch unit APL-410N EX
