How it works
Spring-return rotary actuator
Butterfly disc
Rotary positioner
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Water
- Steam
- Aggressive Media
- Abrasive Media
- Water Supply
- Heating
- Chemical Industry
- Oil And Gas Industry
The butterfly valve is designed to be used as a shut-off or regulating valve for flow control in heat supply systems, water supply, in technological processes of the food, chemical, oil and gas, pulp and paper and other industries.
Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
DNOVA pneumatic rotary actuators double-acting PA-DA and pneumatic rotary actuators with return spring PA-SA are designed to automate the process of controlling industrial valves at a maximum torque of up to 2128 Nm.
The electropneumatic rotary positioner is used to control pneumatic rotary actuators using an electric controller or a control system with an analog DC output signal in the range from 4 to 20 mA.
Operating principle: The positioner operates based on force balancing. The positioner uses a nozzle-flap device and a feedback servomechanism (a system of springs and levers) to bring the control force and the feedback force into equilibrium when the pneumatic actuator (valve) reaches the position corresponding to the control signal.

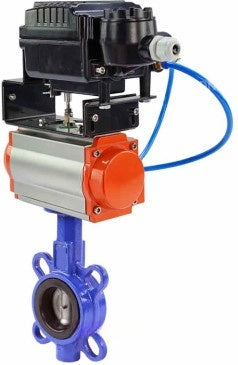

Technical characteristics of butterfly valves DNOVA WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN with feedback
| Characteristic | Meaning |
| Shutter type | rotary disc |
| Diameter | 40-300 mm |
| Nominal pressure | 16 bar |
| Working environment temperature | from -20 to +110°C |
| Application | water supply, heat supply, chemical industry, oil and gas industry, food industry |
| Connection type | interflange |
| Control type | pneumatic drive |
| Sealing class | A |
| Service life | 10 years |
| Guarantee | 12 months |
Rotary pneumatic actuators DNOVA with return springs PA-SA
Technical characteristics of DNOVA rotary pneumatic actuators with return springs PA-SA:
| Characteristic | Meaning |
| Pneumatic drive type | with return springs |
| Drive torque | 30-594 Nm |
| Nominal pressure | 12 bar |
| Working pressure | 2...8 bar |
| Maximum particle diameter | less than 30 µm2 |
| Working environment | filtered compressed air or non-aggressive gases, oils |
| Adjustment range | ±5° for rotation at 0° and 90° |
| Air supply | G1/4" |
| Connection type | ISO5211 |
Electropneumatic rotary positioners DNOVA YT-1000RSN without feedback
Technical characteristics of electropneumatic rotary positioners DNOVA YT-1000RSN without feedback:
| Characteristic | Meaning |
| Model of electropneumatic positioner | YT-1000RSN |
| Input control signal | 4-20 mA |
| Internal resistance | 250 ± 15 Ohm |
| Input pressure | 1.4-7 bar |
| Lever stroke angle | 0-90° |
| Compressed air connection thread | 1/4" |
| Pressure gauge connection thread | 1/8" |
| Cable entry | G1/2" |
| Type of protection | IP66 |
| Operating temperature | from -20°C to +70°C |
| Permissible ambient humidity | 10-90RH |
| Linearity | ±1% |
| Hysteresis | ±1% |
| Sensitivity | ±0.2% |
| Repeatability | ±0.5% |
| Compressed air consumption | 3 l/min (at a pressure of 1.4 bar) |
| Air flow at outlet | 80 l/min (at a pressure of 1.4 bar) |
| Body material | aluminum casting |
Sketch of dimensions of butterfly valves for abrasive media DNOVA WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN with feedback
Overall and installation dimensions of butterfly valves for abrasive media DNOVA WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, pneumatic actuator PA-SA with return springs, positioner YT-1000RSN with feedback
| Diameter | L, mm | H, mm | H1, mm | D2, mm | D1, mm | nd, mm |
| DN40 | 43 | 147 | 70 | 92 | 125 | 4-23 |
| DN50 | 43 | 147 | 70 | 92 | 125 | 4-23 |
| DN65 | 46 | 155 | 76 | 110 | 145 | 4-23 |
| DN80 | 46 | 164 | 92 | 121 | 160 | 8-20 |
| DN100 | 52 | 175 | 106 | 153 | 180 | 4-23 |
| DN125 | 56 | 194 | 119 | 176 | 210 | 4-23 |
| DN150 | 56 | 206 | 132 | 207 | 240 | 4-25 |
| DN200 | 60 | 237 | 162 | 259 | 295 | 4-25 |
| DN250 | 68 | 282 | 200 | 316 | 355 | 4-28 |
| DN300 | 78 | 311 | 225 | 370 | 410 | 4-28 |
Sketch of the dimensions of rotary pneumatic actuators DNOVA with return springs PA-SA
Overall and installation dimensions of rotary pneumatic actuators DNOVA with return springs PA-SA:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | M, mm | N, mm | O, mm | P, mm |
| PA-DA(SA)-052 | 108 | 153 | 30 | 41 | 72 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-065 | 125 | 174 | 36 | 46 | 89 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-083 | 152 | 216 | 46 | 55 | 109 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-105 | 189 | 279 | 55 | 64 | 134 | 26 | 25 | 80 | 30 | 41 | 20 |
| PA-DA(SA)-130 | 210 | 308 | 67.5 | 70 | 157 | 36 | 25 | 80 | 30 | 62 | 30 |
| PA-DA(SA)-140 | 268 | 405 | 76 | 77 | 174 | 36 | 30 | 130 | 30 | 62 | 30 |
| PA-DA(SA)-160 | 310 | 465 | 87.5 | 87.5 | 199 | 38 | 30 | 130 | 30 | 62 | 30 |
| PA-DA(SA)-210 | 390 | 542 | 113 | 113 | 257 | 38 | 40 | 130 | 30 | 79 | 30 |
| PA-DA(SA)-270 | 510 | 722 | 146 | 146 | 333 | 38 | 52 | 130 | 30 | 79 | 30 |
Sketch of dimensions of electropneumatic rotary positioners DNOVA YT-1000RSN without feedback
Overall and installation dimensions of electropneumatic rotary positioners DNOVA YT-1000RSN without feedback:
| A, mm | 224.3 |
| B, mm | 165.5 |
| C, mm | 117.5 |
| D, mm | 132.3 |
| E, mm | 6 |
| F, mm | 122 |
| G, mm | 45 |
| H, mm | 45 |
| I, mm | 23 |
| J, mm | 27 |
| K, mm | 32.5 |
| L, mm | 35.5 |
| M, mm | 91.8 |
| N, mm | 37.2 |
| O, mm | 43.5 |
| P, mm | 26.5 |
| Q, mm | 33 |
| R, mm | 80.25 |
| S, mm | 62.5 |
| T, mm | 8 |
Sketch of materials of butterfly valves for abrasive media DNOVAu WBV1632E-2W-Fb DN40-300 PN16 body - cast iron QT450, disk - stainless steel 316L, EPDM
Materials of parts of butterfly valves for abrasive media DNOVA WBV1632E-2W-Fb DN40-300 PN16 body - cast iron QT450, disk - stainless steel 316L, EPDM:
| No. | Part name | Material |
| 1 | Frame | cast iron QT450 |
| 2 | Disk | Stainless steel 316L |
| 3 | Saddle seal | EPDM + wear-resistant material (siliclone+graphite) |
| 4 | Stock | steel 2Cr13 |
Sketch of rotary pneumatic actuators DNOVA with return springs PA-SA
Design of rotary pneumatic actuators DNOVA with return springs PA-SA:
| № | Name | Material |
| 1 | Enclosure | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clip | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjustment nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
- Body material
- cast iron QT450
- Maximum allowable temperature
- 110 °C
- Connection type
- Compact flanged
- Control type
- Pneumatic actuator
- Operating environment
- Water, Steam, Aggressive Media, and Abrasive Media
- Applications
- Water Supply, Heating, Chemical Industry, Oil And Gas Industry, and Food Industry
- Nominal pressure
- 16 bar
- Type of seal
- EPDM
- Disc material
- Stainless steel AISI 316L
- Manual override
- No
- Limit switches
- No
- Control signal
- 4-20 mA
- Type of pneumatic actuator
- with return springs
- Angle of rotation
- 90°
- Country of origin
- China
Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.
Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.
To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.
Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
