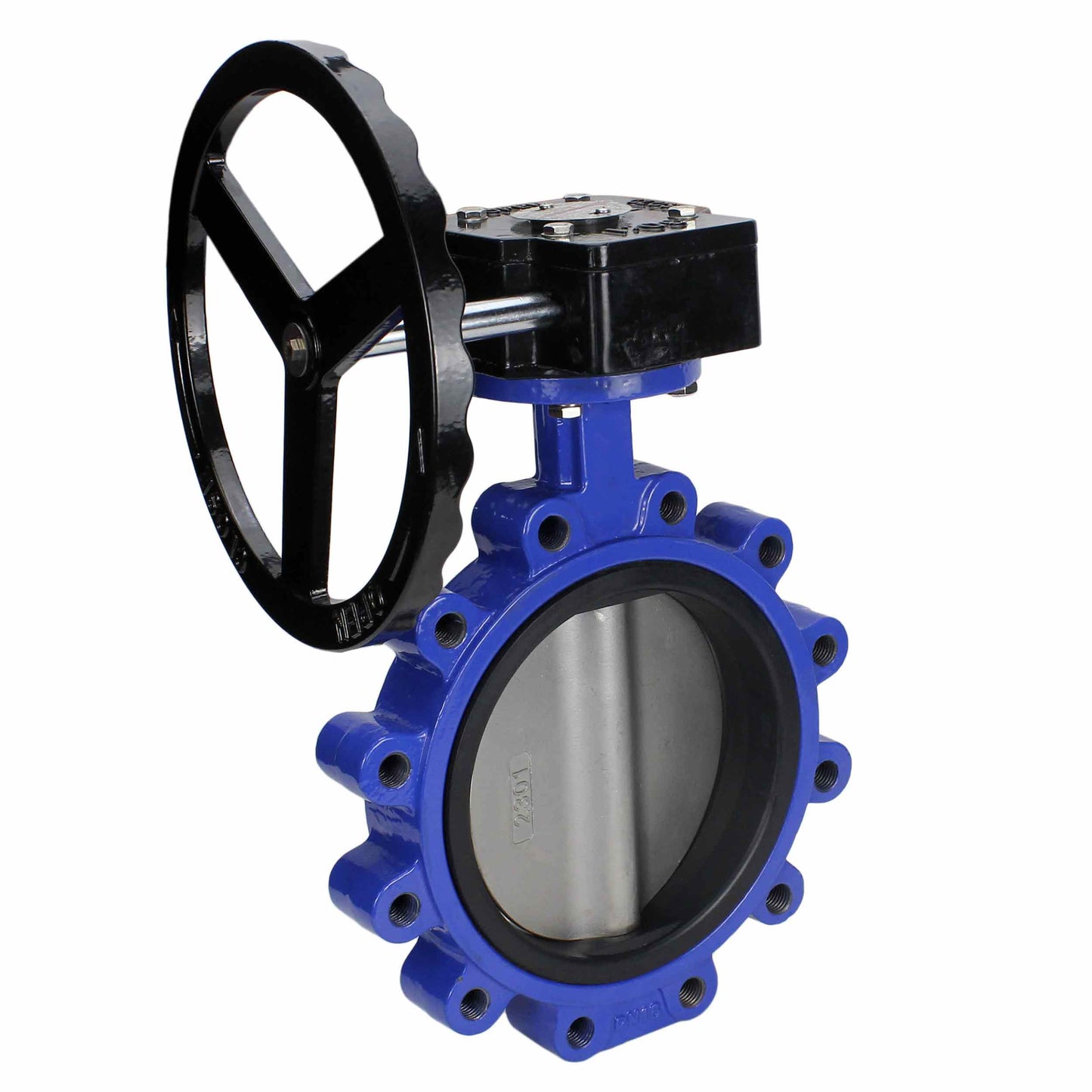

Water Butterfly Valve DNOVA WBV1631N-2W-Fb-R, body material - cast iron QT450, disk material - stainless steel AISI 304, seal - NBR, gearbox

From $86.01 USD
From $86.01 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Butterfly valves are designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Principle of operation: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.





Installation dimensions and sizes of water butterfly valve DNOVA WBV1631N-2W-Fb-R, body material - cast iron QT450, disk material - stainless steel AISI 304, seal - NBR, gearbox:

Model A, mm B, mm C, mm D, mm N-M L, mm W, mm
DN200 166 246.5 60 295 12-M20 205 270
DN250 203 283 68 355 12-M24 205 270
DN300 236 318 78 410 12-M24 190 270




Details and materials of water butterfly valve DNOVA WBV1631N-2W-Fb-R, body material - cast iron QT450, disk material - stainless steel AISI 304, seal - NBR, gearbox:

№ Part name Material
1 Body Cast iron QT450
2 Disk Stainless steel 304
3 Seat seal NBR
4 Stem Stainless steel SS 416
5 Gearbox -


Specifications

Country of origin
China
Body material
cast iron QT450
Maximum allowable temperature
90 °C
Connection type
compact flanged
Control type
gearbox
Nominal pressure
16 bar
Type of seal
NBR
Disc material
stainless steel AISI 304
