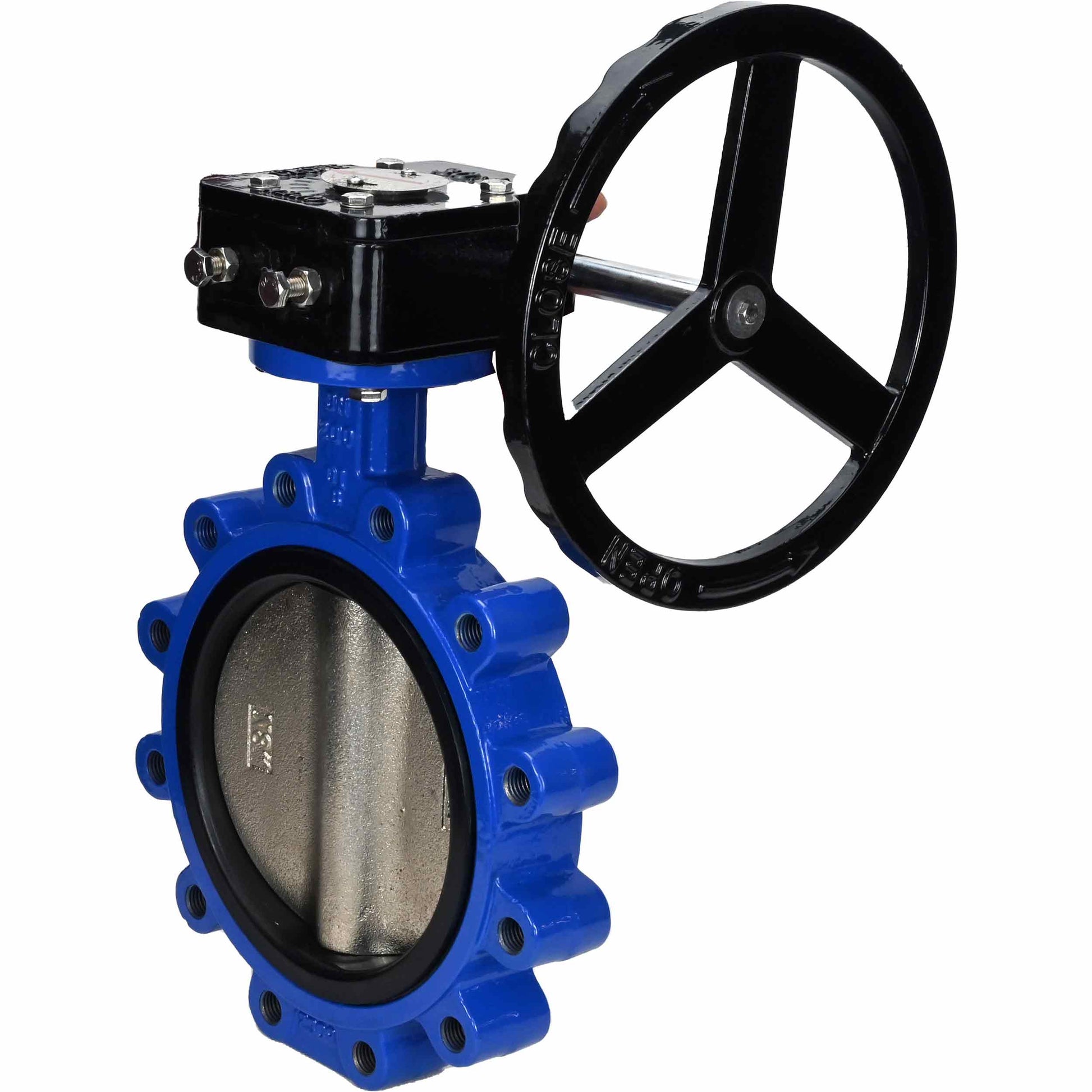

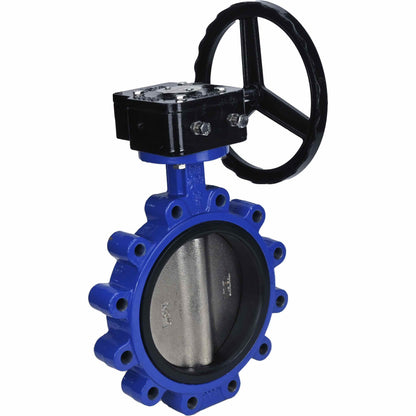

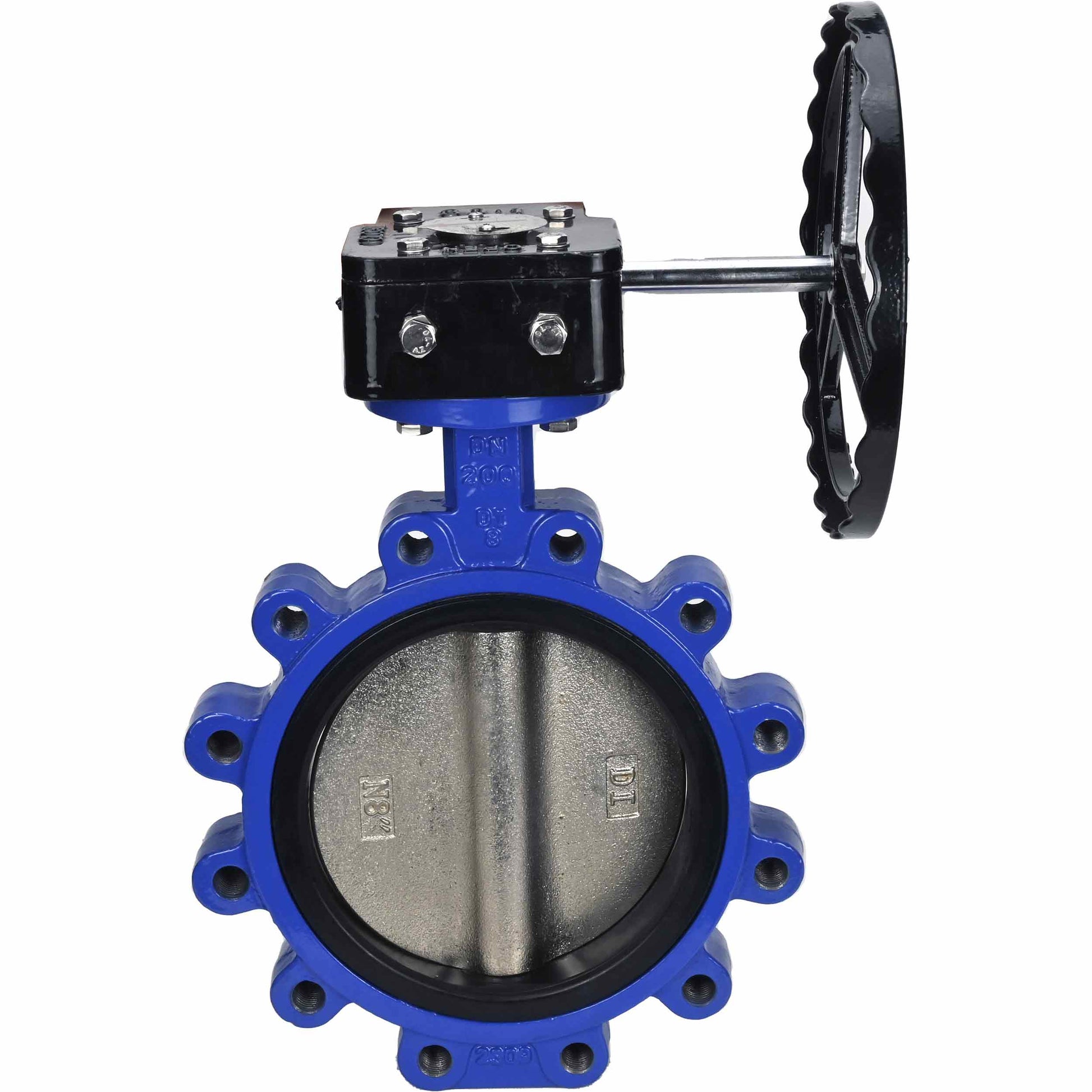

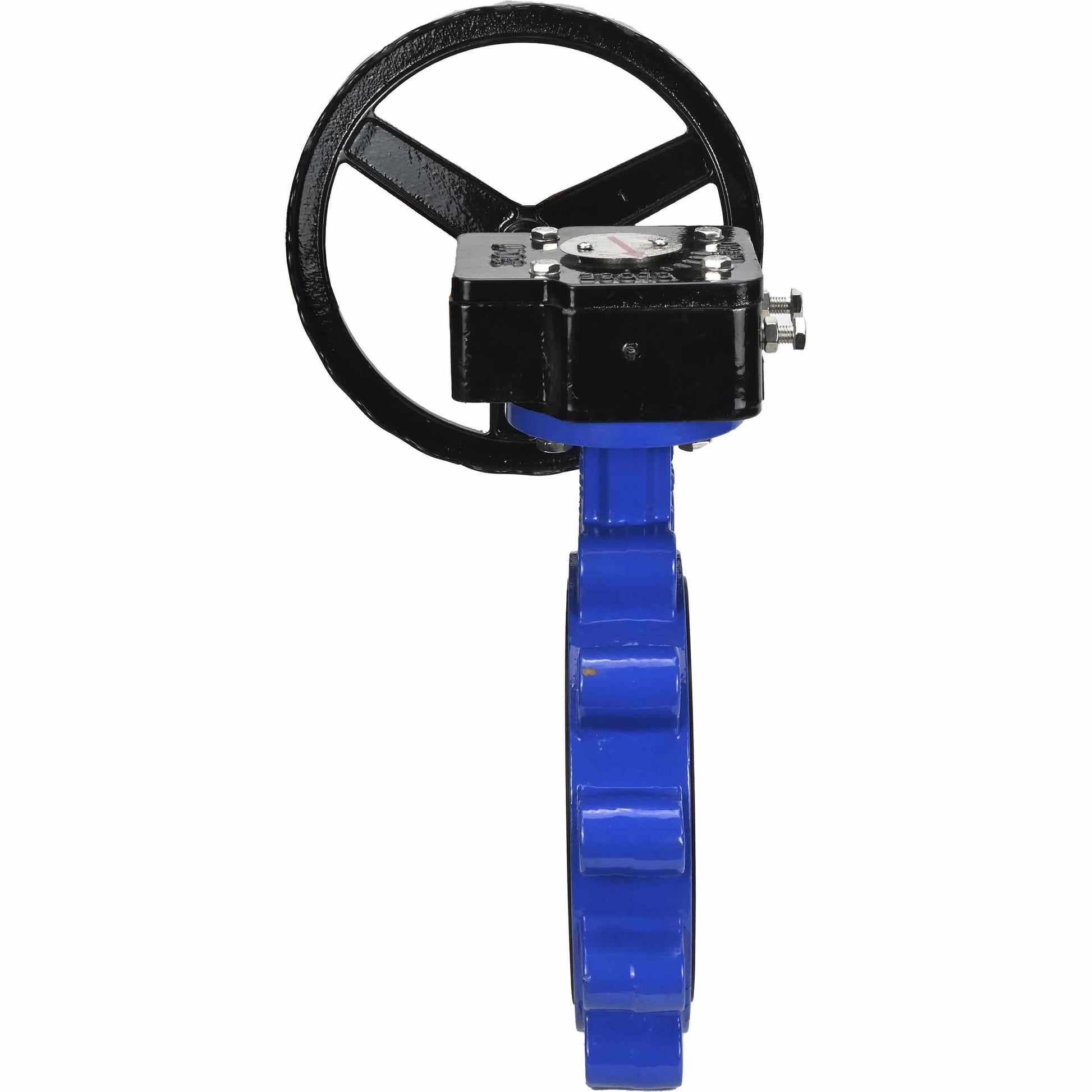

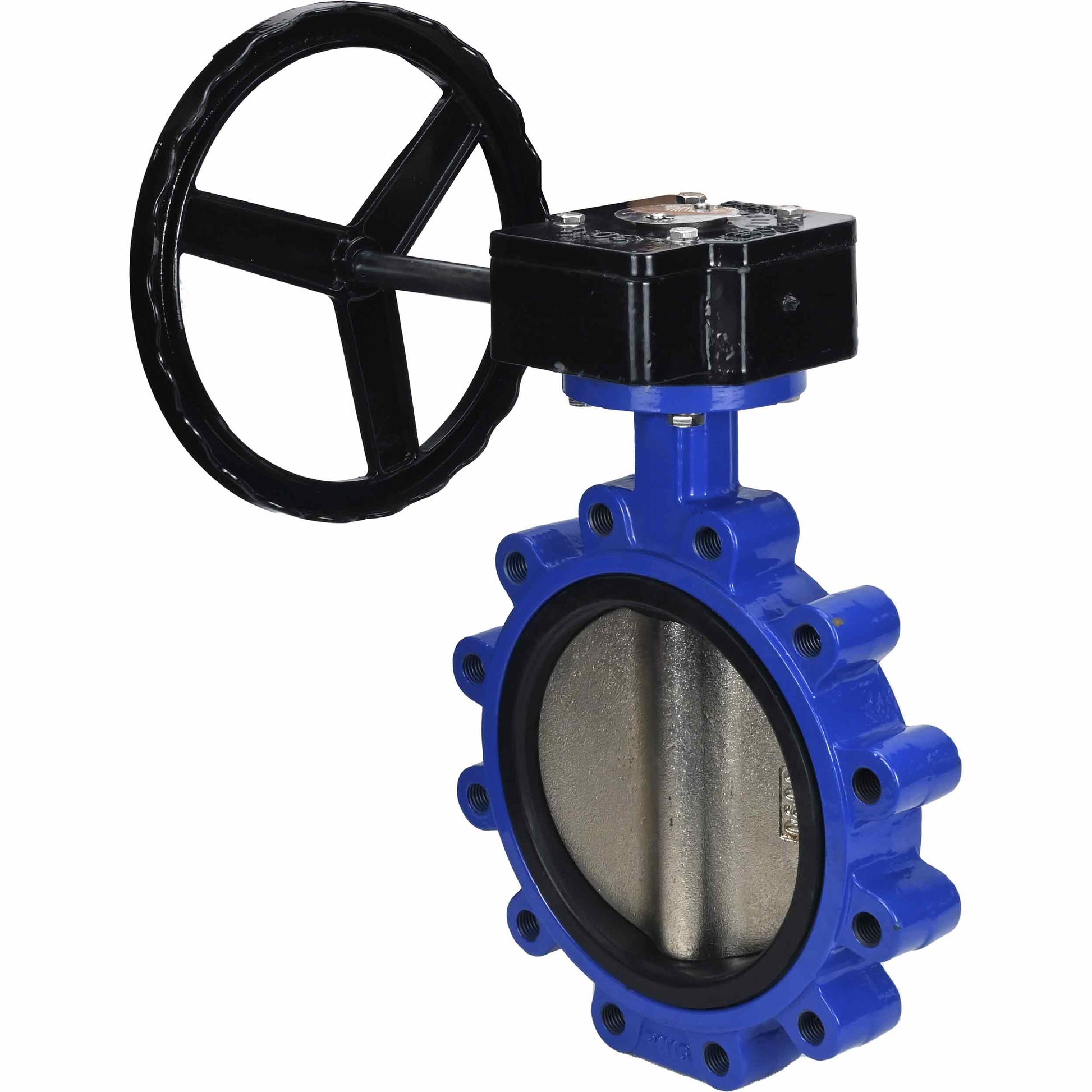

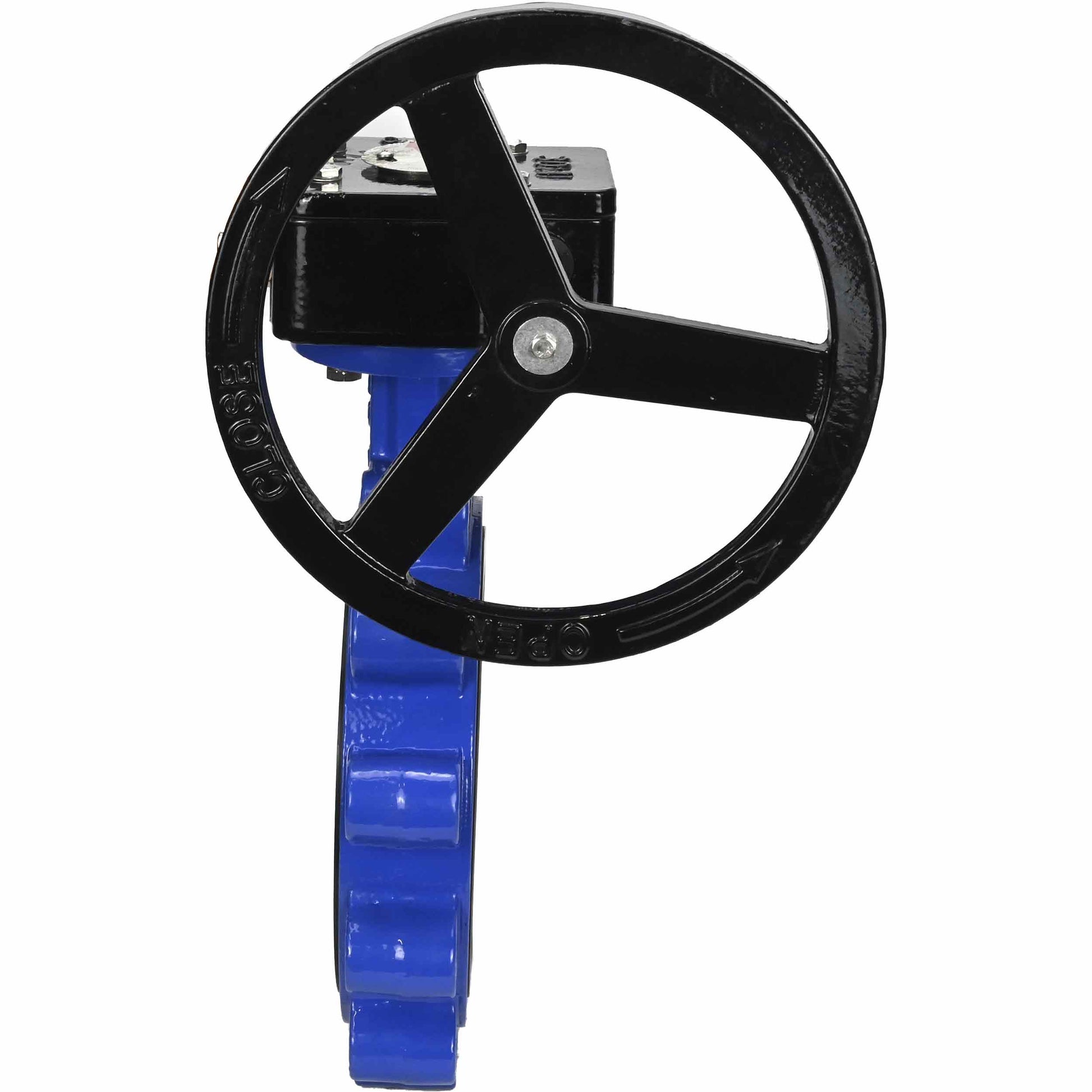

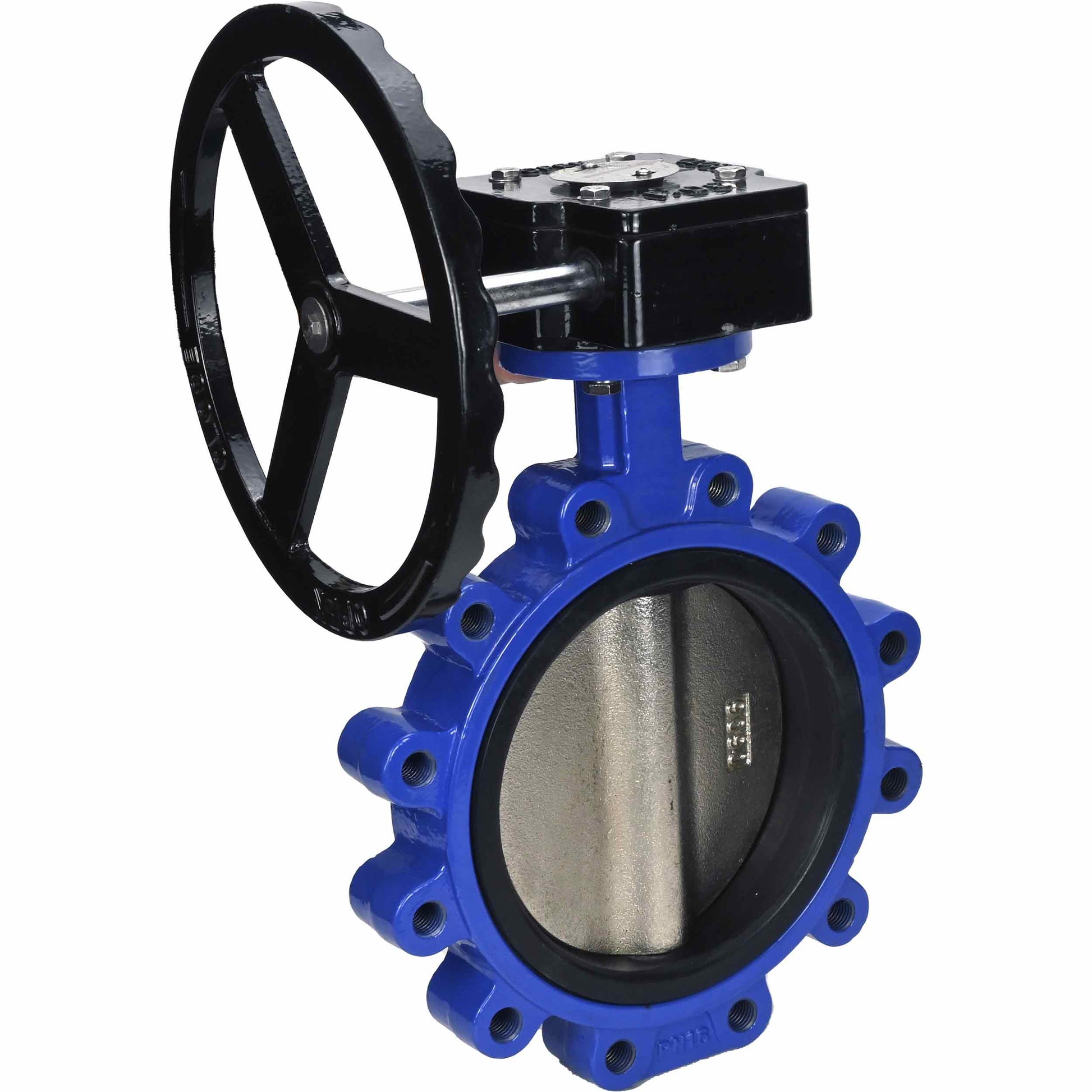

Water Butterfly Valve DNOVA WBV1616N-2W-Fb-R, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, gearbox

From $76.14 USD
From $76.14 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The WBV1632E-2W-Fb butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.





Installation dimensions and sizes of water butterfly valve DNOVA WBV1616N-2W-Fb-R, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, gearbox:

Modell A, mm B, mm C, mm D, mm N-M L, mm W, mm
DN200 166 246.5 60 295 12-M20 205 270
DN250 203 283 68 355 12-M24 205 270
DN300 236 318 78 410 12-M24 190 270




Details and materials of water butterfly valve DNOVA WBV1616N-2W-Fb-R, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, gearbox:

№ Details Material
1 Body Cast iron QT450
2 Disk Cast iron QT450
3 Seat seal NBR
4 Stem Stainless steel SS 416
5 Gearbox -


Specifications

Country of origin
China
Body material
cast iron QT450
Maximum allowable temperature
90 °C
Connection type
compact flanged
Control type
gearbox
Nominal pressure
16 bar
Type of seal
NBR
Disc material
cast iron QT450

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN200 / 16 barD050-23723
DN200 / 16 barD050-23723
$76.14/ea		 $0.00
$76.14/ea $0.00
DN250 / 16 barD050-23724
DN250 / 16 barD050-23724
$101.48/ea		 $0.00
$101.48/ea $0.00
DN300 / 16 barD050-23725
DN300 / 16 barD050-23725
$137.98/ea		 $0.00
$137.98/ea $0.00
