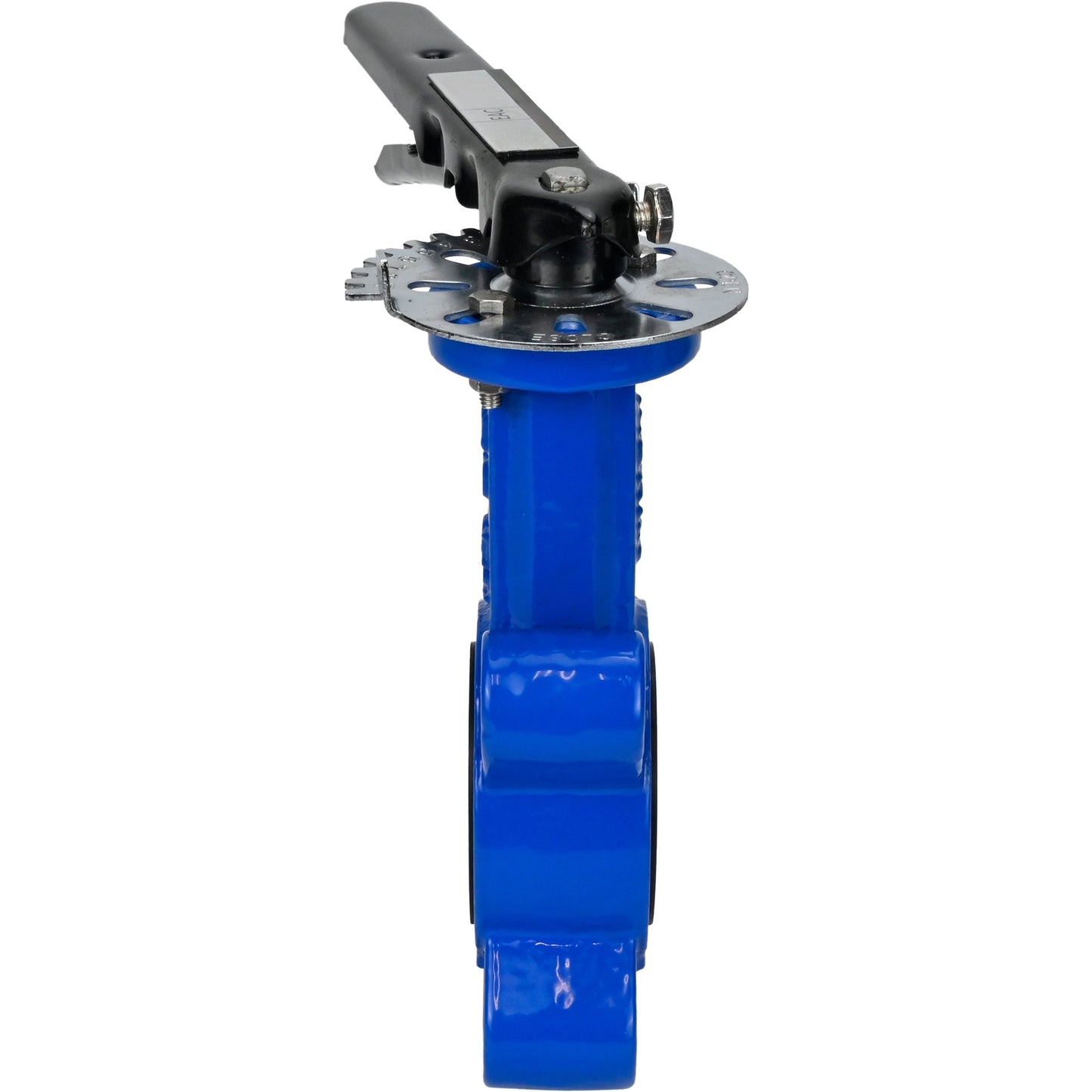

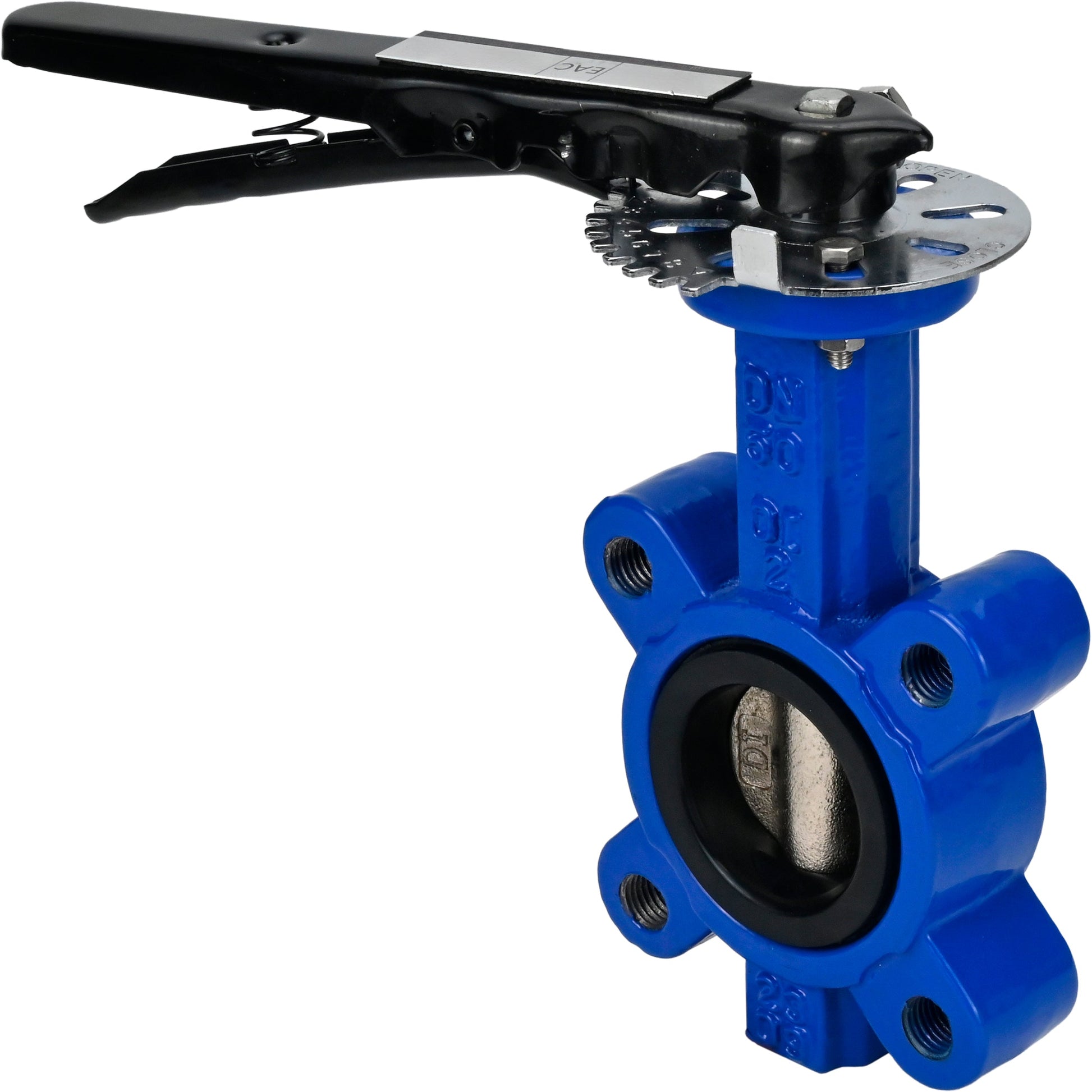

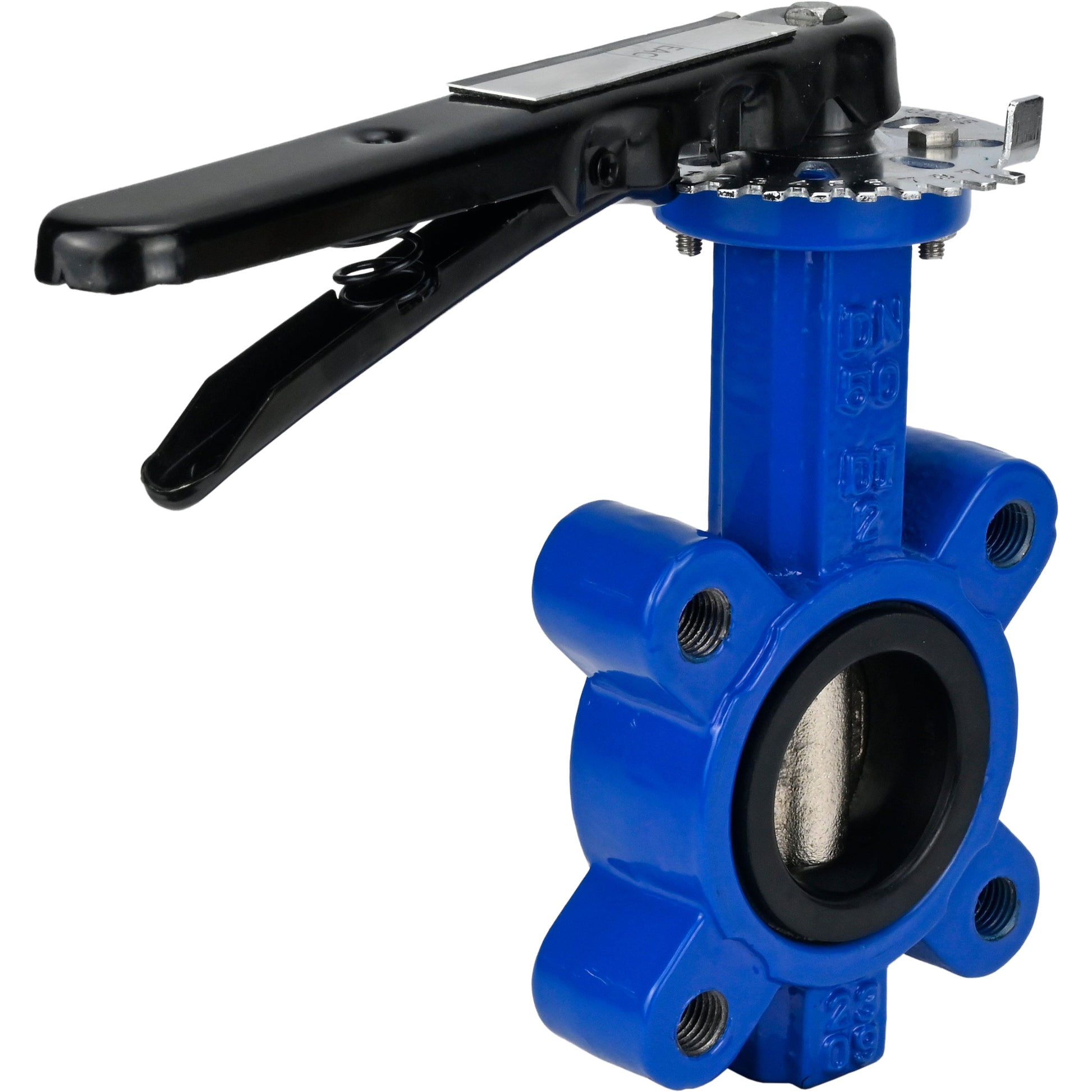

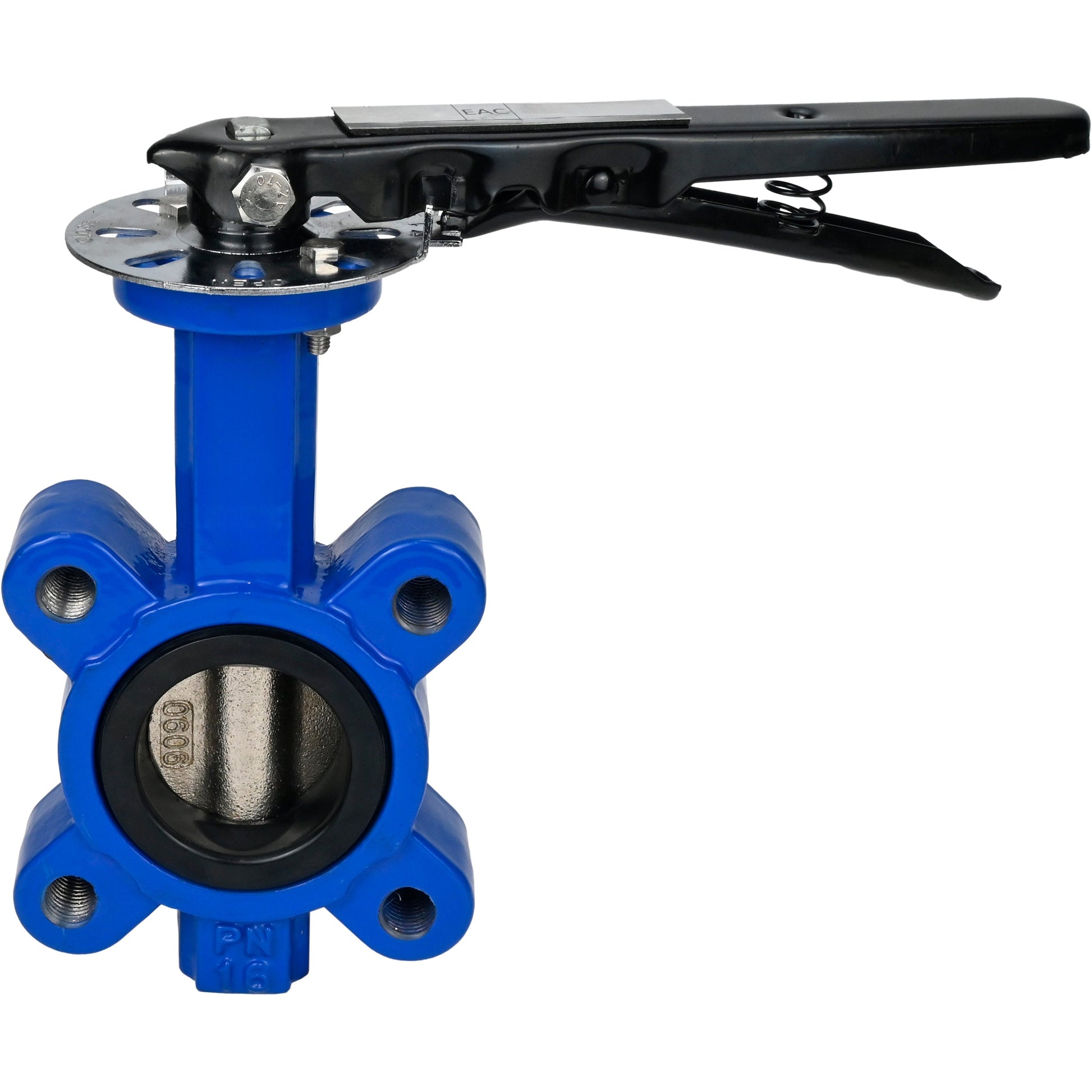

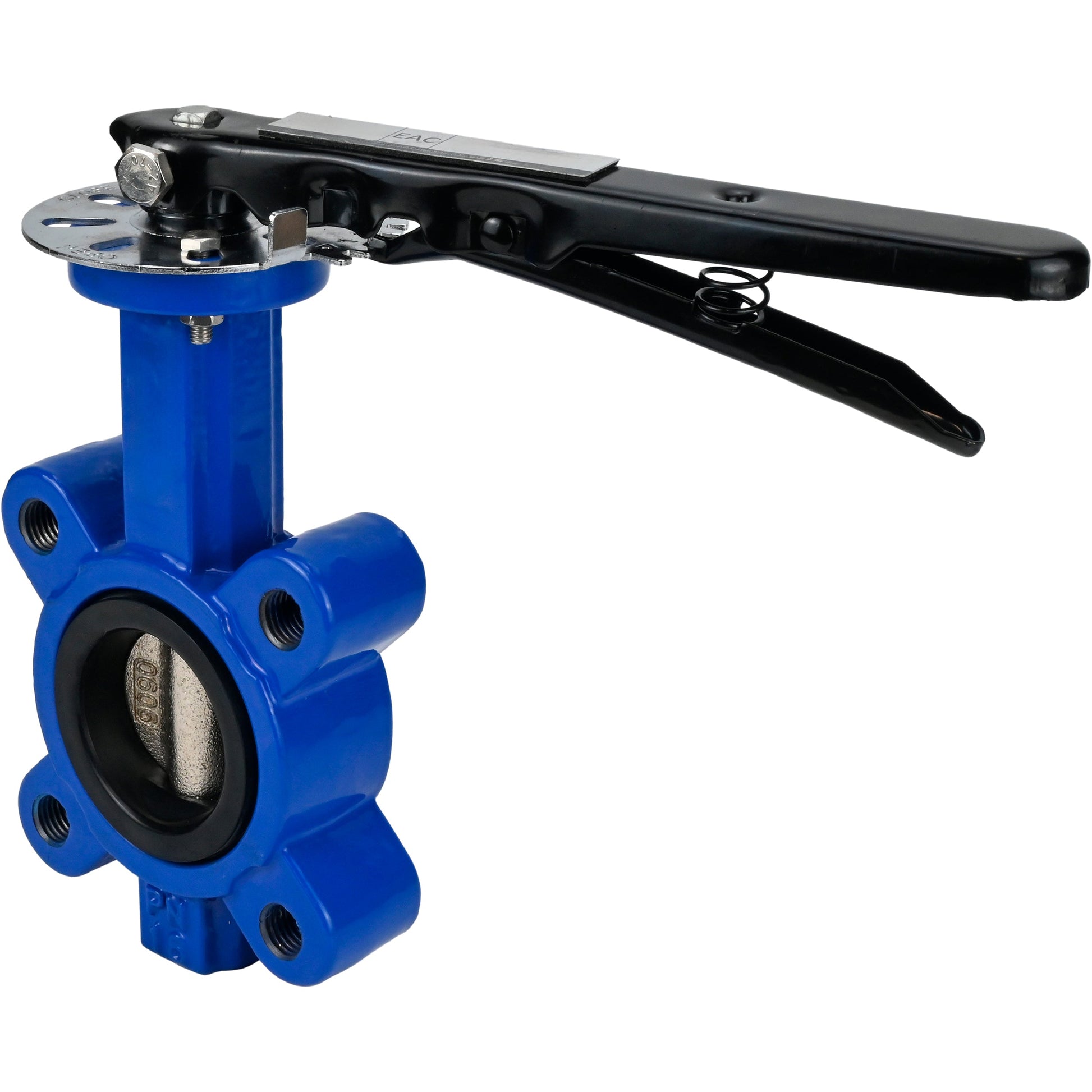

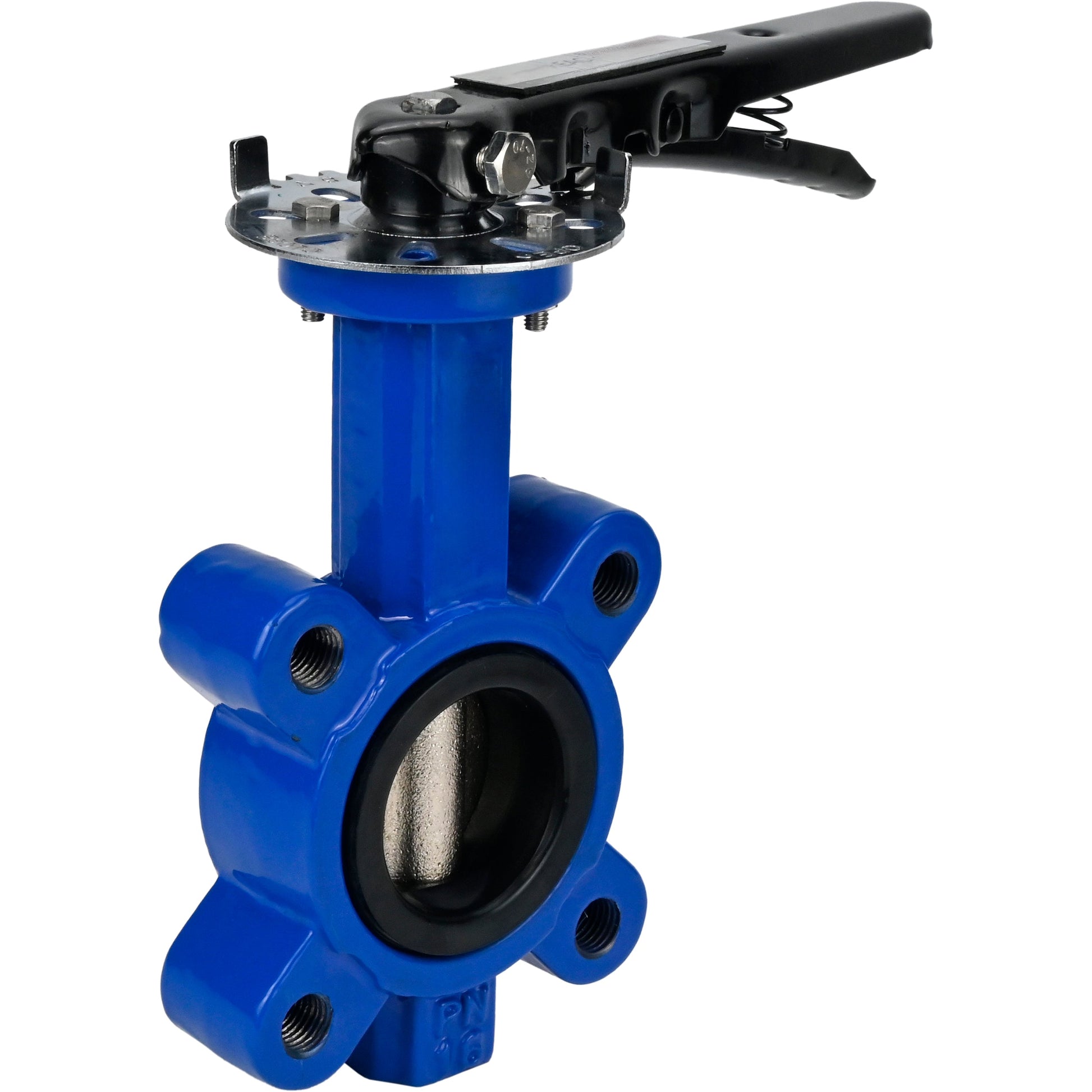

Water Butterfly Valve DNOVA WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, handle

From $13.98 USD
From $13.98 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Butterfly valves are designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Principle of operation: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.





Installation dimensions and sizes of water butterfly valve DNOVA WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, handle:

Model A, mm B, mm C, mm D, mm N-M H, mm
DN50 72.5 130.5 43 125 4-M16 220
DN65 77.5 146.5 46 145 4-M16 220
DN80 92 156 46 160 8-M16 220
DN100 109 168.5 52 180 8-M16 260
DN125 127 190.5 56 210 8-M16 260
DN150 141 213.5 56 240 8-M20 260




Details and materials of water butterfly valve DNOVA WBV1616N-2W-Fb-H, body material - cast iron QT450, disk material - cast iron QT450, seal - NBR, handle:

№ Details Material
1 Body Cast iron QT450
2 Disk Cast iron QT450
3 Seat seal NBR
4 Stem Stainless steel SS 316
5 Handle Carbon steel


Specifications

Country of origin
China
Body material
cast iron QT450
Maximum allowable temperature
90 °C
Connection type
compact flanged
Control type
handle
Nominal pressure
16 bar
Type of seal
NBR
Disc material
cast iron QT450
