Description
The butterfly valve is designed for use as shut-off or regulating valves to control flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
DNOVA double-acting pneumatic actuators PA-DA-105-1 are designed for automation of industrial valves control process with maximum torque up to 2128 Nm.
Pneumatic distributor is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
The limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off body of the pipeline valves.
Air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure at the preset level, supply lubricant from the tank in the compressed air flow to the pneumatic system elements.

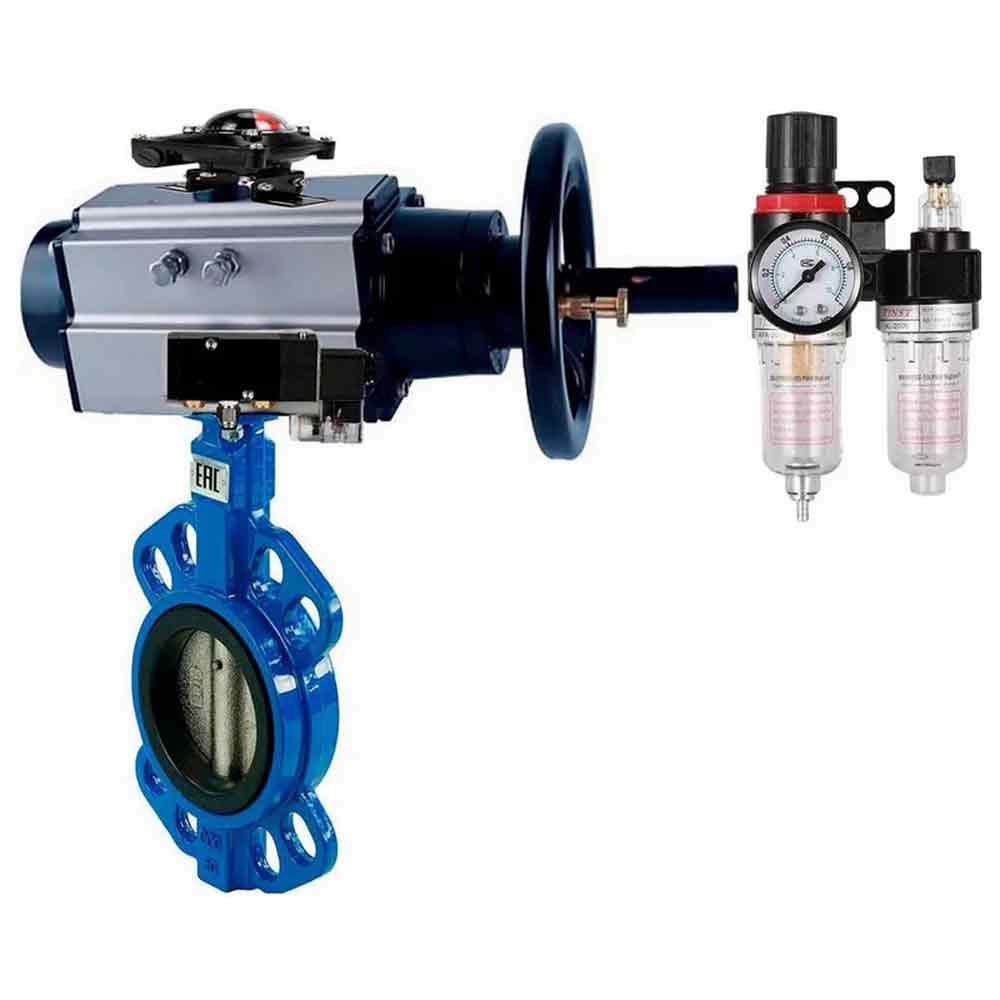

Technical parameters water butterfly valve DNOVA WBV1432N-2W-Fb body material - Cast iron GGG50/EN-GJS-500-7, disk material - Stainless steel AISI 316L/1.4404, seal - NBR with pneumatic actuator double acting PA-DA-105-1, pneumatic distributor 4V320-10 220V, limit switch:
|
Name |
Value |
|
Working pressure, bar |
16 |
|
Working medium temperature, °C |
from -20 to 90 |
|
Application |
Water supply, heat supply |
|
Pipeline connection |
Interflanged |
|
Gate type |
Rotary disk |
|
Control type |
Pneumatic actuator |
|
Country of manufacture |
China |
Dimensions and installation dimensions water butterfly valve DNOVA WBV1432N-2W-Fb body material - Cast iron GGG50/EN-GJS-500-7, disk material - Stainless steel AISI 316L/1.4404, seal - NBR with pneumatic actuator double acting PA-DA-105-1, pneumatic distributor 4V320-10 220V, limit switch:
| Model | A, mm | B, mm | A1, mm | W, mm | I, mm | C, mm |
| DN125 | 178 | 125 | 495 | 200 | 162 | 139 |
| DN150 | 191 | 140 | 495 | 200 | 162 | 139 |
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4ʺ |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
Parameters of pneumatic valve 4V320-10 220V:
| Name | Value |
| Type of pneumatic valve | Spool valve |
| Working pressure, bar | 1.5 ÷ 8 |
| Supply voltage, V | 220 V |
| Total power, V-A | 4.5 |
| Control | Two-way electromagnetic |
| Response frequency, cycle/sec | 5 |
Main technical characteristics of DNOVA APL-410N EX limit switch unit:
| Body | all-weather IP65 explosion-proof Exd IIB T6 |
| Cable glands | 2 x NPT1/2” |
| Terminal strips | 8 points (0.05 - 2.5) mm2 |
| Position indicator | 0 - 90° (90° free rotation) CLOSED - red; OPEN - yellow |
| Switches/sensors | two mechanical switches two proximity sensors |
| Nominal voltage, V | 250 |
| Permissible ambient temperature, °C | from -25 to +80 |
| Service life, years | 10 |
Dimensions and dimensions of DNOVA APL-410N EX limit switch unit:
| H, mm | L, mm | B, mm | D, mm | D1, mm | M, mm |
| 77 | 112 | 88 | 10 | 5 | 20x1.5 |
Technical parameters of DNOVA AFC2000 air treatment unit:
| Name | Value |
| Working pressure, bar | 8 |
| Adjustable pressure range, bar | 0.5 ÷ 9 |
| Filterable particle size, µm | 40 µm |
| Weight, kg | 0.395 |
