Description
Butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
DNOVA -DA pneumatic rotary actuators are designed to automate the process of controlling industrial shut-off valves - gates, ball valves. DNOVA pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Pneumatic valves 4M310-08 24 V are used for control in pneumatic systems having NAMUR docking surface for installation of valves through through holes in the housing.
APL-410N EX limit switch unit is designed for visual and electrical signaling of end positions of the valve shut-off body. It is mounted from above on the surface of the pneumatic actuator and connected to the actuator shaft - DIN standard. The sealed box usually contains two sensors which monitor the position of the actuator shaft and signalize the end positions. Visual indication of the position can be observed on the body of the unit there is a 3D visual indicator RED-CLOSED and YELLOW-OPEN.

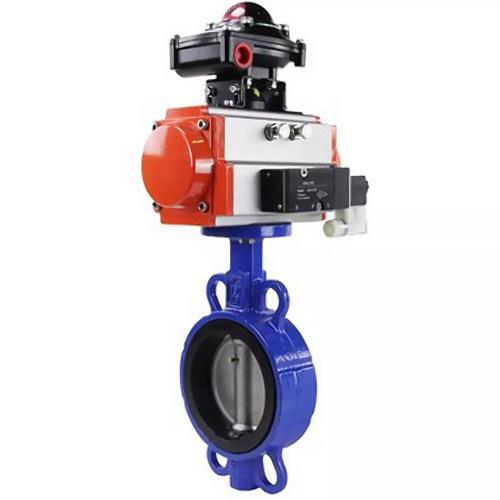

Technical parameters of water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with pneumatic actuator DA, pneumatic distributor 4M310-08 220V and limit switch block APL-410N EX:
| Nominal diameter DN, mm | 40 - 300 |
| Working pressure PN, bar | 16 |
| Operating medium temperature t, ⁰C | from -20 to +120 |
| Operating medium | water, mineral oils, hydrocarbons, oils, fats |
| Flow direction | two-way |
| Control type | handle |
| Pipeline connection | interflanged |
| Body material | cast iron GGG50 |
| Service life, years | 10 |
Dimensional parameters of DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with pneumatic actuator DA, pneumatic distributor 4M310-08 220V and limit switch block APL-410N EX:
| DN |
Model electric actuator |
Dimensions | ||||
| E, mm | L1, mm | A, mm | C, mm | K, mm | ||
| 40 | DNOVA DA-052 | 34 | 153 | 114 | 98 | 147 |
| 50 | DNOVA DA-065 | 43 | 174 | 131 | 115 | 147 |
| 65 | DNOVA DA-065 | 46 | 174 | 140 | 115 | 147 |
| 80 | DNOVA DA-083 | 46 | 216 | 150 | 135 | 147 |
| 100 | DNOVA DA-083 | 52 | 216 | 163 | 135 | 147 |
| 125 | DNOVA DA-105 | 56 | 279 | 178 | 160 | 147 |
| 150 | DNOVA DA-105 | 56 | 279 | 191 | 160 | 147 |
| 200 | DNOVA DA-130 | 60 | 308 | 238 | 193 | 147 |
| 250 | DNOVA DA-140 | 68 | 405 | 285 | 210 | 147 |
| 300 | DNOVA DA-160 | 78 | 465 | 315 | 237 | 147 |
Materials of parts of water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with pneumatic actuator DA, pneumatic distributor 4M310-08 220V and limit switch block APL-410N EX:
| № | Name | Material |
| 1 | Body | cast iron GGG50 |
| 2 | Seat seal | NBR |
| 3 | Disk | stainless steel 316L |
| 4 | Stem | stainless steel AISI 416 |
| 5 | Pin | stainless steel AISI 420 |
| 6 | Bushing | PTFE |
| 7 | O-ring | NBR |
| 8 | Plate | carbon steel |
Technical characteristics of DNOVA-DA pneumatic actuators:
| Design | Double-acting |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2…8 |
| Operating medium | Filtered compressed air or non-aggressive gases, oils |
| Maximum particle diameter | less than 30 µm2 |
| Working temperature t, ⁰C | from -20 to +80 from -40 to +80 (low-temperature version) from -20 to +160 (in dry air) |
| Adjustment range | ± 5° for rotation at 0° and 90° |
| Manual duplication | yes |
| Position indicator | open/closed |
| Operating environment | indoors and outdoors. (All internal and external parts have an anti-corrosion coating) |
Pneumatic actuator component materials DNOVA DA:
| № | Name | Quantity | Material | Coating |
| 1 | Body | 1 | extruded aluminum | hard anodized |
| 2 | Side caps | 2 | cast aluminum | |
| 3 | Gear | 1 | stainless steel | nickel plated |
| 4 | Piston | 2 | steel/aluminum | oxidation/ galvanized zinc plating |
| 5 | Plugs | 8 | stainless steel | |
| 6 | Piston ring | 2 | NBR | |
| 7 | Springs | 0-12 | spring steel | epoxy coating |
| 8 | Piston bearing | 2 | engineering plastic | |
| 9 | Piston ring | 2 | NBR | |
| 10 | Plug | 2 | NBR | |
| 11 | Thrust ring | 2 | engineering plastic | |
| 12 | Ring | 1 | engineering plastic | |
| 13 | Washer | 1 | stainless steel | |
| 14 | Spring clip | 2 | stainless steel | |
| 15 | Indicator | 1 | plastic | |
| 16 | Indicator body | 1 | plastic | |
| 17 | Bearing | 1 | engineering plastic | |
| 18 | Cam | 1 | steel | oxidation/ galvanized galvanizing |
| 19 | Bearing | 1 | NBR | |
| 20 | Bearing | 1 | engineering plastic | |
| 21 | Bearing | 1 | engineering plastic | |
| 22 | O-ring | 2 | NBR | |
| 23 | O-ring | 2 | NBR | |
| 24 | Bearing | 2 | stainless steel | |
| 25 | Adjustment nut | 2 | stainless steel | |
| 26 | Adjustment screw | 2 | stainless steel | |
| 27 | Bushing | 2 | aluminum |
Technical characteristics of pneumatic valve 4M310-08 220 V:
| Design | spool type |
| Nominal pressure PN, MPa (kg/cm2) | 1,2 (12) |
| Working pressure, bar | 1,5…8 |
| Operating medium | filtered compressed air |
| Ambient temperature t, ⁰C | from +5 to +50 |
| Response frequency | 5 cycles/second |
| Manual duplication | yes |
| Degree of protection | IP 65 |
| Fastening | through holes in the housing |
| Body material | anodized aluminum |
| Response time | 0.05 sec. |
Technical characteristics of limit switch unit APL-410N EX:
| Body | all-weather IP65 explosion-proof Exd IIB T6 |
| Cable glands | 2 x NPT1/2” |
| Terminal strips | 8 points (0.05 - 2.5) mm2 |
| Position indicator | 0 - 90° (90° free rotation) CLOSED - red; OPEN - yellow |
| Switches/sensors | two mechanical switches two proximity sensors |
| Nominal voltage, V | 250 |
| Permissible ambient temperature, °C | from -25 to +80 |
| Service life, years | 10 |
Materials of limit switch unit APL-410N EX:
| Name | Materials |
| Enclosure cover and body | aluminum die casting |
| Shaft | stainless steel |
| Indicator cover | polycarbonate |
| Cam | polycarbonate |
| Spring | stainless steel |
| Enclosure cover bolts | stainless steel |
| O-ring | NBR |
| Bushing | bronze |
| Sealing ring (shaft) | stainless steel |
| Ground terminal | stainless steel |
| Indicator | ABS plastic / polycarbonate |
| Bracket | stainless steel |
