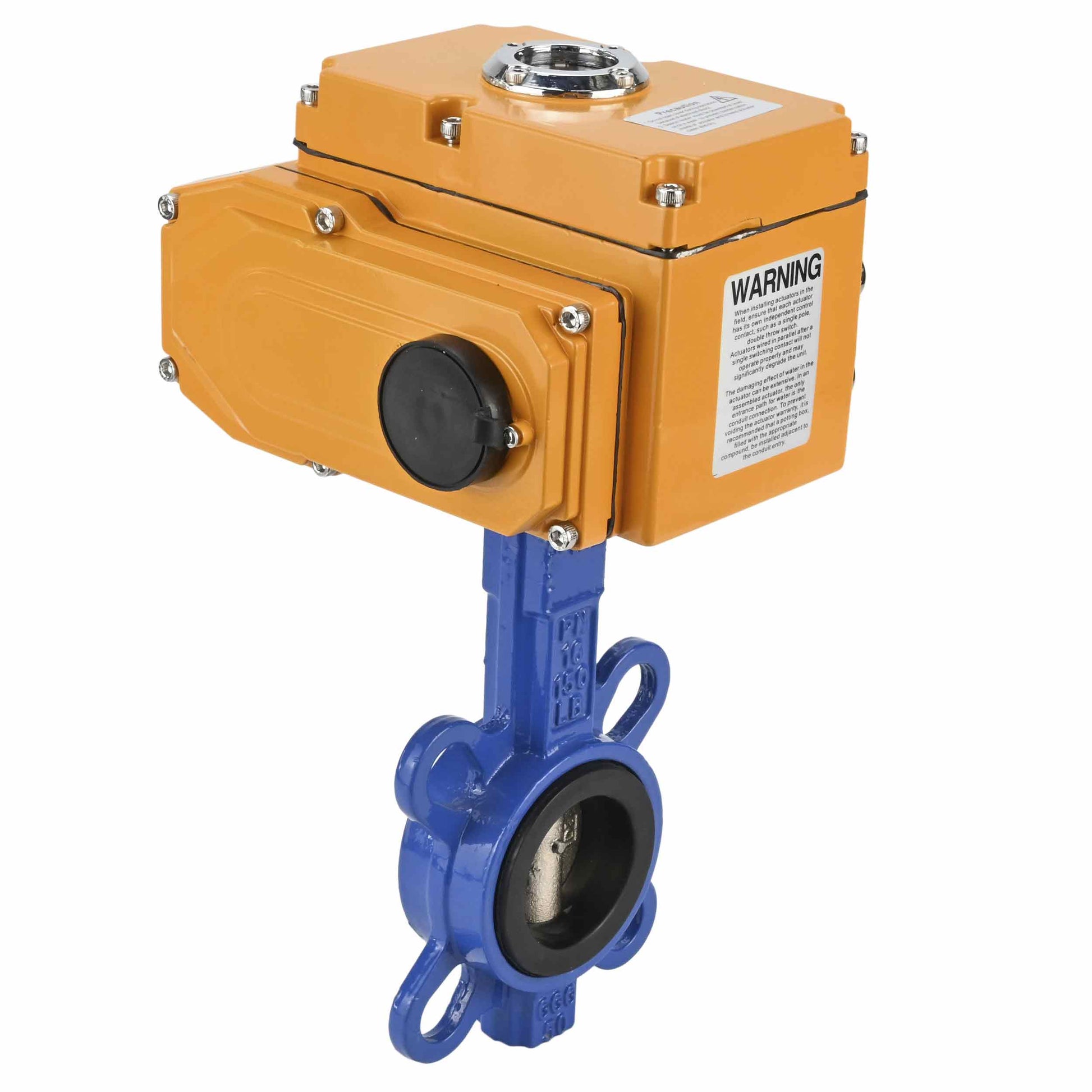

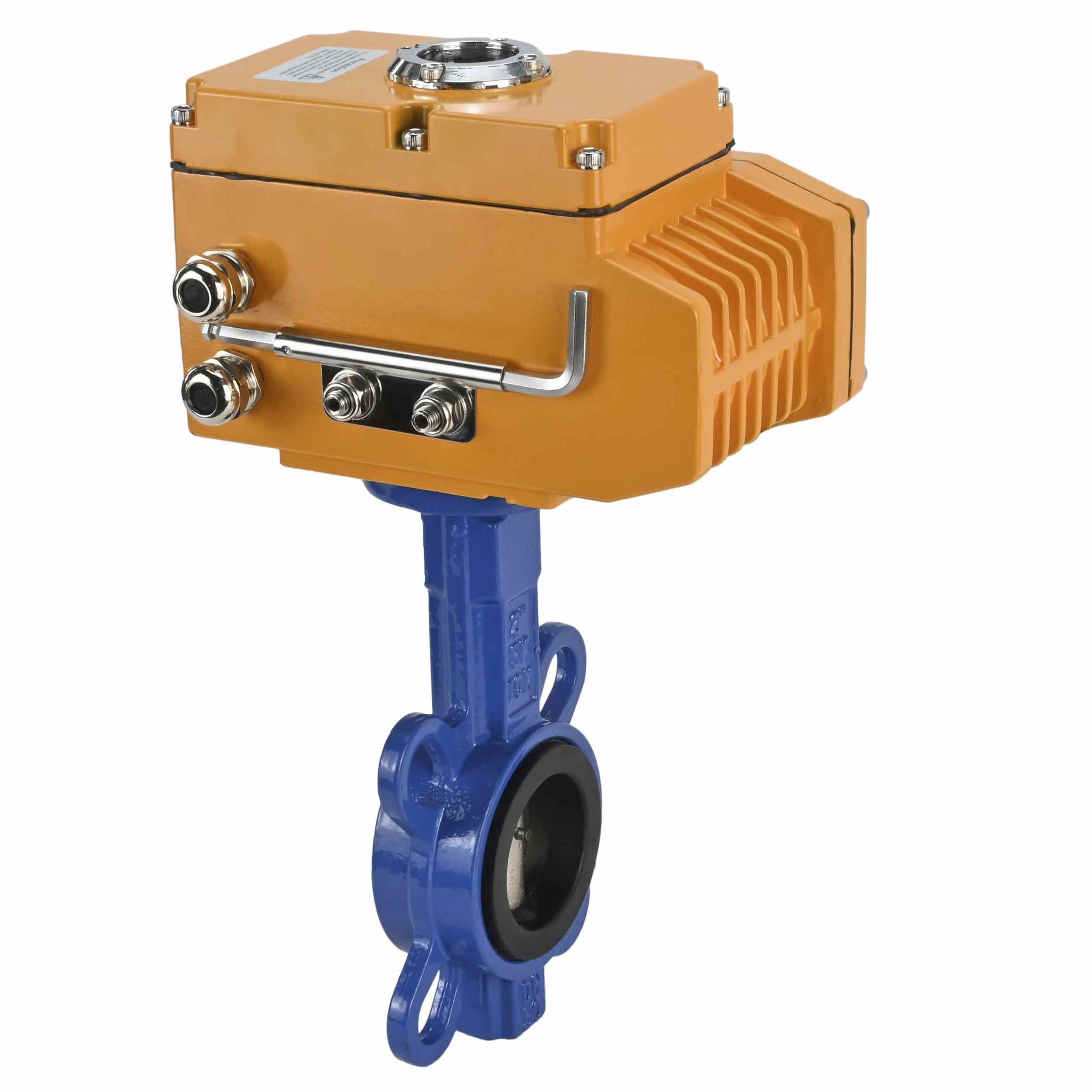

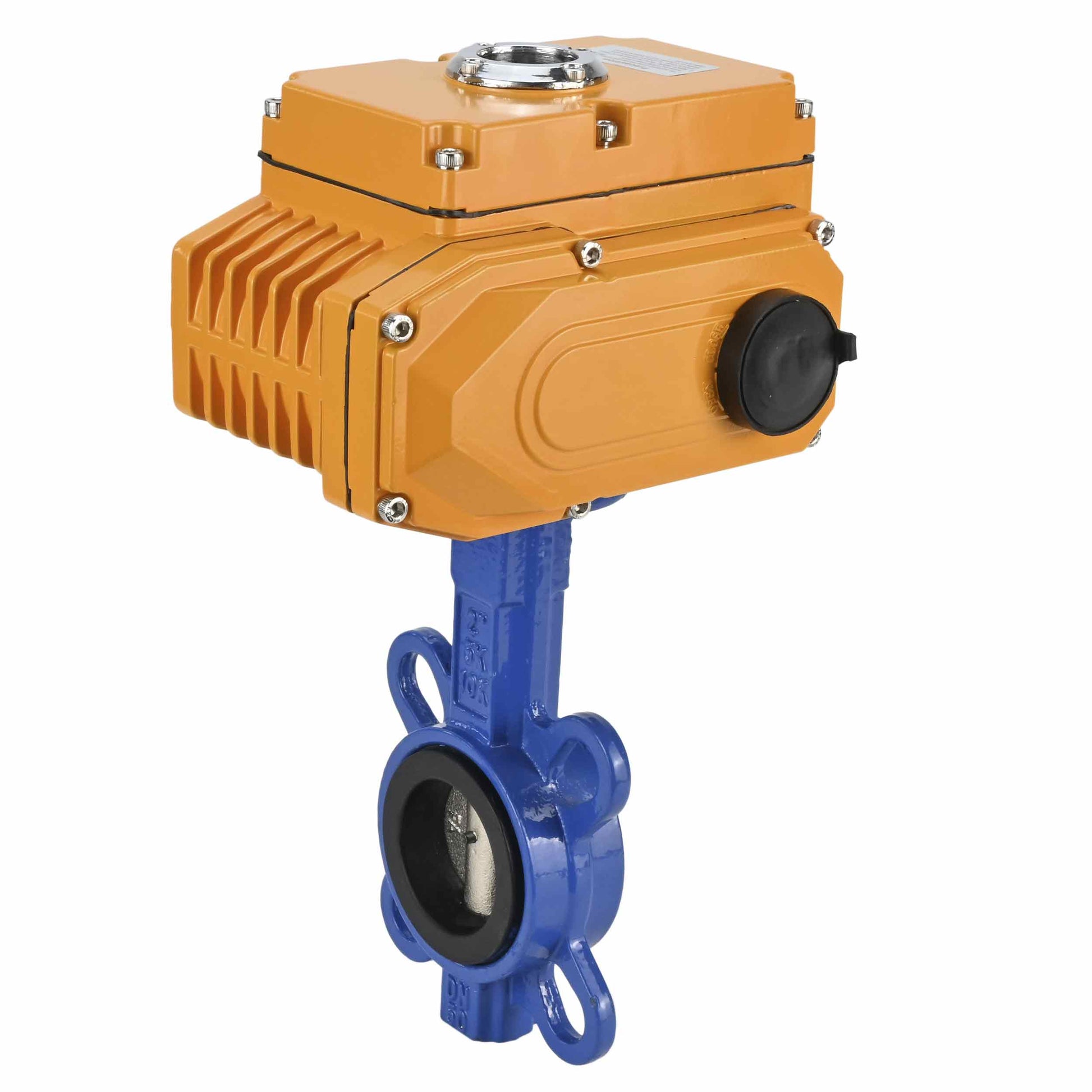

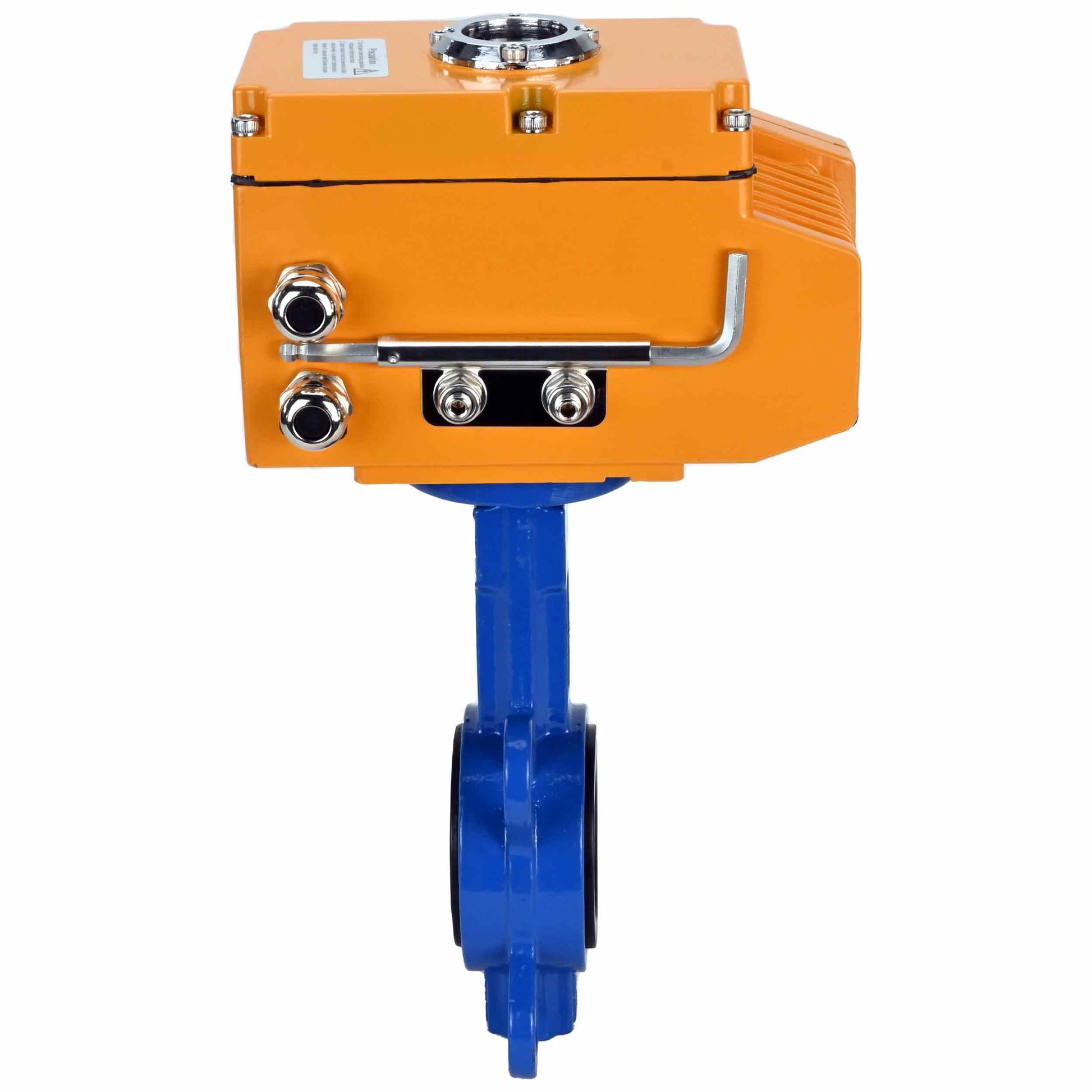

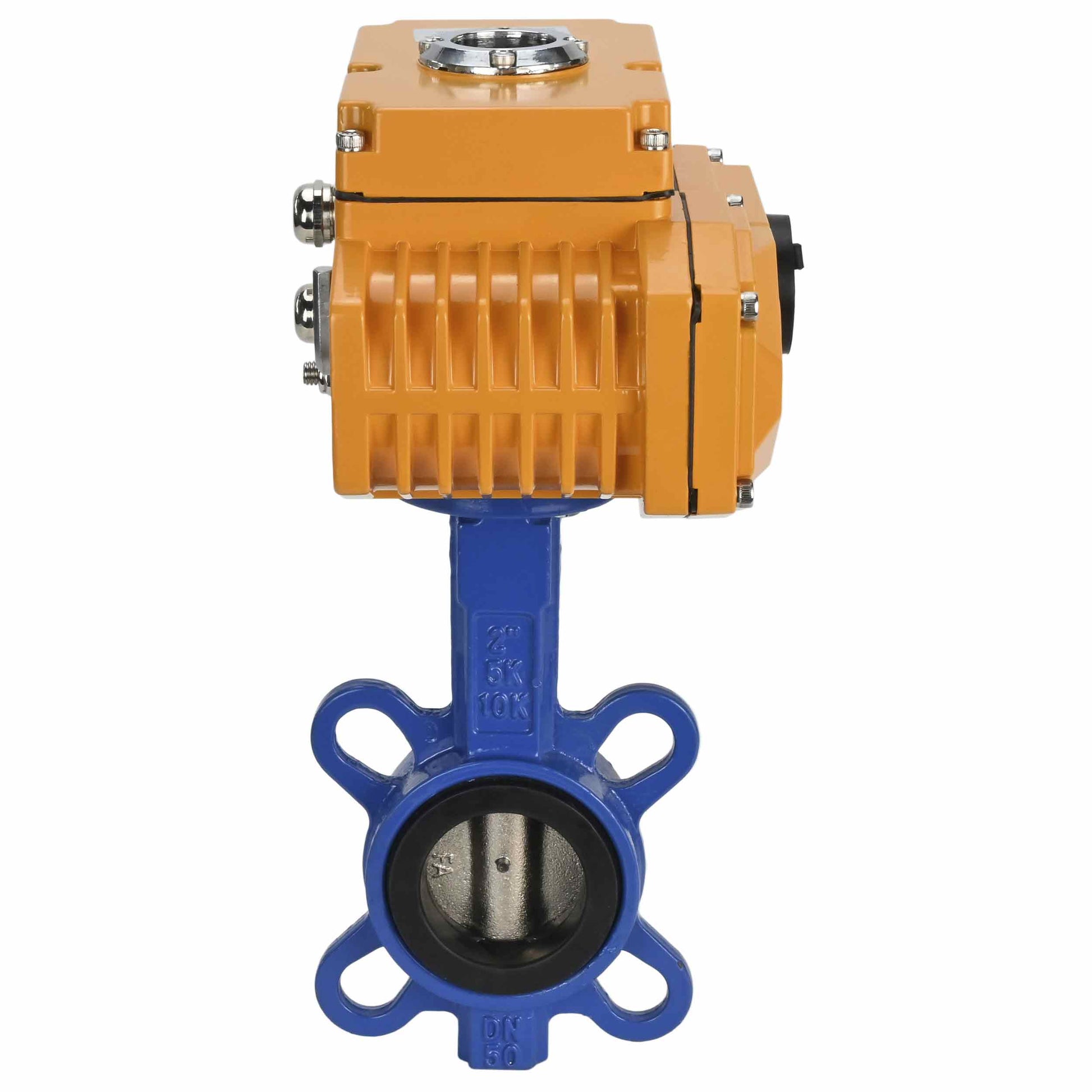

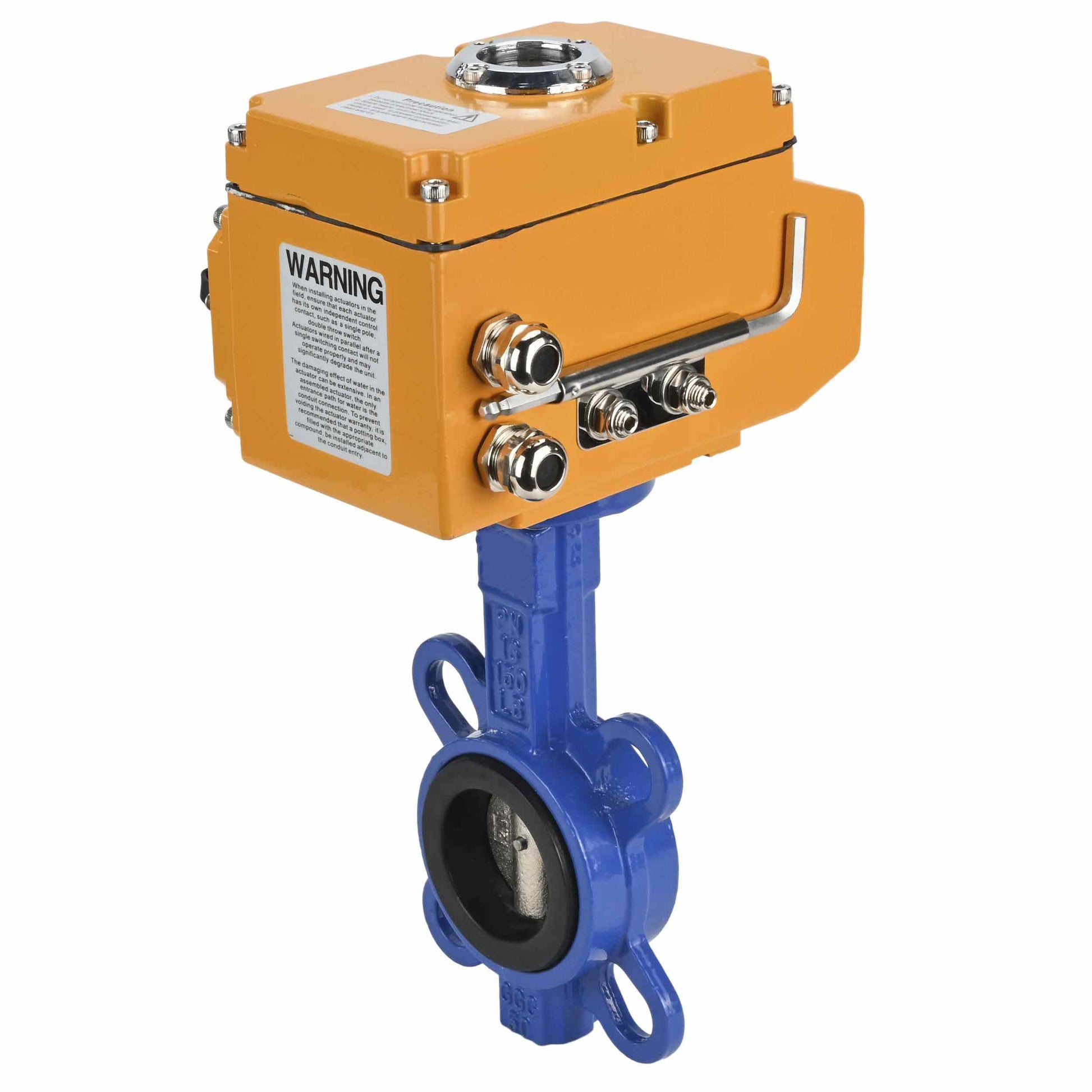

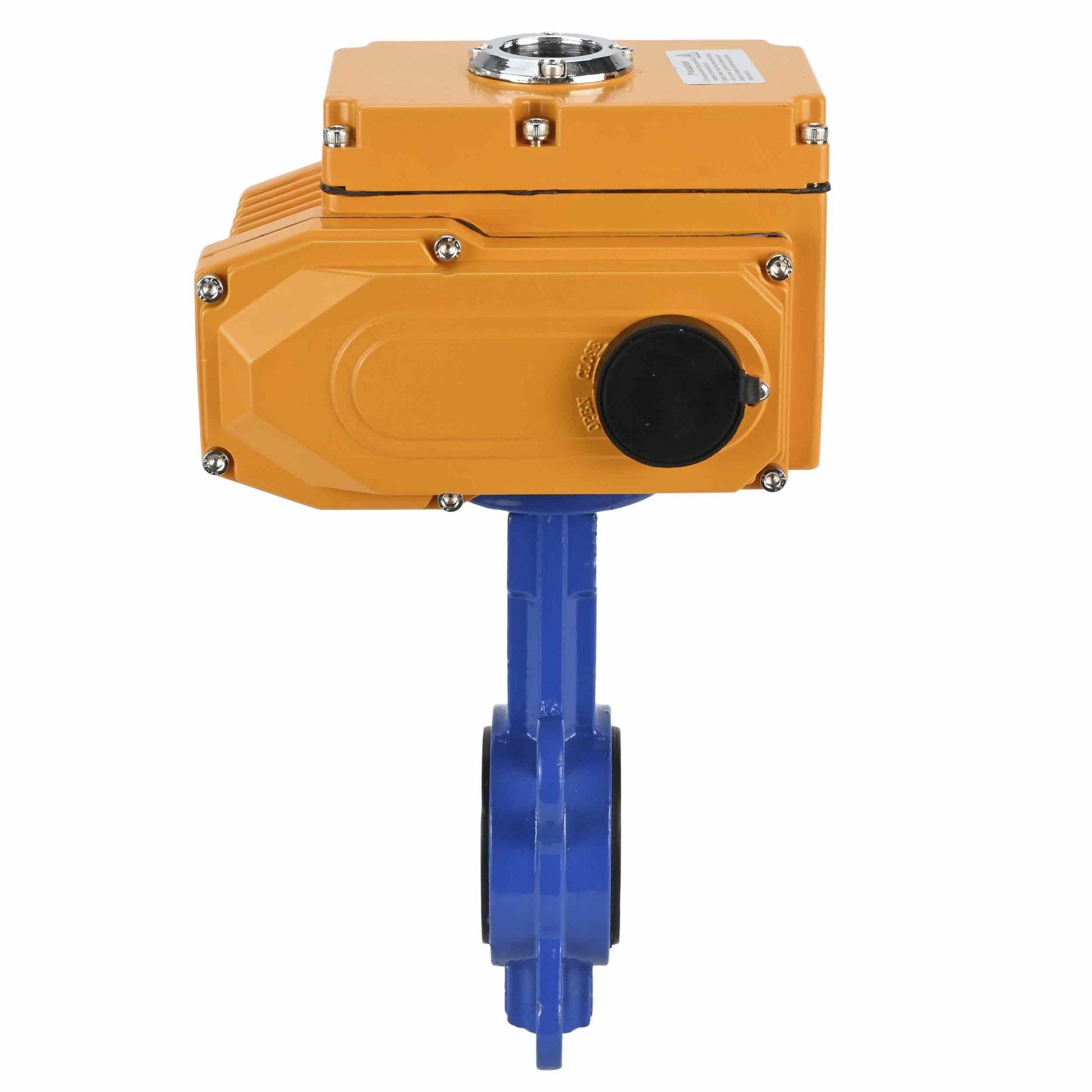

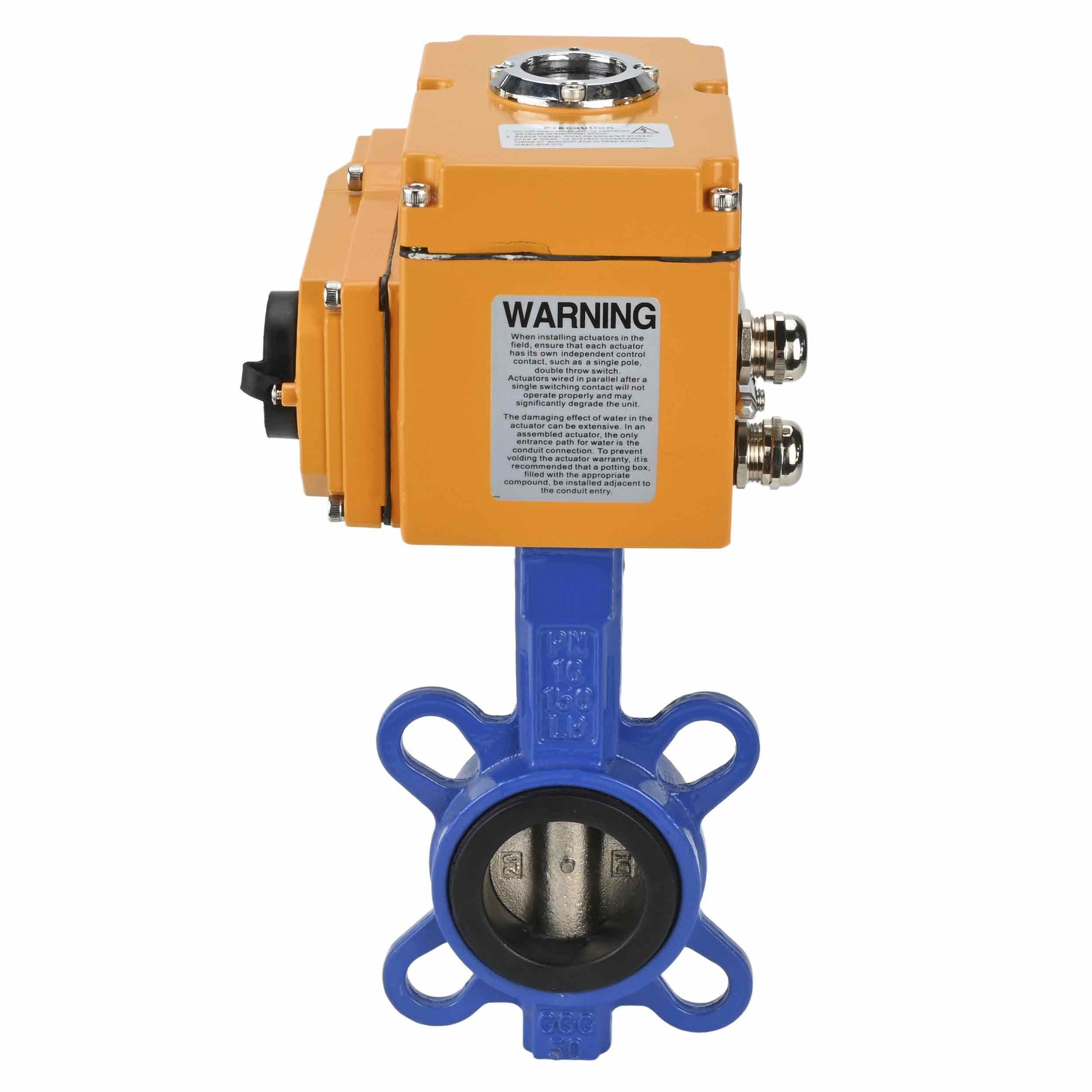

Electric quarter-turn actuator
Butterfly disc
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Electric quarter-turn actuators DNOVA are designed for remote and local control of shut-off valves. They are widely used in gas, oil, metallurgical and food industries, in housing and communal services, etc. with ambient temperature from -20°...+70°C.
The enclosure is equipped with a heater (7-10W 220V) and has the following degrees of protection: IP67, NEME 4 and 6, anti-corrosion coating. Installation dimensions comply with the international standard ISO05211 / DIN3337. The actuator is equipped with a squirrel cage asynchronous motor, auto-locking of the actuator position, mechanical handle, thermal protection, X Y Z 10g vibration protection (0,2-34 Hz, 30 minutes) and is designed for repeated-short-time operation S2. The actuator stroke is 90° with an adjustment range of ±10°. The actuator stroke is limited by limit switches. Cable connection 2 x M18. Power supply is carried out by 3-phase alternating voltage 380 V with frequency 50 Hz.
Technical characteristics of water butterfly valve DNOVA WBV1432N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with electric actuator DNOVA 380V:
| Nominal diameter DN, mm | 40 - 300 |
| Operating pressure PN, bar | 16 |
| Working medium temperature t, °C | from -20 to +120 |
| Working medium | water, mineral oils, hydrocarbons, oils, fats |
| Flow direction | two-way |
| Type of control | handle |
| Pipeline connection | interflanged |
| Body material | cast iron GGG50 |
| Service life, years | 10 |
Overall and installation dimensions of the gate valve DNOVA WBV1432N-2W-Fb-H DN40
| DN | A | B | C | E | L | ØD | Ød | 4-Ødo | HxH | bore diameter |
| 40 | 114 | 66 | 26 | 34 | 210 | 65 | 50 | 4-7 | 9x9 | 50 |
Sketch Butterfly valves WBV1432N-2W-Fb-H DN40
Overall and installation dimensions of water butterfly valve DNOVA WBV1432N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with electric actuator DNOVA 380V:
| DN | Electric actuator model | Dimensions | |||
| E, mm | L1, mm | A, mm | C, mm | ||
| 40 | DNOVA-003 220V | 34 | 123 | 114 | 113 |
| 50 | DNOVA-003 220V | 43 | 123 | 131 | 113 |
| 65 | DNOVA-005 220V | 46 | 160 | 140 | 146 |
| 80 | DNOVA-005 220V | 46 | 160 | 150 | 146 |
| 100 | DNOVA-008 220V | 52 | 160 | 163 | 146 |
| 125 | DNOVA-015 220V | 56 | 189 | 178 | 163 |
| 150 | DNOVA-015 220V | 56 | 189 | 191 | 163 |
| 200 | DNOVA-030 220V | 60 | 268 | 238 | 212 |
| 250 | DNOVA-040 220V | 68 | 268 | 285 | 212 |
| 300 | DNOVA-060 220V | 78 | 268 | 315 | 212 |
Materials of water butterfly valve DNOVA WBV1432N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with electric actuator DNOVA 380V:
| № | Name | Material |
| 1 | Body | cast iron GGG50 |
| 2 | Seat seal | NBR |
| 3 | Disk | stainless steel 316L |
| 4 | Stem | stainless steel AISI 416 |
| 5 | Pin | stainless steel AISI 420 |
| 6 | Bushing | PTFE |
| 7 | O-ring | NBR |
| 8 | Plate | carbon steel |
Main technical specifications of DNOVA series QT electric actuators:
| Power supply | 220 VAC, 380 VAC, 24 VDC |
| Limit switches | 2-Open/Closed 250V 10A |
| Additional limit switches 2 | 2-Open/Closed 250V 10A |
| Angle of rotation, ° | 90±5 |
| Internal thermal protection | Switching off at 110°C ± 5°C, switching on at 97°C ± 5°C |
| Visual position indicator | is |
| Ambient temperature, °C | -20 to +65 |
| Manual doubler | Hexagon (included) |
| Self-locking device | self-locking with worm and worm gears |
| Mechanical limiter | 2 external adjustable stops |
| Cable glands | 2xM18 |
| Enclosure protection class | IP67 |
| Lubrication | aluminum-based (type EP) |
| Body material | aluminum alloy with epoxy powder coating |
| Average life, closing/opening cycles | 30 000 |
Main parameters of DNOVA series QT electric actuators:
| Actuator model | QT-005 | QT-008 | QT-015 | QT-030 | QT-040 | QT-060 |
| Torque, Nm | 50 | 80 | 150 | 300 | 400 | 600 |
| Cycle time, sec. (rotation 90°) | 20 | 25 | 25 | 45 | 45 | 45 |
| Maximum reinforcement square size, mm | 14x14 | 17x17 | 17x17 | 27x27 | 27x27 | 27x27 |
| Degree of enclosure protection | IP67 | |||||
| Material | aluminum alloy with epoxy powder coating | |||||
| Type ISO flange | F05/ F07 | F05/ F07 | F05/ F07 | F10/ F12 | F10/ F12 | F10/ F12 |
| Weight, kg | 3,26 | 4,6 | 4,6 | 10 | 10 | 10 |
Dimensions of DNOVA electric actuators of QT 380 V series:
| Actuator model | Sizes | ||
| L, mm | H, mm | A, mm | |
| QT-003 | 140 | 118 | 109 |
| QT-005 | 166 | 122 | 118 |
| QT-008 | 200 | 128 | 133 |
| QT-015 | 200 | 128 | 133 |
| QT-030 | 269 | 155 | 174 |
| QT-040 | 269 | 155 | 174 |
| QT-060 | 269 | 155 | 174 |
- Body material
- Cast iron GGG50/EN-GJS-500-7
- Maximum allowable temperature
- 120 °C
- Connection type
- Compact flanged
- Control type
- Electric actuator
- Nominal pressure
- 16 bar
- Type of seal
- NBR
- Disc material
- Stainless steel AISI 316L/1.4404
- Voltage
- 380V
- Actuator cycle time
- 30s
- Valve feedback
- Limit switches
- Explosion-proof
- No
- Thermal protection
- No
- Pneumatic actuator
- No
- Manual override
- No
- Limit switches
- No
- Country of origin
- China
