Description
Butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Double-acting pneumatic rotary actuators and pneumatic rotary actuators with return springs are designed for automation of control process of industrial shut-off valves - gates, ball valves. DNOVA pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Pneumatic actuators are used for control in pneumatic systems having NAMUR docking surface, for installation of actuators through through holes in the body.

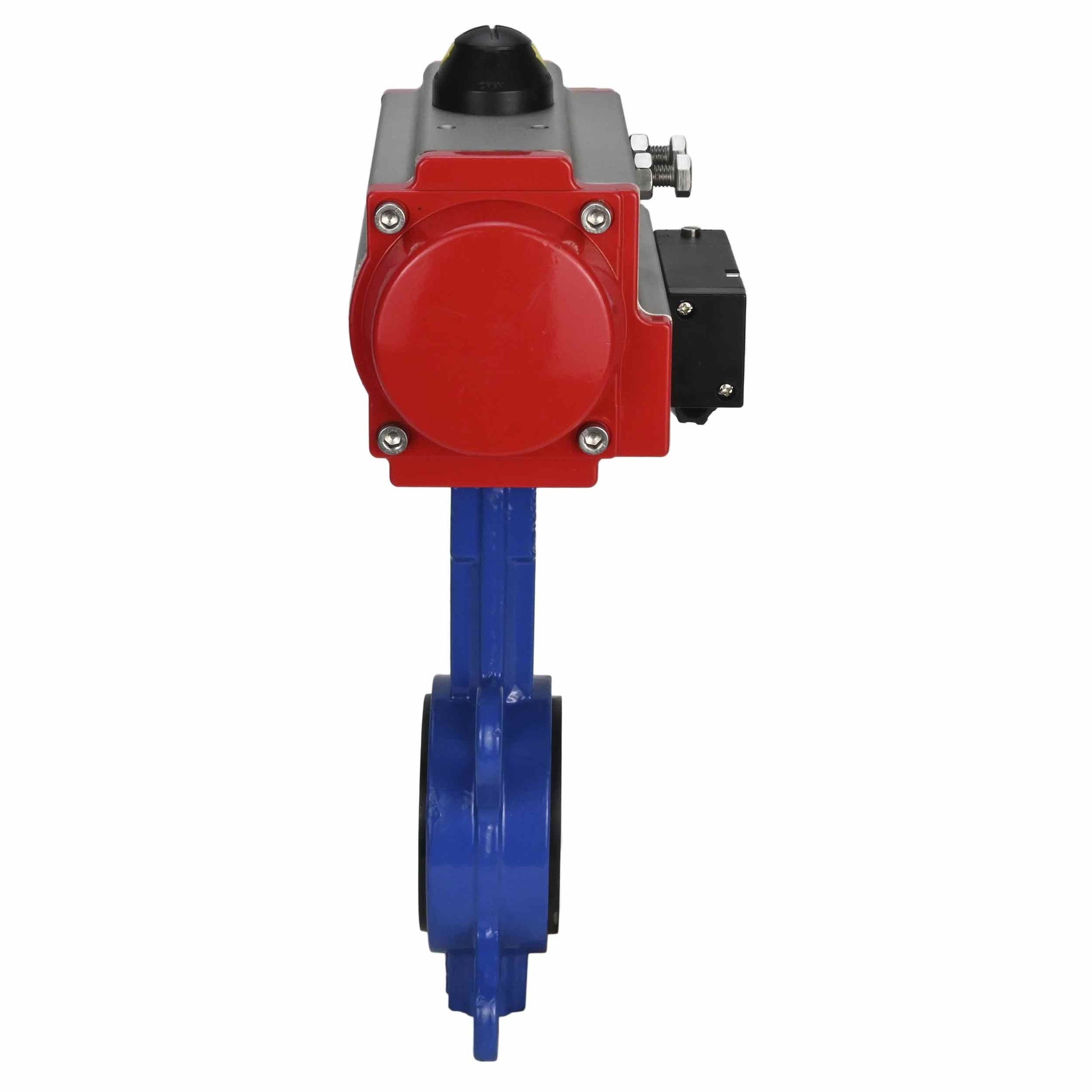

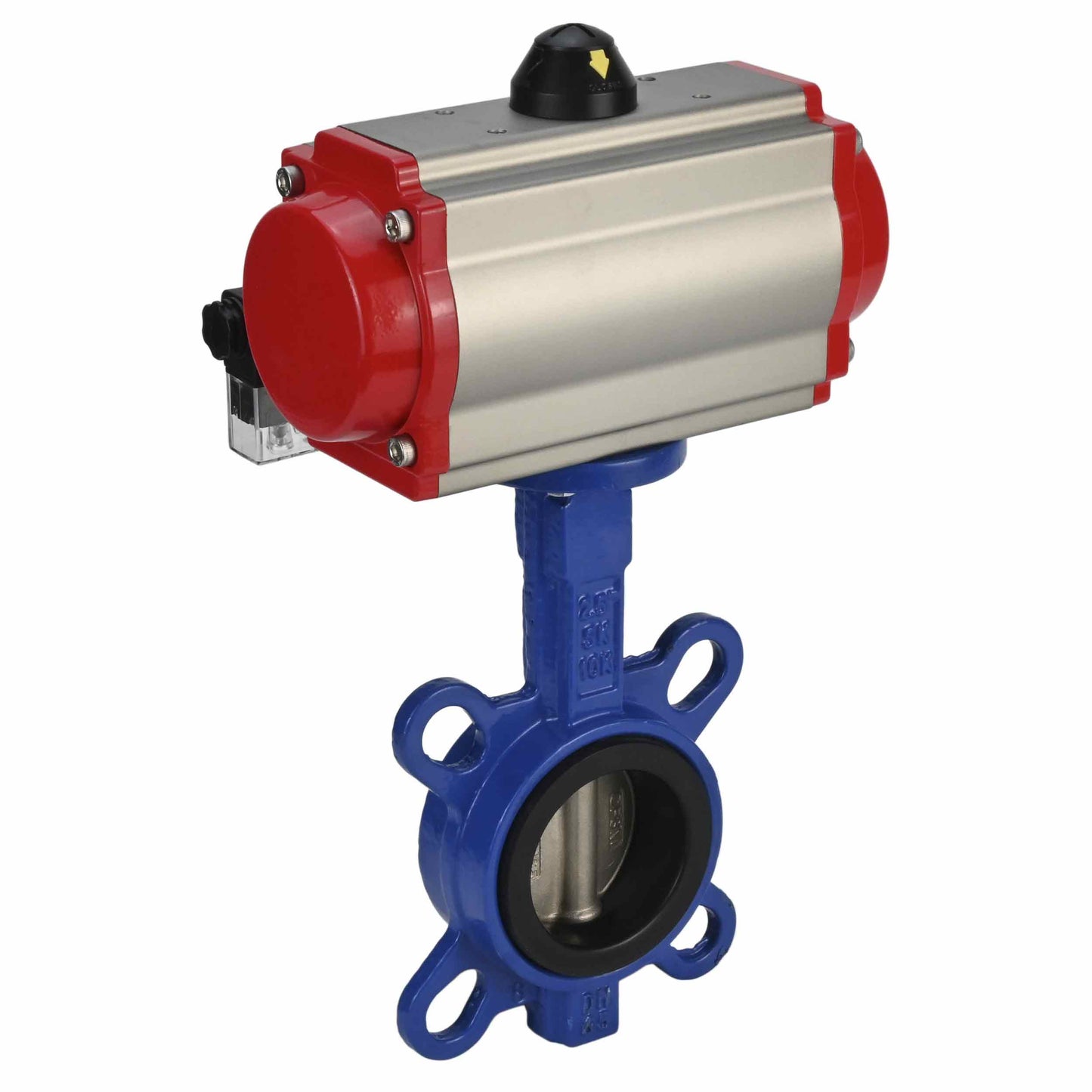

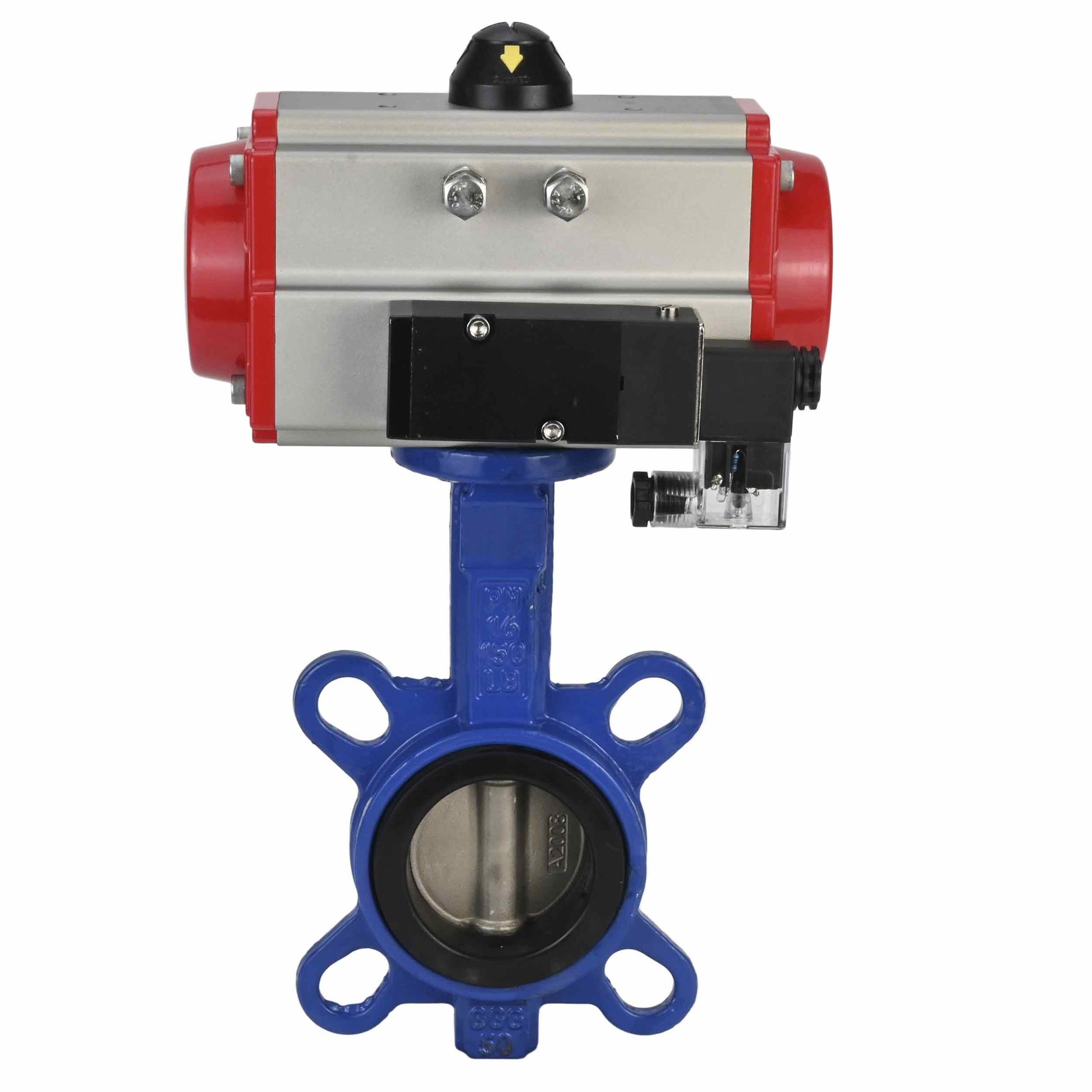

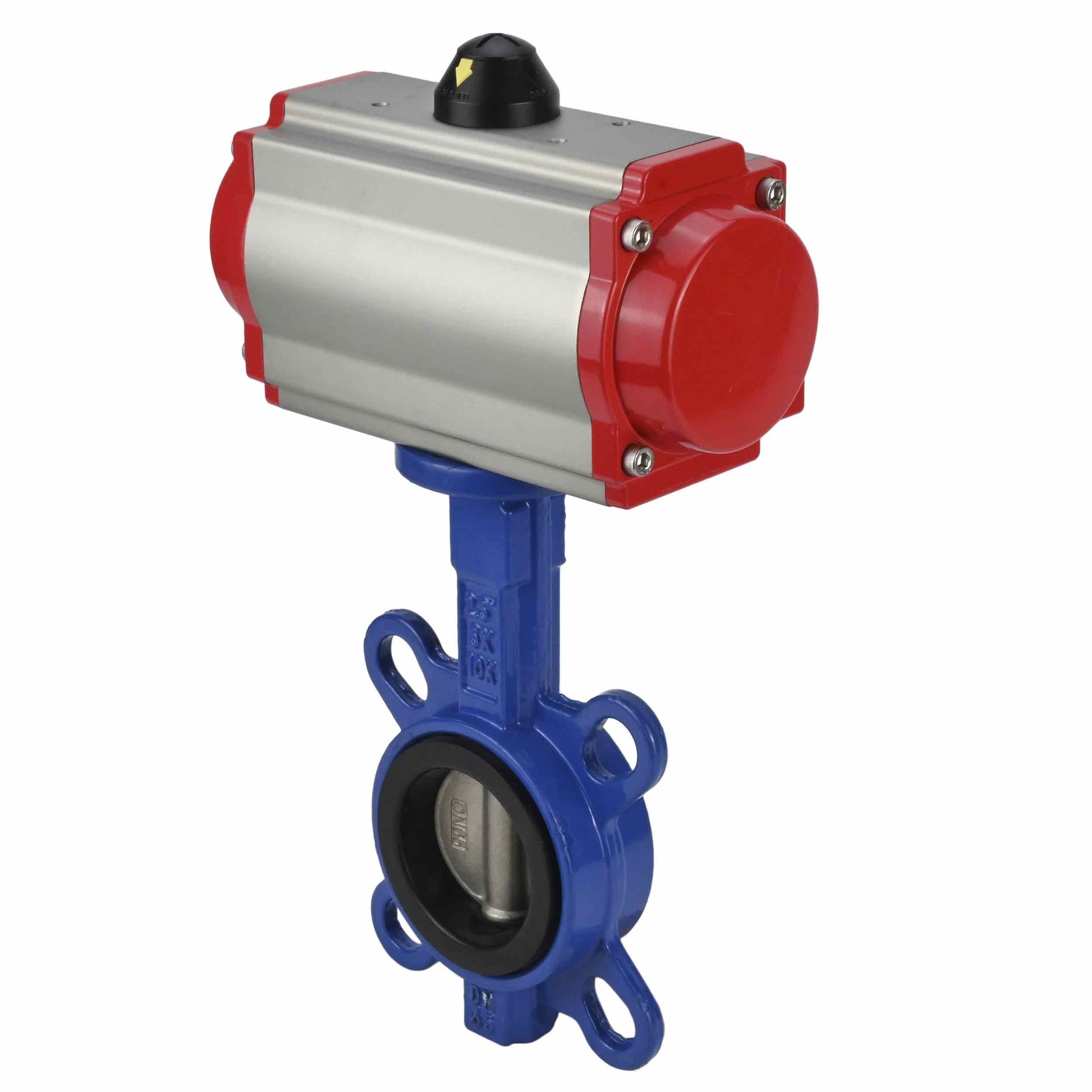

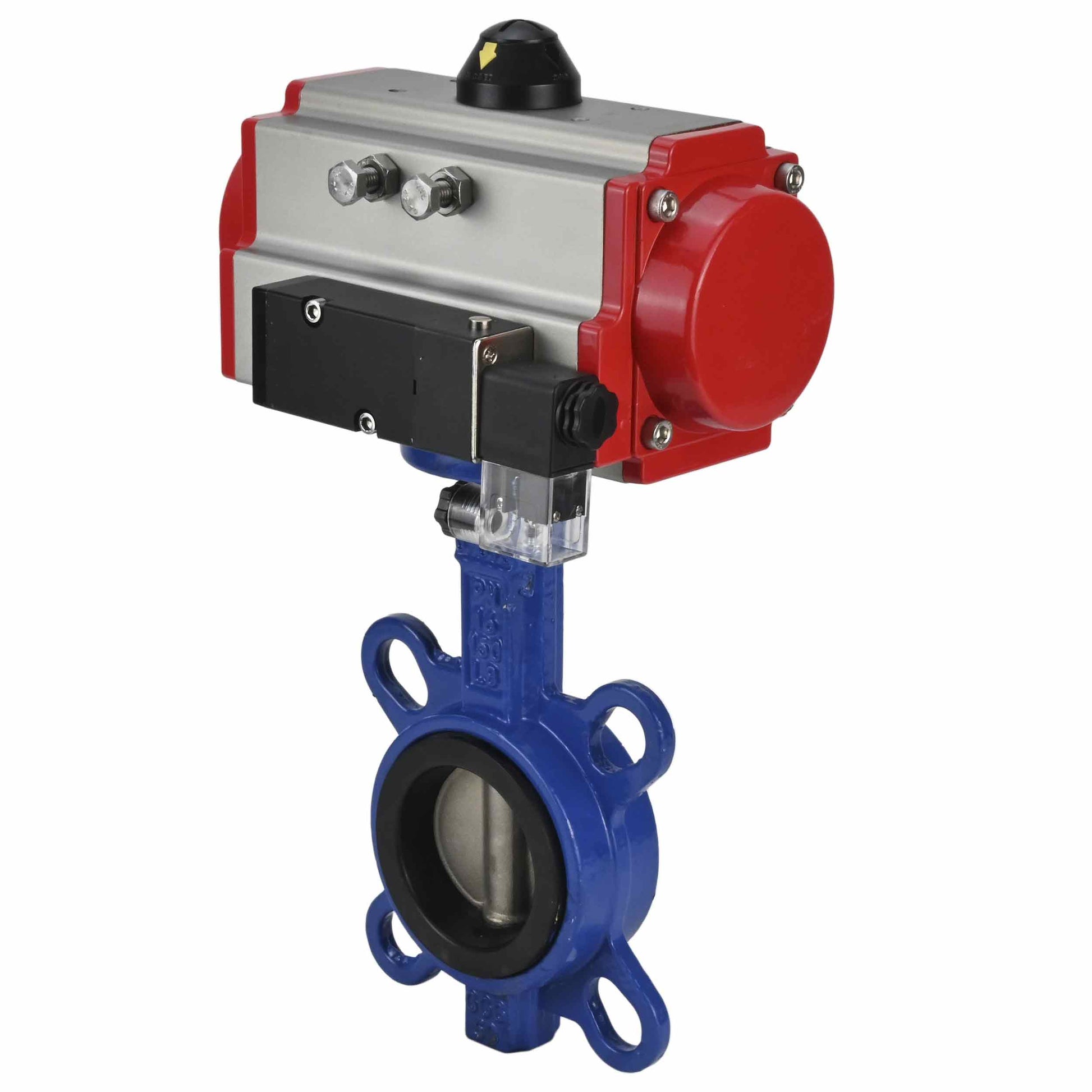

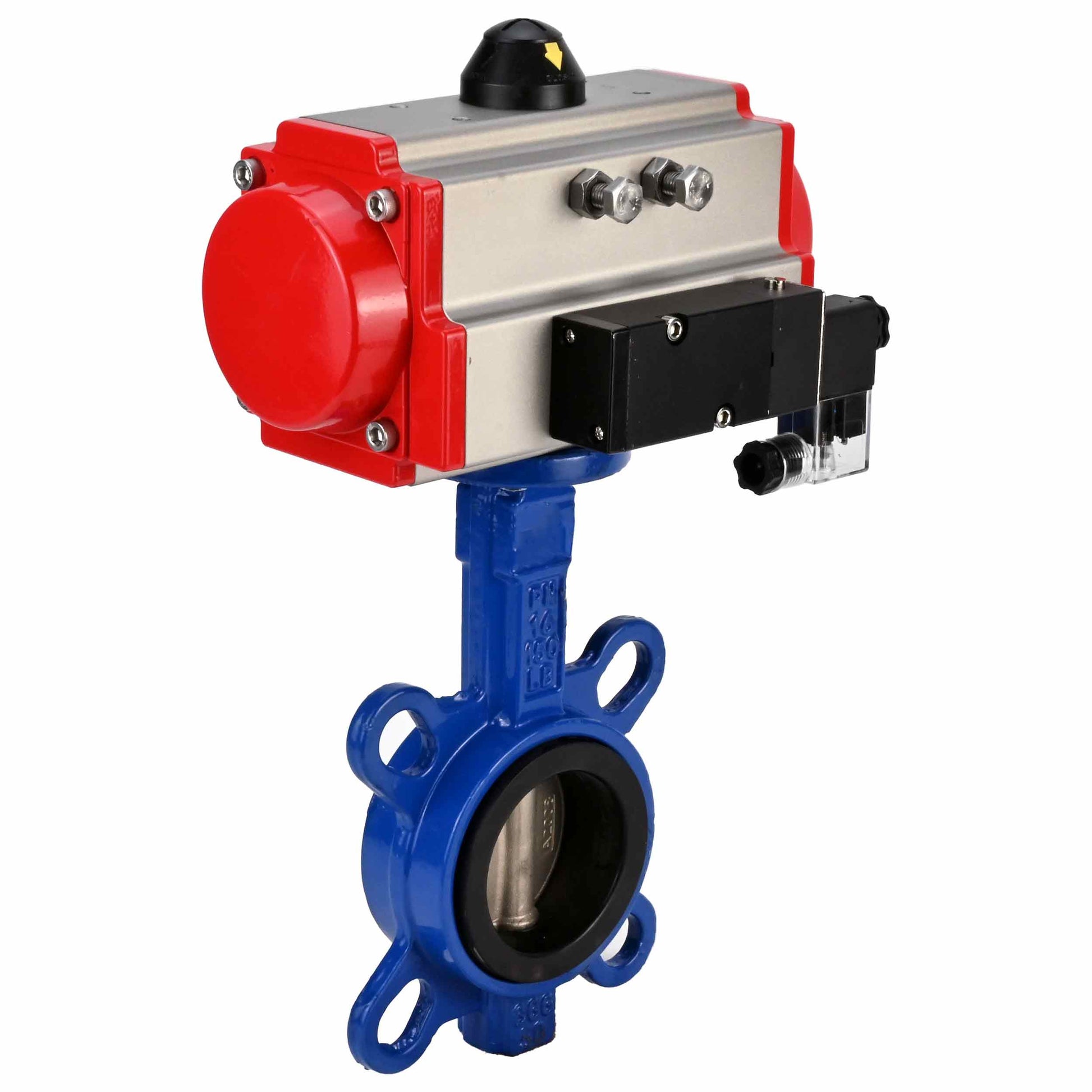

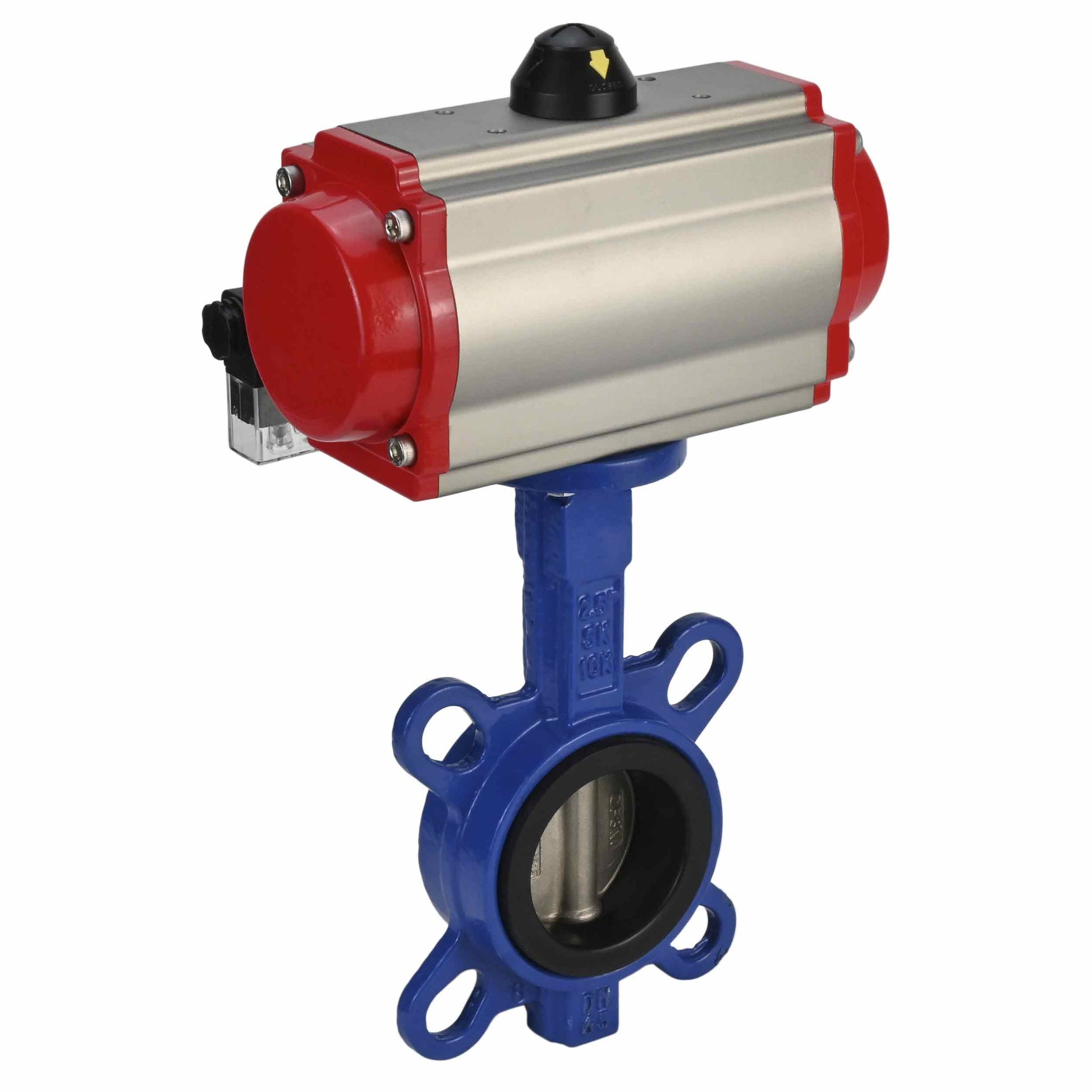

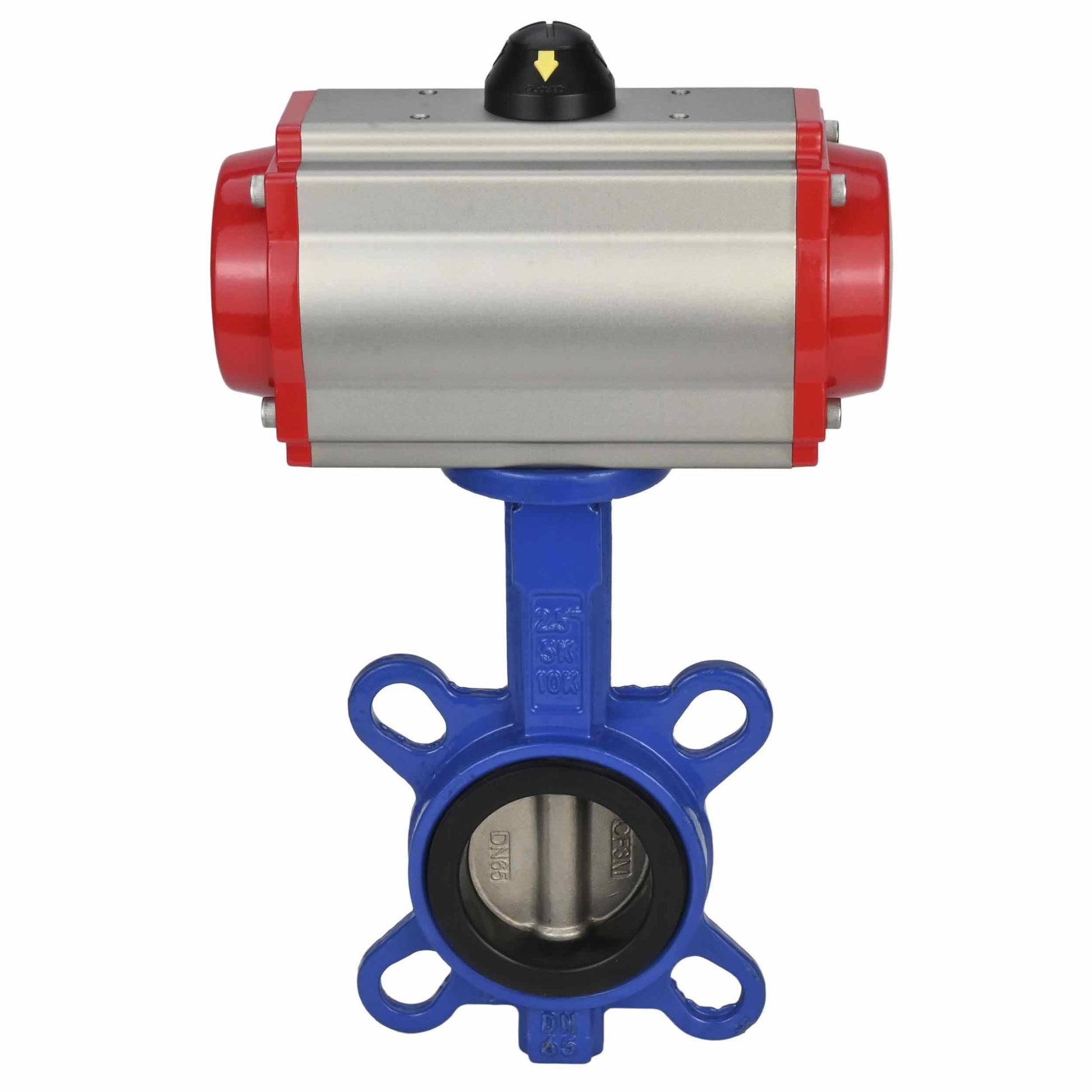

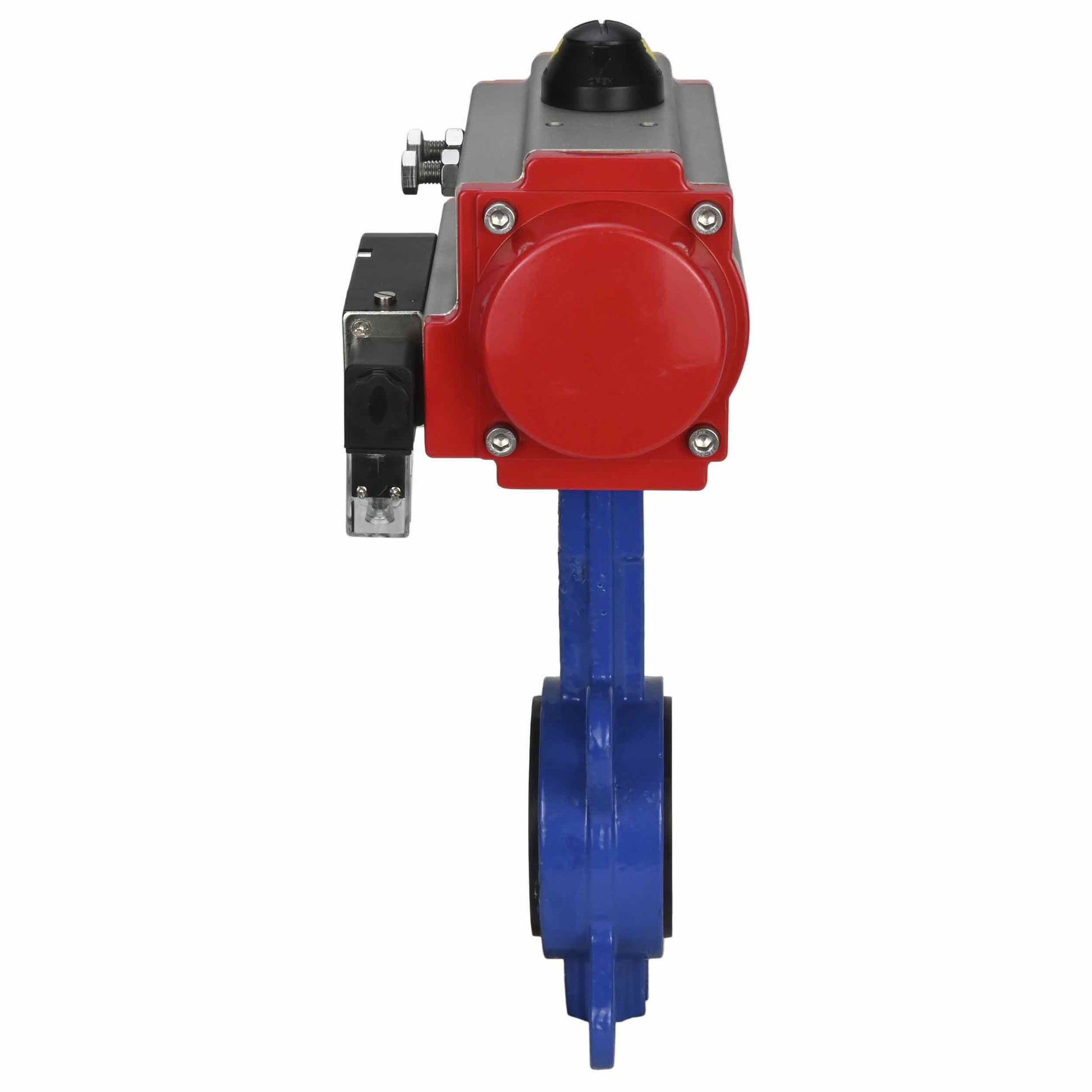

Technical parameters of water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with double-acting pneumatic actuator DA and pneumatic distributor 4M310-08 24V:
| Nominal diameter DN, mm | 40 - 300 |
| Working pressure PN, bar | 16 |
| Operating medium temperature t, ⁰C | from -20 to +120 |
| Operating medium | water, mineral oils, hydrocarbons, oils, fats |
| Flow direction | two-way |
| Control type | handle |
| Pipeline connection | interflanged |
| Body material | cast iron GGG50 |
| Service life, years | 10 |
Overall and installation dimensions of the gate valve DNOVA WBV1332N-2W-Fb-H DN40
| DN | A | B | C | E | L | ØD | Ød | 4-Ødo | HxH | bore diameter |
| 40 | 114 | 66 | 26 | 34 | 210 | 65 | 50 | 4-7 | 9х9 | 50 |
Sketch Butterfly valves WBV1332N-2W-Fb-H DN40
Dimensional parameters of DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with double-acting pneumatic actuator DA and pneumatic distributor 4M310-08 24V:
| DN |
Model electric actuator |
Dimensions | |||
| E, mm | L1, mm | A, mm | C, mm | ||
| 40 | DNOVA DA-052 | 34 | 153 | 114 | 98 |
| 50 | DNOVA DA-065 | 43 | 174 | 131 | 115 |
| 65 | DNOVA DA-065 | 46 | 174 | 140 | 115 |
| 80 | DNOVA DA-083 | 46 | 216 | 150 | 135 |
| 100 | DNOVA DA-083 | 52 | 216 | 163 | 135 |
| 125 | DNOVA DA-105 | 56 | 279 | 178 | 160 |
| 150 | DNOVA DA-105 | 56 | 279 | 191 | 160 |
| 200 | DNOVA DA-130 | 60 | 308 | 238 | 193 |
| 250 | DNOVA DA-140 | 68 | 405 | 285 | 210 |
| 300 | DNOVA DA-160 | 78 | 465 | 315 | 237 |
Materials of parts of water butterfly valve DNOVA WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with double-acting pneumatic actuator DA and pneumatic distributor 4M310-08 24V:
| № | Name | Material |
| 1 | Body | cast iron GGG50 |
| 2 | Seat seal | NBR |
| 3 | Disk | stainless steel 316L |
| 4 | Stem | stainless steel AISI 416 |
| 5 | Pin | stainless steel AISI 420 |
| 6 | Bushing | PTFE |
| 7 | O-ring | NBR |
| 8 | Plate | carbon steel |
Technical characteristics of DNOVA-DA pneumatic actuators:
| Design | Double-acting |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2…8 |
| Operating medium | Filtered compressed air or non-aggressive gases, oils |
| Maximum particle diameter | less than 30 µm2 |
| Working temperature t, ⁰C | from -20 to +80 from -40 to +80 (low-temperature version) from -20 to +160 (in dry air) |
| Adjustment range | ± 5° for rotation at 0° and 90° |
| Manual duplication | yes |
| Position indicator | open/closed |
| Operating environment | indoors and outdoors. (All internal and external parts have an anti-corrosion coating) |
Pneumatic actuator component materials DNOVA DA:
| № | Name | Quantity | Material | Coating |
| 1 | Body | 1 | extruded aluminum | hard anodized |
| 2 | Side caps | 2 | cast aluminum | |
| 3 | Gear | 1 | stainless steel | nickel plated |
| 4 | Piston | 2 | steel/aluminum | oxidation/ galvanized zinc plating |
| 5 | Plugs | 8 | stainless steel | |
| 6 | Piston ring | 2 | NBR | |
| 7 | Springs | 0-12 | spring steel | epoxy coating |
| 8 | Piston bearing | 2 | engineering plastic | |
| 9 | Piston ring | 2 | NBR | |
| 10 | Plug | 2 | NBR | |
| 11 | Thrust ring | 2 | engineering plastic | |
| 12 | Ring | 1 | engineering plastic | |
| 13 | Washer | 1 | stainless steel | |
| 14 | Spring clip | 2 | stainless steel | |
| 15 | Indicator | 1 | plastic | |
| 16 | Indicator body | 1 | plastic | |
| 17 | Bearing | 1 | engineering plastic | |
| 18 | Cam | 1 | steel | oxidation/ galvanized galvanizing |
| 19 | Bearing | 1 | NBR | |
| 20 | Bearing | 1 | engineering plastic | |
| 21 | Bearing | 1 | engineering plastic | |
| 22 | O-ring | 2 | NBR | |
| 23 | O-ring | 2 | NBR | |
| 24 | Bearing | 2 | stainless steel | |
| 25 | Adjustment nut | 2 | stainless steel | |
| 26 | Adjustment screw | 2 | stainless steel | |
| 27 | Bushing | 2 | aluminum |
Technical characteristics of pneumatic valve 4M310-08 24V:
| Design | spool type |
| Nominal pressure PN, MPa (kg/cm2) | 1,2 (12) |
| Working pressure, bar | 1,5…8 |
| Operating medium | filtered compressed air |
| Ambient temperature t, ⁰C | from +5 to +50 |
| Response frequency | 5 cycles/second |
| Manual duplication | yes |
| Degree of protection | IP 65 |
| Fastening | through holes in the housing |
| Body material | anodized aluminum |
| Response time | 0.05 sec. |
