Electric quarter-turn actuator
Butterfly disc
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Butterfly valve DNOVA is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

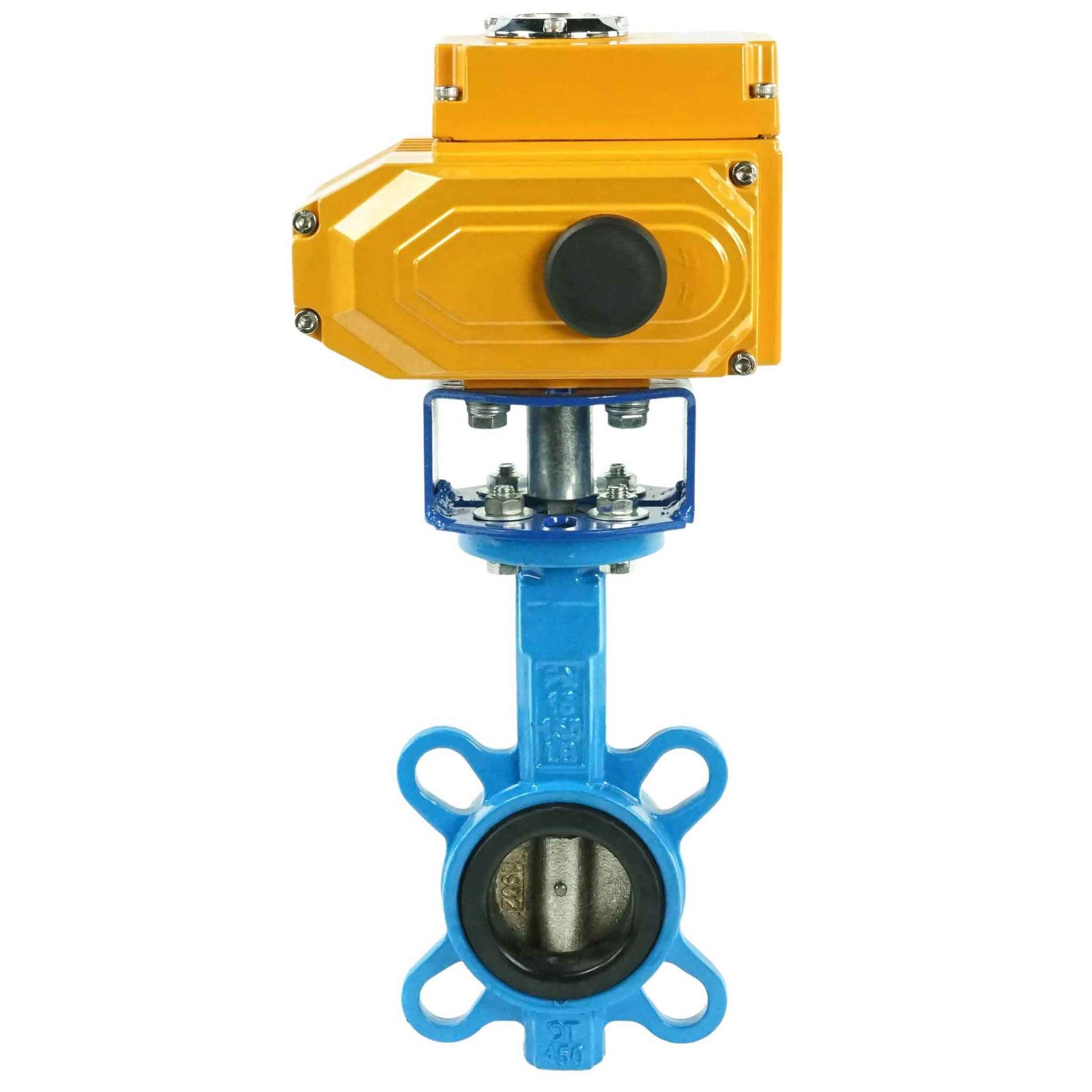

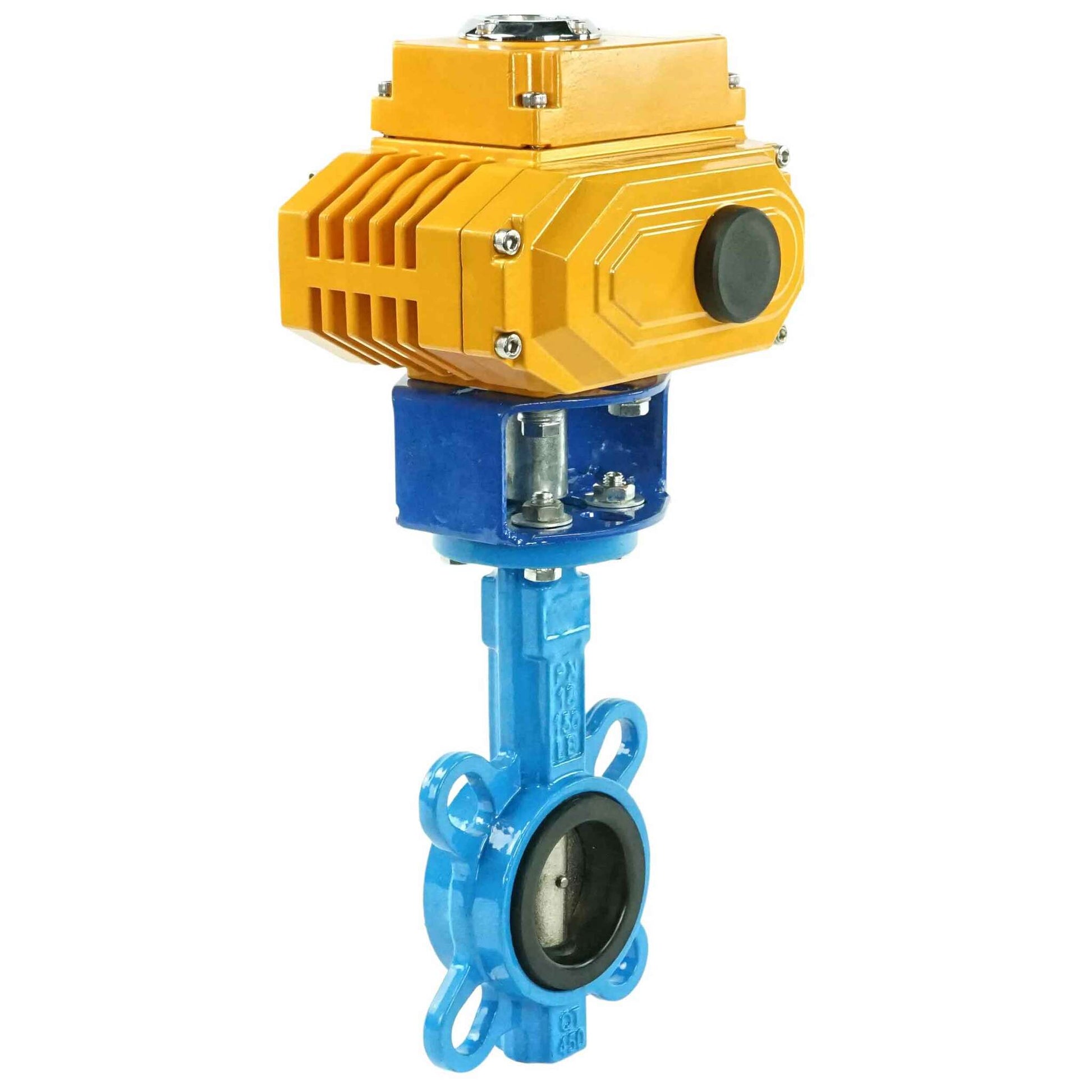

Dimensions of water butterfly valve DNOVA GGG50-GGG40-EPDM body material - Cast iron GGG50, disk material - Cast iron GGG40, seal - EPDM with electric actuator DNOVA 24V:
|
DN |
A |
B |
C |
ØD |
d |
G |
CH |
Type ISO flange |
Torque, Nm |
Weight, kg |
|
40 |
105 |
55 |
33 |
75 |
10 |
30 |
11 |
F07 |
30 |
1.6 |
|
50 |
161 |
80 |
43 |
84.5 |
10 |
30 |
11 |
F07 |
32 |
2.2 |
|
65 |
175 |
89 |
45 |
104.5 |
10 |
30 |
11 |
F07 |
34 |
2.5 |
|
80 |
181 |
95 |
45 |
123.5 |
10 |
30 |
14 |
F07 |
40 |
2.9 |
|
100 |
200 |
114 |
52 |
139.5 |
10 |
30 |
14 |
F07 |
64 |
3.8 |
|
125 |
213 |
127 |
55 |
169.5 |
10 |
30 |
17 |
F07 |
84 |
5.8 |
|
150 |
226 |
139 |
55 |
196 |
10 |
30 |
17 |
F07 |
160 |
7.4 |
|
200 |
260 |
175 |
60 |
247 |
12 |
30 |
17 |
F10 |
195 |
12.5 |
|
250 |
292 |
203 |
68 |
304 |
12 |
40 |
22 |
F10 |
310 |
18.9 |
|
300 |
337 |
242 |
78 |
358 |
12 |
40 |
22 |
F10 |
420 |
27.0 |
Materials of DNOVA GGG50-GGG40-EPDM gate valve:
|
№ |
Part |
Material |
|
1 |
Body |
High-strength cast iron GGG50 |
|
2 |
Disc |
High-strength cast iron GGG40 |
|
3 |
Seat seal |
EPDM |
|
4 |
Upper stem |
Stainless steel AISI 420 |
|
5 |
Lower stem |
Stainless steel AISI 420 |
|
6 |
Retaining ring |
Steel AISI 201 |
|
7 |
Duster |
NBR |
|
8 |
Stem gasket |
NBR |
|
9 |
Insert |
Steel AISI 201 |
|
10 |
Plug |
Plastic |
|
11 |
Retaining ring |
Steel |
Main technical specifications of DNOVA series QT electric actuators:
| Power supply | 220 VAC, 380 VAC, 24 VDC |
| Limit switches | 2-Open/Closed 250V 10A |
| Additional limit switches 2 | 2-Open/Closed 250V 10A |
| Angle of rotation, ° | 90±5 |
| Internal thermal protection | Switching off at 110°C ± 5°C, switching on at 97°C ± 5°C |
| Visual position indicator | is |
| Ambient temperature, °C | -20 to +65 |
| Manual doubler | Hexagon (included) |
| Self-locking device | self-locking with worm and worm gears |
| Mechanical limiter | 2 external adjustable stops |
| Cable glands | 2xM18 |
| Enclosure protection class | IP67 |
| Lubrication | aluminum-based (type EP) |
| Body material | aluminum alloy with epoxy powder coating |
| Average life, closing/opening cycles | 30 000 |
- Body material
- Cast iron GGG50/EN-GJS-500-7
- Maximum allowable temperature
- 110 °C
- Connection type
- Compact flanged
- Control type
- Electric actuator
- Nominal pressure
- 16 bar
- Type of seal
- EPDM
- Disc material
- Cast iron GGG40/EN-GJS-400-15
- Voltage
- 24V
- Actuator cycle time
- 30s
- Valve feedback
- Limit switches
- Explosion-proof
- No
- Thermal protection
- Yes
- Torque
- 195 Nm
- Pneumatic actuator
- No
- Manual override
- No
- Limit switches
- No
- Country of origin
- China
