Description

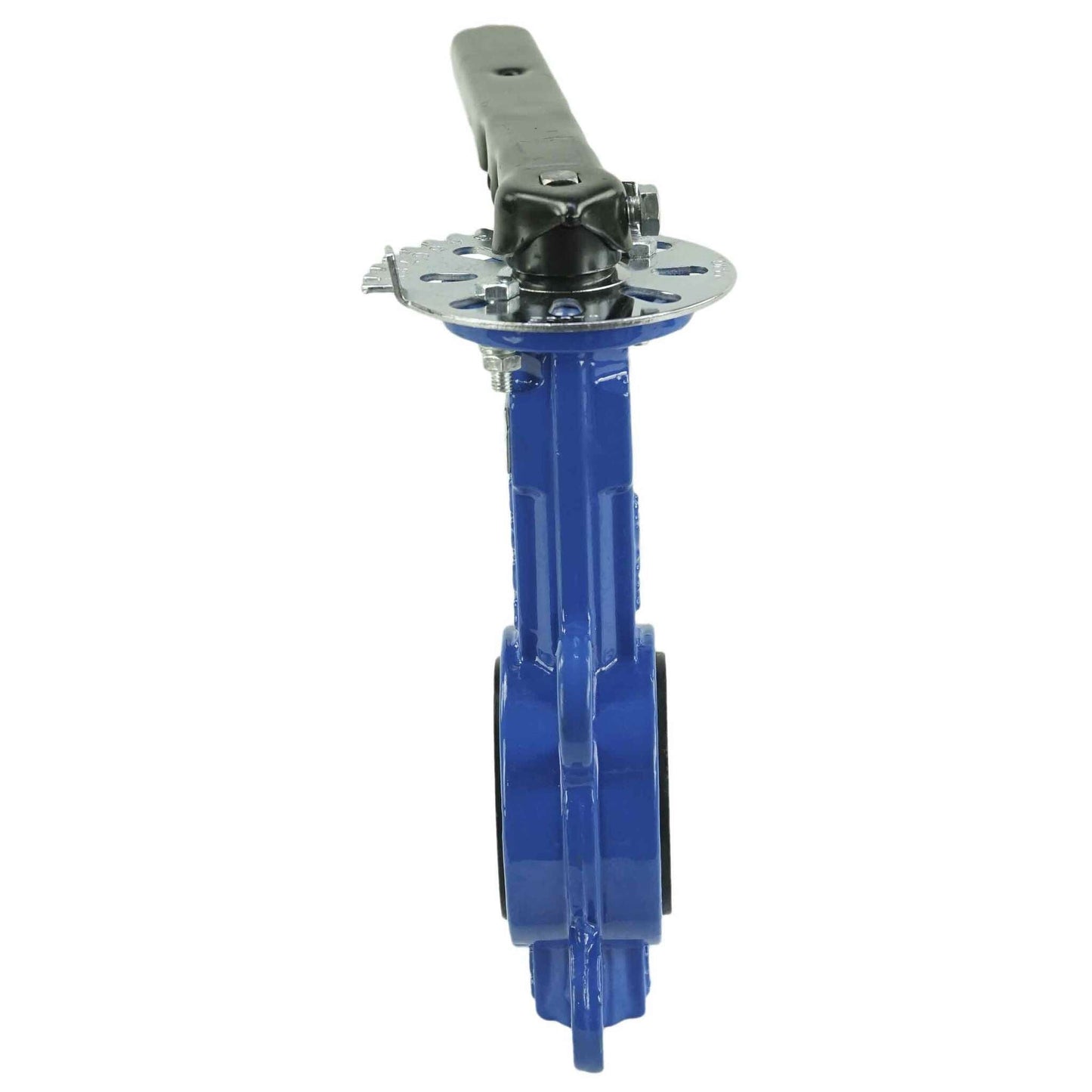

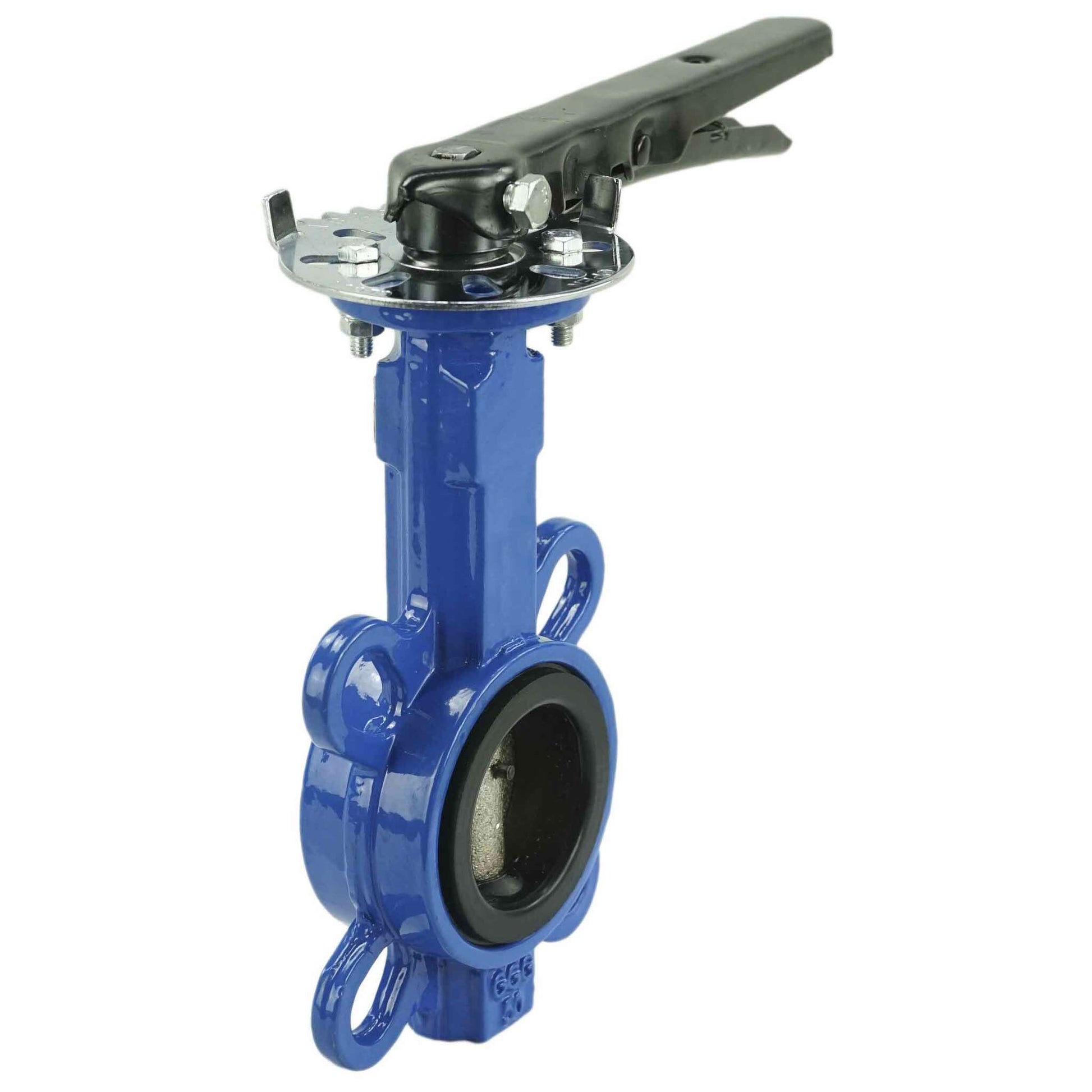

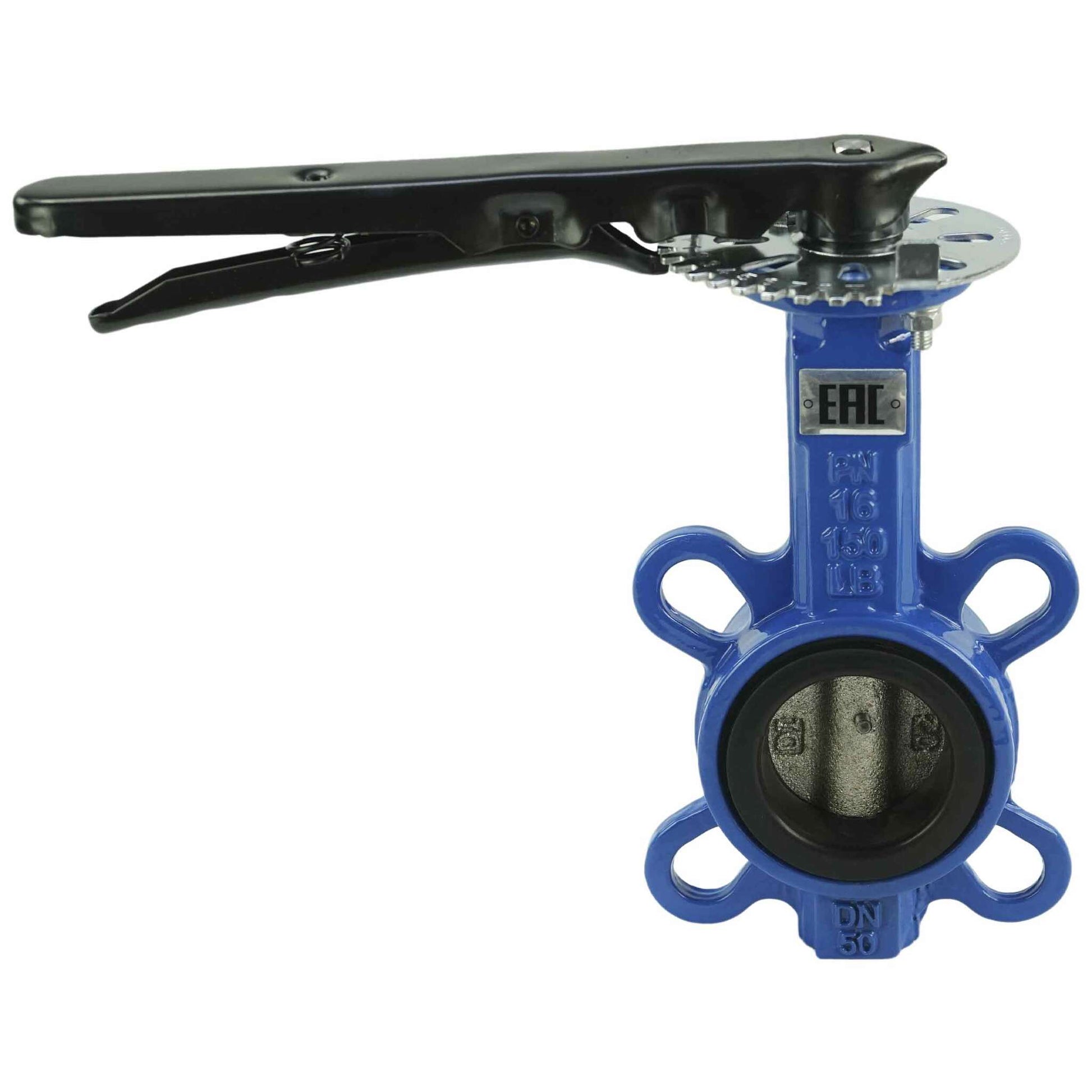

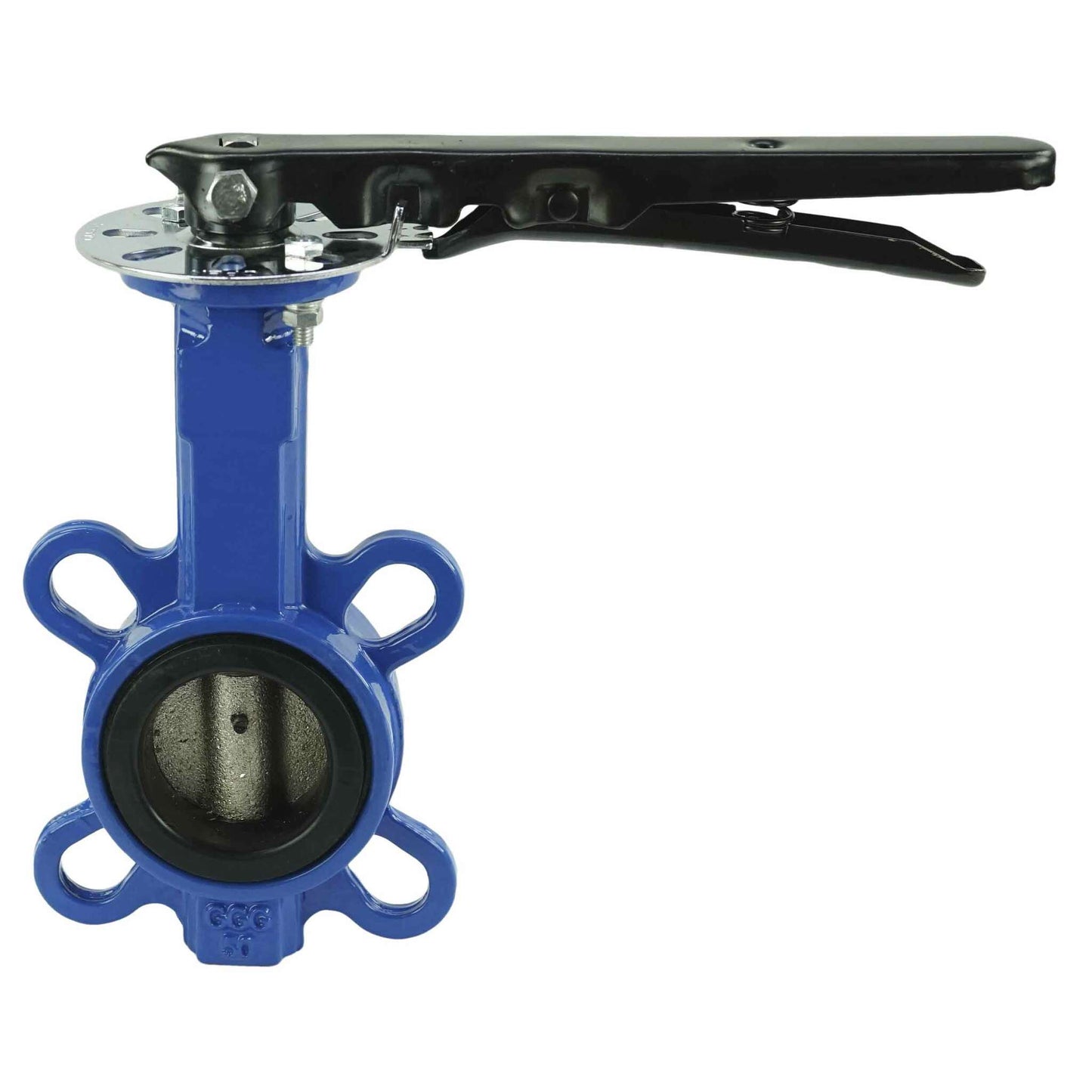

Water Butterfly Valve DNOVA is intended for use as shut-off or control valves for flow control in heat supply systems, water supply systems, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries.
Overall and installation dimensions of the gate valve DNOVA WBV1413E-2W-Fb-H PN16, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, handwheel operated
| DN | A | B | C | ØD | d | G | CH | ISO | Weight, kg |
| 40 | 105 | 55 | 33 | 75 | 10 | 30 | 9x9 | F05 | 1.6 |
| 50 | 161 | 80 | 43 | 84.5 | 10 | 30 | 9x9 | F05 | 2.2 |
| 65 | 175 | 89 | 45 | 104.5 | 10 | 30 | 9x9 | F05 | 2.5 |
| 80 | 181 | 95 | 45 | 123.5 | 10 | 30 | 9x9 | F05 | 2.9 |
| 100 | 200 | 114 | 52 | 139.5 | 10 | 30 | 11x11 | F07 | 3.8 |
| 125 | 213 | 127 | 55 | 169.5 | 10 | 30 | 14x14 | F07 | 5.8 |
| 150 | 226 | 139 | 55 | 196 | 10 | 30 | 14x14 | F07 | 7.4 |
| 200 | 260 | 175 | 60 | 247 | 12 | 30 | 17x17 | F10 | 12.5 |
| 250 | 292 | 203 | 68 | 304 | 12 | 40 | 22x22 | F10 | 18.9 |
| 300 | 337 | 242 | 78 | 358 | 12 | 40 | 22x22 | F10 | 27.0 |
Shutter sketch DNOVA WBV1413E-2W-Fb-H PN16, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, handwheel operated
Materials of bolt parts DNOVA WBV1413E-2W-Fb-H PN16, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, handwheel operated
| № | Part name | Material |
| 1 | Body | Cast iron GGG50 |
| 2 | Disk | High-strength cast iron GGG40 |
| 3 | Seat seal | EPDM |
| 4 | Upper stem | AISI 420 steel |
| 5 | Lower stem | AISI 420 steel |
| 6, 11 | retaining ring | AISI 420 steel |
| 7 | duster | NBR |
| 8 | Stem gasket | NBR |
| 9 | liner | AISI 420 steel |
| 10 | Cork | plastic |
Sketch of bolt detailing DNOVA WBV1413E-2W-Fb-H PN16, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, handwheel operated
