Description
Butterfly valves DNOVA al-316l are designed for use as shut-off or regulating valves for flow control in heat and water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Butterfly valves should be installed only between collar flanges.

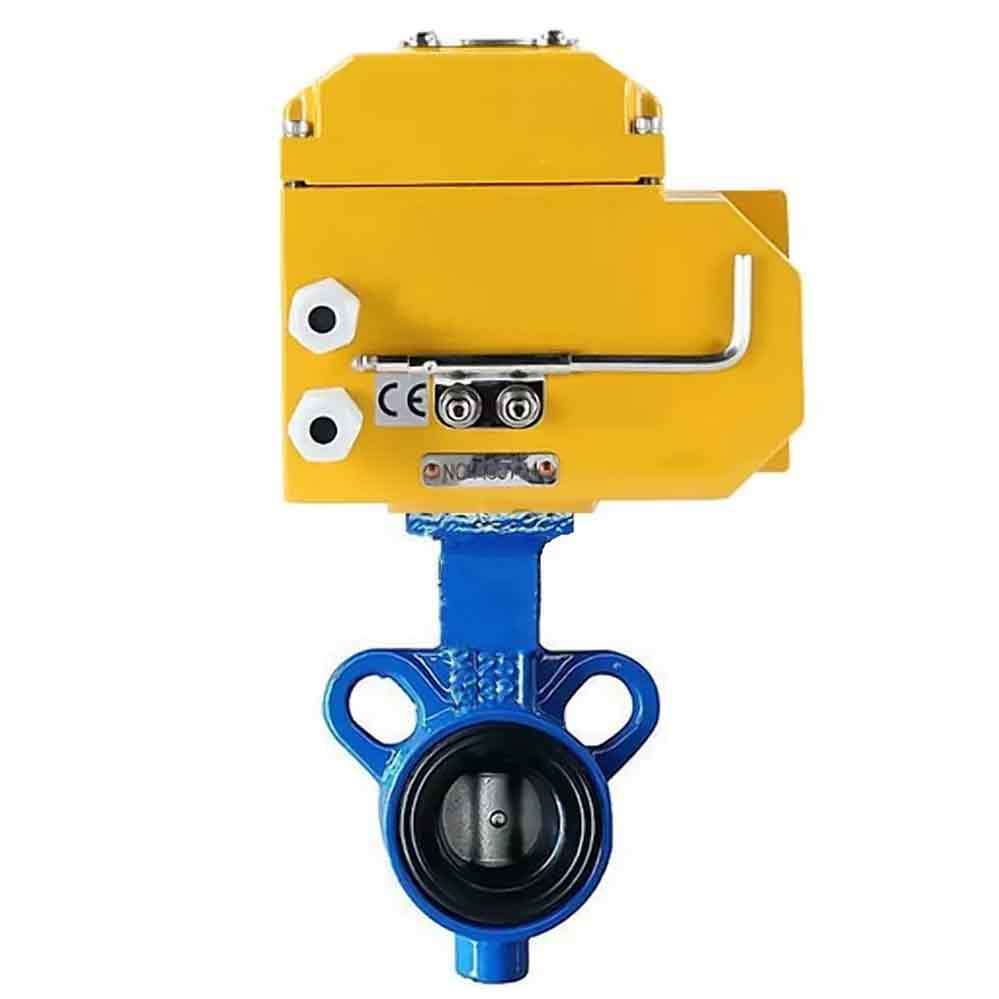

Technical characteristics of water butterfly valve DNOVA al-316l-epdm-DNOVA-24v, body material - aluminium alloy, disk material - stainless steel AISI 316L, seal - EPDM, electric actuator operated:
|
Nominal diameter DN, mm |
25–32 |
|
Operating pressure PN, bar |
16 |
|
Working medium temperature t, °C |
From -20 to +120 |
|
Working medium |
Cold and hot water, oil-free and grease-free air, other media neutral to the material |
|
Flow direction |
Two-way |
|
Body material |
Aluminum alloy |
|
Type of control |
Manual (handle) |
|
Additional option |
Electric or pneumatic actuator installation possible |
Materials of water butterfly valve DNOVA al-316l-epdm-DNOVA-24v, body material - aluminium alloy, disk material - stainless steel AISI 316L, seal - EPDM, electric actuator operated:
|
№ |
Part name |
Material |
|
1 |
Body |
Aluminum alloy |
|
2 |
Seat seal |
EPDM |
|
3 |
Pin |
Stainless steel SS304 |
|
4 |
Disc |
Stainless steel 316L |
|
5 |
Stem |
Stainless steel SS410 |
|
6 |
Sealing ring |
EPDM |
|
7 |
Plate |
Steel |
|
8 |
Handle |
Ductile iron |
|
9 |
Bolt |
Stainless steel SS201 |
|
10 |
Gasket |
Stainless steel SS201 |
|
11 |
Nut |
Stainless steel SS201 |
|
12 |
Gasket |
Stainless steel SS201 |
Dimensional parameters of water butterfly valve DNOVA al-316l-epdm-DNOVA-24v, body material - aluminium alloy, disk material - stainless steel AISI 316L, seal - EPDM, electric actuator operated:
| DN | Electric actuator model | L, mm | L1, mm | A, mm | C, mm | Weight, kg |
|---|---|---|---|---|---|---|
| 25 | 003 | 36 | 123 | 93 | 113 | 3,15 |
| 32 | 003 | 36 | 123 | 93 | 113 | 3,15 |
| 25 | 005 | 36 | 160 | 93 | 146 | 4,65 |
| 32 | 005 | 36 | 160 | 93 | 146 | 4,65 |
| 25 | 003 blue | 36 | 121 | 93 | 110,2 | 2,25 |
| 32 | 003 blue | 36 | 121 | 93 | 110,2 | 2,25 |
Characteristics of actuators DNOVA 24V:
| Actuator model | Torque | Working time |
|---|---|---|
| Nm | sec | |
| DNOVA 003 blue | 30 | 25 |
| DNOVA-003 24V | 30 | 20 |
| DNOVA-005 24V | 50 | 30 |
| DNOVA-008 24V | 80 | 30 |
| DNOVA-015 24V | 150 | 30 |
| DNOVA-060 24V | 600 | 30 |
| Actuator model | Power | Current | Weight | Stem size square |
|---|---|---|---|---|
| W | A | kg | mm | |
| DNOVA 003 blue | 25 | 0,1 | 1,2 | 11 |
| DNOVA-003 24V | 9 | 0,5 | 2,1 | 11 |
| DNOVA-005 24V | 10 | 0,5 | 3,6 | 14 |
| DNOVA-008 24V | 10 | 0,5 | 3,6 | 14 |
| DNOVA-015 24V | 15 | 0,8 | 4,6 | 17 |
| DNOVA-060 24V | 60 | 3 | 14 | 27 |
