How it works
Manual quarter-turn gearbox
Butterfly disc
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
Applications
Media and industries
- Mineral And Vegetable Oils
- Animal Fats
- Greases And Fuels
- Hot Air

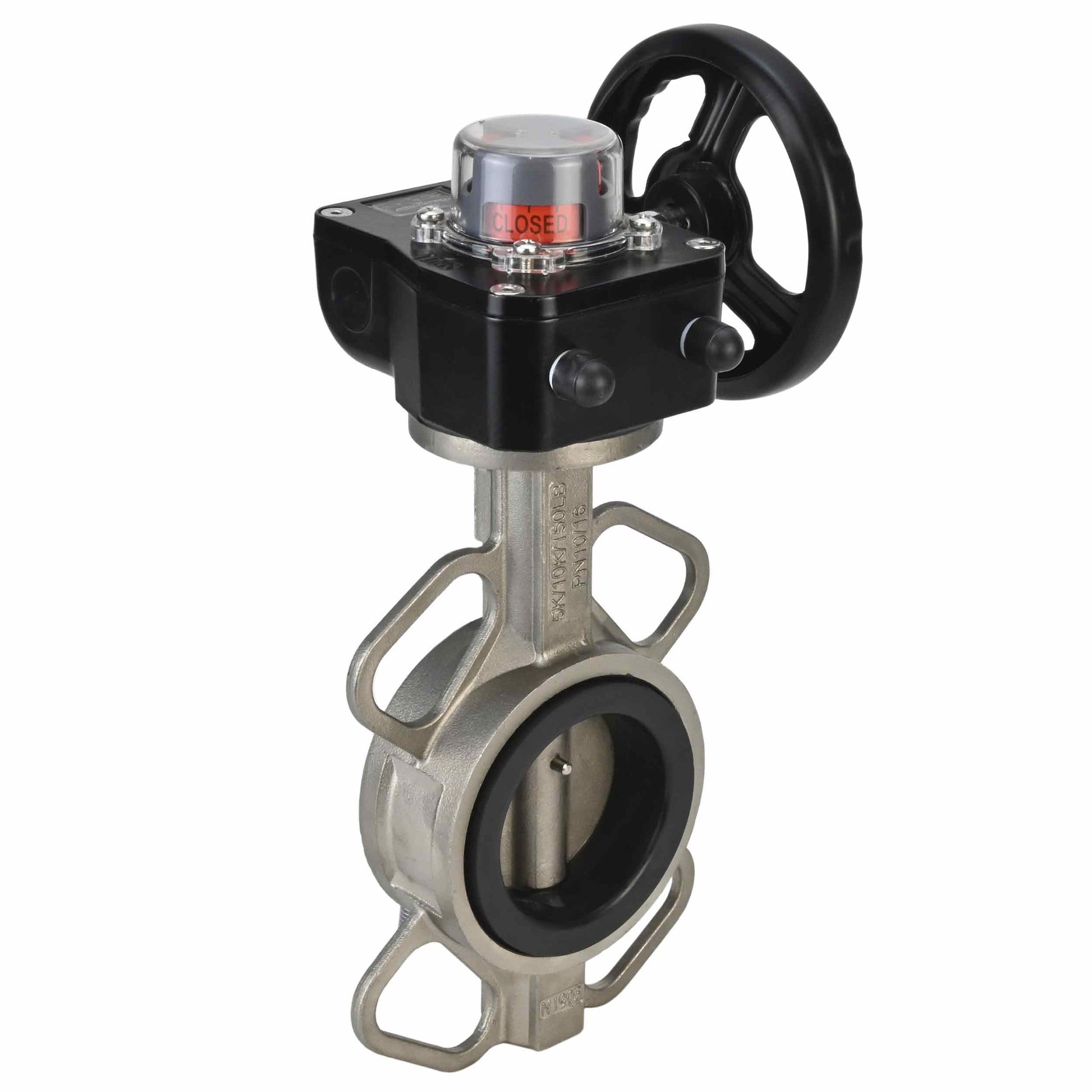

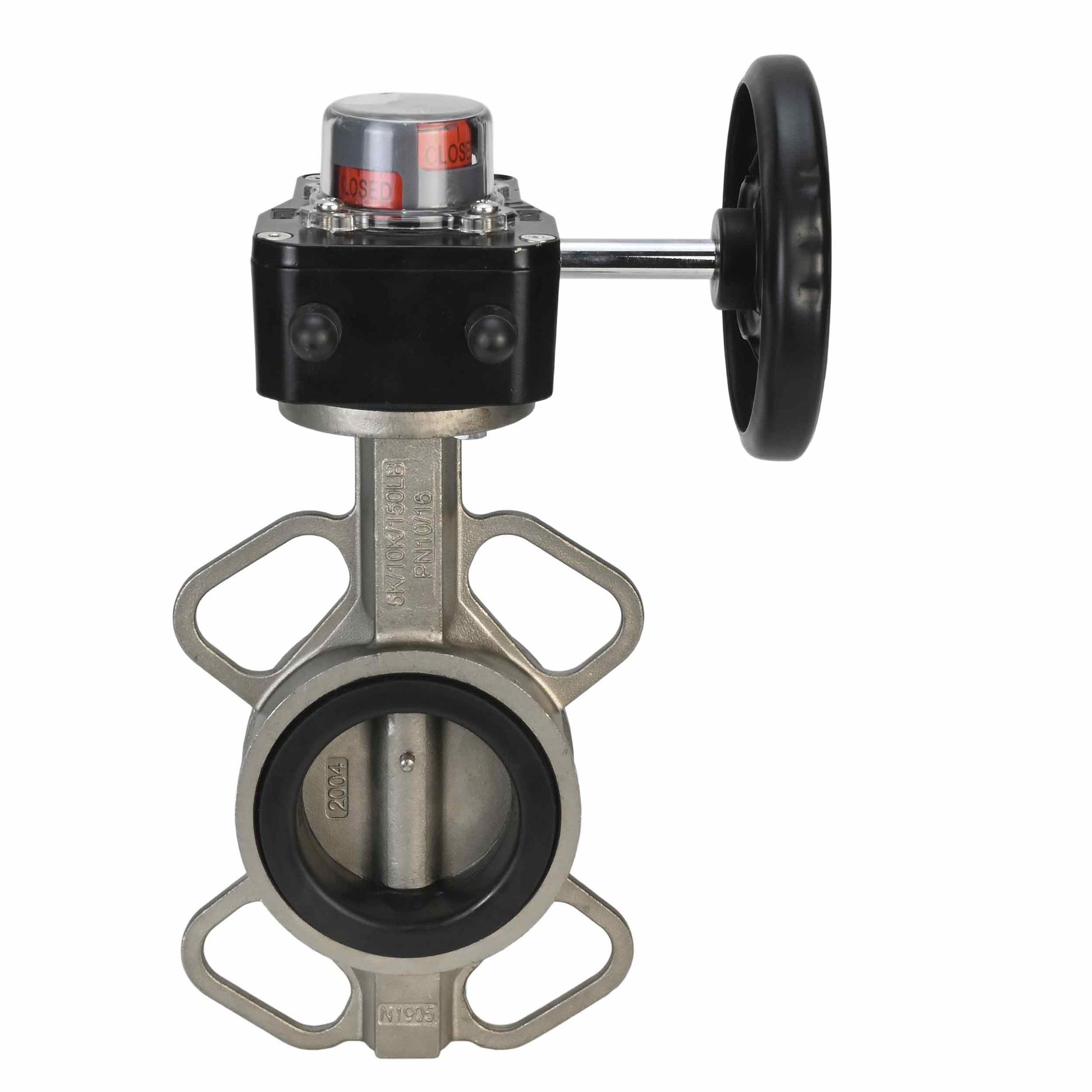

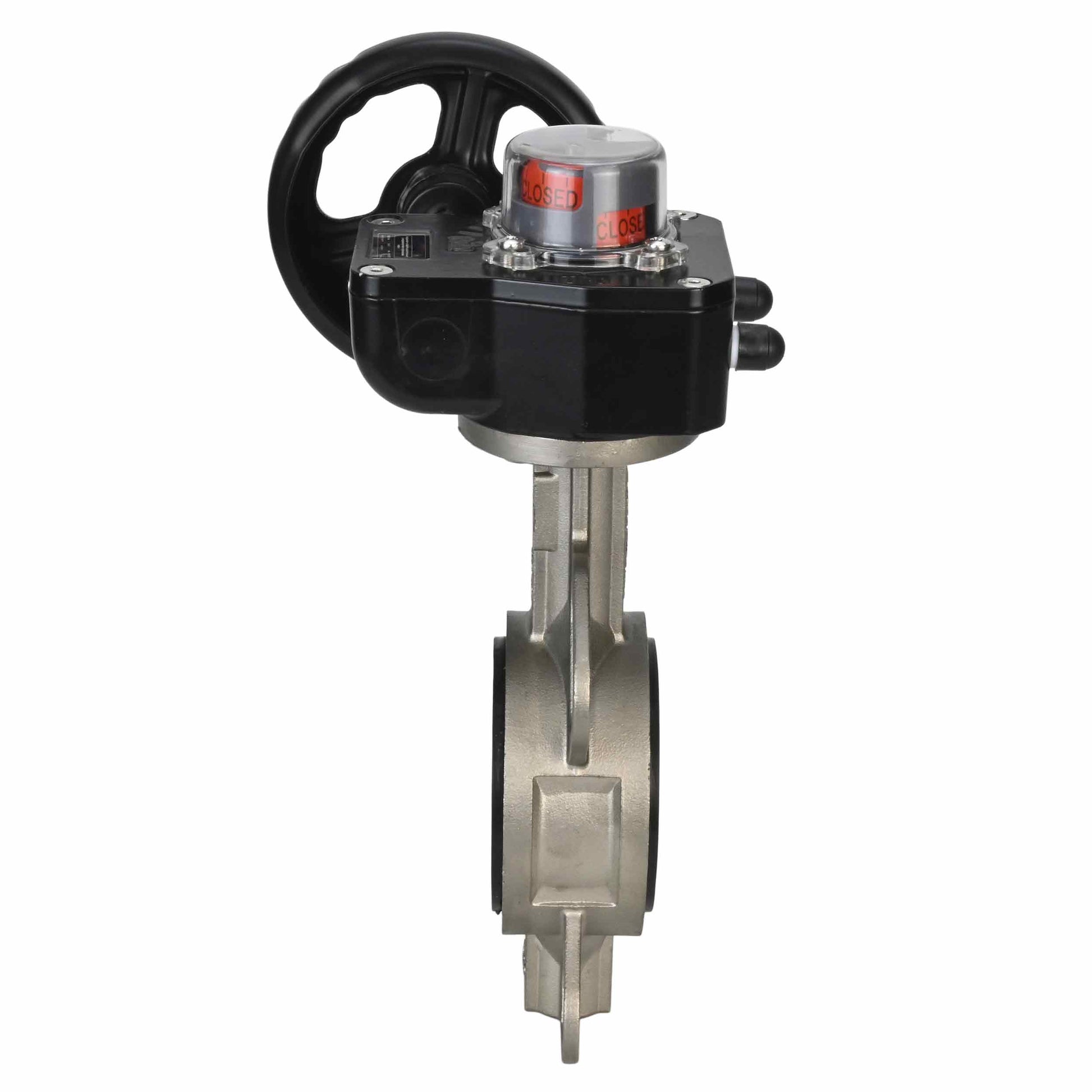

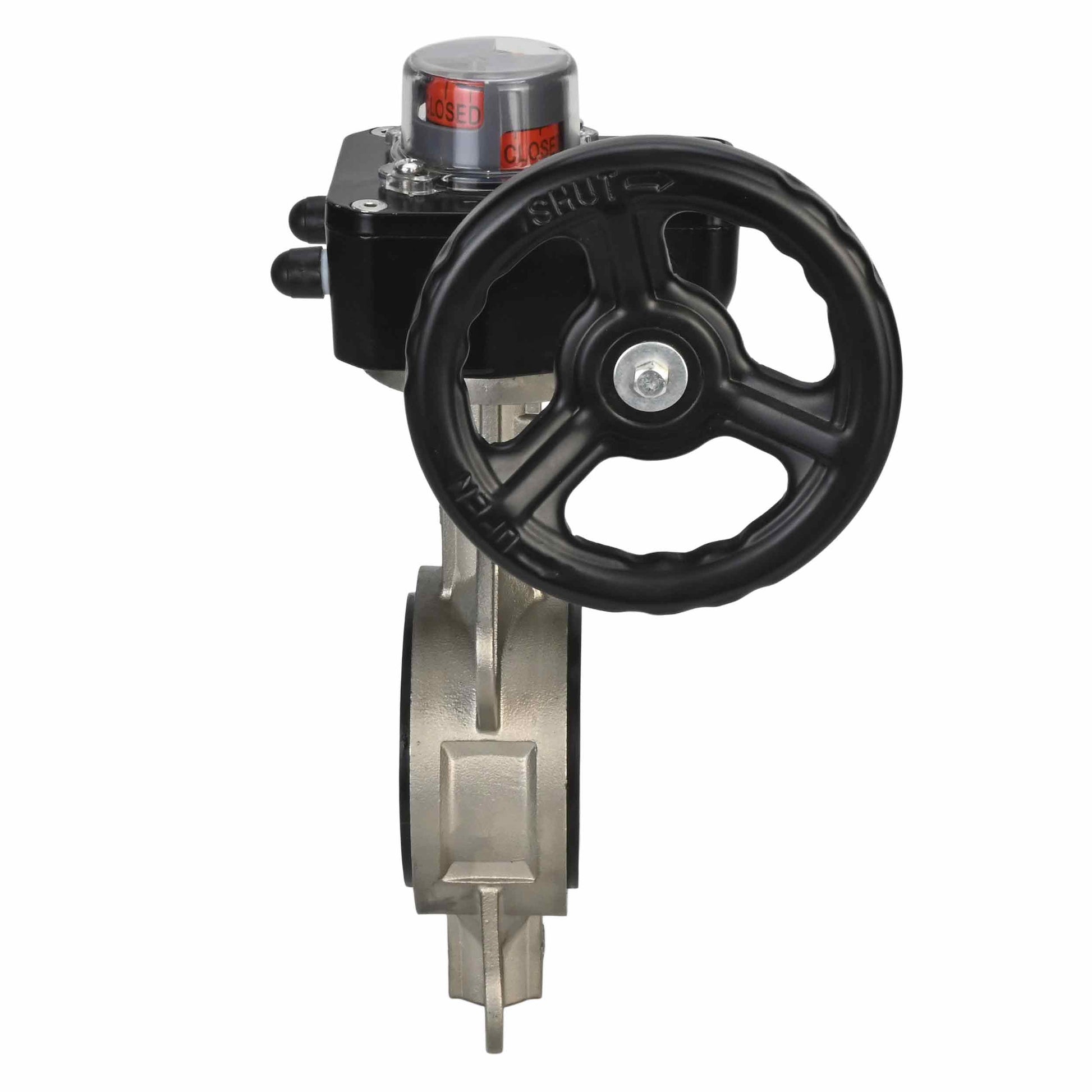

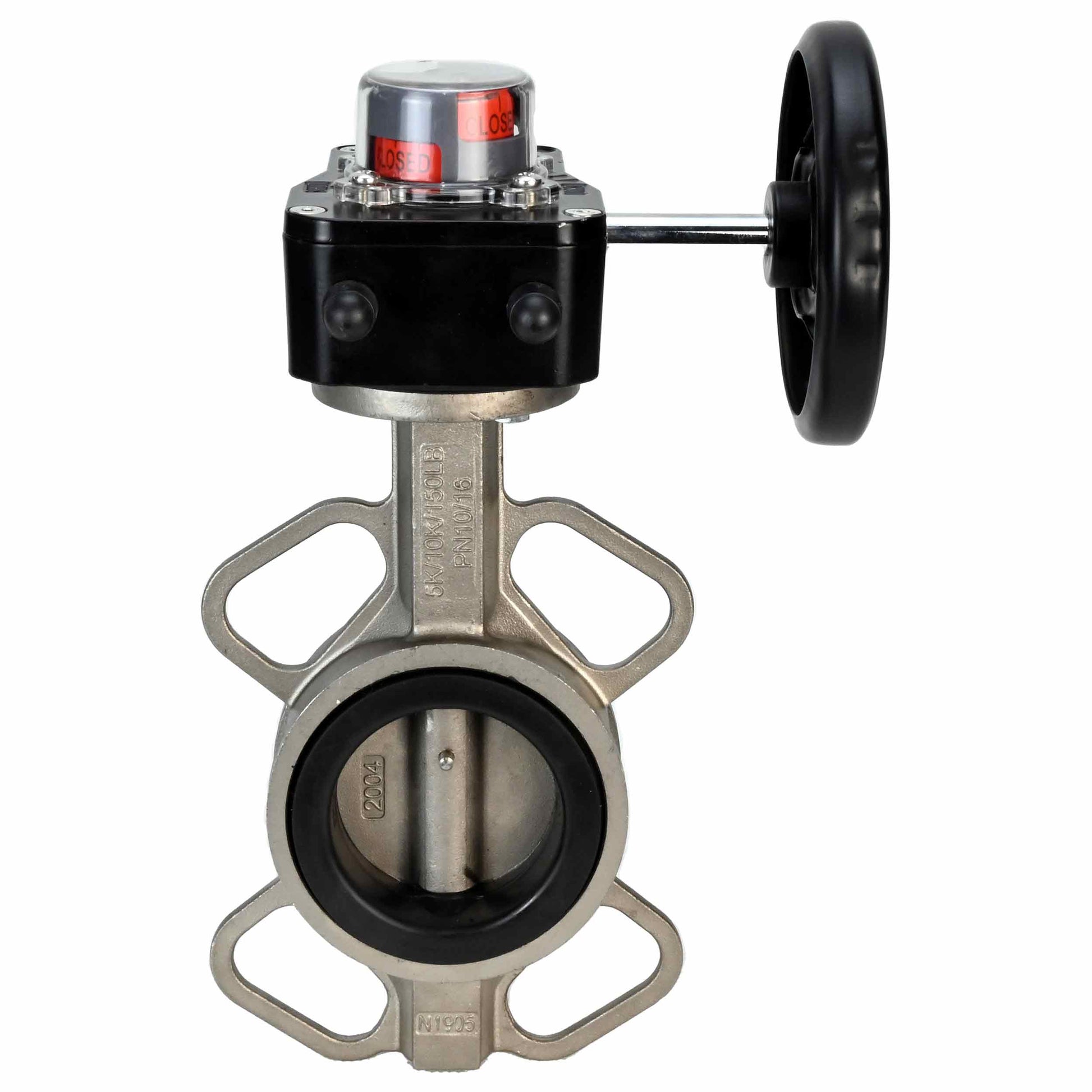

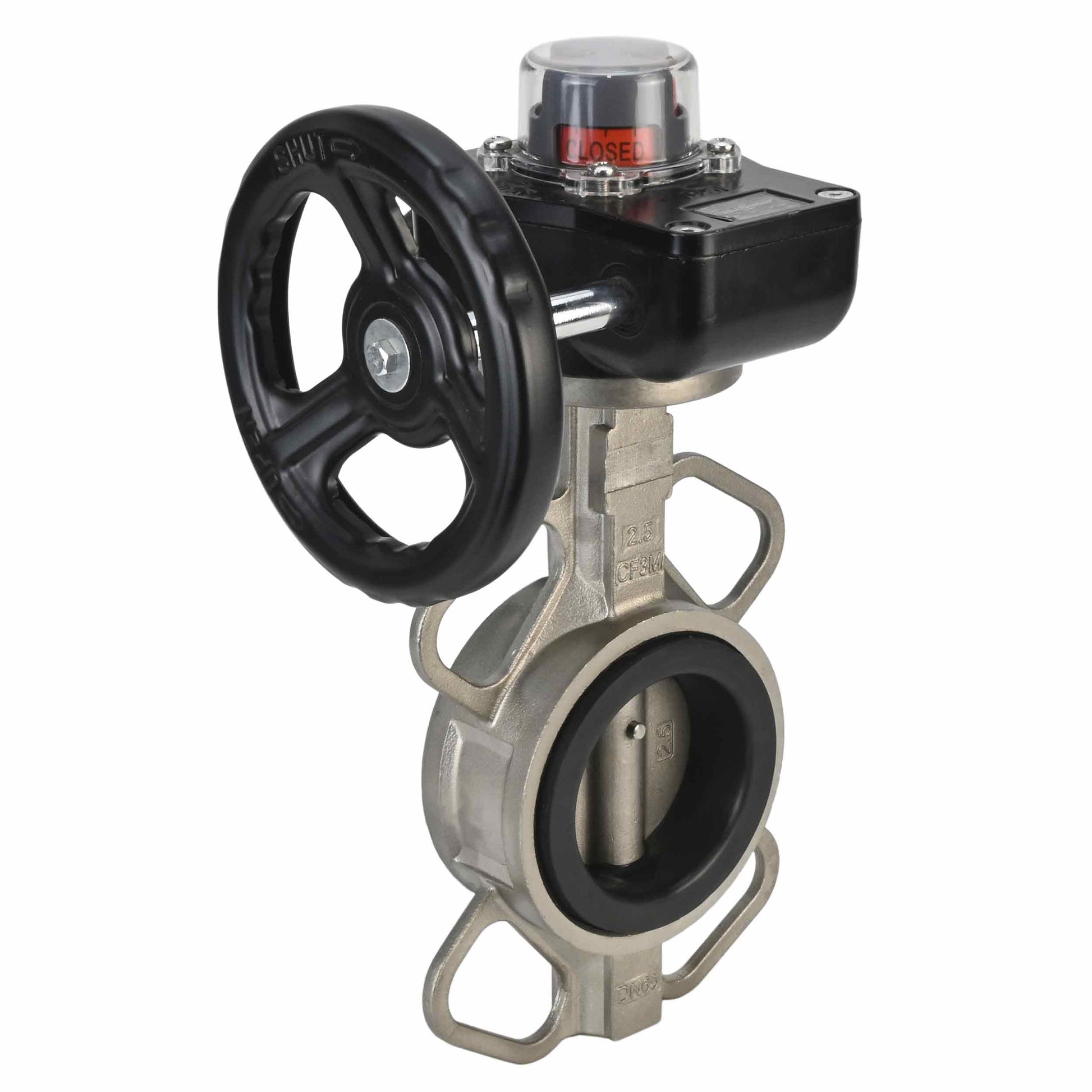

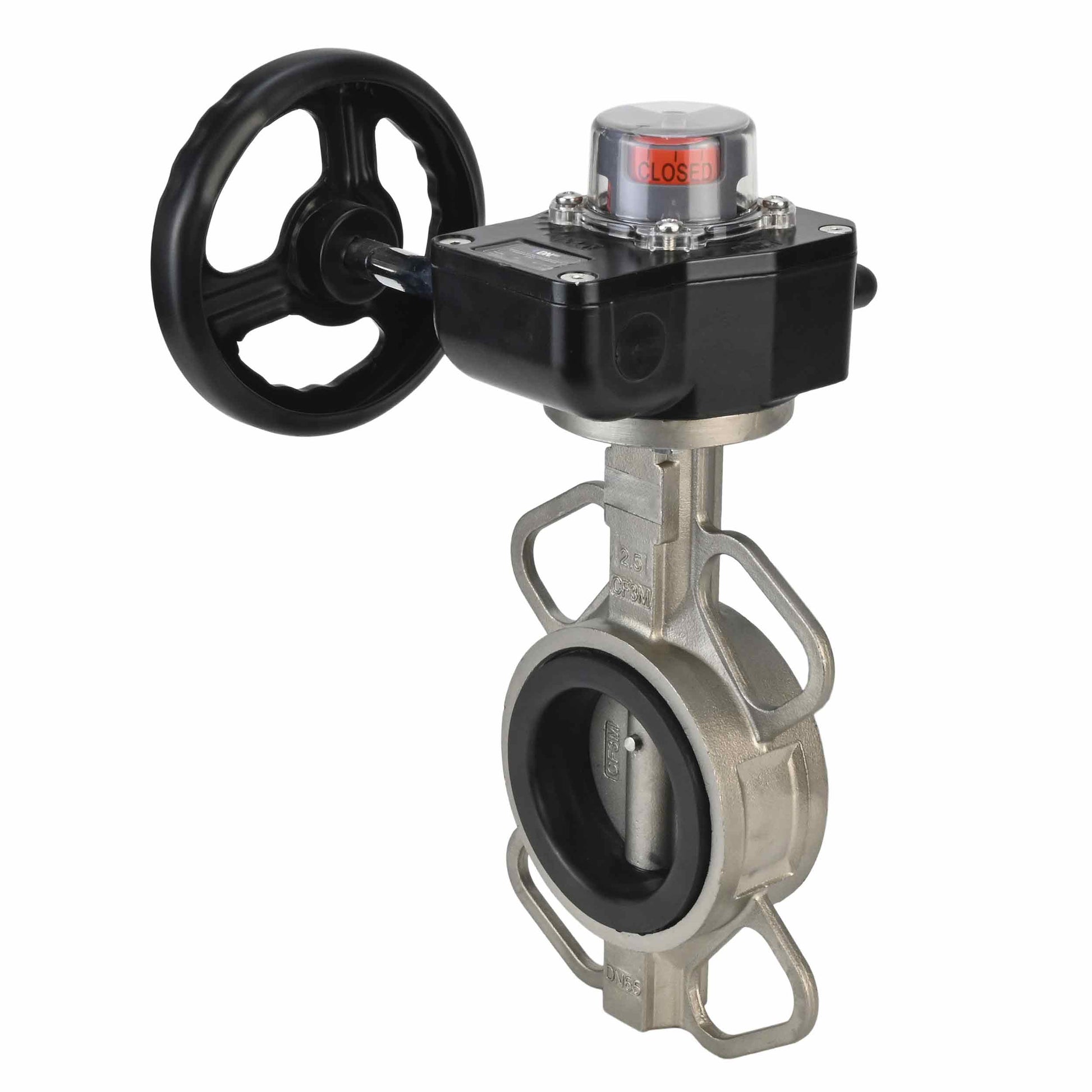

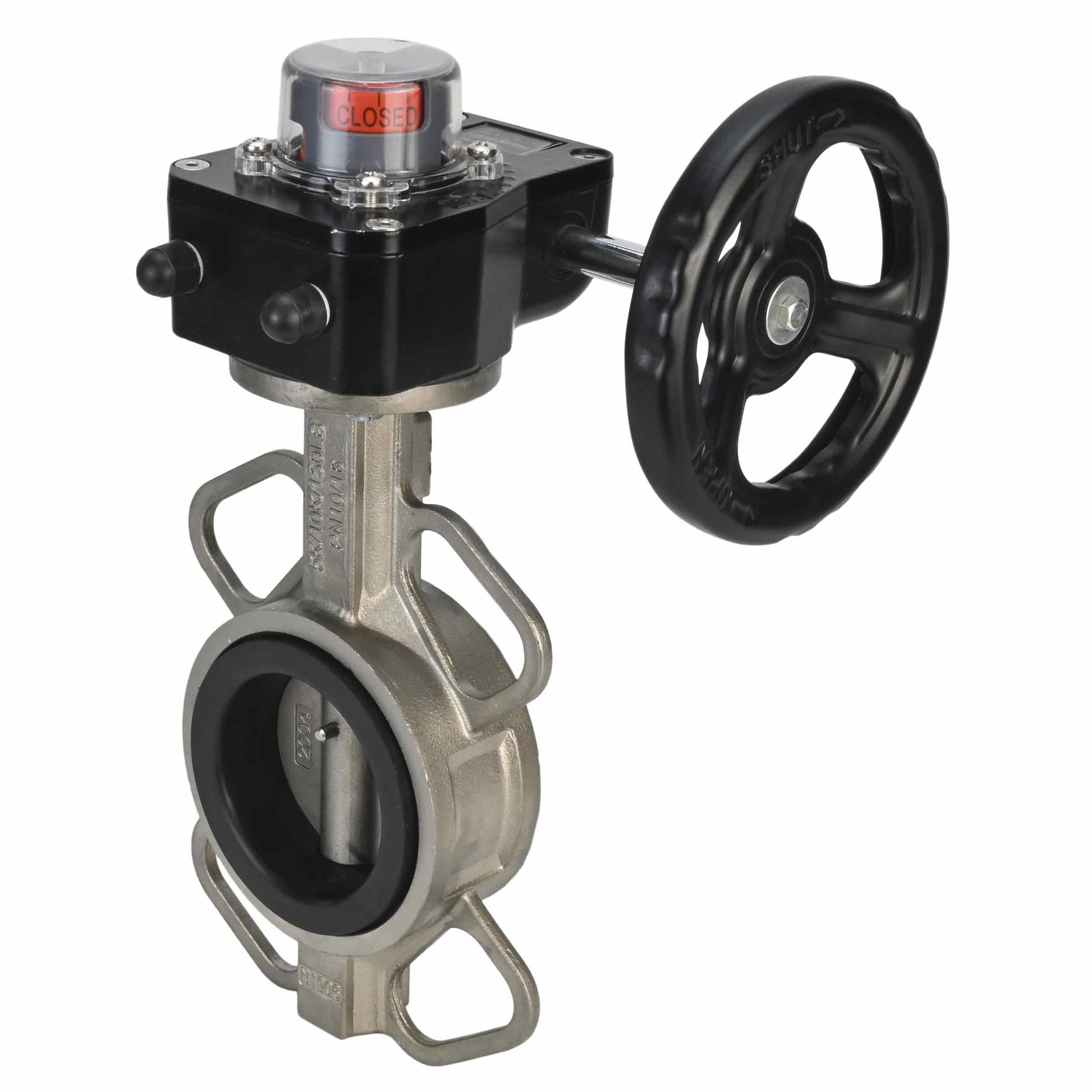

The DNOVA butterfly valve is used as shut-off and regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper industries.
Dimensions and dimensions of water butterfly valves DNOVA 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with gear DNOVA HGB, with position indicator:
| DN | H1 | H2 | H3 | ØDm | ØDk | L | ØC |
| mm | |||||||
| 50 | 62 | 126 | 25 | 73 | 90 | 43 | 125 |
| 65 | 72 | 133 | 25 | 85 | 103 | 46 | 145 |
| 80 | 91 | 142 | 25 | 100 | 116 | 46 | 160 |
| 100 | 107 | 165 | 25 | 131 | 151 | 52 | 180 |
| 125 | 121 | 183 | 25 | 155 | 174 | 56 | 210 |
| 150 | 134 | 195 | 25 | 184 | 205 | 56 | 240 |
| 200 | 171 | 236 | 35 | 234 | 255 | 60 | 295 |
| 250 | 197 | 276 | 35 | 288 | 315 | 68 | 355 |
| 300 | 240 | 315 | 35 | 340 | 375 | 78 | 410 |
Sketch Butterfly valves DNOVA 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with gear DNOVA HGB, with position indicator
Materials of water butterfly valves DNOVA 316L-316L-VITON body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - Viton with gear DNOVA HGB, with position indicator:
| № | Name | Material |
| 1 | Body | WCB steel or AISI 316L stainless steel |
| 2 | Cuff | VITON |
| 3 | Disc | AISI 316L stainless steel |
| 4 | Stem | SS 416/2Cr13 stainless steel |
| 5 | Pin | AISI 316L stainless steel |
| 6 | Bushing | EPDM |
| 7 | Sealing ring | EPDM |
| 8 | Fixing plate | Carbon steel |
Sketch Butterfly valves DNOVA Water Butterfly Valve DNOVA
- Body material
- Stainless steel AISI 316
- Maximum allowable temperature
- 200 °C
- Connection type
- Compact flanged
- Control type
- Gear
- Operating environment
- Mineral And Vegetable Oils, Animal Fats, Greases And Fuels, and Hot Air
- Nominal pressure
- 16 bar
- Type of seal
- Viton
- Disc material
- Stainless steel AISI 316L/1.4404
- Explosion-proof
- No
- Thermal protection
- No
- Torque
- 59 Nm
- Electropneumatic positioner
- No
- Pneumatic actuator
- No
- Manual override
- Yes
- Limit switches
- No
- Country of origin
- China
Production. Usually 7–14 business days after you approve the quotation and pay. Made-to-specification items are confirmed in the quotation.
Freight. Not charged at checkout. A manager quotes air and sea freight to your port or airport, and nothing ships until you approve the price and the freight.
To North America. From approval and payment to the destination port or airport: air 14–24 days, sea 32–60 days. Estimates, not guarantees.
Terms. EXW Ningbo or FOB Ningbo Port; CIF on request. The agreed term is written on the Proforma Invoice.
