Description

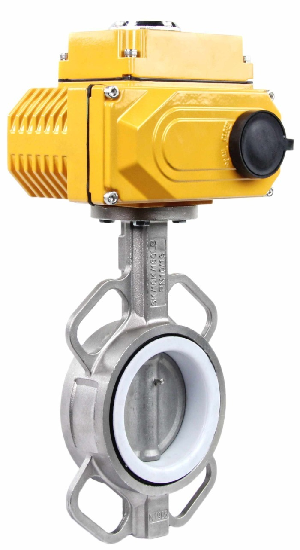

Butterfly valve DNOVA is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Materials of DNOVA 316L-316L-PTFE gate parts:
|
№ |
Name |
Material |
|
1 |
Body |
Stainless steel AISI 316L |
|
2 |
Cuff |
PTFE |
|
3 |
Disc |
Stainless steel AISI 316L |
|
4 |
Stem |
Stainless steel AISI 316L |
Main technical specifications of DNOVA series QT electric actuators:
| Power supply | 220 VAC, 380 VAC, 24 VDC |
| Limit switches | 2-Open/Closed 250V 10A |
| Additional limit switches 2 | 2-Open/Closed 250V 10A |
| Angle of rotation, ° | 90±5 |
| Internal thermal protection | Switching off at 110°C ± 5°C, switching on at 97°C ± 5°C |
| Visual position indicator | is |
| Ambient temperature, °C | -20 to +65 |
| Manual doubler | Hexagon (included) |
| Self-locking device | self-locking with worm and worm gears |
| Mechanical limiter | 2 external adjustable stops |
| Cable glands | 2xM18 |
| Enclosure protection class | IP67 |
| Lubrication | aluminum-based (type EP) |
| Body material | aluminum alloy with epoxy powder coating |
| Average life, closing/opening cycles | 30 000 |
Specifications
