How it works
Electric quarter-turn actuator
Butterfly disc
The number that matters
Nominal pressure
16bar
The pressure class of the valve body at 20 °C. Working limits depend on the medium and its temperature.
Construction
Parts and materials
DNOVA butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
The DNOVA QT series electric actuator allows remote control of the gate and solving a wide range of automation tasks.

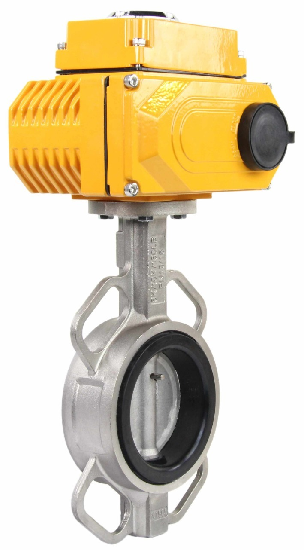

Materials of water butterfly valve DNOVA 316L-316L-EPDM body material - Stainless steel aisi 316l, disk material - Stainless steel AISI 316L, seal - EPDM with electric actuator DNOVA 24V:
|
№ |
Name |
Material |
|
1 |
Body |
Stainless steel AISI 316L/03X16H15M3 |
|
2 |
Cuff |
EPDM |
|
3 |
Disc |
Stainless steel AISI 316L |
|
4 |
Stem |
Stainless steel AISI 316L |
|
5 |
Stud |
Stainless steel AISI 316L |
|
6 |
Bushing |
PTFE |
|
7 |
Sealing ring |
NBR (nitrile) |
|
8 |
Handle |
Carbon steel |
Installation dimensions of DNOVA 316L-316L-EPDM gate valves with DNOVA-24V:
| DN, mm | Actuator | A, mm | B, mm | C, mm | ØD1, mm | S, mm | F, mm | L, mm | ISO-5211 | Weight, kg |
| 40 | QT-005 | 110 | 56 | 121 | 110 | 146 | 160 | 33 | F05 | 5.6 |
| 50 | QT-005 | 162 | 76 | 121 | 125 | 146 | 160 | 45 | F05 | 5.6 |
| 65 | QT-005 | 175 | 89 | 121 | 145 | 146 | 160 | 48 | F05 | 5.9 |
| 80 | QT-005 | 181 | 95 | 121 | 160 | 146 | 160 | 49 | F05 | 6.2 |
| 100 | QT-005 | 200 | 114 | 121 | 180 | 146 | 160 | 55 | F07 | 7.7 |
| 125 | QT-010 | 213 | 127 | 129 | 210 | 163 | 189 | 58 | F07 | 9.8 |
| 150 | QT-010 | 225 | 140 | 129 | 240 | 163 | 189 | 59 | F07 | 11.2 |
| 200 | QT-040 | 260 | 177 | 164 | 295 | 212 | 268 | 64 | F10 | 25.3 |
| 250 | QT-040 | 292 | 203 | 164 | 355 | 212 | 268 | 70 | F10 | 31.1 |
| 300 | QT-040 | 337 | 242 | 164 | 410 | 212 | 268 | 80 | F10 | 41.6 |
- Body material
- Stainless steel AISI 316
- Maximum allowable temperature
- 120 °C
- Connection type
- Compact flanged
- Control type
- Electric actuator
- Nominal pressure
- 16 bar
- Type of seal
- EPDM
- Disc material
- Stainless steel AISI 316L/1.4404
- Voltage
- 24V
- Actuator cycle time
- 30s
- Valve feedback
- Limit switches
- Explosion-proof
- No
- Thermal protection
- Yes
- Torque
- 300 Nm
- Pneumatic actuator
- No
- Manual override
- No
- Limit switches
- No
- Country of origin
- China
