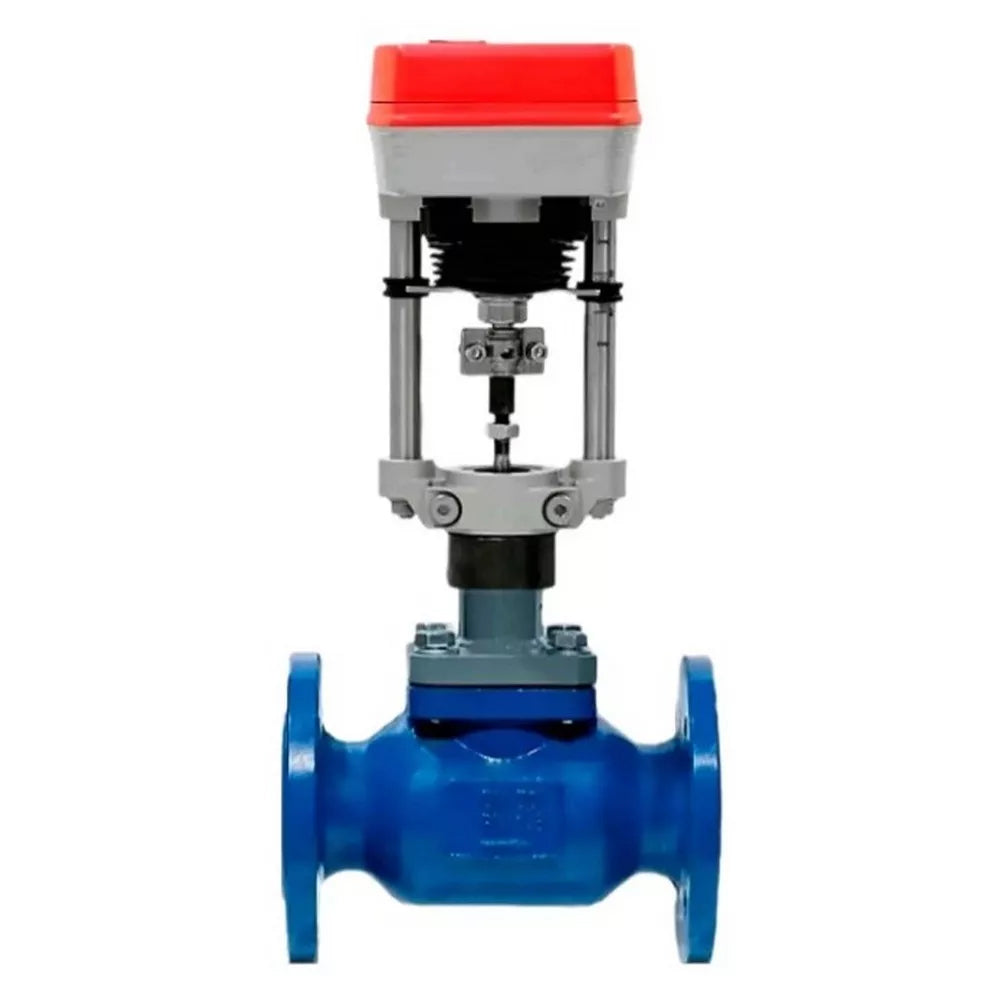

Two-way shut-off and regulating valve DNOVA VSRH1-21MP-LED-F, body material - Carbon steel 25L cladding X20Cr13, locking body material - 40X13 steel, seal - PTFE, with electric drive TW3000-XD220-S.12/S.14(3000N) 220V

From $804.95 USD
From $804.95 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The control valve is designed for hermetically sealing or changing the flow rate of the medium in the pipeline. The valve is controlled by means of an electric actuator (electric actuator (EIM)). The force developed by the actuator is transmitted through the stem to the plug, which, moving up or down, changes the cross-sectional area in the gate and regulates the flow rate of the medium.





General technical data of DNOVA VSRH1-21MP-LED-F two-way shut-off and control valves, body material - carbon steel 25L, coating X20Cr13, body material - steel 40X13, seal - PTFE, with electric actuator TW3000-XD220-S.12/S.14(3000N) 220V:

Name Value
Nominal pressure, bar 40
Connection type flanged
Maximum temperature, °C 220
Working medium temperature, °C 5 to 220
Medium water, steam, oils, petroleum products, ethylene glycol, propylene glycol
Valve operating principle Shut-off and regulating
Control type electric actuator
Valve type Shut-off and regulating
Valve control type automatic
Type of control valve two-way
Supply voltage 220 V
Application Water supply, Heating systems, Ventilation
Type of control valve two-way
Actuator model TW3000
Manufacturer's country China

Two-way shut-off and regulating valves VSRH1-21MP-LED-F, body material - Carbon steel 25L cladding X20Cr13, locking body material - 40X13 steel, seal - PTFE, with electric drive TW3000-XD220-S.12/S.14(3000N) 220V






Dimensions and dimensions of DNOVA VSRH1-21MP-LED-F two-way shut-off and control valves, body material - carbon steel 25L, coating X20Cr13, body material - steel 40X13, seal - PTFE, with electric actuator TW3000-XD220-S.12/S.14(3000N) 220V:

DN L, mm H, mm H1, mm Ød, mm
15 130 425 375 14
20 150 430 380 14
25 160 445 385 14
32 180 465 395 18
40 200 485 410 18
50 230 495 415 18
65 290 530 435 18
80 310 540 440 18
100 350 585 470 22
125 400 625 500 26

Sketch of dimensions and dimensions of valves shut-off and control two-way VSRH1-21MP-LED-F, body material - Carbon steel 25L cladding X20Cr13, locking body material - 40X13 steel, seal - PTFE, with electric drive TW3000-XD220-S.12/S.14(3000N) 220V

Specifications

Country of origin
China
Body material
Carbon steel 25L cladding X20Cr13
Maximum allowable temperature
220 °C
Connection type
Flanged
Control type
electric drive
Operating environment
Water, Steam, Oils, Petroleum Products, Ethylene Glycol, Propylene Glycol
Applications
Water Supply, Heating Systems, Ventilation
Nominal pressure
40 bar
Type of seal
PTFE
Locking material
40X13 steel
Supply voltage
220 V
Type of control valve
two-way

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN15 0.16 m3/h / 40 barD090-02326
DN15 0.16 m3/h / 40 barD090-02326
$804.95/ea		 $0.00
$804.95/ea $0.00
DN15 0.25 m3/h / 40 barD090-02327
DN15 0.25 m3/h / 40 barD090-02327
$804.95/ea		 $0.00
$804.95/ea $0.00
DN15 0.4 m3/h / 40 barD090-02328
DN15 0.4 m3/h / 40 barD090-02328
$804.95/ea		 $0.00
$804.95/ea $0.00
DN15 0.63 m3/h / 40 barD090-02320
DN15 0.63 m3/h / 40 barD090-02320
$804.95/ea		 $0.00
$804.95/ea $0.00
DN15 1 m3/h / 40 barD090-02321
DN15 1 m3/h / 40 barD090-02321
$804.95/ea		 $0.00
$804.95/ea $0.00
DN15 1.6 m3/h / 40 barD090-02322
DN15 1.6 m3/h / 40 barD090-02322
$804.95/ea		 $0.00
$804.95/ea $0.00
DN15 2.5 m3/h / 40 barD090-02323
DN15 2.5 m3/h / 40 barD090-02323
$804.95/ea		 $0.00
$804.95/ea $0.00
DN15 3.2 m3/h / 40 barD090-02324
DN15 3.2 m3/h / 40 barD090-02324
$804.95/ea		 $0.00
$804.95/ea $0.00
DN15 4 m3/h / 40 barD090-02325
DN15 4 m3/h / 40 barD090-02325
$804.95/ea		 $0.00
$804.95/ea $0.00
DN20 1.6 m3/h / 40 barD090-02315
DN20 1.6 m3/h / 40 barD090-02315
$813.10/ea		 $0.00
$813.10/ea $0.00
DN20 2.5 m3/h / 40 barD090-02316
DN20 2.5 m3/h / 40 barD090-02316
$813.10/ea		 $0.00
$813.10/ea $0.00
DN20 4 m3/h / 40 barD090-02317
DN20 4 m3/h / 40 barD090-02317
$813.10/ea		 $0.00
$813.10/ea $0.00
DN20 6.3 m3/h / 40 barD090-02318
DN20 6.3 m3/h / 40 barD090-02318
$813.10/ea		 $0.00
$813.10/ea $0.00
DN20 10 m3/h / 40 barD090-02319
DN20 10 m3/h / 40 barD090-02319
$813.10/ea		 $0.00
$813.10/ea $0.00
DN25 1.6 m3/h / 40 barD090-02300
DN25 1.6 m3/h / 40 barD090-02300
$855.89/ea		 $0.00
$855.89/ea $0.00
DN25 2.5 m3/h / 40 barD090-02301
DN25 2.5 m3/h / 40 barD090-02301
$855.89/ea		 $0.00
$855.89/ea $0.00
DN25 4 m3/h / 40 barD090-02302
DN25 4 m3/h / 40 barD090-02302
$855.89/ea		 $0.00
$855.89/ea $0.00
DN25 6.3 m3/h / 40 barD090-02303
DN25 6.3 m3/h / 40 barD090-02303
$855.89/ea		 $0.00
$855.89/ea $0.00
DN25 10 m3/h / 40 barD090-02304
DN25 10 m3/h / 40 barD090-02304
$855.89/ea		 $0.00
$855.89/ea $0.00
DN32 6.3 m3/h / 40 barD090-02297
DN32 6.3 m3/h / 40 barD090-02297
$905.47/ea		 $0.00
$905.47/ea $0.00
DN32 10 m3/h / 40 barD090-02298
DN32 10 m3/h / 40 barD090-02298
$905.47/ea		 $0.00
$905.47/ea $0.00
DN32 16 m3/h / 40 barD090-02299
DN32 16 m3/h / 40 barD090-02299
$905.47/ea		 $0.00
$905.47/ea $0.00
DN40 10 m3/h / 40 barD090-02288
DN40 10 m3/h / 40 barD090-02288
$919.05/ea		 $0.00
$919.05/ea $0.00
DN40 16 m3/h / 40 barD090-02289
DN40 16 m3/h / 40 barD090-02289
$919.05/ea		 $0.00
$919.05/ea $0.00
DN40 25 m3/h / 40 barD090-02290
DN40 25 m3/h / 40 barD090-02290
$919.05/ea		 $0.00
$919.05/ea $0.00
DN50 10 m3/h / 40 barD090-02283
DN50 10 m3/h / 40 barD090-02283
$930.60/ea		 $0.00
$930.60/ea $0.00
DN50 16 m3/h / 40 barD090-02284
DN50 16 m3/h / 40 barD090-02284
$930.60/ea		 $0.00
$930.60/ea $0.00
DN50 25 m3/h / 40 barD090-02285
DN50 25 m3/h / 40 barD090-02285
$930.60/ea		 $0.00
$930.60/ea $0.00
DN50 32 m3/h / 40 barD090-02286
DN50 32 m3/h / 40 barD090-02286
$930.60/ea		 $0.00
$930.60/ea $0.00
DN50 40 m3/h / 40 barD090-02287
DN50 40 m3/h / 40 barD090-02287
$930.60/ea		 $0.00
$930.60/ea $0.00
DN65 16 m3/h / 40 barD090-02268
DN65 16 m3/h / 40 barD090-02268
$1,056.93/ea		 $0.00
$1,056.93/ea $0.00
DN65 25 m3/h / 40 barD090-02269
DN65 25 m3/h / 40 barD090-02269
$1,056.93/ea		 $0.00
$1,056.93/ea $0.00
DN65 32 m3/h / 40 barD090-02270
DN65 32 m3/h / 40 barD090-02270
$1,056.93/ea		 $0.00
$1,056.93/ea $0.00
DN65 40 m3/h / 40 barD090-02271
DN65 40 m3/h / 40 barD090-02271
$1,056.93/ea		 $0.00
$1,056.93/ea $0.00
DN65 63 m3/h / 40 barD090-02272
DN65 63 m3/h / 40 barD090-02272
$1,056.93/ea		 $0.00
$1,056.93/ea $0.00
DN80 40 m3/h / 40 barD090-02260
DN80 40 m3/h / 40 barD090-02260
$1,090.89/ea		 $0.00
$1,090.89/ea $0.00
DN80 63 m3/h / 40 barD090-02261
DN80 63 m3/h / 40 barD090-02261
$1,090.89/ea		 $0.00
$1,090.89/ea $0.00
DN80 80 m3/h / 40 barD090-02262
DN80 80 m3/h / 40 barD090-02262
$1,090.89/ea		 $0.00
$1,090.89/ea $0.00
DN80 100 m3/h / 40 barD090-02263
DN80 100 m3/h / 40 barD090-02263
$1,090.89/ea		 $0.00
$1,090.89/ea $0.00
DN100 63 m3/h / 40 barD090-02255
DN100 63 m3/h / 40 barD090-02255
$1,219.26/ea		 $0.00
$1,219.26/ea $0.00
DN100 80 m3/h / 40 barD090-02256
DN100 80 m3/h / 40 barD090-02256
$1,219.26/ea		 $0.00
$1,219.26/ea $0.00
DN100 100 m3/h / 40 barD090-02257
DN100 100 m3/h / 40 barD090-02257
$1,219.26/ea		 $0.00
$1,219.26/ea $0.00
DN100 125 m3/h / 40 barD090-02258
DN100 125 m3/h / 40 barD090-02258
$1,219.26/ea		 $0.00
$1,219.26/ea $0.00
DN100 160 m3/h / 40 barD090-02259
DN100 160 m3/h / 40 barD090-02259
$1,219.26/ea		 $0.00
$1,219.26/ea $0.00
DN125 100 m3/h / 40 barD090-02242
DN125 100 m3/h / 40 barD090-02242
$1,888.27/ea		 $0.00
$1,888.27/ea $0.00
DN125 125 m3/h / 40 barD090-02243
DN125 125 m3/h / 40 barD090-02243
$1,888.27/ea		 $0.00
$1,888.27/ea $0.00
DN125 160 m3/h / 40 barD090-02244
DN125 160 m3/h / 40 barD090-02244
$1,888.27/ea		 $0.00
$1,888.27/ea $0.00
DN125 250 m3/h / 40 barD090-02245
DN125 250 m3/h / 40 barD090-02245
$1,888.27/ea		 $0.00
$1,888.27/ea $0.00
