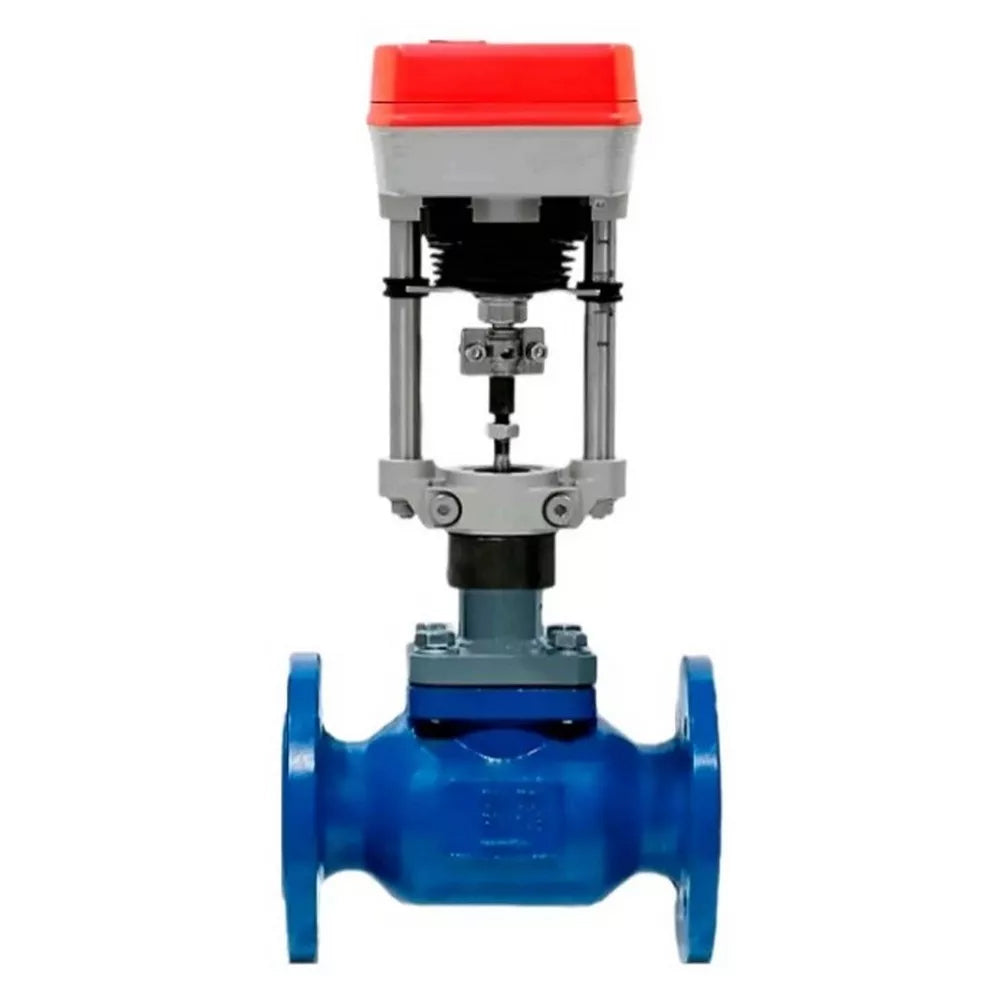

Two-way shut-off and regulating valve DNOVA VSR1-21MP-LED-F, body material - Carbon steel 25L cladding X20Cr13, locking body material - 40X13 steel, seal - PTFE, with electric drive TW500-XD24-S.12 (500N) 24V

From $476.76 USD
From $476.76 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The control valve is designed for hermetically sealing or changing the flow rate of the medium in the pipeline. The valve is controlled by means of an electric actuator (electric actuator (EIM)). The force developed by the actuator is transmitted through the stem to the plug, which, moving up or down, changes the cross-sectional area in the gate and regulates the flow rate of the medium.





General technical data of DNOVA VSR1-21MP-LED-F two-way shut-off and control valves, body material - Carbon steel 25L, coating X20Cr13, body material - steel 40X13, sealing - PTFE, with electric actuator TW500-XD24-S.12 (500N) 24V:

Name Value
Nominal pressure, bar 40
Connection type flanged
Maximum temperature, °C 150
Working medium temperature, °C 5 to 150
Medium water, ethylene glycol, neutral media, propylene glycol, gaseous media
Valve operating principle Stop and control
Control type actuator
Valve type Stop and control
Valve control type automatic
Type of control valve two-way
Supply voltage 24 V
Application Water supply, Heating systems, Ventilation
Type of control valve two-way
Actuator model TW500
Manufacturer's country China

Two-way shut-off and regulating valves VSR1-21MP-LED-F, body material - Carbon steel 25L cladding X20Cr13, locking body material - 40X13 steel, seal - PTFE, with electric drive TW500-XD24-S.12 (500N) 24V





Dimensions and dimensions of DNOVA VSR1-21MP-LED-F two-way shut-off and control valves, body material - Carbon steel 25L, coating X20Cr13, body material - steel 40X13, seal - PTFE, with electric actuator TW500-XD24-S.12 (500N) 24V:

DN L, mm H, mm H1, mm Ød, mm
15 130 395 345 14
20 150 400 350 14
25 160 415 355 14
32 180 435 365 18
40 200 455 380 18
50 230 465 385 18
65 290 500 405 18
80 310 510 415 18

Sketch of dimensions and dimensions of valves shut-off and control two-way VSR1-21MP-LED-F, body material - Carbon steel 25L cladding X20Cr13, locking body material - 40X13 steel, seal - PTFE, with electric drive TW500-XD24-S.12 (500N) 24V

Specifications

Country of origin
China
Body material
Carbon steel 25L cladding X20Cr13
Maximum allowable temperature
150 °C
Connection type
Flanged
Control type
electric drive
Operating environment
Water, Ethylene Glycol, Neutral Media, Propylene Glycol, Gaseous Media
Applications
Water Supply, Heating Systems, Ventilation
Nominal pressure
40 bar
Type of seal
PTFE
Locking material
40X13 steel
Supply voltage
24 V
Type of control valve
two-way

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN15 0.16 m3/h / 40 barD090-02356
DN15 0.16 m3/h / 40 barD090-02356
$476.76/ea		 $0.00
$476.76/ea $0.00
DN15 0.25 m3/h / 40 barD090-02357
DN15 0.25 m3/h / 40 barD090-02357
$476.76/ea		 $0.00
$476.76/ea $0.00
DN15 0.4 m3/h / 40 barD090-02358
DN15 0.4 m3/h / 40 barD090-02358
$476.76/ea		 $0.00
$476.76/ea $0.00
DN15 0.63 m3/h / 40 barD090-02359
DN15 0.63 m3/h / 40 barD090-02359
$476.76/ea		 $0.00
$476.76/ea $0.00
DN15 1 m3/h / 40 barD090-02360
DN15 1 m3/h / 40 barD090-02360
$476.76/ea		 $0.00
$476.76/ea $0.00
DN15 1.6 m3/h / 40 barD090-02361
DN15 1.6 m3/h / 40 barD090-02361
$476.76/ea		 $0.00
$476.76/ea $0.00
DN15 2.5 m3/h / 40 barD090-02362
DN15 2.5 m3/h / 40 barD090-02362
$476.76/ea		 $0.00
$476.76/ea $0.00
DN15 3.2 m3/h / 40 barD090-02363
DN15 3.2 m3/h / 40 barD090-02363
$476.76/ea		 $0.00
$476.76/ea $0.00
DN15 4 m3/h / 40 barD090-02364
DN15 4 m3/h / 40 barD090-02364
$476.76/ea		 $0.00
$476.76/ea $0.00
DN20 1.6 m3/h / 40 barD090-02389
DN20 1.6 m3/h / 40 barD090-02389
$484.91/ea		 $0.00
$484.91/ea $0.00
DN20 2.5 m3/h / 40 barD090-02390
DN20 2.5 m3/h / 40 barD090-02390
$484.91/ea		 $0.00
$484.91/ea $0.00
DN20 4 m3/h / 40 barD090-02391
DN20 4 m3/h / 40 barD090-02391
$484.91/ea		 $0.00
$484.91/ea $0.00
DN20 6.3 m3/h / 40 barD090-02392
DN20 6.3 m3/h / 40 barD090-02392
$484.91/ea		 $0.00
$484.91/ea $0.00
DN20 10 m3/h / 40 barD090-02393
DN20 10 m3/h / 40 barD090-02393
$484.91/ea		 $0.00
$484.91/ea $0.00
DN25 1.6 m3/h / 40 barD090-02419
DN25 1.6 m3/h / 40 barD090-02419
$527.70/ea		 $0.00
$527.70/ea $0.00
DN25 2.5 m3/h / 40 barD090-02420
DN25 2.5 m3/h / 40 barD090-02420
$527.70/ea		 $0.00
$527.70/ea $0.00
DN25 4 m3/h / 40 barD090-02421
DN25 4 m3/h / 40 barD090-02421
$527.70/ea		 $0.00
$527.70/ea $0.00
DN25 6.3 m3/h / 40 barD090-02422
DN25 6.3 m3/h / 40 barD090-02422
$527.70/ea		 $0.00
$527.70/ea $0.00
DN25 10 m3/h / 40 barD090-02423
DN25 10 m3/h / 40 barD090-02423
$527.70/ea		 $0.00
$527.70/ea $0.00
DN32 6.3 m3/h / 40 barD090-02433
DN32 6.3 m3/h / 40 barD090-02433
$577.29/ea		 $0.00
$577.29/ea $0.00
DN32 10 m3/h / 40 barD090-02434
DN32 10 m3/h / 40 barD090-02434
$577.29/ea		 $0.00
$577.29/ea $0.00
DN32 16 m3/h / 40 barD090-02435
DN32 16 m3/h / 40 barD090-02435
$577.29/ea		 $0.00
$577.29/ea $0.00
DN40 10 m3/h / 40 barD090-02451
DN40 10 m3/h / 40 barD090-02451
$590.87/ea		 $0.00
$590.87/ea $0.00
DN40 16 m3/h / 40 barD090-02452
DN40 16 m3/h / 40 barD090-02452
$590.87/ea		 $0.00
$590.87/ea $0.00
DN40 25 m3/h / 40 barD090-02453
DN40 25 m3/h / 40 barD090-02453
$590.87/ea		 $0.00
$590.87/ea $0.00
DN50 10 m3/h / 40 barD090-02475
DN50 10 m3/h / 40 barD090-02475
$602.42/ea		 $0.00
$602.42/ea $0.00
DN50 16 m3/h / 40 barD090-02476
DN50 16 m3/h / 40 barD090-02476
$602.42/ea		 $0.00
$602.42/ea $0.00
DN50 25 m3/h / 40 barD090-02477
DN50 25 m3/h / 40 barD090-02477
$602.42/ea		 $0.00
$602.42/ea $0.00
DN50 32 m3/h / 40 barD090-02478
DN50 32 m3/h / 40 barD090-02478
$602.42/ea		 $0.00
$602.42/ea $0.00
DN50 40 m3/h / 40 barD090-02479
DN50 40 m3/h / 40 barD090-02479
$602.42/ea		 $0.00
$602.42/ea $0.00
DN65 16 m3/h / 40 barD090-02495
DN65 16 m3/h / 40 barD090-02495
$728.75/ea		 $0.00
$728.75/ea $0.00
DN65 25 m3/h / 40 barD090-02496
DN65 25 m3/h / 40 barD090-02496
$728.75/ea		 $0.00
$728.75/ea $0.00
DN65 32 m3/h / 40 barD090-02497
DN65 32 m3/h / 40 barD090-02497
$728.75/ea		 $0.00
$728.75/ea $0.00
DN65 40 m3/h / 40 barD090-02498
DN65 40 m3/h / 40 barD090-02498
$728.75/ea		 $0.00
$728.75/ea $0.00
DN65 63 m3/h / 40 barD090-02499
DN65 63 m3/h / 40 barD090-02499
$728.75/ea		 $0.00
$728.75/ea $0.00
DN80 40 m3/h / 40 barD090-02514
DN80 40 m3/h / 40 barD090-02514
$762.71/ea		 $0.00
$762.71/ea $0.00
DN80 63 m3/h / 40 barD090-02515
DN80 63 m3/h / 40 barD090-02515
$762.71/ea		 $0.00
$762.71/ea $0.00
DN80 80 m3/h / 40 barD090-02516
DN80 80 m3/h / 40 barD090-02516
$762.71/ea		 $0.00
$762.71/ea $0.00
DN80 100 m3/h / 40 barD090-02517
DN80 100 m3/h / 40 barD090-02517
$762.71/ea		 $0.00
$762.71/ea $0.00
