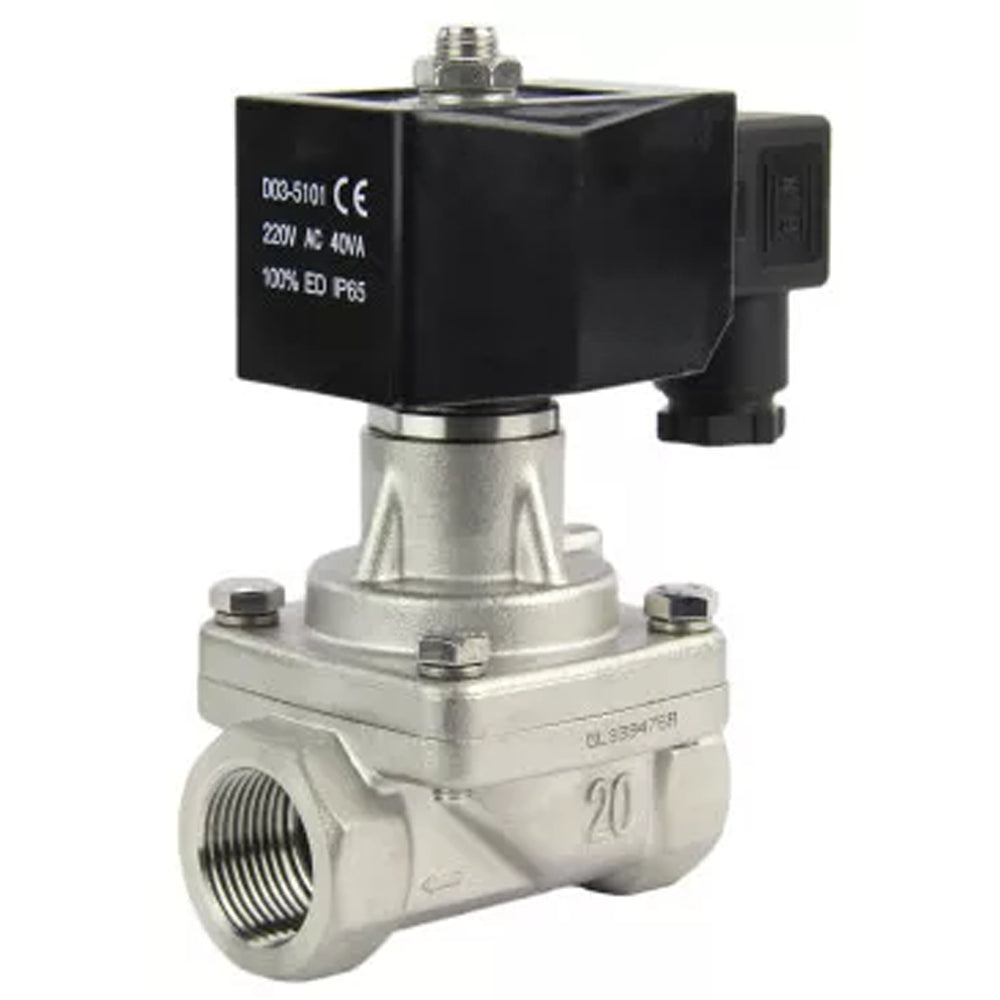

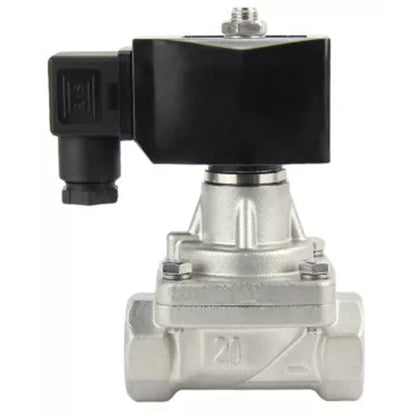

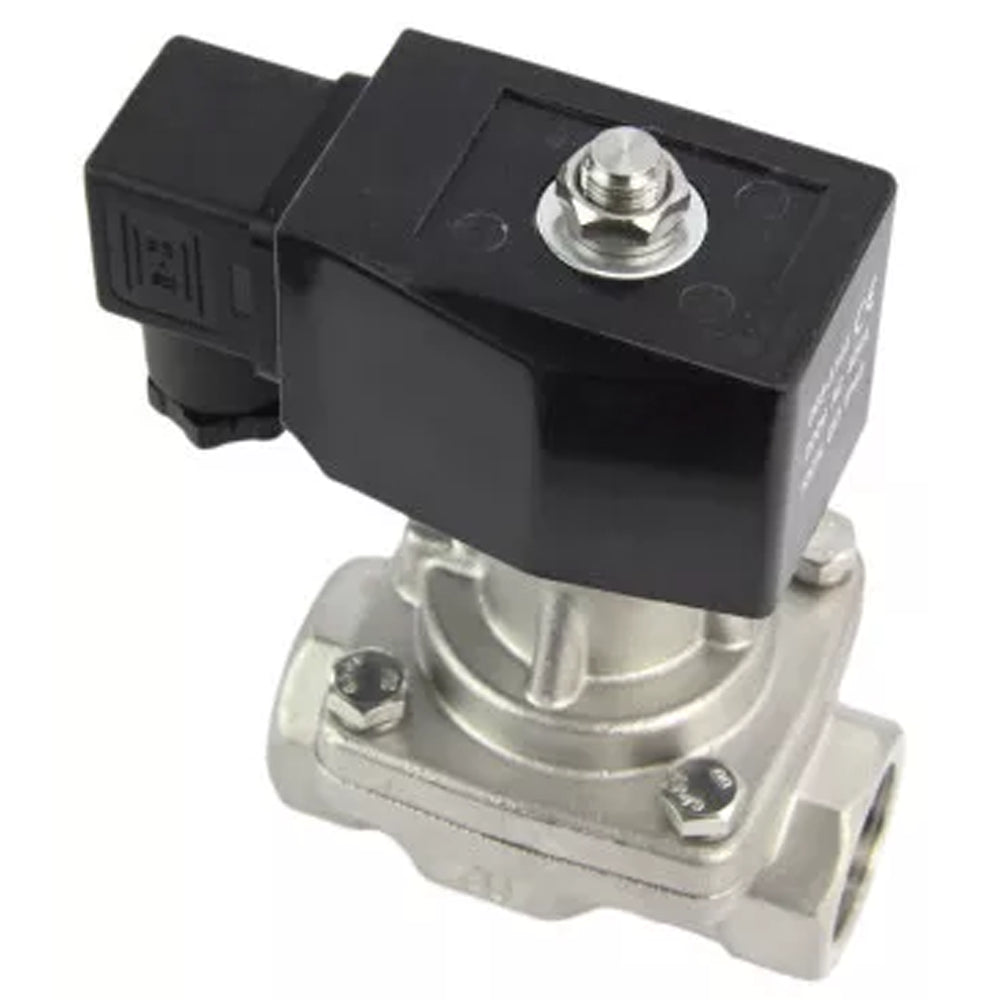

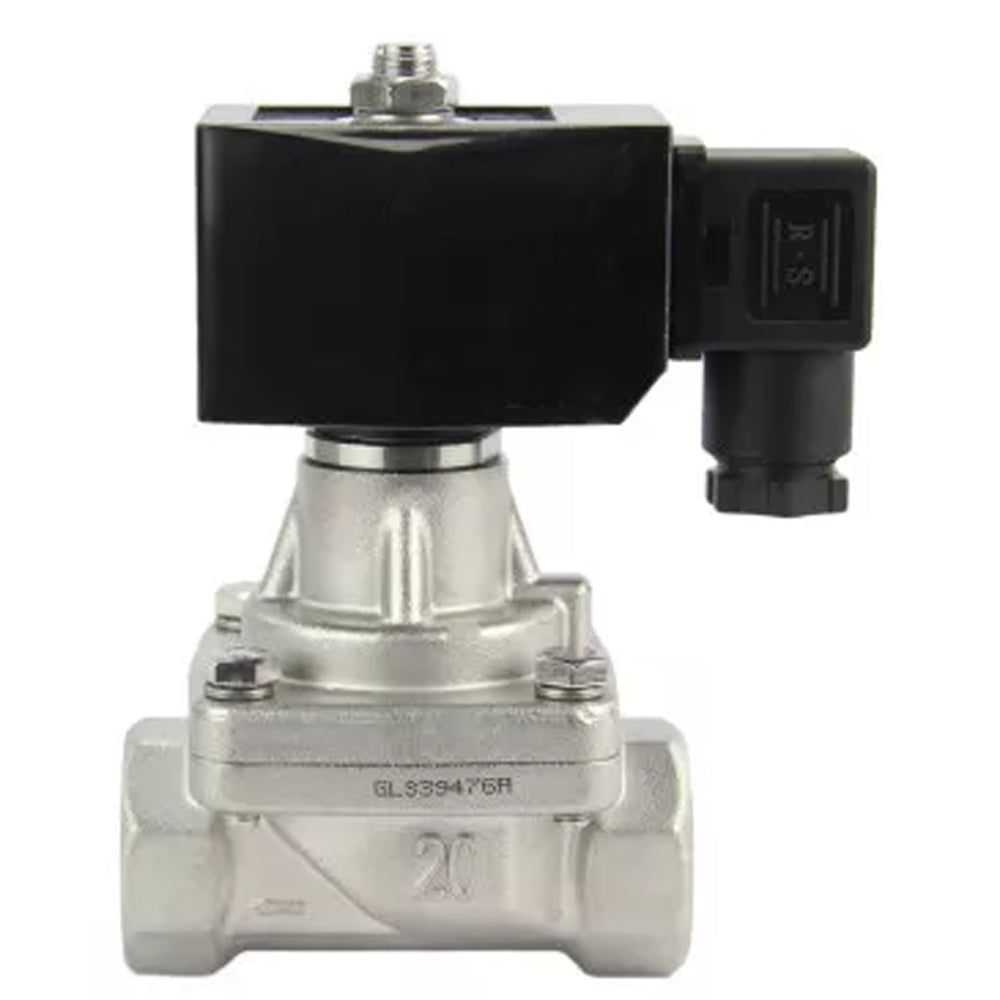

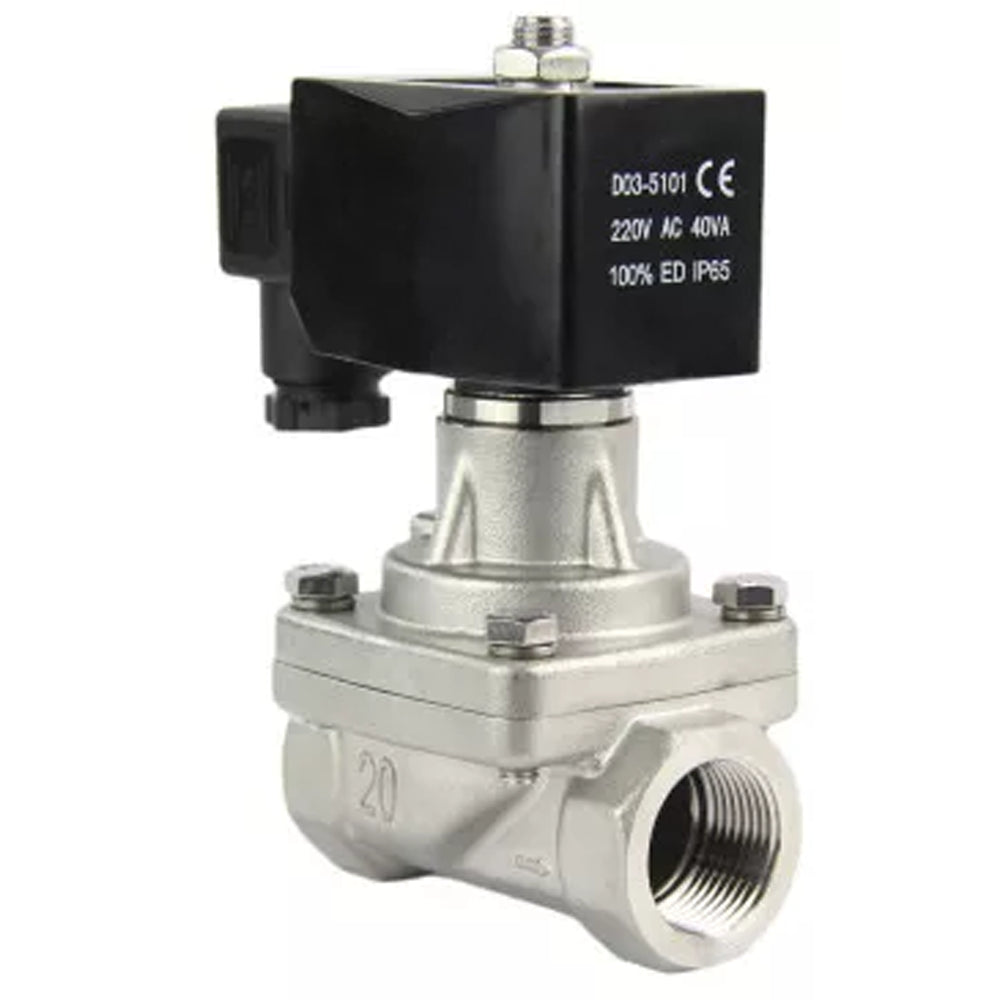

Description
An electric solenoid valve is a type of valve that uses an electromagnetic solenoid coil to control the flow of fluids or gases. When an electric current is applied to the solenoid coil, it generates a magnetic field that moves a plunger or a valve stem, allowing or stopping the flow of the fluid through the valve. Electric solenoid valves are commonly used in various applications such as irrigation systems, HVAC (heating, ventilation, and air conditioning) systems, industrial automation, and control systems, where remote control of fluid flow is necessary.
В
В
Characteristics of solenoid valves
| Parameter | Value |
|---|---|
| Nominal diameter DN, mm (inch) | 15–50 (1/2”–2”) |
| Nominal pressure PN, bar | for 220VAC DN15–50 – 10for 24VDC DN15–25 – 6for 24VDC DN32–50 – 5 |
| Minimum pressure, bar | 0 |
| Max. working medium temperature, В°C | +180 |
| Ambient temperature, В°C | from -20 to +65 |
| Working medium | steam, hot water, high-temperature liquid |
| Operating principle | zero differential pressure |
| Device type | normally closed |
| Pipe connection | threaded |
| Thread type | G |
| Coil power supply | AC220V or DC24V |
| Body material | brass or stainless steel AISI 304 |
| Seal | PTFE |
| Protection rating | IP65 |
| Coil insulation class | F |
| Coil design | à 2.5–4 mm: with DIN standard connectors (fully encapsulated)à 15–50 mm: with lead wires (fully encapsulated) |
| Average service life (open/close cycles) | 200,000 |
| Average lifespan, years | 5 (under non-aggressive media and average pressure and temperature conditions) |
В
В
Dimensions and installation dimensions of solenoid valves DNOVA DHP21-S-HР— SS304 G YS-018 24V
| DN | A | B | C | D | Weight, kg | |
| mm | brass | stell | ||||
| 15 | 67 | 56 | 122 | 107 | 0.8 | 0.8 |
| 20 | 80 | 60 | 140 | 123 | 1 0 | 1.0 |
| 25 | 92 | 72 | 151 | 129 | 1.5 | 1.4 |
| 32 | 96 | 75 | 175 | 149 | 2.1 | 1.9 |
| 40 | 118 | 93 | 183 | 153 | 2.7 | 2.6 |
| 50 | 150 | 116 | 202 | 167 | 4.5 | 4.1 |
Sketch of solenoid valve DNOVA DHP21-S-HР— SS304 G YS-018 24V
В
В
Detail of solenoid valves DNOVA DHP21-S-HР— SS304 G YS-018 24V
| No. | Part Name | Material |
|---|---|---|
| 1 | Valve body | brass or stainless steel AISI 304 |
| 2 | Body O-ring | PTFE |
| 3 | Piston assembly | stainless steel AISI 304 |
| 4 | Elastic ring | stainless steel AISI 304 |
| 5 | Piston ring | PTFE-filled |
| 6 | Spring | stainless steel AISI 304 |
| 7 | Plunger | stainless steel AISI 304 |
| 8 | Guide sleeve | PTFE-filled |
| 9 | Valve cap | brass or stainless steel AISI 304 |
| 10 | Screw | stainless steel AISI 304 |
| 11 | Gasket | stainless steel AISI 304 |
| 12 | Seal | PTFE |
| 13 | Metal washer | stainless steel AISI 304 |
| 14 | Plastic washer | – |
| 15 | Plunger tube | stainless steel AISI 304 |
| 16 | Coil | – |
| 17 | Washer | stainless steel SS 201 |
| 18 | Nameplate | aluminum alloy Ly12 |
| 19 | Gasket | stainless steel AISI 304 |
| 20 | Locknut M10 Г— 1 | stainless steel SS 201 |
Sketch of solenoid valve DNOVA DHP21-S-HР— SS304 G YS-018 24V
В
В
Main operating parameters DNOVA DHP21-S-HР— SS304 G YS-018 24VВ
Technical parameters
| DN | G thread, inch | Г cross-sections, mm | Cv |
| 15 | 1/2" | 15 | 4.8 |
| 20 | 3/4” | 20 | 7.6 |
| 25 | 1" | 25 | 12 |
| 32 | 1 1/4" | 32 | 24 |
| 40 | 1 1/2" | 40 | 30 |
| 50 | 2” | 50 | 48 |
В
Pressure and power
| DN | Nominal pressure, bar | Coil power | ||
| AC 220V | DC 24V | AC 220V, Р’Рђ | DC 24V, W | |
| 15 | 10 | 6 | 23 | 28 |
| 20 | 10 | 6 | 23 | 28 |
| 25 | 10 | 6 | 48 | 42 |
| 32 | 10 | 5 | 48 | 42 |
| 40 | 10 | 5 | 48 | 42 |
| 50 | 10 | 5 | 48 | 42 |
В
В
Characteristics of solenoid valves DNOVA DHP21-S-HР— SS304 G YS-018 24V
| DN | G | Г sections | Throughput capacity, m3/hour |
Working pressure min, bar |
| 8 | 1/4" | 2.5 | 0.2 | 0 |
| 8 | 1/4" | 3 | 0.25 | 0 |
| 8 | 1/4" | 4 | 0.30 | 0 |
| 15 | 1/2" | 15 | 4.8 | 0 |
| 20 | 3/4" | 20 | 7.6 | 0 |
| 25 | 1" | 25 | 11 | 0 |
| 32 | 1 1/4" | 32 | 24 | 0 |
| 40 | 1 1/2" | 40 | 29 | 0 |
| 50 | 2" | 50 | 45 | 0 |
| Working pressure (bar), max | Coil power, VA | Coil power, W | |||
| Steam, AC | Steam, DC | High temperature fluid, AC |
High temperature fluid, DC |
AC 220V | DC 24v |
| 10 | 8 | 10 | 8 | 22 | 13 |
| 6 | 5 | 6 | 5 | 22 | 13 |
| 4 | 3 | 4 | 3 | 22 | 13 |
| 10 | 6 | 10 | 6 | 23 | 28 |
| 10 | 6 | 10 | 6 | 23 | 28 |
| 10 | 6 | 10 | 6 | 48 | 42 |
| 10 | 5 | 10 | 5 | 48 | 42 |
| 10 | 5 | 10 | 5 | 48 | 42 |
| 10 | 5 | 10 | 5 | 48 | 42 |
Specifications
