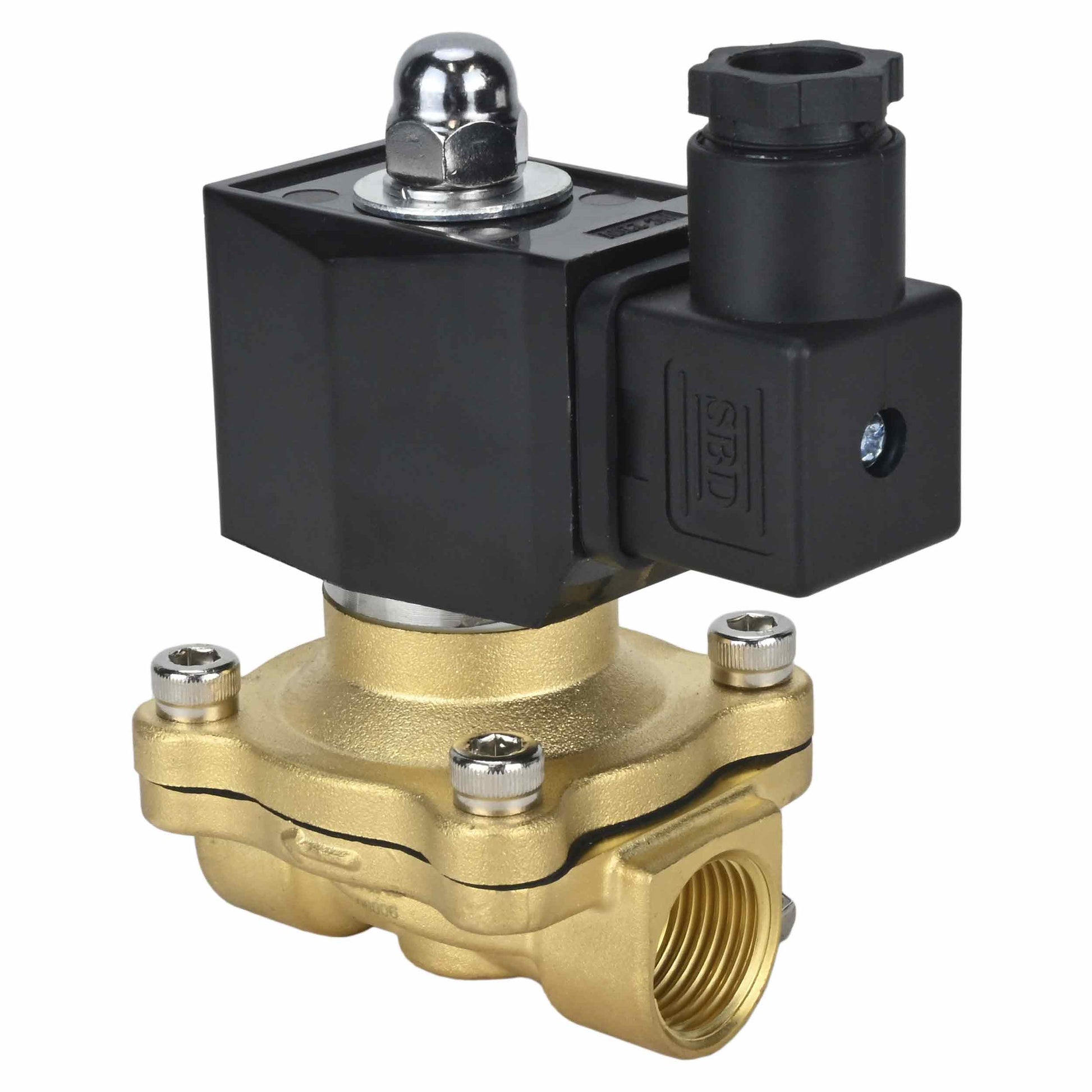

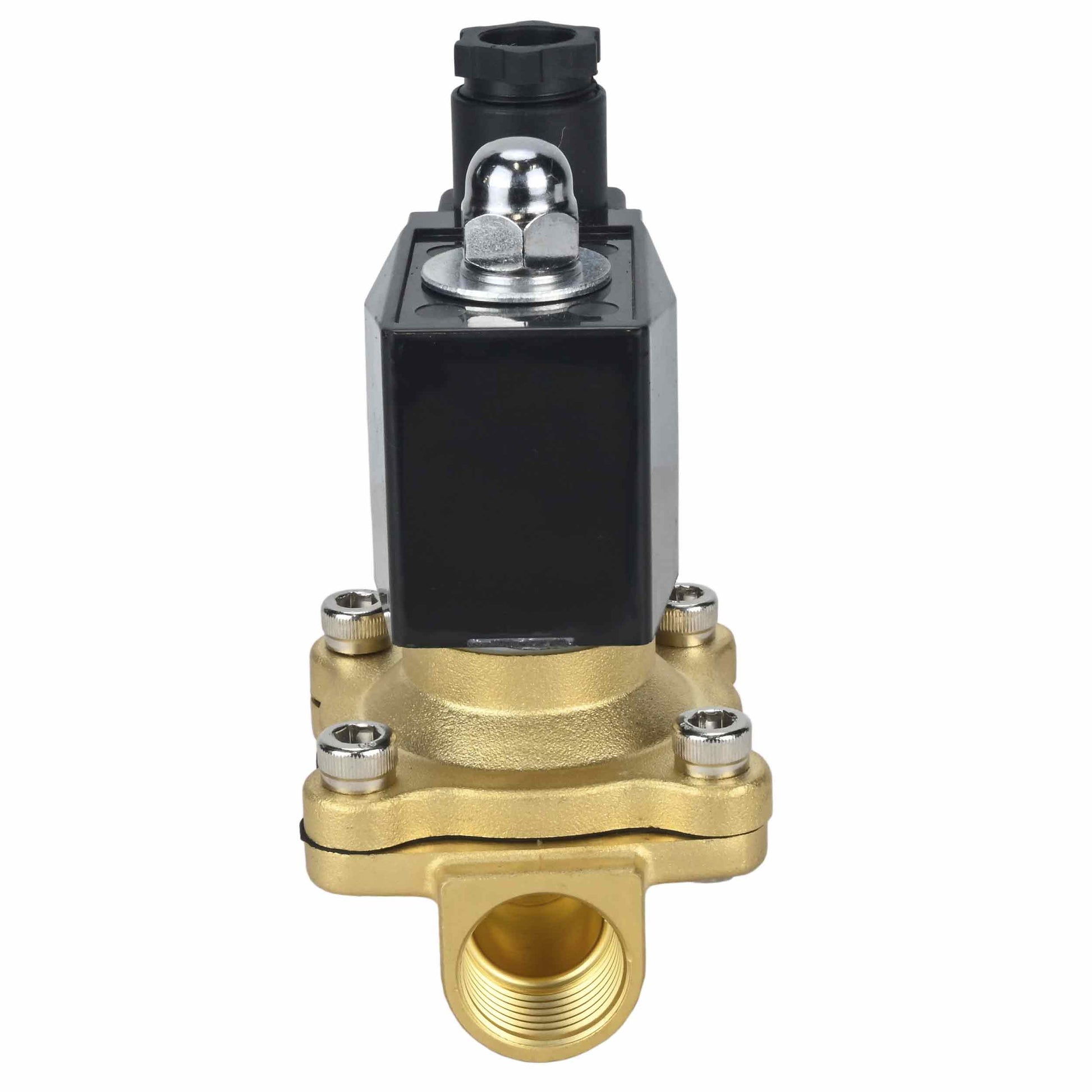

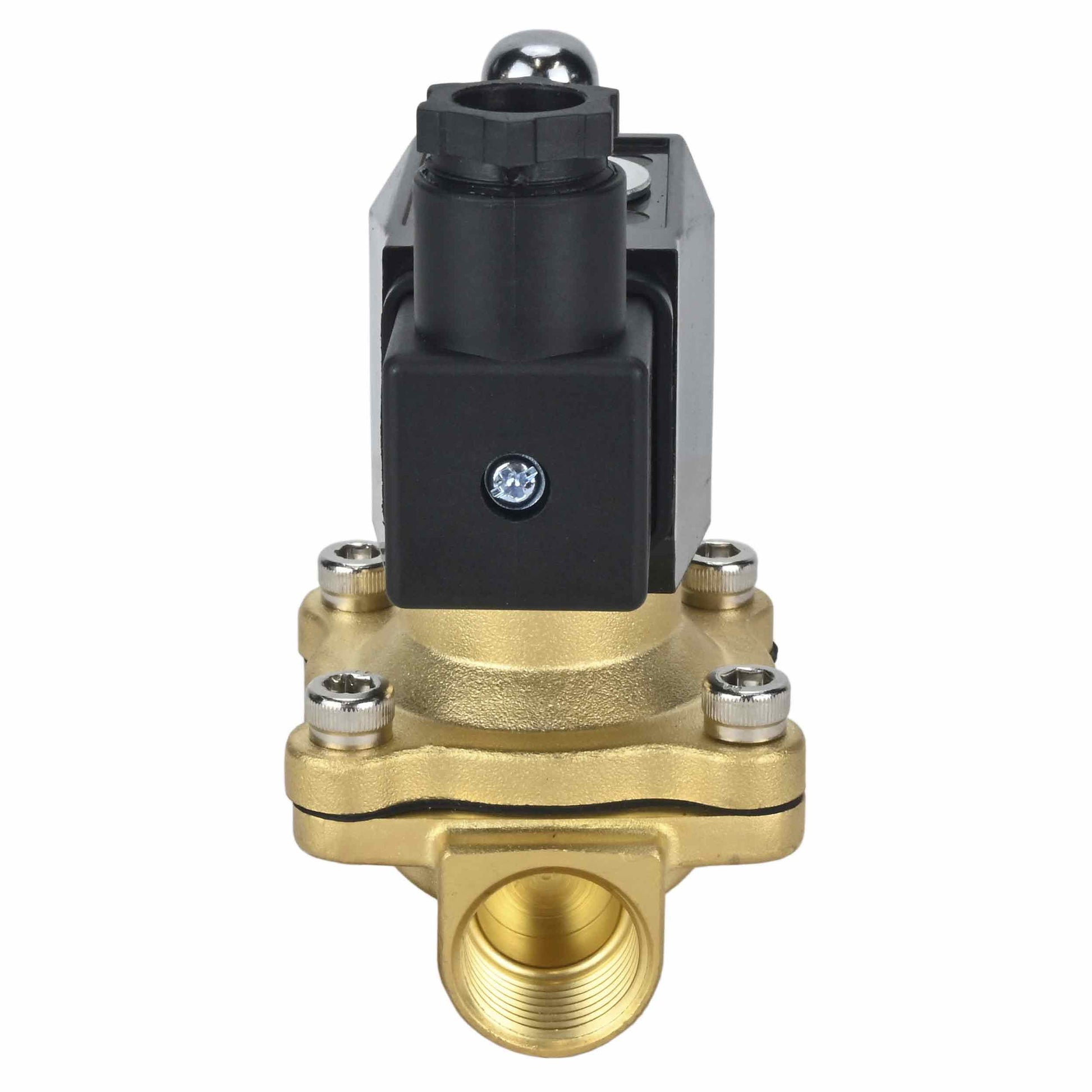

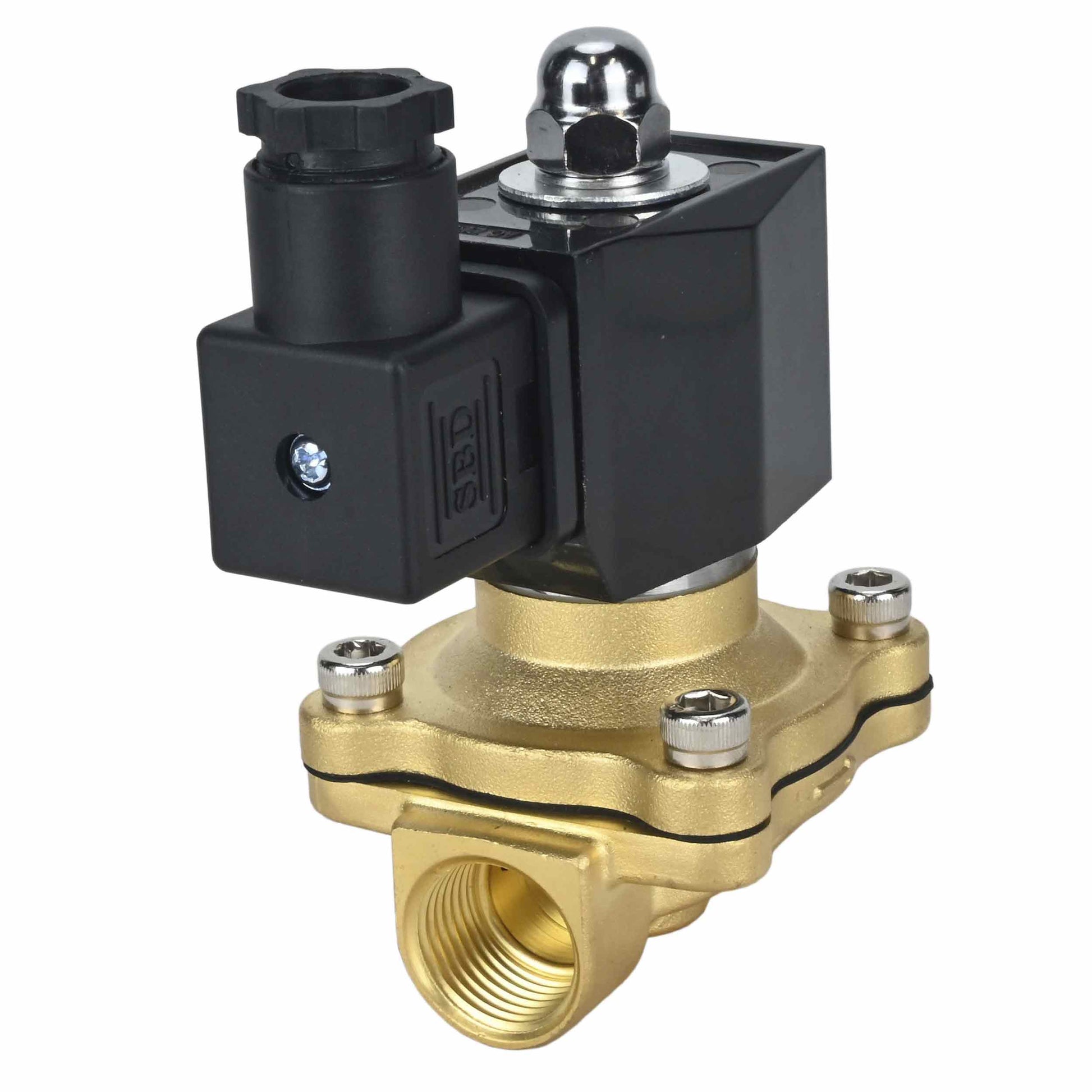

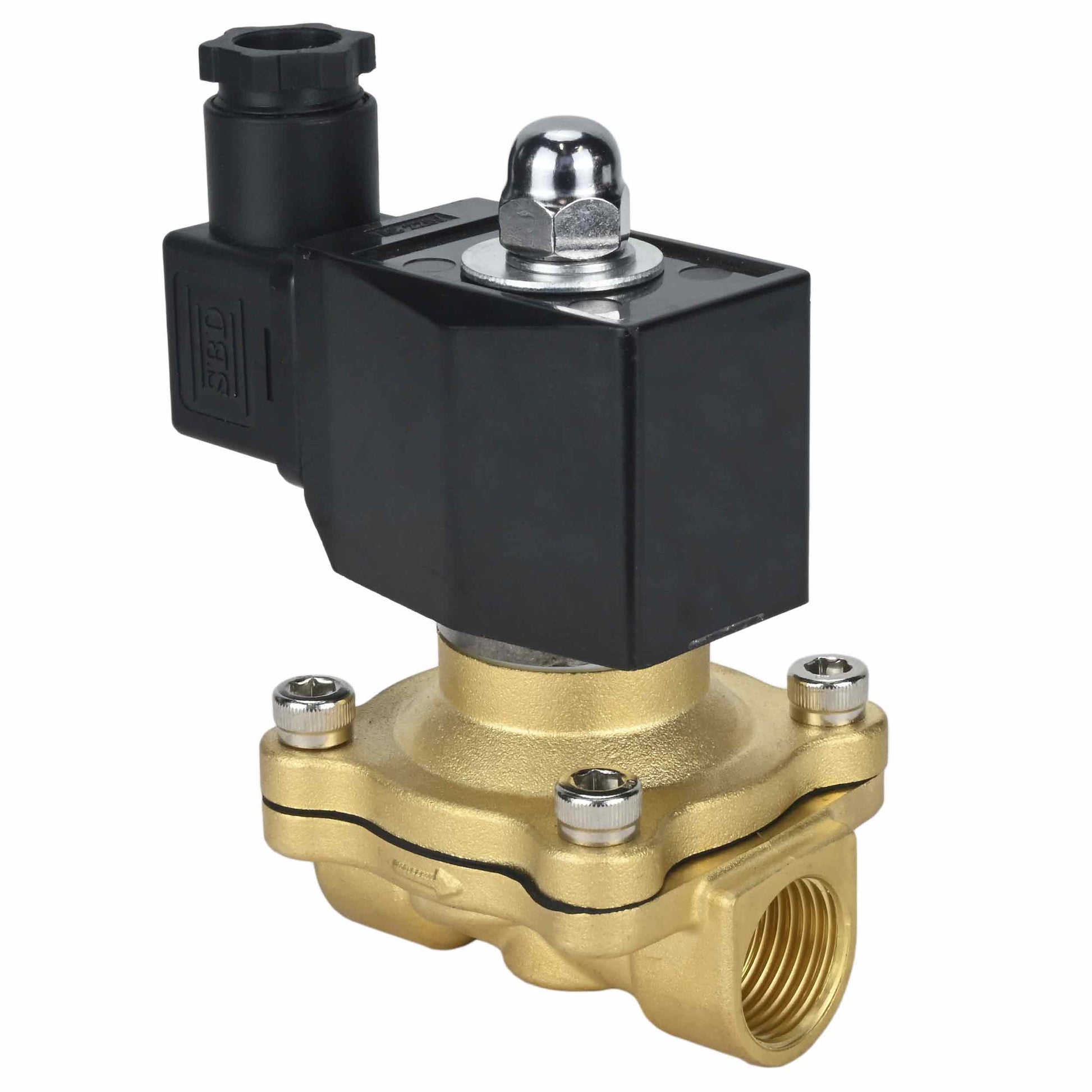

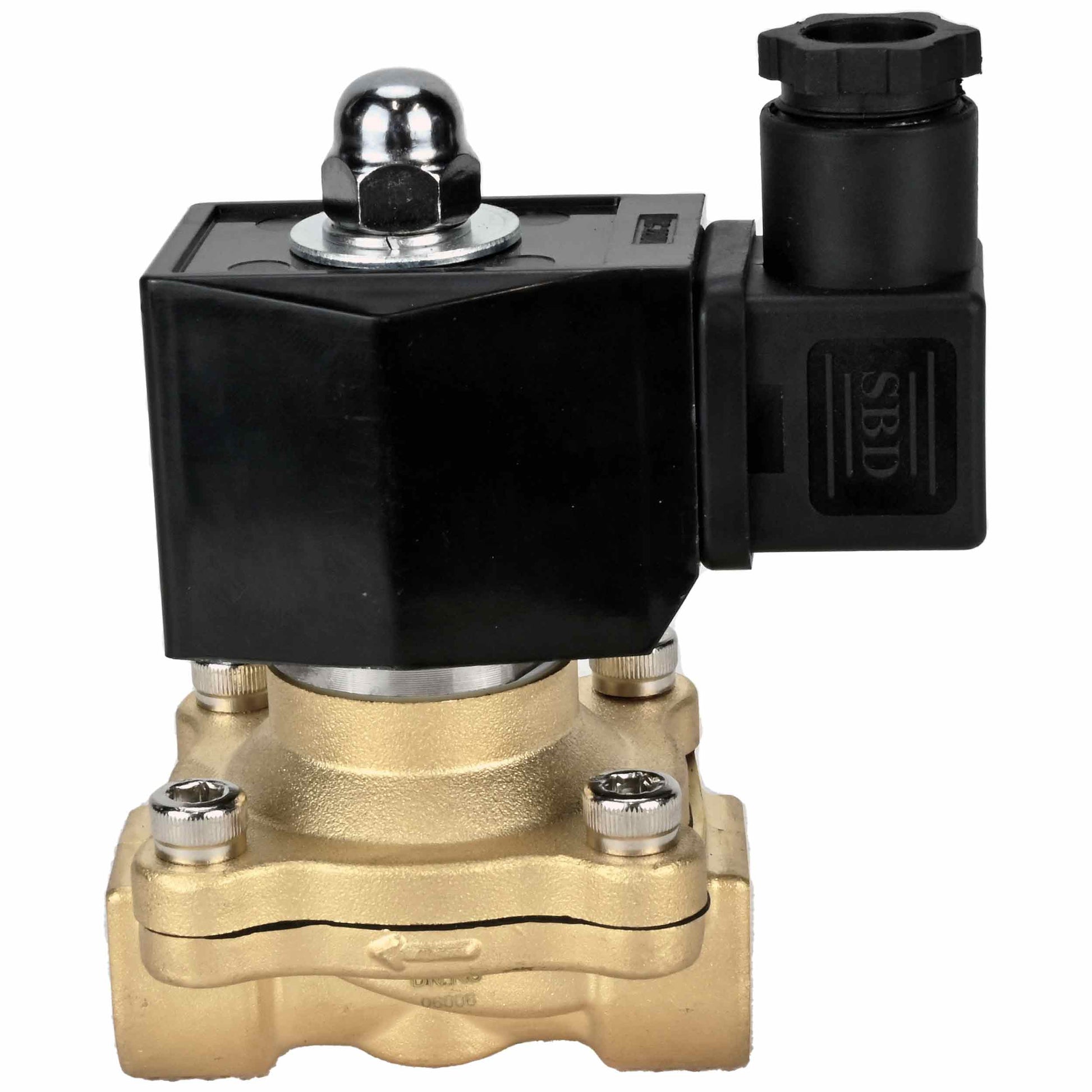

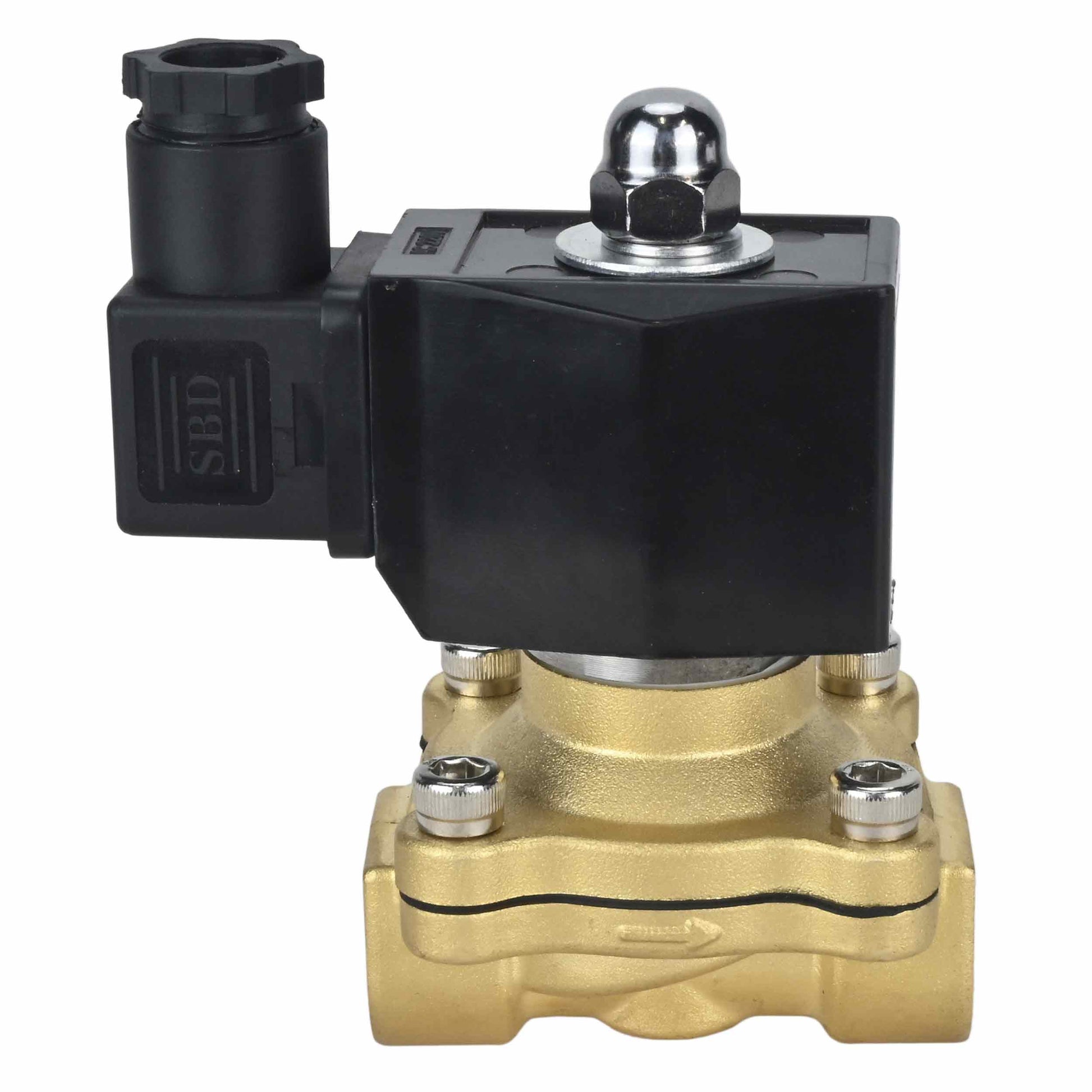

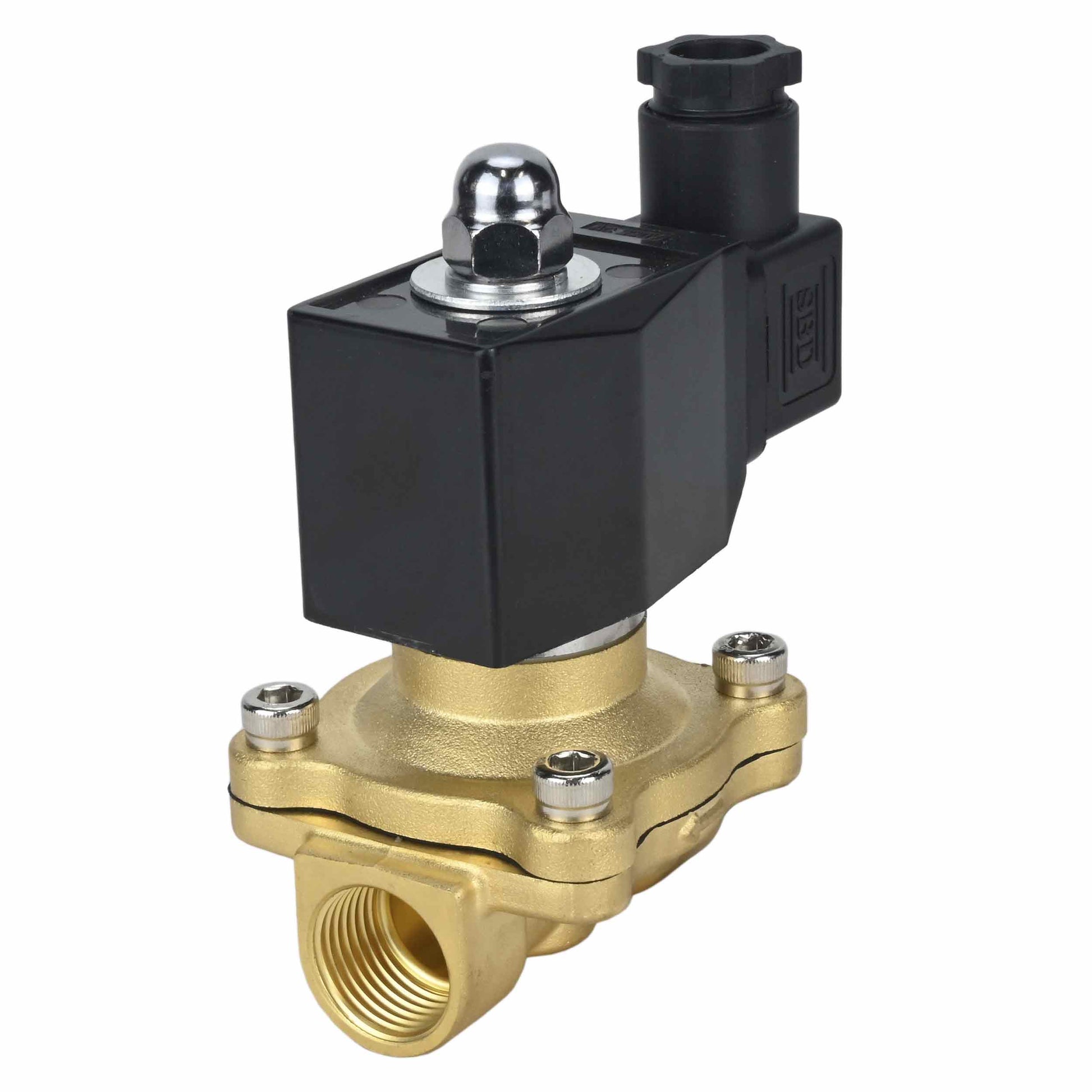

Description
An electric solenoid valve is a type of valve that uses an electromagnetic solenoid coil to control the flow of fluids or gases. When an electric current is applied to the solenoid coil, it generates a magnetic field that moves a plunger or a valve stem, allowing or stopping the flow of the fluid through the valve. Electric solenoid valves are commonly used in various applications such as irrigation systems, HVAC (heating, ventilation, and air conditioning) systems, industrial automation, and control systems, where remote control of fluid flow is necessary.
Main technical data and characteristics
| Parameter | Value |
|---|---|
| Nominal diameter, DN | 6–50 |
| Nominal pressure, bar | 10 |
| Operating pressure, bar | 0–7 |
| Working medium | Air, light oil, water |
| Medium temperature, °C | NBR: from -5 to +80; VITON: from -10 to +150; EPDM: from -5 to +90 |
| Ambient temperature, °C | from -5 to +80 |
| Seal material | NBR, VITON, EPDM |
| Connection | Threaded |
| Body material | Brass or stainless steel AISI 304 |
| Valve type | Direct-acting |
| Coil supply voltage, V | 220VAC – AC 220V; 24VDC – DC 24V; 24VAC – AC 24V |
| Valve configuration | Normally closed / normally open |
| Coil shape | Cubic |
| Kinematic viscosity of medium | <20 CST |
| Average service life (cycles) | 600,000 (with non-aggressive medium and moderate pressure/temperature) |
Dimensions and installation dimensions of solenoid valves DNOVA VS2W-300E-NC EPDM 220V
| DN | G | A | B | C | D | Weight |
| 6 | 1/8" | 66 | 30 | 75 | 40.5 | 0.33 |
| 8 | 1/4" | 66 | 30 | 75 | 40.5 | 0.32 |
| 10 | 3/8" | 97 | 57 | 110 | 66 | 0.7 |
| 15 | 1/2" | 97 | 57 | 110 | 66 | 0.7 |
| 20 | 3/4" | 106 | 57 | 115 | 70 | 0.74 |
| 25 | 1" | 106 | 73 | 122 | 99 | 1.1 |
| 32 | 1 1/4" | 136 | 90.5 | 167 | 124 | 2 |
| 40 | 1 1/2" | 136 | 90.5 | 167 | 124 | 2.2 |
| 50 | 2" | 151 | 124 | 186 | 164 | 3.1 |
Sketch of solenoid valve DNOVA VS2W-300E-NC EPDM 220V
Specifications
Delivery
The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.
To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.
Please feel free to reach out to us for any questions or further assistance regarding your order.
