Description

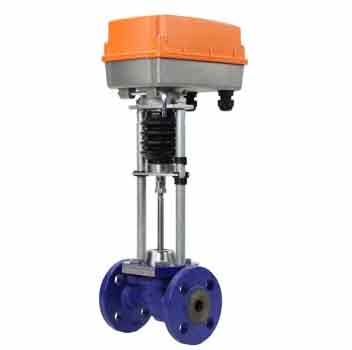

Through-seat control valves are designed to regulate the flow of water, water vapor, ethylene/propylene glycol solutions (up to 65%) and other non-flammable, explosion-proof, non-toxic liquid media in automatic control systems of technological processes flowing through the pipeline at a pressure of not more than 2.5 MPa, with a temperature from 41 °F / 5 ° C to 302 °F / 150 °C.
Valve sizes DNOVA 232 PSI
| DN | Stroke | L | H | Weight |
| mm | kg | |||
| 15 | 10 | 130 | 353 | 6.2 |
| 20 | 16 | 150 | 353 | 7.7 |
| 25 | 20 | 160 | 360 | 8.2 |
| 32 | 22 | 180 | 369 | 11.2 |
| 40 | 25 | 200 | 375 | 13.2 |
| 50 | 25 | 230 | 381 | 15.2 |
| 65 | 32 | 290 | 450 | 24.5 |
| 80 | 32 | 310 | 468 | 32.5 |
| 100 | 40 | 350 | 508 | 39.5 |
| 125 | 50 | 400 | 470 | 53 |
| 150 | 60 | 480 | 545 | 81 |
Valve design DNOVA 232 PSI
| No. | Part | Material |
|---|---|---|
| 1 | Valve body | Cast iron |
| 2 | Plunger | Stainless steel 40X13 |
| 3 | Sealing ring | EPDM |
| 4 | Seat | Stainless steel 40X13 |
| 5 | Stem | Stainless steel 40X13 |
| 7 | Body | Cast iron |
| 8 | Cover seal | |
| 9 | Stem sealing assembly | Guides – PTFE, gaskets – EPDM |
| 10, 13 | Nut | |
| 11 | Valve cover | Steel 20 |
| 12 | Lock washer | |
| 14 | Piston | |
| 16 | Seal | |
| 17 | Relief chamber | |
| 18 | Electric actuator |
Valve sketch DNOVA 232 PSI
Main technical parameters of TSL-1600-25-1-230-IP67 actuator
| Name | Value |
|---|---|
| Climatic design for moderate environment | (U3) Moderate |
| Nominal power supply voltage | 230 V 50 Hz |
| Power consumption, max | 10 VA |
| Three-position control | 230 V 50 Hz |
| Full stroke | 25 mm |
| Nominal force | 1600 N |
| Shutdown force | 2000 N |
| Control speed (adjustable) | 25; 15; 10; 7.5 mm/min |
| Operating mode | S2 - 10 min; S4 - 25%, max 160 cycles/hour |
| Mechanical connection | Column-type or flanged |
| Local position indicator | Available |
| Manual operation | Available |
| Degree of protection | IP67 |
| Weight, max | 2.5 kg |
Designations in the wiring diagram
| Symbol | Description |
|---|---|
| μC | Microprocessor |
| SA1 | Speed and direction control switch |
| M | Electric motor |
| HL1 | Indicator LED |
| S1 | Position switch "Open" |
| S2 | Position switch "Closed" |
| PE | Grounding contact |
| X1 | Terminal block |
TSL actuator wiring diagram
