Description

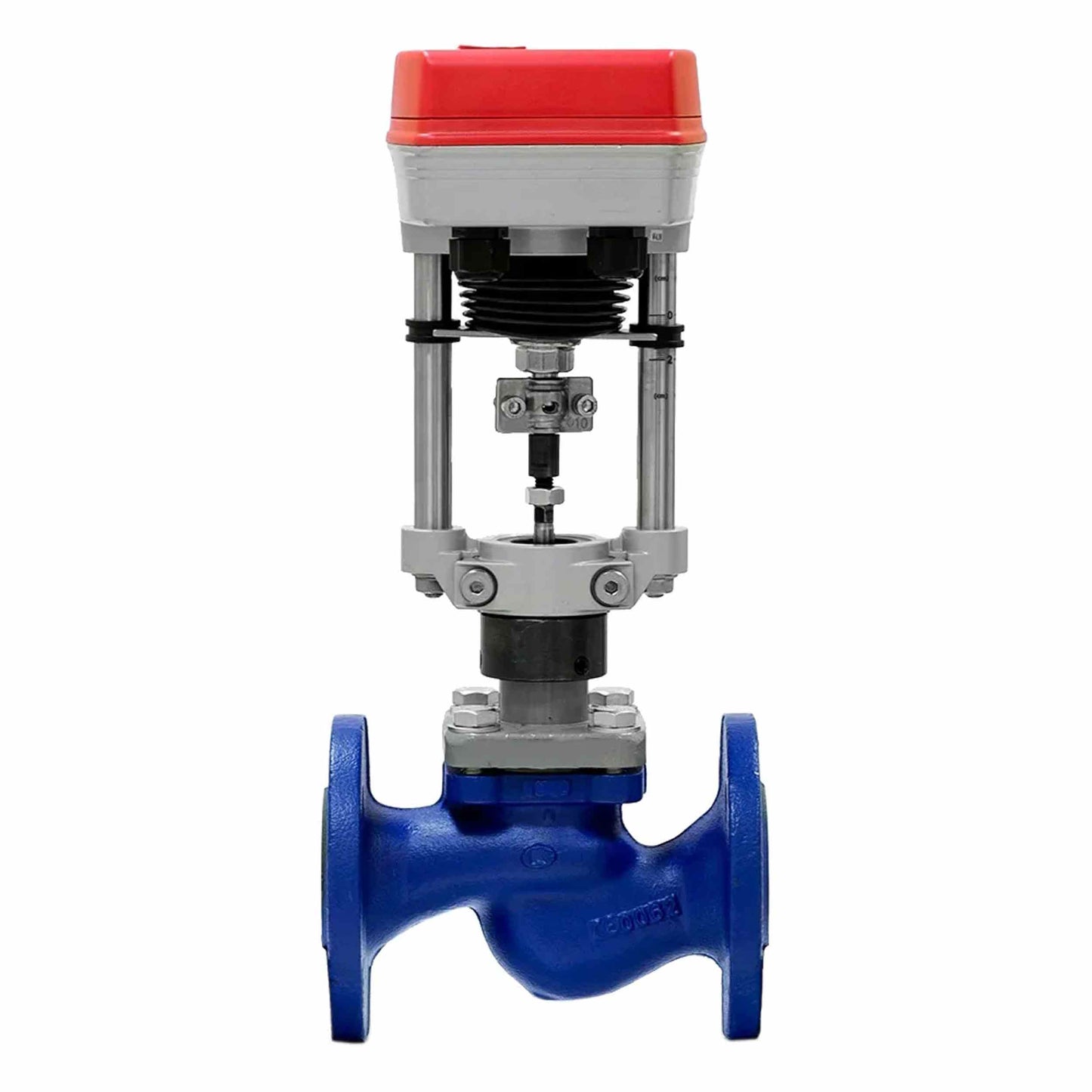

Electric actuator DNOVA TW-3000-XD220 is used as an actuator to complete automatic control systems in heating, ventilation and hot water supply circuits, individual heating stations and other heat supply facilities. DNOVA control valves are designed for hermetic shut-off or change of flow rate of the working medium flowing through the pipeline at pressure not more than 1.6 MPa (16 atm) and medium temperature from +5°C to +150°C.
Body of DNOVA single-seat bore valve is made of gray cast iron.
The valve body has a plate with basic information about the product.
The DNOVA control valve with electric actuator is used for cold and hot water, ethylene glycol solution and other media not aggressive to body materials, temperature value of which does not exceed 150°C and nominal pressure up to 1.6 MPa.
The valve is controlled by electric actuator Katrabel TW-3000-XD220. The force developed by the actuator is transferred through the stem to the plunger, which, moving up or down, changes the area of the passage section in the gate and regulates the flow rate of the working medium.
Electric actuators Katrabel TW are designed for automatic control of shut-off and regulating seat valves type TL...,TF..... with stem stroke up to 70 mm, in heating, hot water supply, ventilation and air conditioning systems in residential buildings, institutions, etc.
Electric actuators are connected to regulators or controllers with three-position or proportional output signals. They are manufactured without return spring and have nominal force from 500N to 5000N depending on the actuator type.
Electric actuators are manufactured without limit switches and the end positions of the stem are determined electronically by the device. The actuators are mounted on threaded or flanged valves DN15-DN500.
Parameters of two-way control valve DNOVA 232 PSI gray cast iron GC20, flanged with electric actuator Katrabel TW-3000-XD110/220:
|
Type of execution |
With pressure-unloaded stem |
|
Type of valve |
Two-way regulating valve |
|
Throttling element |
Plunger-type |
|
Actuator model |
Katrabel TW-3000-XD110/220 |
|
Nominal diameter, mm |
100 |
|
Nominal pressure, bar |
16 |
|
Conditional flow capacity Kvs, m³/h |
63–160 |
|
Type of connection |
Flanged |
|
Body material |
Cast iron |
|
Working medium temperature, °C |
From +5°C to +150°C |
|
Ambient temperature, °C |
From -15°C to +50°C |
|
Relative humidity |
30%–80% |
|
Average service life |
8 years |
Technical characteristics of two-way control valve DNOVA 232 PSI gray cast iron GC20, flanged with electric actuator Katrabel TW-3000-XD110/220:
|
DN, mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
Conditional flow capacity Kvs, m3/h |
0,2 |
1,6 |
1,6 |
6,3 |
10 |
10 |
16 |
40 |
63 |
|
Stroke of stem, mm, ± 5% |
10 |
10 |
20 |
20 |
20 |
25/15 |
32/25 |
32 |
40 |
|
Characteristics of regulation |
Linear |
||||||||
|
Cavitation onset coefficient, Z |
0.6 |
0.55 |
0.5 |
0.45 |
0.4 |
||||
Weight and installation parameters of two-way control valve DNOVA 232 PSI gray cast iron GC20, flanged with electric actuator Katrabel TW-3000-XD110/220:
| DN, mm | 100 |
| L, mm | 350 |
| H, mm | 630 |
| H1, mm | 515 |
| Weight, kg | 45.2 |
Mounting holes
| DN, mm | 100 |
| Number of holes, pcs | 8 |
| Diameter of holes d, mm | 16 |
Materials of two-way control valve DNOVA 232 PSI gray cast iron GC20, flanged with electric actuator Katrabel TW-3000-XD110/220:
|
№ |
Part name |
Material |
|
1 |
Body |
Gray cast iron |
|
2 |
Plunger |
Steel |
|
3 |
Sealing ring |
- |
|
4 |
Seat |
Steel |
|
5 |
Stem |
Stainless steel |
|
6 |
Unloading piston |
- |
|
7 |
Valve cover |
Gray cast iron |
|
8 |
Cover seal |
Metal-to-metal |
|
9 |
Stem seal |
Rubber-fluoroplastic |
|
10 |
Actuator body and parts |
Forged brass |
|
Actuator stem |
Stainless steel |
|
|
Actuator seals |
EPDM, V-ring seal, spring self-compensation |
|
|
14 |
Nut |
- |
|
15 |
Support ring |
- |
|
16 |
Piston seal |
- |
|
17 |
Support bushing |
- |
|
18 |
Unloading chamber |
- |
Technical data of the actuator Katrabel TW-3000-XD110/220:
|
Parameter |
Value |
|
Actuator model |
Katrabel TW-3000-XD110/220 |
|
Supply voltage |
230 V |
|
Power |
35 VA |
|
Nominal force |
3000 N |
|
Actuator stem travel |
50 mm |
|
Operating speed |
1 mm/s or 0.5 mm/s (factory settings) |
|
Motor |
Brushless DC motor |
|
Feedback signal |
0–10 V, 4–20 mA |
|
Ambient temperature |
From -10°C to +55°C |
|
Operating humidity |
Up to 95% |
|
Housing protection rating |
IP54 |
|
Actuator weight |
3.8 kg |
Weight and dimensional parameters of the actuator Katrabel TW-3000-XD110/220:
| L, mm | 193 |
| l, mm | 143 |
| H, mm | 285 |
| h, mm | 30 |
| K, mm | 60 |
| Actuator weight, kg | 3.8 |
