Description

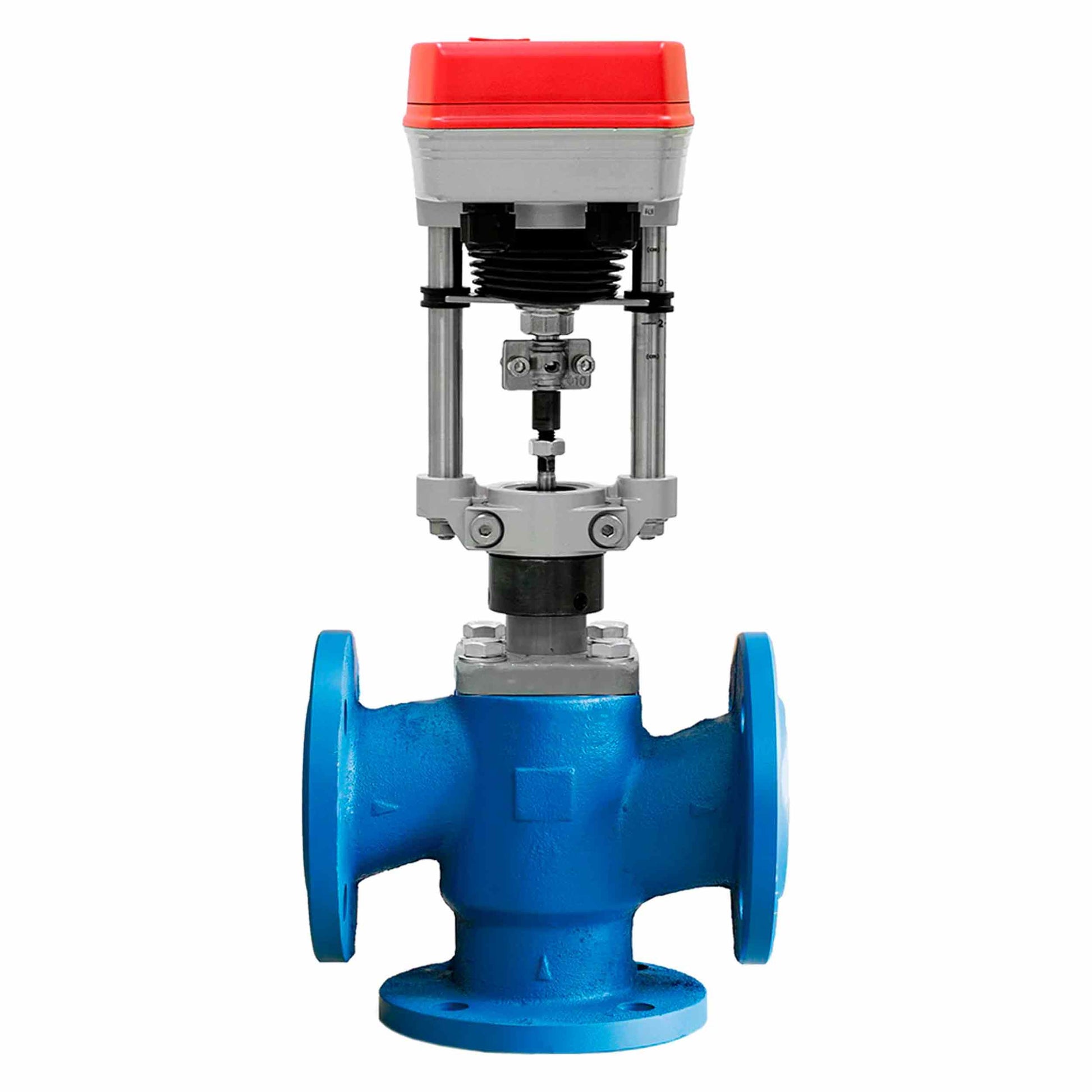

The DNOVA 232 separating three-way control valves have two inlets and one outlet. They are used for qualitative regulation in heating and ventilation systems by separating two streams of coolant with different temperatures flowing through the pipeline at a pressure of no more than 1.6MPa
Body of DNOVA 232 isolating valves is made of gray cast iron.
The actuator is a Catrabel electric actuator (EIM).
The valve body has a nameplate with basic information about the product.
Control valves DNOVA 232 with electric actuator are used in heat and water supply systems for cold and hot water, ethylene glycol solution and other media not aggressive to the body materials, temperature value of which does not exceed 150°C and nominal pressure up to 1.6 MPa.
The valve connection to the pipeline is flanged.
Parameters of three-way separation control valve DNOVA 232 PSI gray cast iron GC20, flanged with electric actuator Katrabel TW-500-XD110/220:
|
Valve type |
Three-way regulating valve |
|
Throttling unit |
Dividing unit |
|
Actuator model |
Katrabel TW-500-XD220 |
|
Nominal diameter, mm |
15 / 20 / 25 / 32 / 40 / 50 / 65 / 80 |
|
Nominal pressure, bar |
16 |
|
Conditional flow capacity Kvs, m3/h |
0.4 – 40 |
|
Type of connection |
Flanged |
|
Body material |
Cast iron |
|
Working medium temperature, °C |
From +5°C to +150°C |
|
Ambient temperature, °C |
From -15°C to +50°C |
|
Relative humidity |
From 30 to 80% |
|
Average service life |
8 years |
Technical characteristics of three-way separation control valve DNOVA 232 PSI gray cast iron GC20, flanged with electric actuator Katrabel TW-500-XD110/220:
| DN, mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | |
| Conditional flow capacity Kvs, m3/h | 0.4 0.63 1.0 1.6 2.5 4.0 |
1.6 2.5 4.0 5.0 6.3 |
1.6 2.5 4.0 6.3 10.0 |
6.3 10.0 16.0 |
10 16 25 |
16 25 40 |
25 40 63 |
40 63 80 100 |
|
| Stroke of stem, mm, ± 5% | 10 | 10 | 20 | 20 | 25 | 25 | 25 | 32 | |
| Regulation characteristic | Linear | ||||||||
| Cavitation onset coefficient, Z | More than 0.4 | ||||||||
Weight and installation parameters of three-way separation control valve DNOVA 232 PSI gray cast iron GC20, flanged with electric actuator Katrabel TW-500-XD110/220
| Actuator model | TW-500-XD220 | TW-3000-XD220 | ||||||
| DN, mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 |
| L, mm | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 |
| H, mm | 385 | 385 | 400 | 360 | 370 | 370 | 500 | 500 |
| H1, mm | 315 | 315 | 320 | 360 | 370 | 370 | 385 | 385 |
| Weight, kg | 5.7 | 5.9 | 7.3 | 9.2 | 11.6 | 18.5 | 22.6 | 27.6 |
Mounting holes
| DN, mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 |
| Number of holes, pcs | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Hole diameter d, mm | 14 | 14 | 14 | 18 | 18 | 18 | 18 | 18 |
Materials of three-way separation control valve DNOVA 232 PSI gray cast iron GC20, flanged with electric actuator Katrabel TW-500-XD110/220:
|
№ |
Part name |
Material |
|
1 |
Body |
Grey cast iron CH20 |
|
Cover |
Steel |
|
|
2 |
Plunger |
Steel |
|
3 |
Seat |
Steel |
|
4 |
Seat |
Steel |
|
5 |
Stem |
Stainless steel |
|
6 |
Stem sealing nut |
Rubber-fluoroplastic |
|
7 |
Guide bushing |
- |
|
8 |
Plunger nut |
Metal-to-metal |
|
9 |
Locking nut |
- |
|
10 |
Body and parts of the actuator |
- |
|
Actuator stem |
- |
|
|
Actuator seals |
- |
Specifications
