Description

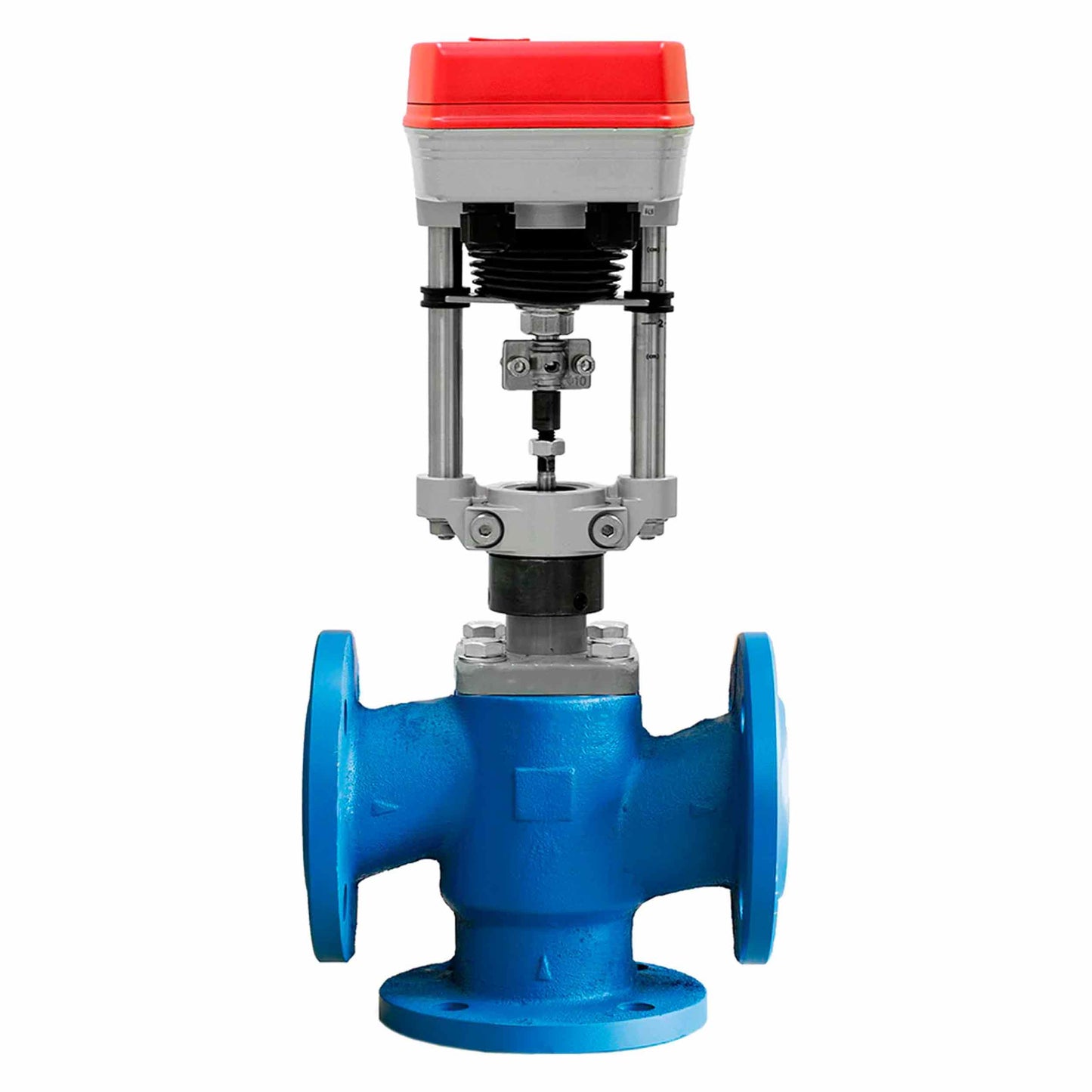

Three-way separating control valves DNOVA have two inlets and one outlet. They are used for quality regulation in heating and ventilation systems by separating two flows of coolant with different temperatures, flowing through the pipeline at a pressure of no more than 1.6MPa
The body of DNOVA Catrabel separating valves is made of gray cast iron.
The actuator is a Katrabel electric actuator.
The valve body has a nameplate with basic product information.
The valve connection to the pipeline is flanged.
DNOVA control valves with electric actuator are used in heat and water supply systems for cold and hot water, ethylene glycol solution and other media that are not aggressive to body materials, temperature value of which does not exceed 150°C and nominal pressure up to 1.6 MPa.
Parameters of three-way mixing control valve DNOVA 232 PSI gray cast iron GC20, flanged with electric actuator Katrabel TW-3000-XD110/220:
|
Type of valve |
Three-way regulating valve |
|
Throttling element |
Mixing type |
|
Actuator model |
Katrabel TW-500-XD220 |
|
Nominal diameter, mm |
15 / 20 / 25 / 32 / 40 / 50 / 65 / 80 |
|
Nominal pressure, bar |
16 |
|
Conditional flow capacity Kvs, m³/h |
0.4 – 40 |
|
Type of connection |
Flanged |
|
Body material |
Cast iron |
|
Working medium temperature, °C |
From +5°C to +150°C |
|
Ambient temperature, °C |
From -15°C to +50°C |
|
Relative humidity |
30% – 80% |
|
Average service life |
8 years |
Technical characteristics of three-way mixing control valve DNOVA 232 PSI gray cast iron GC20, flanged with electric actuator Katrabel TW-3000-XD110/220:
| DN, mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | |
| Conditional flow capacity Kvs, m3/h | 0.4 0.63 1.0 1.6 2.5 4.0 |
1.6 2.5 4.0 5.0 6.3 |
1.6 2.5 4.0 6.3 10.0 |
6.3 10.0 16.0 |
10 16 25 |
16 25 40 |
25 40 63 |
40 63 80 100 |
|
| Stroke of stem, mm, ± 5% | 10 | 10 | 20 | 20 | 25 | 25 | 25 | 32 | |
| Regulation characteristic | Linear | ||||||||
| Cavitation onset coefficient, Z | More than 0.4 | ||||||||
Weight and installation parameters of three-way mixing control valve DNOVA 232 PSI gray cast iron GC20, flanged with electric actuator Katrabel TW-3000-XD110/220
| Actuator model | TW-500-XD220 | TW-3000-XD220 | ||||||
| DN, mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 |
| L, mm | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 |
| H, mm | 385 | 385 | 400 | 360 | 370 | 370 | 500 | 500 |
| H1, mm | 315 | 315 | 320 | 360 | 370 | 370 | 385 | 385 |
| Weight, kg | 5.7 | 5.9 | 7.3 | 9.2 | 11.6 | 18.5 | 22.6 | 27.6 |
Mounting holes
| DN, mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 |
| Number of holes, pcs | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Hole diameter d, mm | 14 | 14 | 14 | 18 | 18 | 18 | 18 | 18 |
Materials of three-way mixing control valve DNOVA 232 PSI gray cast iron GC20, flanged with electric actuator Katrabel TW-3000-XD110/220:
|
№ |
Part name |
Material |
|
1 |
Body |
Grey cast iron CH20 |
|
Cover |
Steel |
|
|
2 |
Plunger |
Steel |
|
3 |
Seat |
Steel |
|
4 |
Threaded seat |
Steel |
|
5 |
Stem |
Stainless steel |
|
6 |
Stem sealing nut |
Rubber-fluoroplastic |
|
7 |
Guide bushing |
- |
|
8 |
Plunger nut |
Metal-to-metal |
|
9 |
Locking nut |
- |
|
10 |
Actuator housing and parts |
- |
|
Actuator stem |
- |
|
|
Actuator seals |
- |
Specifications
