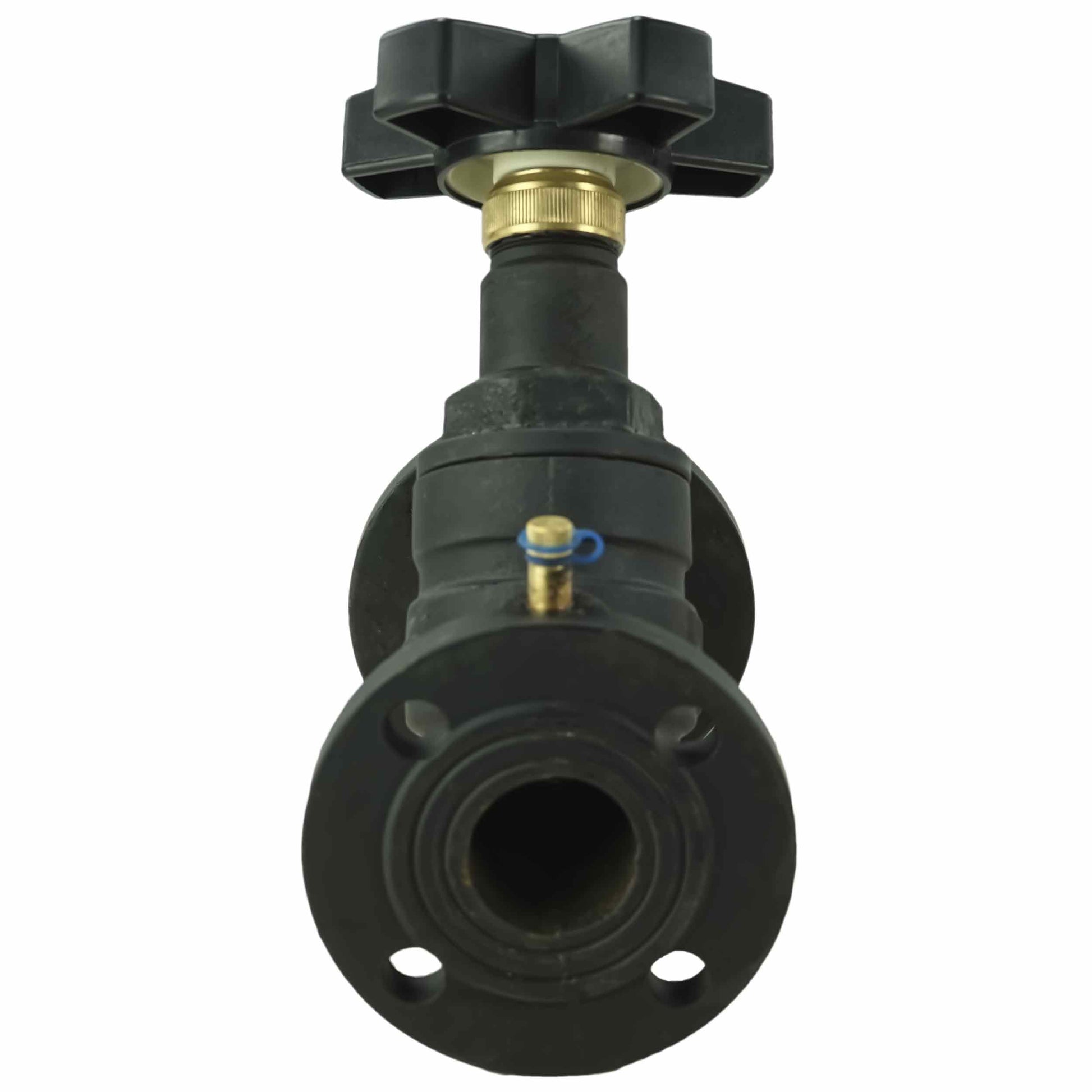

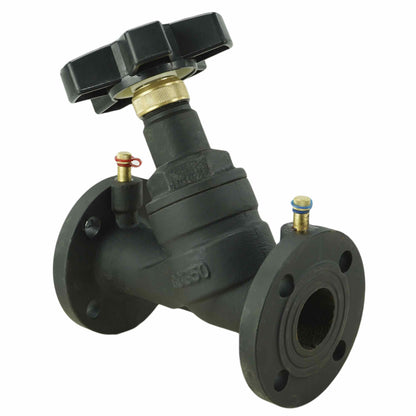

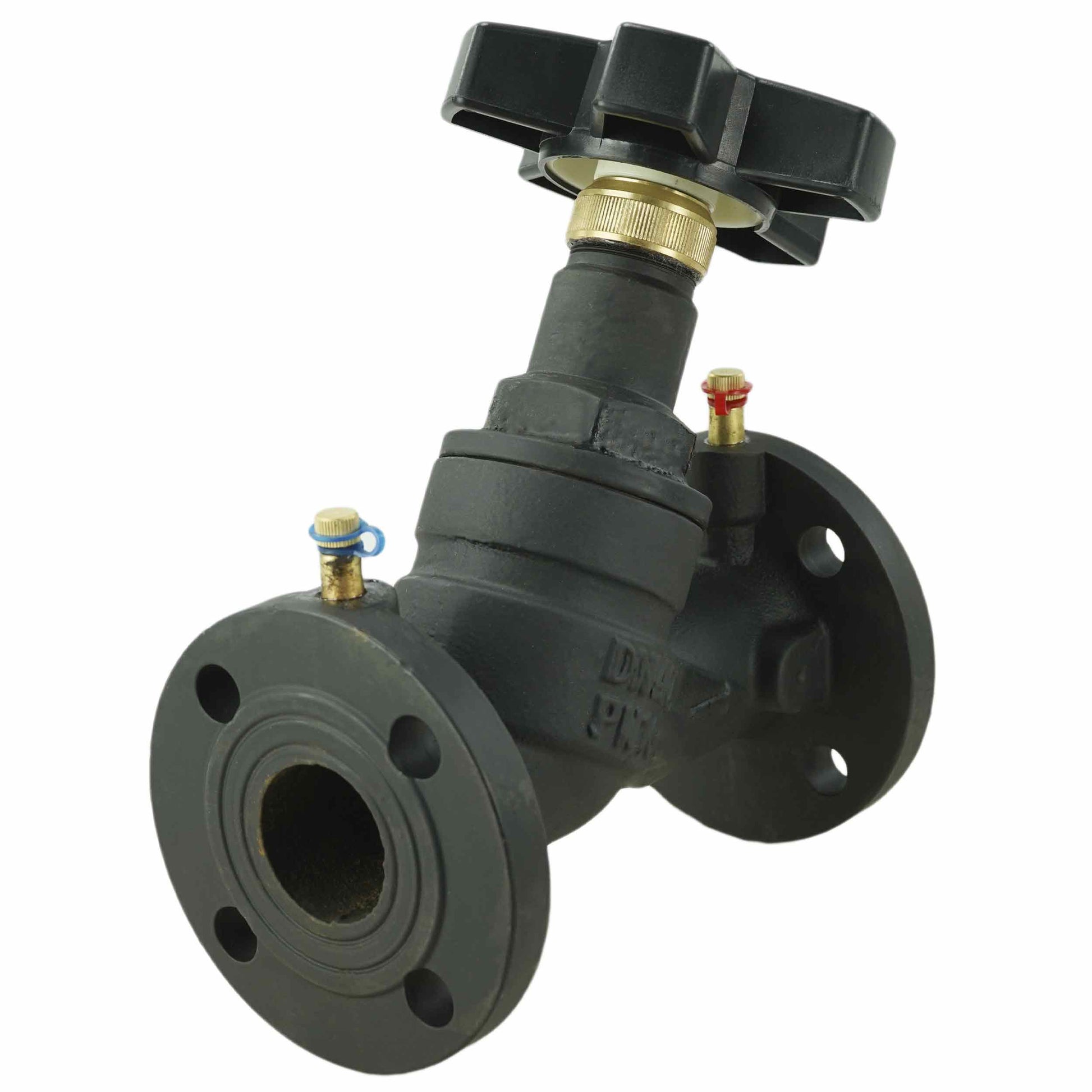

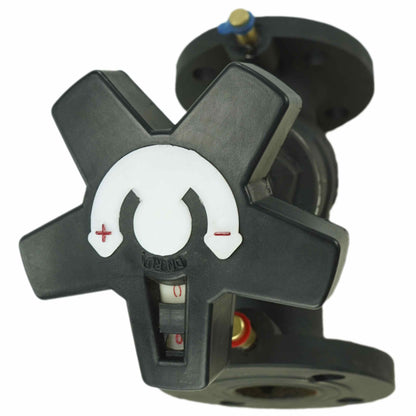

Static balancing valve DNOVA VB1431V-F 16 bar cast iron, flanged connection with nipples

From $73.21 USD
From $73.21 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The balancing valve is designed for hydraulic balancing, regulation and limitation of the flow of the working medium in heating and cooling systems. The valve can effectively solve the problem of uneven distribution of temperature and heat in the heating system. At the same time, the balancing valve will allow you to accurately adjust the pressure drop and flow rate for accurate balancing of the working medium in the pipeline network system.



Overall dimensions of the flanged balancing valve DNOVA VB1431V-F PN16 cast iron

DN Local resistance coefficient L D D0 H
15 1.12 150 95 65 -
20 1.34 150 105 75 -
25 1.87 180 115 85 -
32 2.00 230 135 100 220
40 2.91 230 145 110 225
50 2.65 230 160 125 229
65 3.95 295 180 145 237
80 6.96 315 195 160 241
100 5.53 345 215 180 262
125 5.43 400 245 210 303
150 8.82 485 280 240 306
200 7.23 530 340 295 400
250 7.88 560 405 355 470

 Sketch of flanged balancing valve DNOVA VB1431V-F PN16 cast iron, flanged connection with nipples

Materials of parts of the flange balancing valve DNOVA VB1431V-F PN16 cast iron, flanged connection with nipples

Part name Material
Body Cast iron GGG50
Cover Cast iron GGG50
Coil Steel 304
Stem Steel 304
Flywheel Polyethylene
Sealing Fluorocarbon

Specifications

Country of origin
China
Body material
Cast iron
Connection type
Flanged
Operating environment
Water, Air, Oil Products
Applications
Heat Supply, Refrigeration
Nominal pressure
16 bar
Type of seal
Fluoroplastic
Locking material
VITON
Balancing valve type
Static

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN32 / 16 barD080-01160
DN32 / 16 barD080-01160
$73.21/ea		 $0.00
$73.21/ea $0.00
DN40 / 16 barD080-01170
DN40 / 16 barD080-01170
$53.33/ea		 $0.00
$53.33/ea $0.00
DN50 / 16 barD080-01161
DN50 / 16 barD080-01161
$53.04/ea		 $0.00
$53.04/ea $0.00
DN65 / 16 barD080-01162
DN65 / 16 barD080-01162
$58.52/ea		 $0.00
$58.52/ea $0.00
DN80 / 16 barD080-01163
DN80 / 16 barD080-01163
$103.86/ea		 $0.00
$103.86/ea $0.00
DN100 / 16 barD080-01164
DN100 / 16 barD080-01164
$125.95/ea		 $0.00
$125.95/ea $0.00
DN125 / 16 barD080-01165
DN125 / 16 barD080-01165
$233.05/ea		 $0.00
$233.05/ea $0.00
DN150 / 16 barD080-01166
DN150 / 16 barD080-01166
$279.26/ea		 $0.00
$279.26/ea $0.00
DN200 / 16 barD080-01167
DN200 / 16 barD080-01167
$571.34/ea		 $0.00
$571.34/ea $0.00
DN250 / 16 barD080-01168
DN250 / 16 barD080-01168
$705.51/ea		 $0.00
$705.51/ea $0.00
DN300 / 16 barD080-01169
DN300 / 16 barD080-01169
$890.55/ea		 $0.00
$890.55/ea $0.00
View cart
0

Total items

$0.00

Product subtotal

Taxes included. Discounts and shipping calculated at checkout.
View cart

Didn't Find What You're Looking For?

Get a Personalized Quote from Our Team
Provide us with your specific requirements, technical specifications, and parameters. Our team of experts will carefully evaluate your needs and select the most suitable equipment for you, ensuring the best possible timeframe and competitive pricing.
