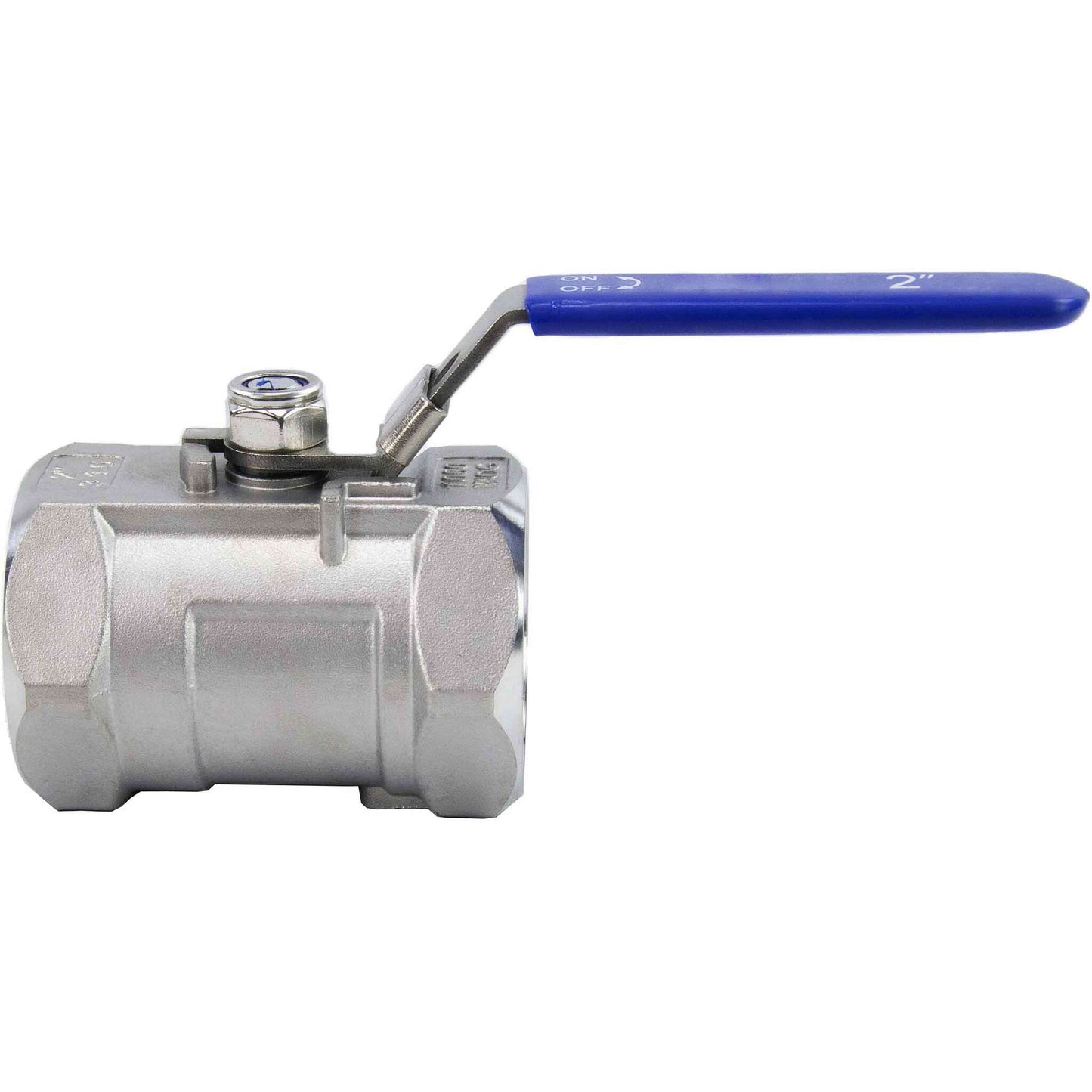

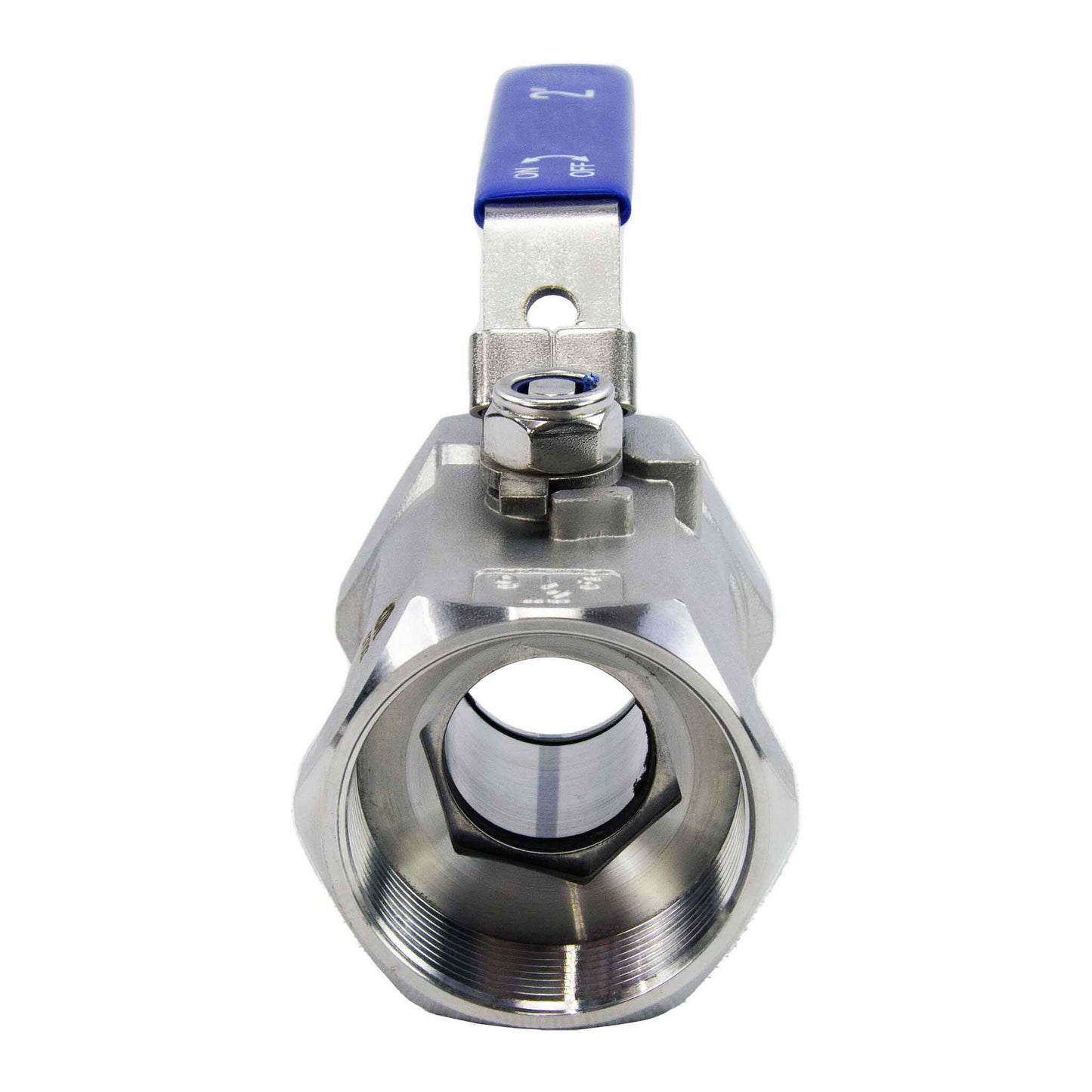

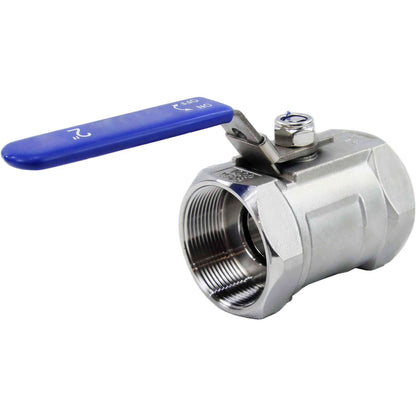

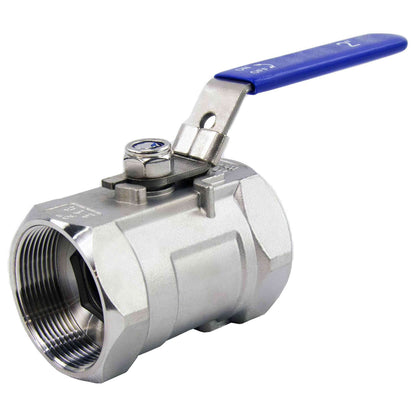

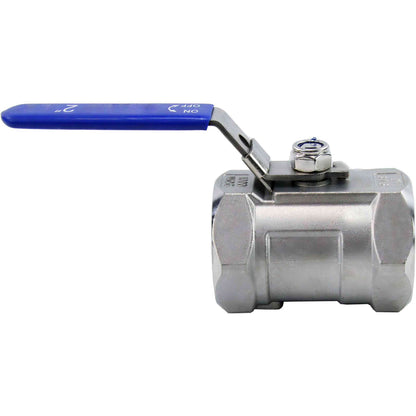

Stainless steel ball valve DNOVA BV3232P-SP-T-H PN63 standard port, Threaded, with handle

From $1.86 USD
From $1.86 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The ball valve is used as shut-off valves in heat supply systems, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of cranes of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), nonaggressive to the materials of the crane. The use of ball valves as control valves is not allowed.





Ball valve overall dimensions DNOVA BV3232P-SP-T-H PN63, standard port, Threaded, with handle

DN,mm 8 10 15 20 25 32 40 50 65
1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2"
D, mm 5 7 9.2 12.5 15 20 25 32 38
H, mm 33 35 40 44 51 57 67 68 95
W, mm 71 93 95 95 113 113 141 141 189
L, mm 39 44 55 59 69 77 81 97 128
Weight, kg 0.07 0.10 0.16 0.25 0.43 0.70 0.83 1.50 2.50

Ball Valve Detail Sketch DNOVA BV3232P-SP-T-H PN63, standard port, Threaded, with handle





Ball valve component materials DNOVA BV3232P-SP-T-H PN63 standard port, Threaded, with handle

№ Part name Material
1 Body CF8M steel
2 Saddle PTFE
3 Char steel 316
4 Gasket PTFE
5 Housing cover steel CF8M
6 Stem steel 316
7 Stem washer PTFE
8 gland PTFE
9 Gland cover steel 304
10 Handle steel+PVC
11 spring washer steel 304
12 Nut steel 304

Ball Valve Detail Sketch DNOVA BV3232P-SP-T-H PN63, standard port, Threaded, with handle

Specifications

Country of origin
China
Port opening
Standard Port
Configuration
Two-way
Body material
Stainless steel AISI 316
Material ball
Stainless steel AISI 316
Material ball seal
PTFE
Maximum allowable temperature
230 °C
Connection type
Threaded NPT/BSP
Control type
Lever handle
Operating environment
Water, Air, Oil Products
Applications
Water Supply
