Description
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

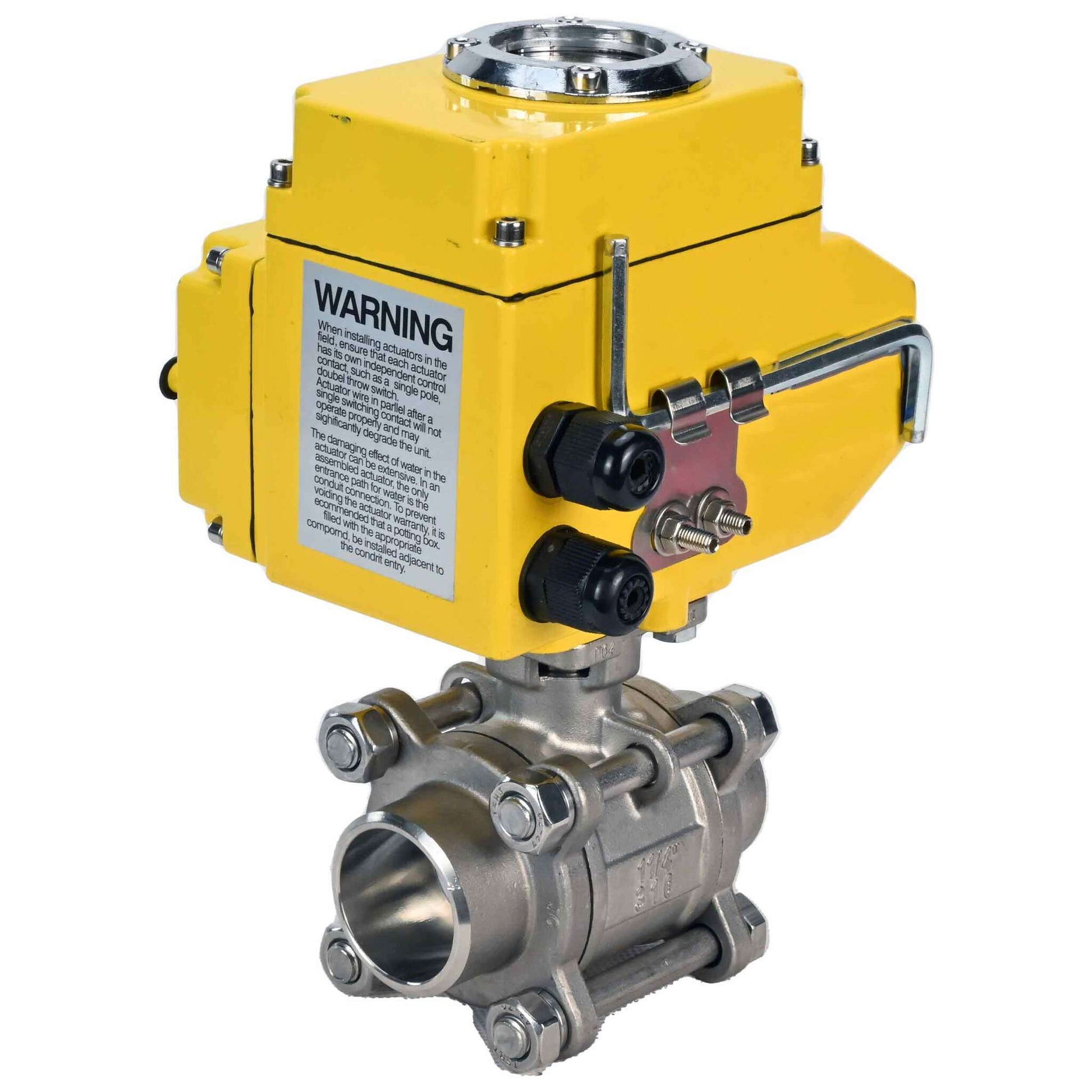

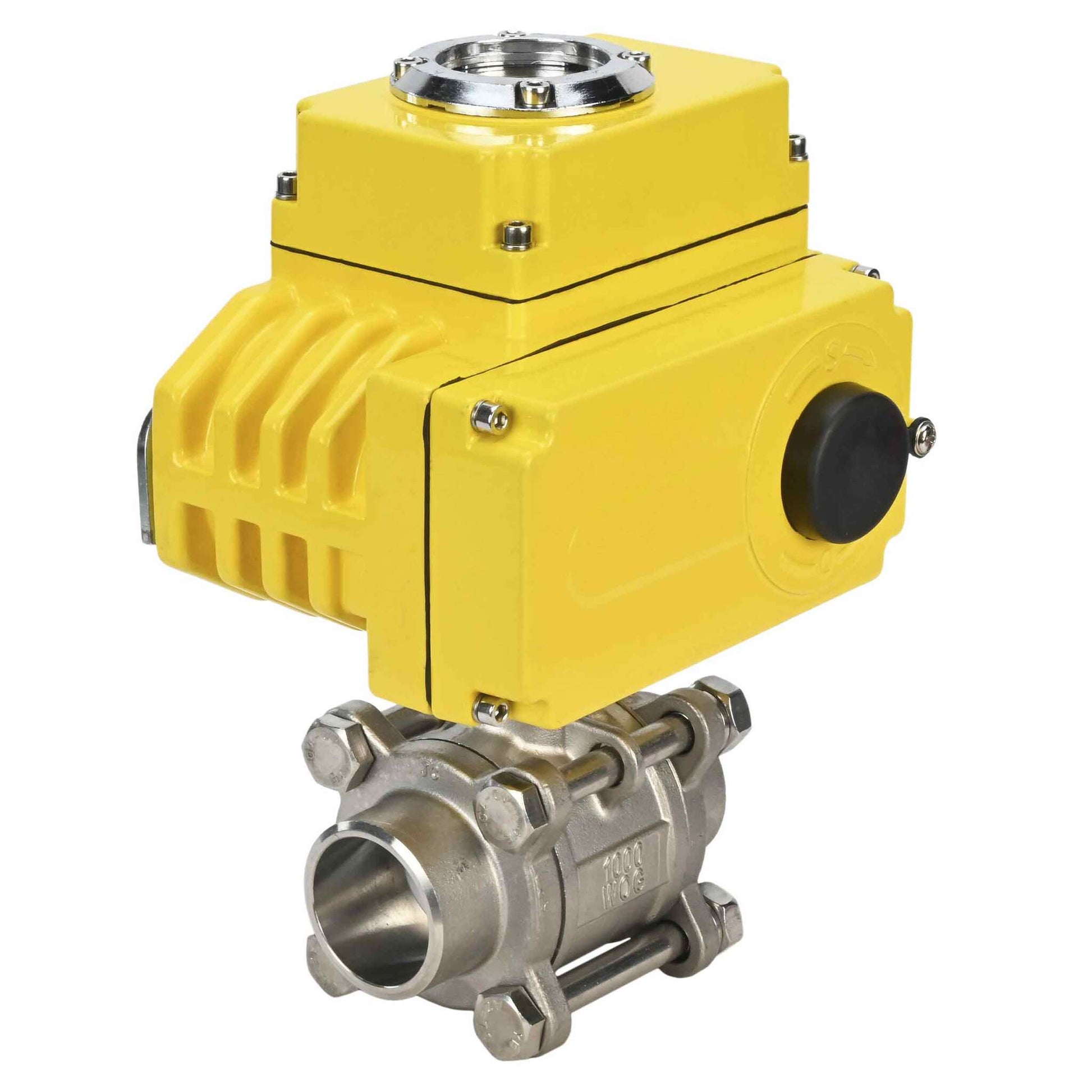

The ball valve DNOVA is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to valve materials. The actuators are mounted directly on the pipeline valves. The mounting dimensions comply with international standard ISO 05211 / DIN3337. Four microswitches are used to limit the travel of the output shaft to the end positions of the valve actuator. The actuators are designed for operation in nominal short-time mode S2.
Technical data of ball valves DNOVA BV3232P-FP-W-ISO
| Nominal diameter DN, mm | 10-100 |
| Working pressure PN, bar | 63 |
| Temperature of working environment t, ⁰C | from -20 to +200 |
| Working environment | water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | welding/welding |
| Type of flow section | full bore |
| Control type | manual (handle) |
| Addition | installation of electric or pneumatic drive is possible (ISO 5211-2001) |
Sketch of ball valves BV3232P(3pc)-FP-W-ISO-H Rou63/40/25 QT-N-EM-O1-220VAC-U1
Overall and installation dimensions of ball valves BV3232P(3pc)-FP-W-ISO-H Rou63/40/25 QT-N-EM-O1-220VAC-U1
| D.N. |
Electric drive model |
D, mm | L±1.5, mm | L1, mm | H2, mm | C, mm | Weight, kg |
|---|---|---|---|---|---|---|---|
| 10 | 003 MINI | 10 | 63 | 123 | 38.9 | 113 | 1,978 |
| 15 | 003 MINI | 15 | 65 | 123 | 40 | 113 | 2,045 |
| 20 | 003 MINI | 20 | 75 | 123 | 43.9 | 113 | 2,210 |
| 25 | 003 | 25 | 83 | 123 | 53 | 113 | 3,185 |
| 32 | 003 | 32 | 98 | 123 | 56 | 113 | 3,760 |
| 40 | 005 | 40 | 112 | 160 | 60 | 146 | 5,795 |
| 50 | 005 | 50 | 135 | 160 | 75 | 146 | 6,625 |
| 65 | 010 | 65 | 175 | 189 | 97 | 163 | 10,510 |
| 80 | 010 | 80 | 198 | 189 | 112 | 163 | 12,735 |
| 100 | 010 | 100 | 246 | 189 | 122 | 163 | 19,750 |
Detail sketch of ball valves DN.ru BV3232P-FP-W-ISO
Materials of parts for ball valves DNOVA BV3232P-FP-W-ISO
| Item No. | Part name | Material | Quantity |
|---|---|---|---|
| 1 | Frame | SS316 | 1 |
| 2 | Ball valve | S304/S316 | 1 |
| 3 | Bolt | S201/S304 | 4~6 |
| 4 | screw | S201/S304 | 4~6 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | S201/S304 | 1 |
| 8 | Sealing ring | VITON | 1 |
| 9 | Lid | WCB/CF8/CF8M | 2 |
| 10 | Saddle rings | PPL | 2 |
| 11 | Thrust washer | PTFE | 1 |
Characteristics of actuators
| Electric drive model | Torque | Opening hours |
|---|---|---|
| Nm | sec | |
| DNOVA-003 220V MINI | 30 | 20 |
| DNOVA-003 220V | 30 | 20 |
| DNOVA-005 220V | 50 | 30 |
| DNOVA-010 220V | 100 | 30 |
| Electric drive model | Power | Current | Weight | Rod size square |
|---|---|---|---|---|
| Tue | A | kg | mm | |
| DNOVA-003 220V MINI | 20 | 0.2 | 1.4 | 11 |
| DNOVA-003 220V | 9 | 0.15 | 2.1 | 11 |
| DNOVA-005 220V | 10 | 0.25 | 3.6 | 14 |
| DNOVA-010 220V | 15 | 0.35 | 4.6 | 17 |
