A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
The ball valve DNOVA is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

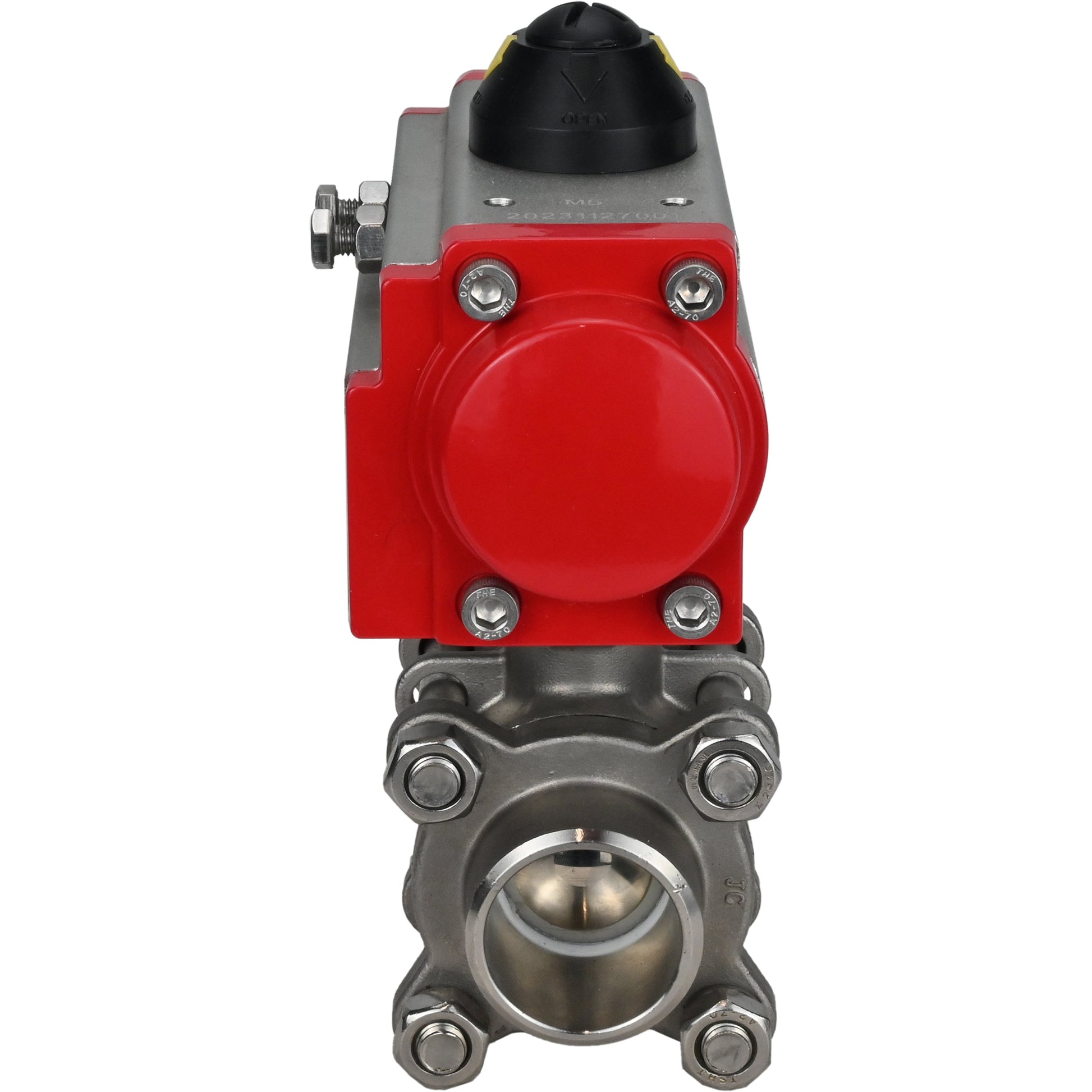

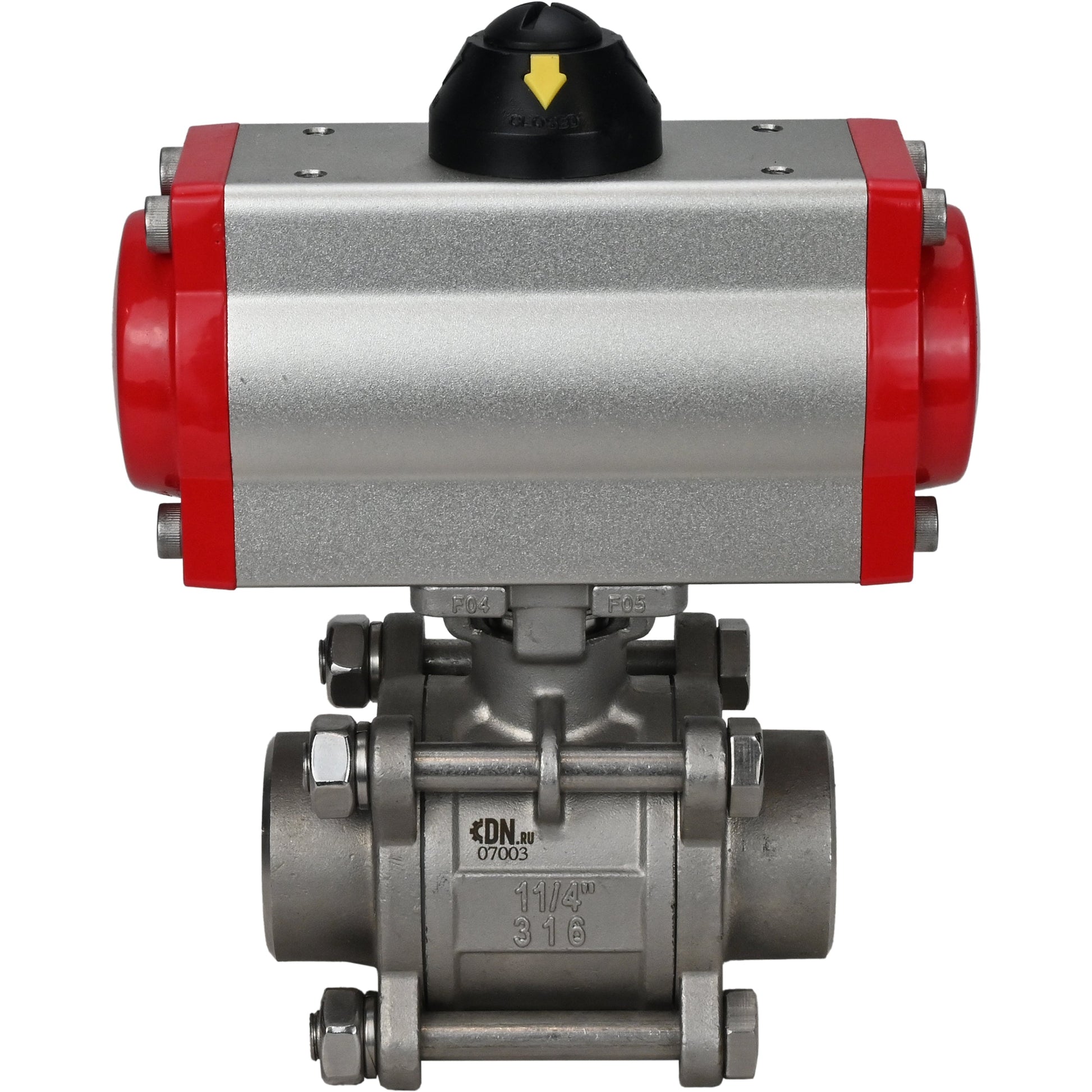

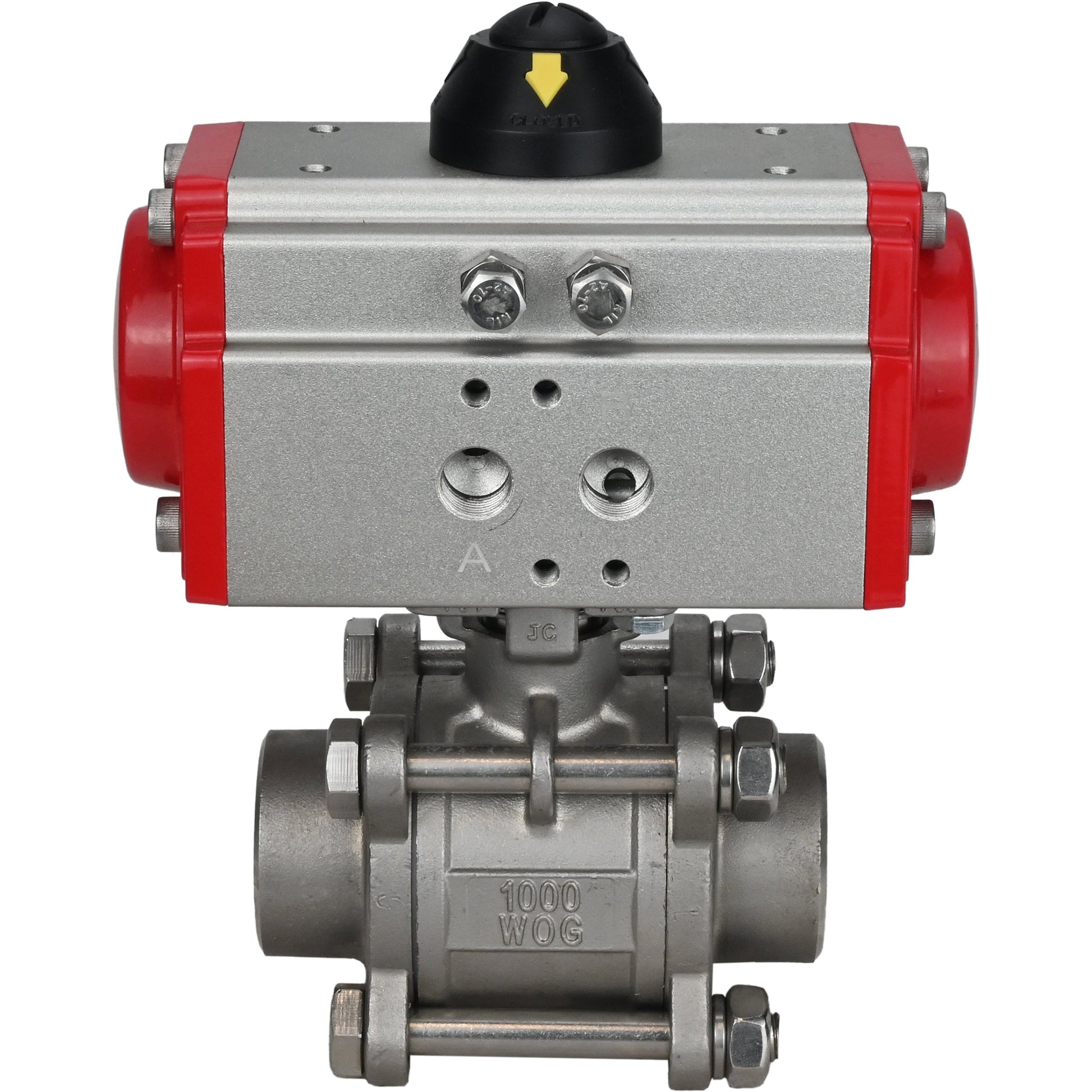

Double-acting pneumatic rotary actuators and pneumatic rotary actuators with return springs are designed for automation of control process of industrial shut-off valves - gates, ball valves. DNOVA pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Main parameters of ball valves KShPP 316.200
| Nominal diameter DN, mm |
10-100 |
| Working pressure PN, bar |
63 |
| Temperature of working environment t, ⁰C |
from -20 to +200 |
| Working environment |
water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline |
welding/welding |
| Type of flow section |
full bore |
| Control type |
manual (handle) |
| Addition |
installation of electric or pneumatic drive is possible (ISO 5211-2001) |
| Nominal pressure PN, MPa (kg/cm2) |
1,2 (12) |
| Working pressure, bar |
2...8 |
| Working environment |
Filtered compressed air or non-aggressive gases, oils |
| Maximum particle diameter |
Less than 30 µm2 |
| Operating temperature, °C |
from -20 to +80 |
| from -40 to +80 (low temperature version) |
| from -20 to +160 (in dry air) |
| Adjustment range |
5° for rotation at 0° and 90° |
| Manual duplication |
There is |
| Position indicator |
open/closed |
| Operating environment |
indoors and outdoors (all internal and external parts have anti-corrosion coating). |
