Description

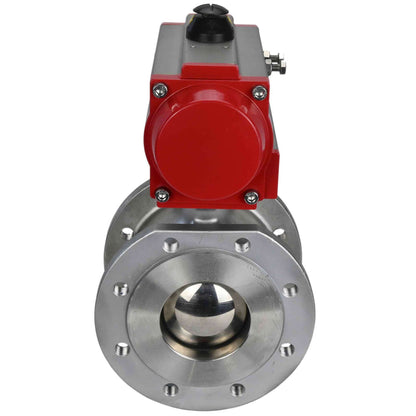

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Materials
| Item No. | Details | Material |
| 1 | screw | Steel 304 |
| 2 | Lever | Steel 201+PVC |
| 3 | Washer | Steel 304 |
| 4 | Retaining ring | Steel 304 |
| 5 | Thrust washer | Steel 304 |
| 6 | Oil seal washer | Steel 304 |
| 7 | Seal | PTFE |
| 8 | Thrust gasket | PTFE |
| 9 | Stock | Steel 316 |
| 10 | Ball cap | Steel 316 |
| 11 | Ball | Steel 316 |
| 12 | Ball seal | PTFE |
| 13 | Pad | PTFE |
| 14 | Frame | Steel 316 |
Dimensions
| D.N. | N-ØM | D | D1 | D2 | T | F | L | W | H |
| mm | |||||||||
| 15 | 4-Ø12 | 95 | 65 | 47 | - | 2 | 34 | 120 | 65 |
| 20 | 4-Ø12 | 105 | 75 | 58 | - | 2 | 38 | 120 | 71 |
| 25 | 4-Ø12 | 115 | 85 | 68 | 10 | 2 | 42 | 140 | 76 |
| 32 | 4-Ø16 | 135 | 100 | 78 | 18 | 3 | 54 | 170 | 98 |
| 40 | 4-Ø16 | 145 | 110 | 88 | 18 | 3 | 62 | 200 | 105 |
| 50 | 4-Ø16 | 160 | 125 | 102 | 18 | 3 | 72 | 240 | 128 |
| 65 | 8-Ø16 | 180 | 145 | 122 | 20 | 3 | 96 | 280 | 146 |
| 80 | 8-Ø16 | 195 | 160 | 133 | 22 | 3 | 113 | 320 | 170 |
| 100 | 8-Ø16 | 215 | 180 | 158 | 24 | 3 | 140 | 400 | 185 |

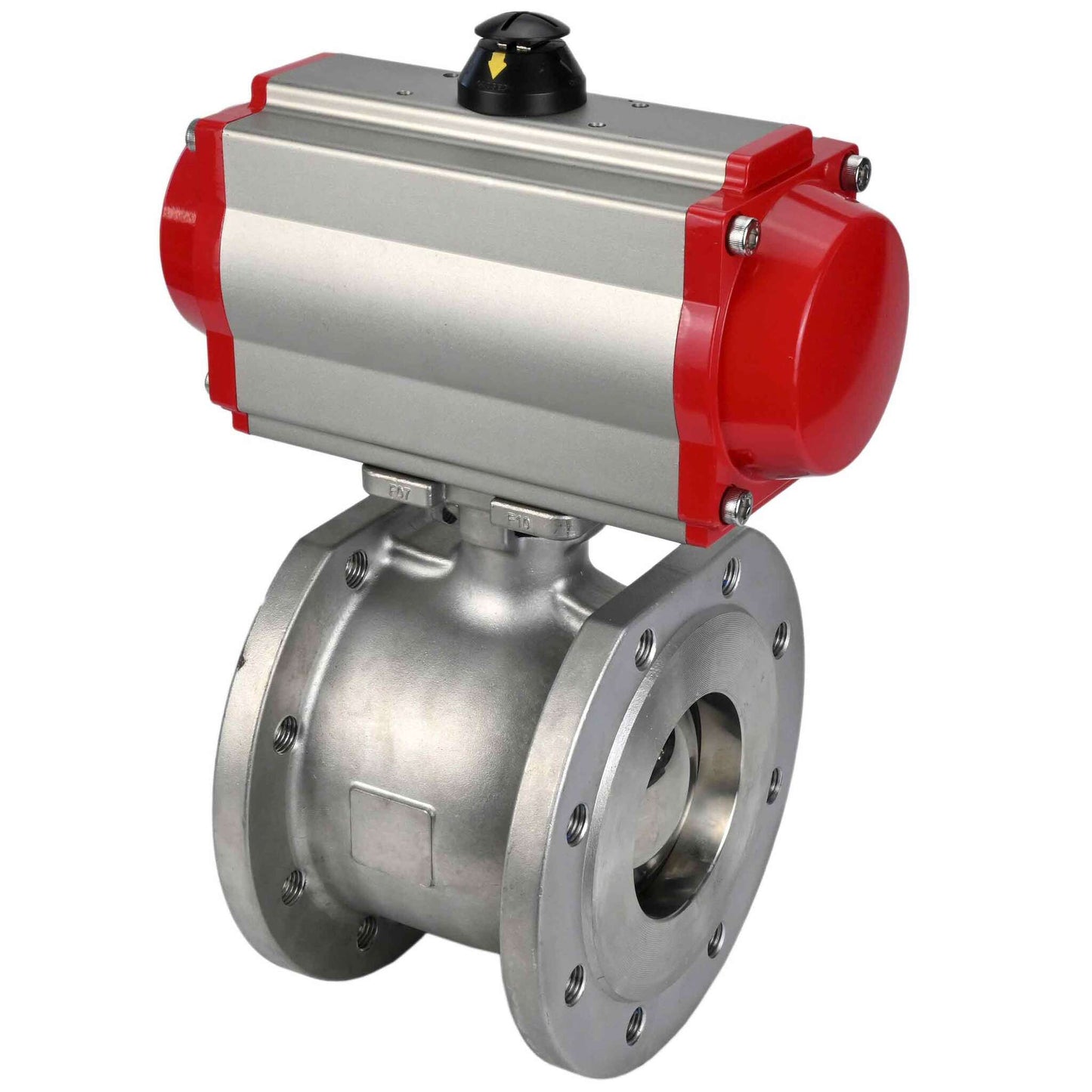

Parameters and sketch of the connection of the pneumatic drive DNOVA:
- Pneumatic actuator type - double acting
- Working pressure of pneumatic drive - 6.0 bar
- Drive rotation angle - 90°
- Drive adjustment range - 5°
- Country of origin - China
- Operating environment - indoor and outdoor
- Position indicator - open/closed
- Coating - All internal and external parts have an anti-corrosion coating
| No. | Name | Material | Quantity |
| 1 | Frame | extruded aluminum | 1 |
| 2 | Side plugs | cast aluminum | 2 |
| 3 | Gear | stainless steel | 1 |
| 4 | Piston | steel/aluminum | 2 |
| 5 | Plugs | stainless steel | 8 |
| 6 | Piston ring | NBR | 2 |
| 7 | Springs | spring steel | 0-12 |
| 8 | Piston bearing | engineering plastic | 2 |
| 9 | Piston ring | NBR | 2 |
| 10 | Plug | NBR | 2 |
| 11 | Thrust ring | engineering plastic | 2 |
| 12 | Ring | engineering plastic | 1 |
| 13 | Washer | stainless steel | 1 |
| 14 | Spring clamp | stainless steel | 2 |
| 15 | Indicator | plastic | 1 |
| 16 | Indicator housing | plastic | 1 |
| 17 | Bearing | engineering plastic | 1 |
| 18 | Cam | steel | 1 |
| 19 | Bearing | NBR | 1 |
| 20 | Bearing | engineering plastic | 1 |
| 21 | Bearing | engineering plastic | 1 |
| 22 | Sealing ring | NBR | 2 |
| 23 | Sealing ring | NBR | 2 |
| 24 | Bearing | stainless steel | 2 |
| 25 | Adjusting nut | stainless steel | 2 |
| 26 | Adjustment screw | stainless steel | 2 |
| 27 | Sleeve | aluminum | 2 |
