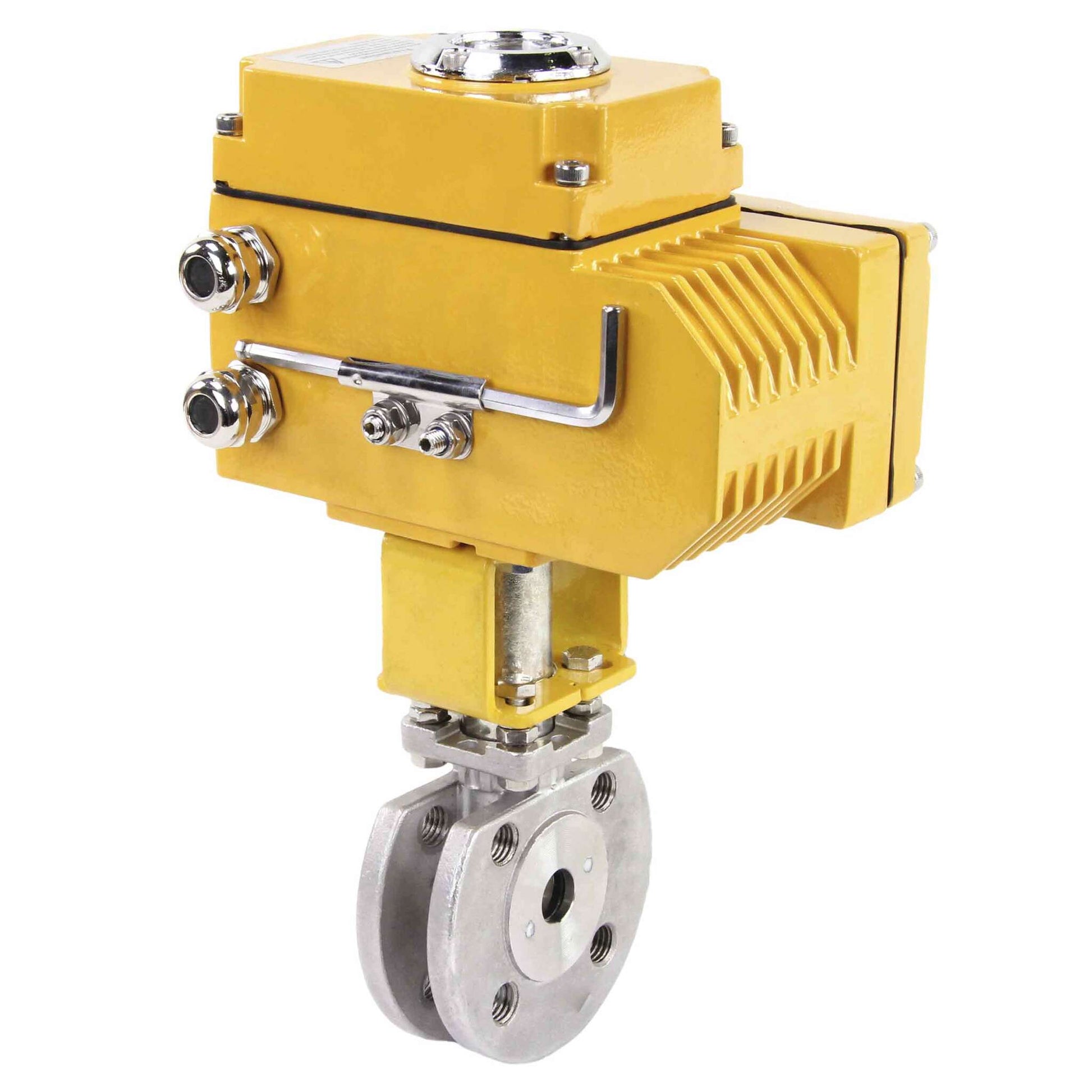

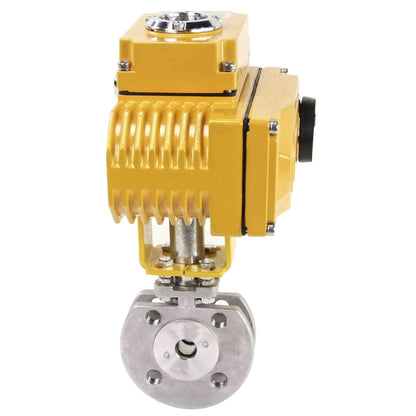

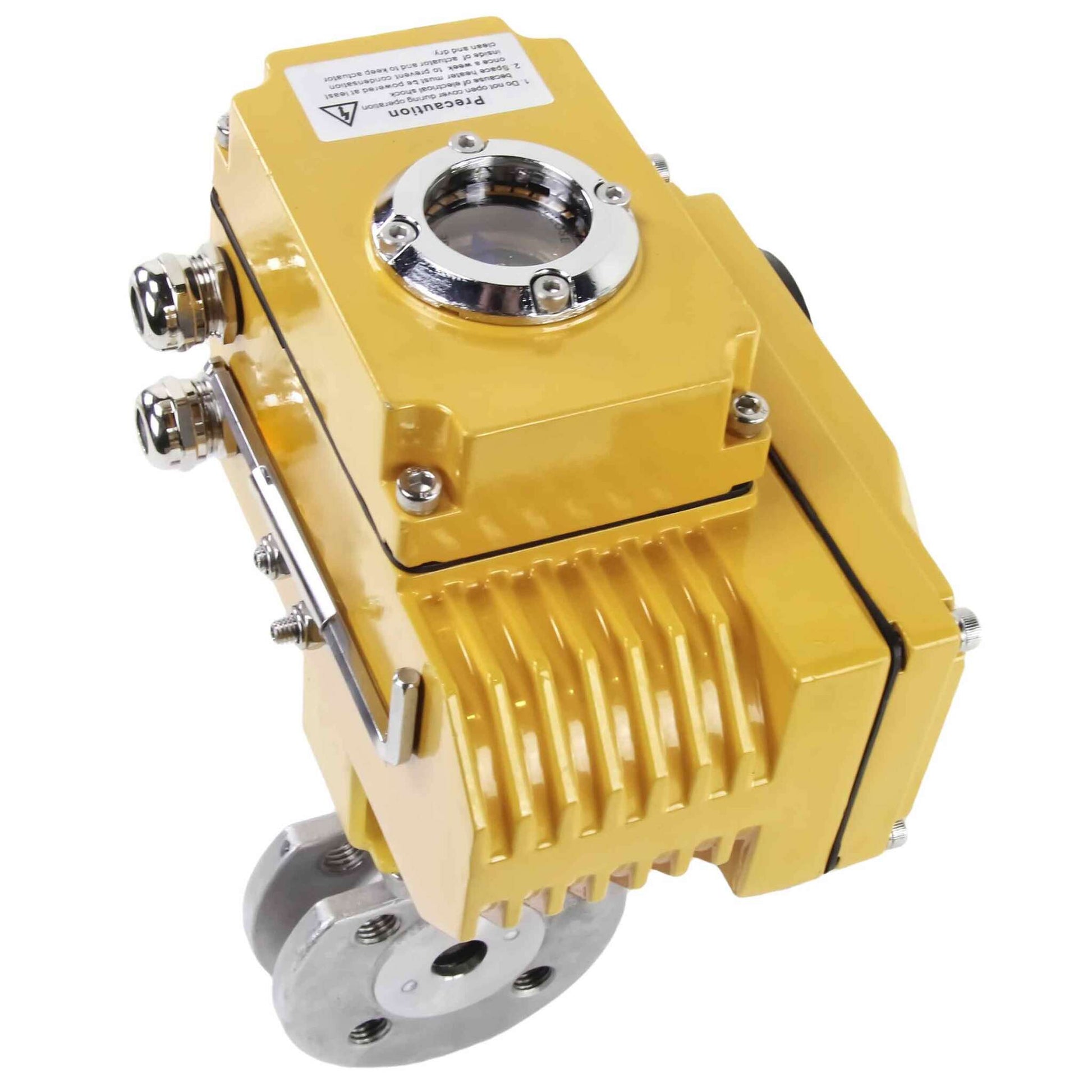

Electric quarter-turn actuator
Two-way ball valve
The number that matters
Max. medium temperature
200°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Oil Products
- Water Supply
- Heat Supply
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Materials
| Item No. | Details | Material |
| 1 | screw | Steel 304 |
| 2 | Lever | Steel 201+PVC |
| 3 | Washer | Steel 304 |
| 4 | Retaining ring | Steel 304 |
| 5 | Thrust washer | Steel 304 |
| 6 | Oil seal washer | Steel 304 |
| 7 | Seal | PTFE |
| 8 | Thrust gasket | PTFE |
| 9 | Stock | Steel 316 |
| 10 | Ball cap | Steel 316 |
| 11 | Ball | Steel 316 |
| 12 | Ball seal | PTFE |
| 13 | Pad | PTFE |
| 14 | Frame | Steel 316 |
Dimensions
| D.N. | N-ØM | D | D1 | D2 | T | F | L | W | H |
| mm | |||||||||
| 15 | 4-Ø12 | 95 | 65 | 47 | - | 2 | 34 | 120 | 65 |
| 20 | 4-Ø12 | 105 | 75 | 58 | - | 2 | 38 | 120 | 71 |
| 25 | 4-Ø12 | 115 | 85 | 68 | 10 | 2 | 42 | 140 | 76 |
| 32 | 4-Ø16 | 135 | 100 | 78 | 18 | 3 | 54 | 170 | 98 |
| 40 | 4-Ø16 | 145 | 110 | 88 | 18 | 3 | 62 | 200 | 105 |
| 50 | 4-Ø16 | 160 | 125 | 102 | 18 | 3 | 72 | 240 | 128 |
| 65 | 8-Ø16 | 180 | 145 | 122 | 20 | 3 | 96 | 280 | 146 |
| 80 | 8-Ø16 | 195 | 160 | 133 | 22 | 3 | 113 | 320 | 170 |
| 100 | 8-Ø16 | 215 | 180 | 158 | 24 | 3 | 140 | 400 | 185 |
- Port opening
- Full Port
- Configuration
- Two-way
- Body material
- Stainless steel AISI 316
- Material ball
- Stainless steel AISI 316
- Material ball seal
- PTFE
- Maximum allowable temperature
- 200 °C
- Connection type
- Compact flanged
- Control type
- Electric actuator
- Operating environment
- Water, Air, and Oil Products
- Applications
- Water Supply and Heat Supply
- Voltage
- 24 V
- Actuator cycle time
- 20s
- Valve feedback
- Yes
- Explosion-proof
- No
- Torque
- 30 Nm
- Manual override
- Yes
- Type of electric actuator
- Quarter-turn
- Control signal
- ON/OFF
- Rated current consumption
- 0.5 A
- Power consumption
- 9 W
- Country of origin
- China
