Description

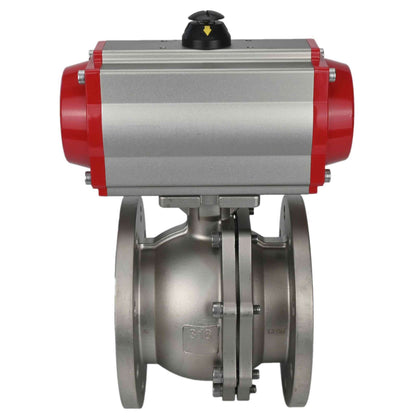

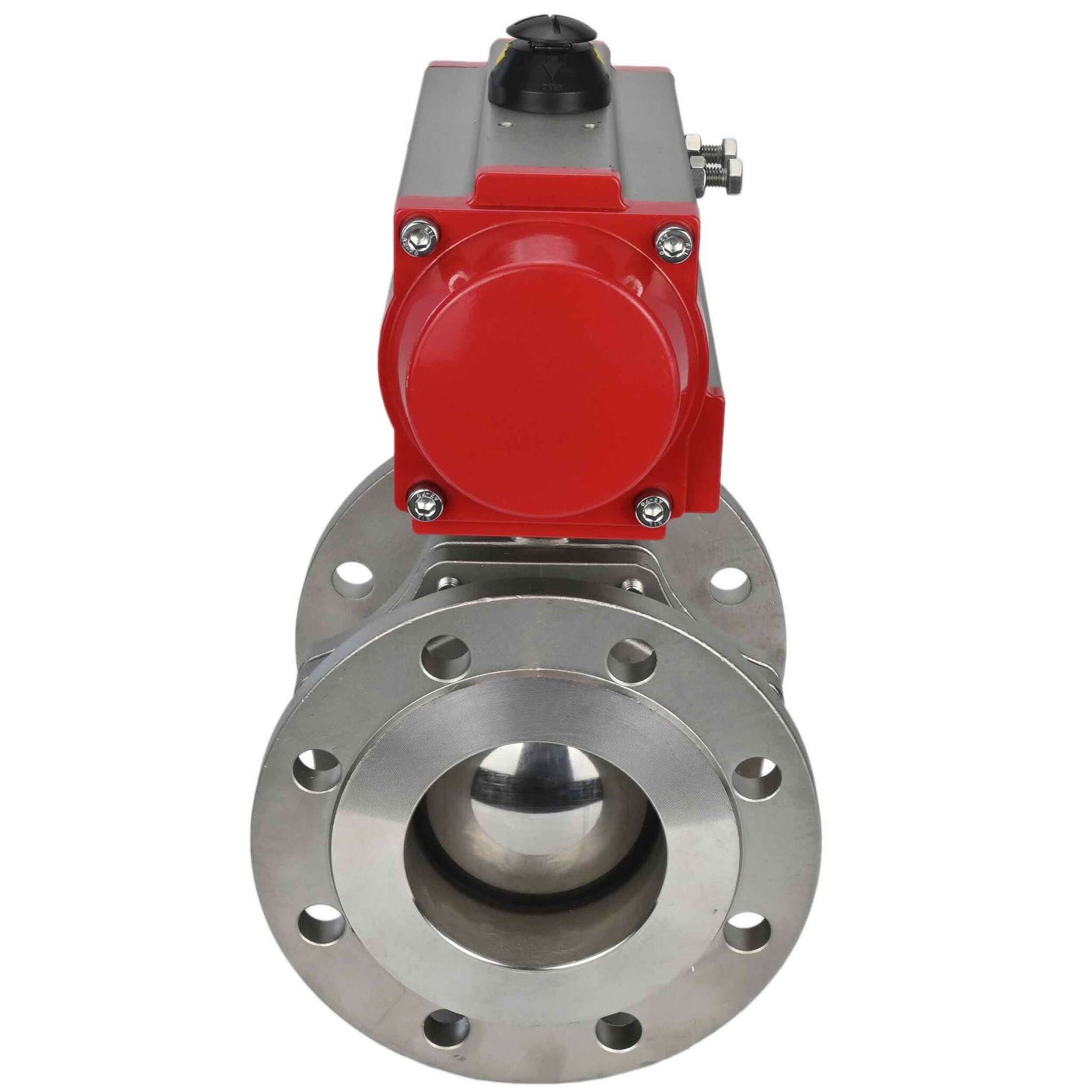

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Dimensions
| DN, mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L, mm | 114 | 120 | 125 | 130 | 140 | 150 | 170 | 180 | 190 | 325 | 345 | 400 | 450 | 500 |
| H, mm | 50 | 55 | 60 | 65 | 70 | 80 | 95 | 105 | 120 | 206 | 223 | 215 | 215 | 215 |
| W, mm | 112 | 112 | 136 | 195 | 195 | 195 | 265 | 265 | 265 | 750 | 750 | 1000 | 1000 | 1000 |
| D, mm | 89 | 98 | 108 | 117 | 127 | 152 | 178 | 191 | 229 | 250 | 285 | 340 | 405 | 460 |
| f, mm | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |
| N-ØM | 4- Ø 16 | 4- Ø 16 | 4- Ø 16 | 4- Ø 16 | 4- Ø 16 | 4- Ø 19 | 4- Ø 19 | 4- Ø 19 | 8- Ø 19 | 8- Ø 18 | 8- Ø 22 | 12- Ø22 | 12- Ø24 | 12- Ø26 |
Sketch of pneumatic drive connection DNOVA
Specifications
Delivery
The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.
To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.
Please feel free to reach out to us for any questions or further assistance regarding your order.
