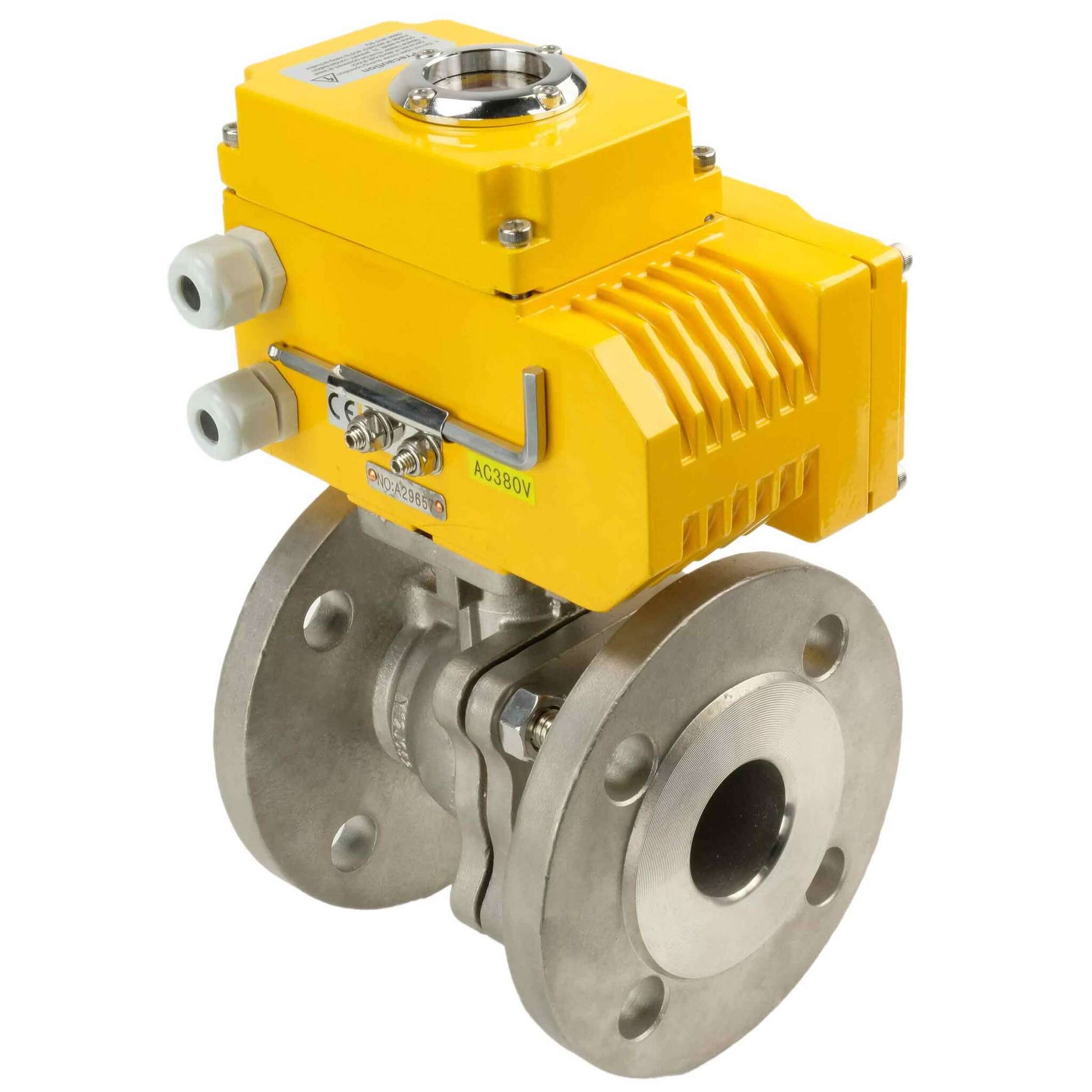

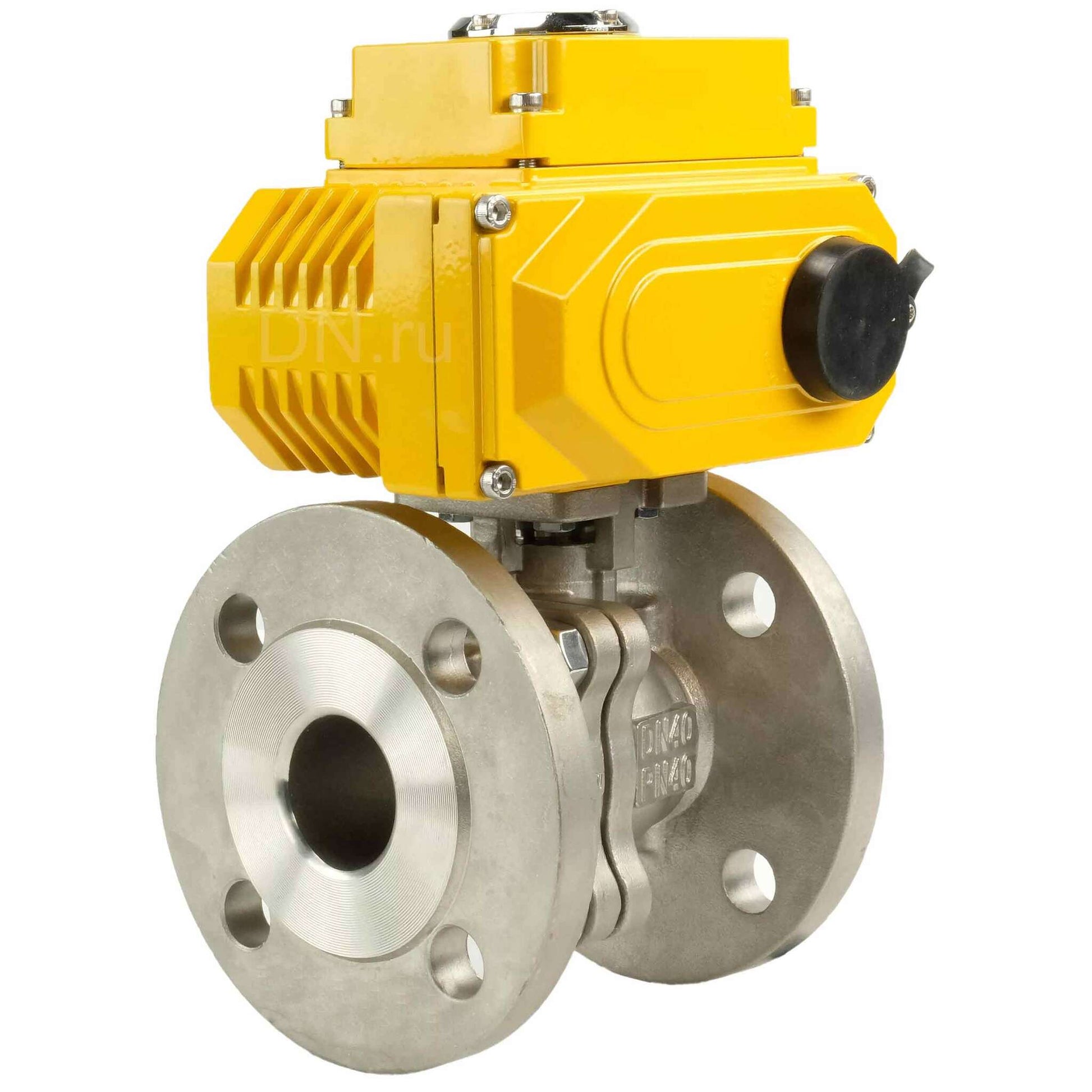

Stainless steel ball valve DNOVA kchfp-DNOVA-380v, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, electric actuator operated

From $363.47 USD
From $363.47 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.







Diameter 15 20 25 32 40 50 65 80 100
D, mm 95 105 115 140 150 165 185 200 220
H, mm 50 55 58 70 76 85 95 115 140
W, mm 112 112 136 185 198 198 265 265 325
L, mm 114 120 125 130 140 150 170 180 190
D1, mm 65 75 85 100 110 125 145 160 180
D2, mm 45 58 68 78 88 102 122 138 158

Specifications

Country of origin
China
Port opening
Full Port
Configuration
Two-way
Body material
Stainless steel AISI 316
Material ball
Stainless steel AISI 316
Material ball seal
PTFE
Maximum allowable temperature
200 °C
Connection type
Flanged
Control type
Electric actuator
Operating environment
Water, Air, Oil Products
Applications
Water Supply, Heat Supply
Voltage
380 V
Actuator cycle time
30s
Valve feedback
Yes
Explosion-proof
No
Torque
50 Nm
Electropneumatic positioner
No
Limit switches
Yes
Type of electric actuator
Quarter-turn
Control signal
ON/OFF
Rated current consumption
0.25 A
Power consumption
10 W
