Description

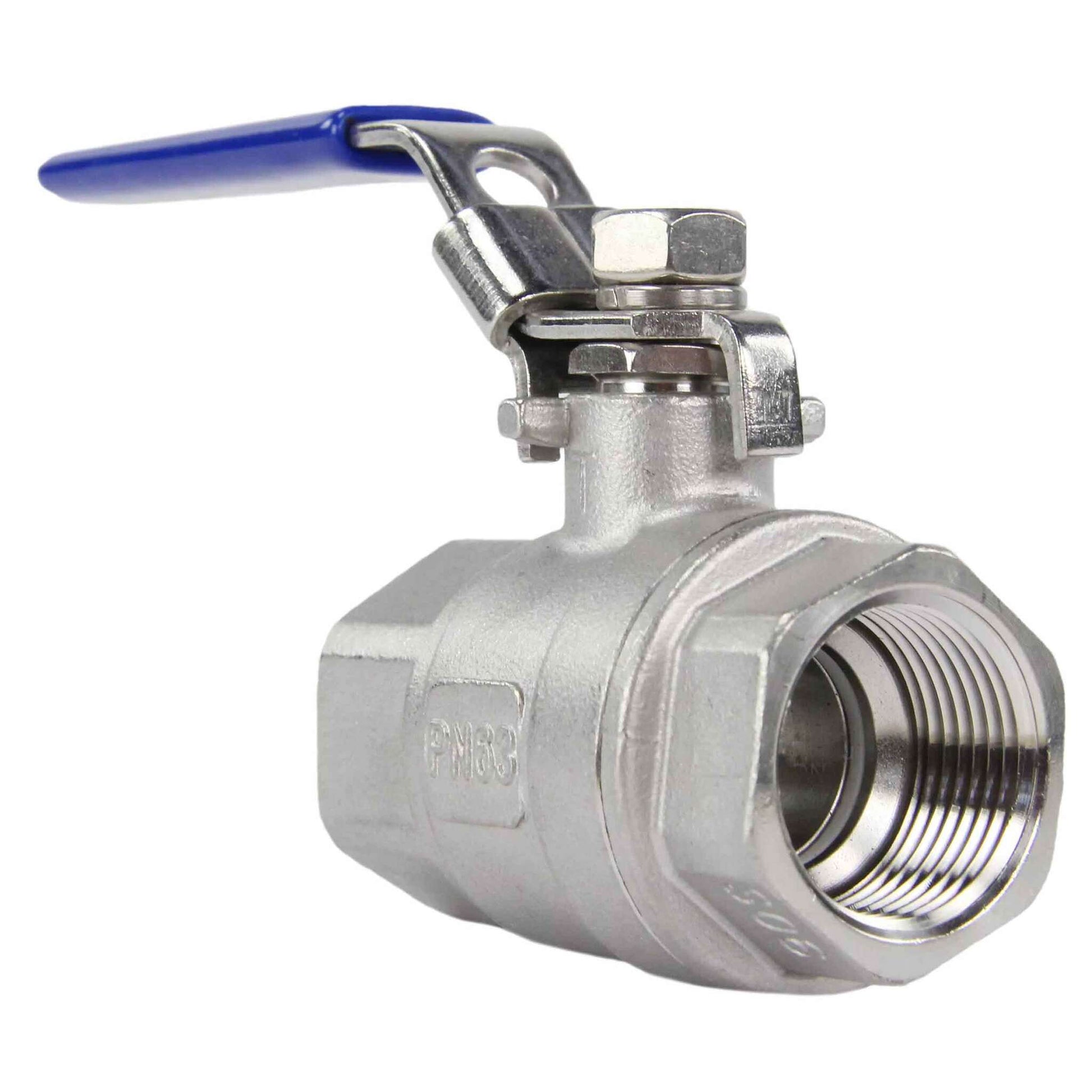

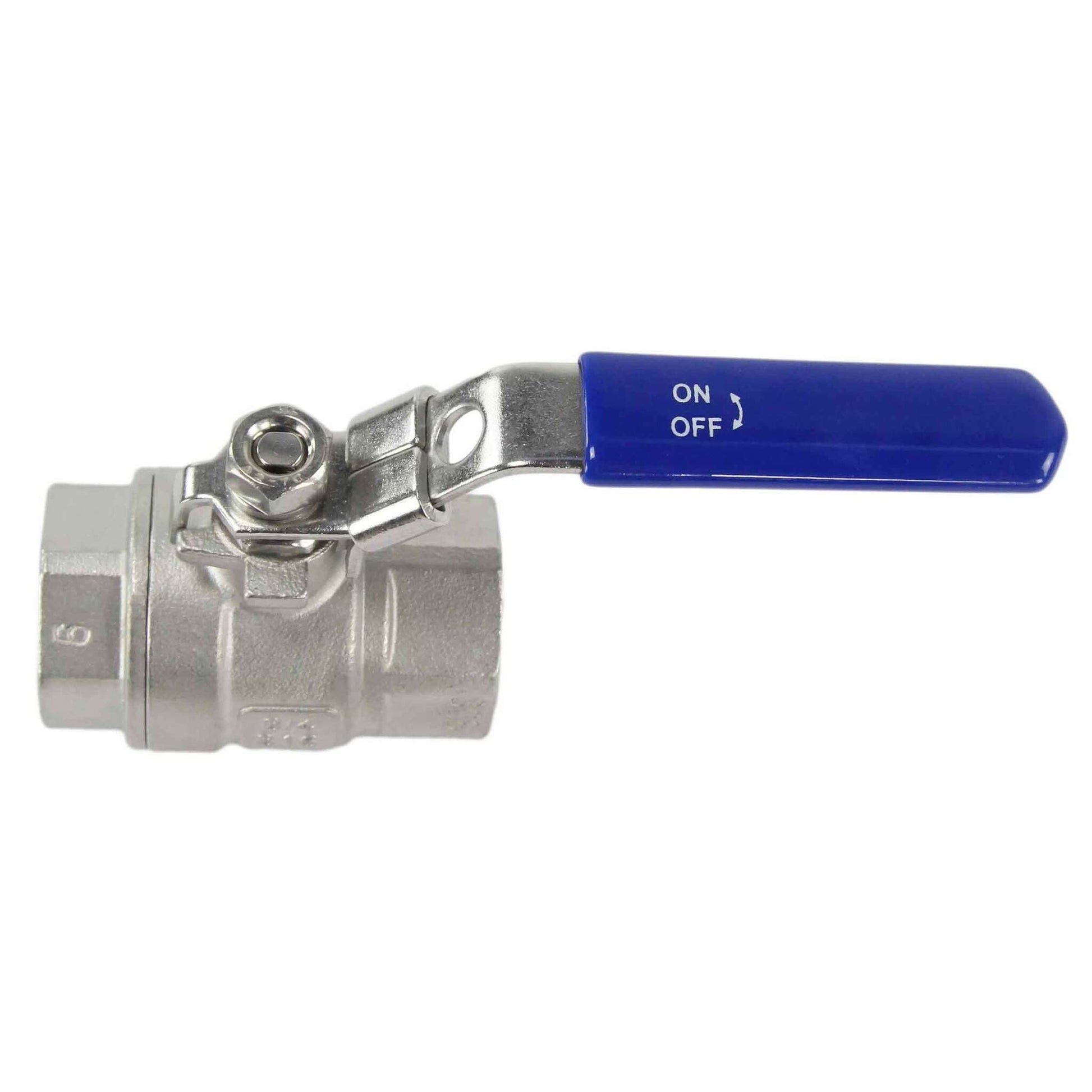

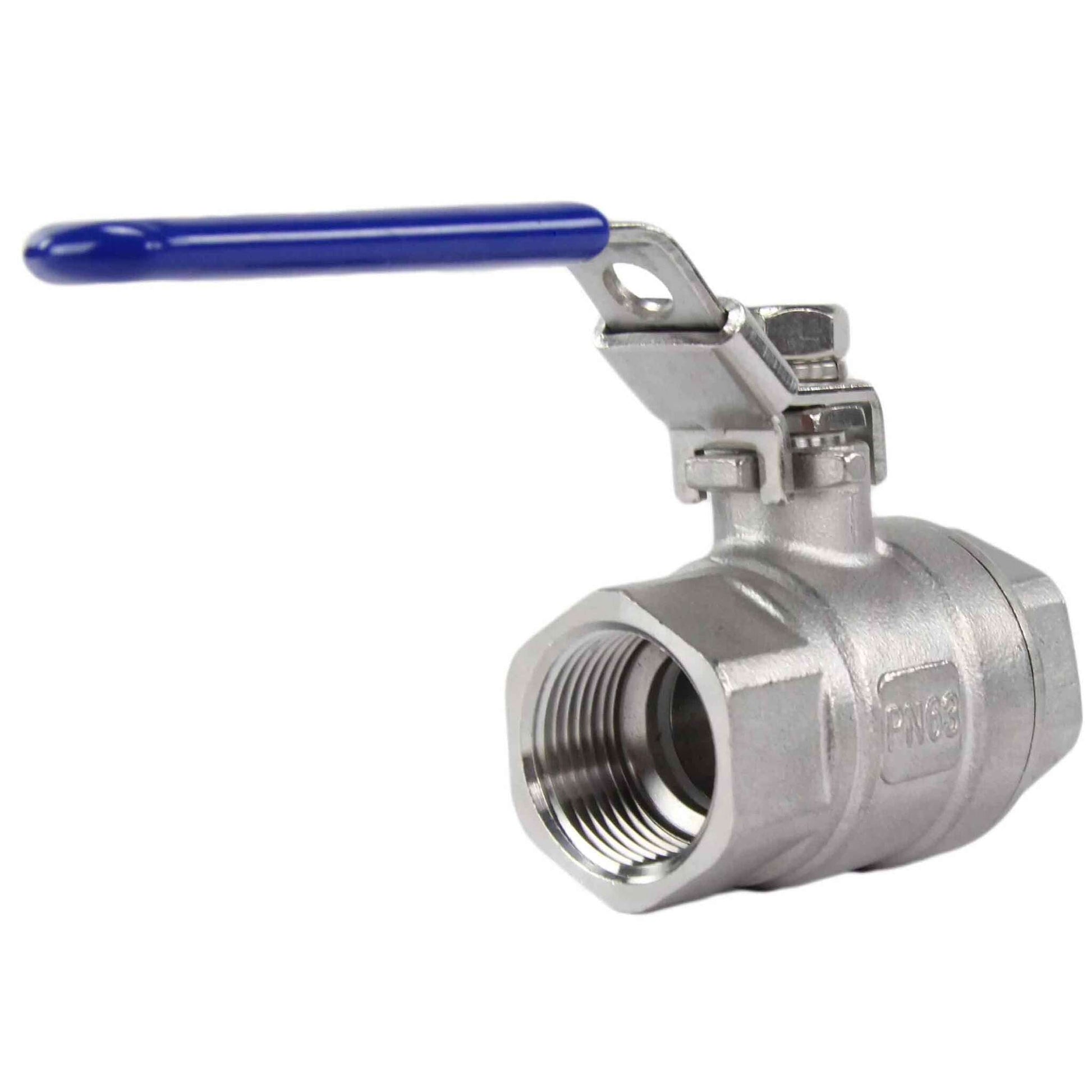

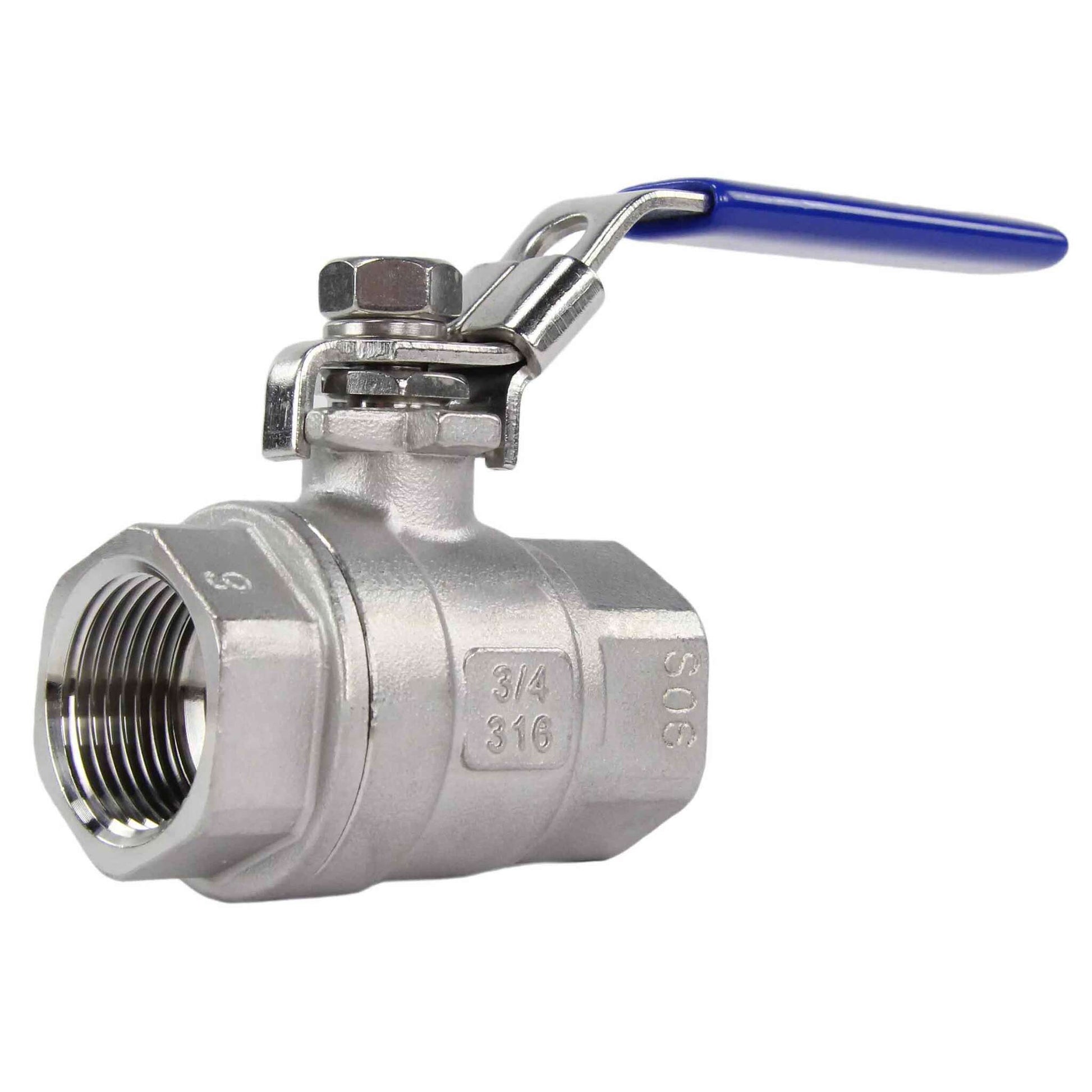

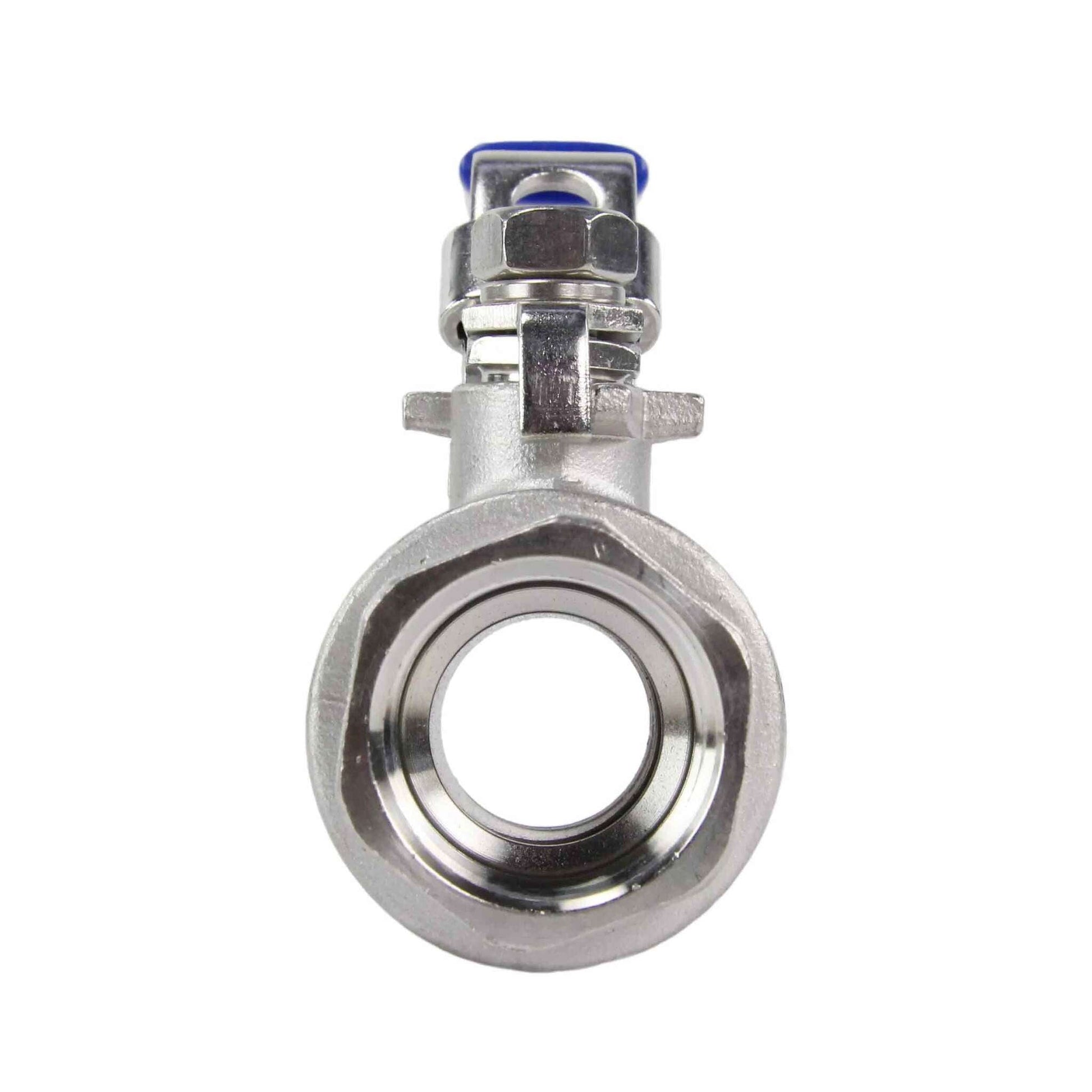

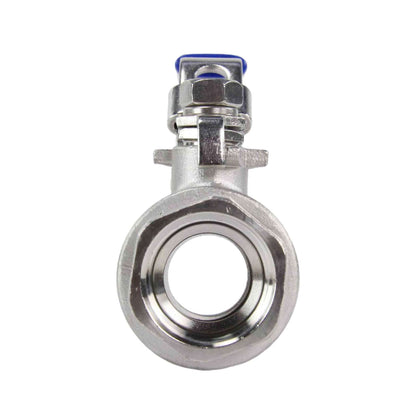

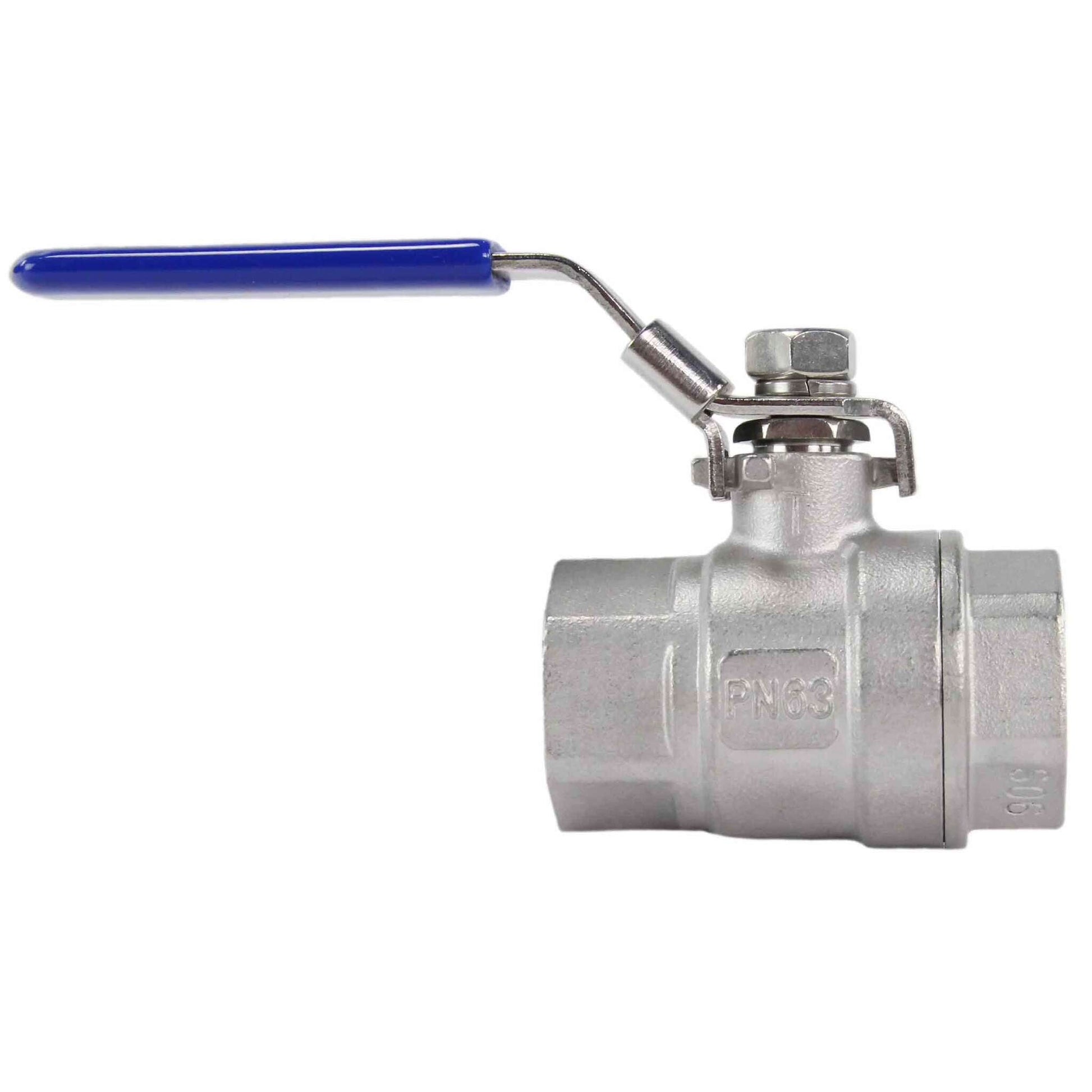

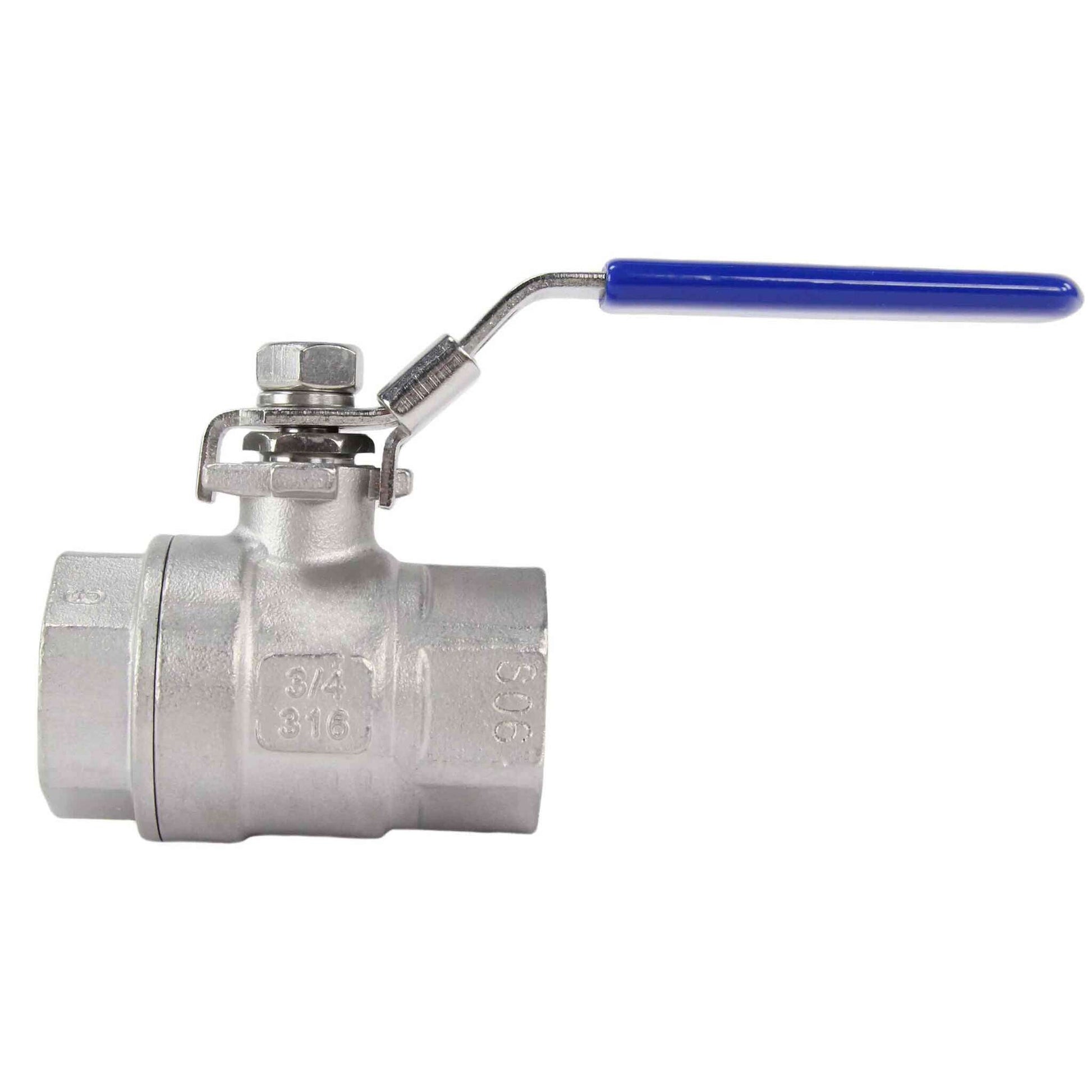

Stainless steel ball valve DNOVA BV3232P(2pn)-FP-T-H full port, threaded connection, with handle is used as shut-off valves in heat supply systems, water supply, steam, fuel systems with compressed air and neutral gases. Installation of cranes of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the crane. The use of ball valves as control valves is not allowed.
Ball valve overall dimensions DNOVA BV3232P(2pn)-FP-T-H PN63 full port, Threaded connection, with handle
| DN, mm | Inches | D, mm | H, mm | W, mm | L, mm | Øòîê | ISO flange | Weight, kg |
| 8 | 1/4" | 9.2 | 41.5 | 76 | 42 | 7x7 | F03 | 0.13 |
| 10 | 3/8" | 10 | 42.7 | 76 | 43.7 | 7x7 | F03 | 0.14 |
| 15 | 1/2" | 14.5 | 47.7 | 85 | 52 | 9x9 | F03 | 0.22 |
| 20 | 3/4" | 19 | 56 | 95 | 61 | 9x9 | F03 | 0.32 |
| 25 | 1" | 24 | 68 | 120 | 72 | 11x11 | F05 | 0.54 |
| 32 | 1 1/4" | 30 | 72.3 | 120 | 84 | 11x11 | F05 | 0.80 |
| 40 | 1 1/2" | 37 | 85 | 150 | 94 | 14x14 | F07 | 1.26 |
| 50 | 2" | 47 | 90.8 | 150 | 115 | 14x14 | F07 | 1.69 |
| 65 | 2 1/2" | 61 | 115.3 | 215 | 142 | 17x17 | F07 | 3.52 |
| 80 | 3" | 76 | 125.8 | 215 | 165 | 17x17 | F10 | 5.12 |
| 100 | 4" | 94 | 155.5 | 300 | 215 | 22x22 | F10 | 10.46 |
Ball Valve Detail Sketch DNOVA BV3232P(2pn)-FP-T-H PN63 full port, Threaded connection, with handle
Ball valve component materials DNOVA BV3232P(2pn)-FP-T-H PN63 full port, Threaded connection, with handle
| ¹ | Part name | Material |
| 1 | Body | CF8M steel |
| 2 | Saddle | PTFE |
| 3 | Char | steel 316 |
| 4 | Gasket | PTFE |
| 5 | Housing cover | steel CF8M |
| 6 | Stem | steel 316 |
| 7 | Stem washer | PTFE |
| 8 | gland | PTFE |
| 9 | Gland cover | steel 304 |
| 10 | Handle | steel + PVC |
| 11 | spring washer | steel 304 |
| 12 | Nut | steel 304 |
Ball Valve Detail Sketch DNOVA BV3232P(2pn)-FP-T-H PN63 full port, Threaded connection, with handle
