In detail
What it is made of
How it works
Quarter-turn lever
Two-way ball valve
The number that matters
Max. medium temperature
200°C
The highest medium temperature this valve is rated for.
Construction
Parts and materials
Applications
Media and industries
- Water
- Air
- Oil Products
- Water Supply
- Heat Supply
Stainless steel ball valve is used as a shut-off valve in heat and water supply systems, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-aggressive to the materials of the valve.

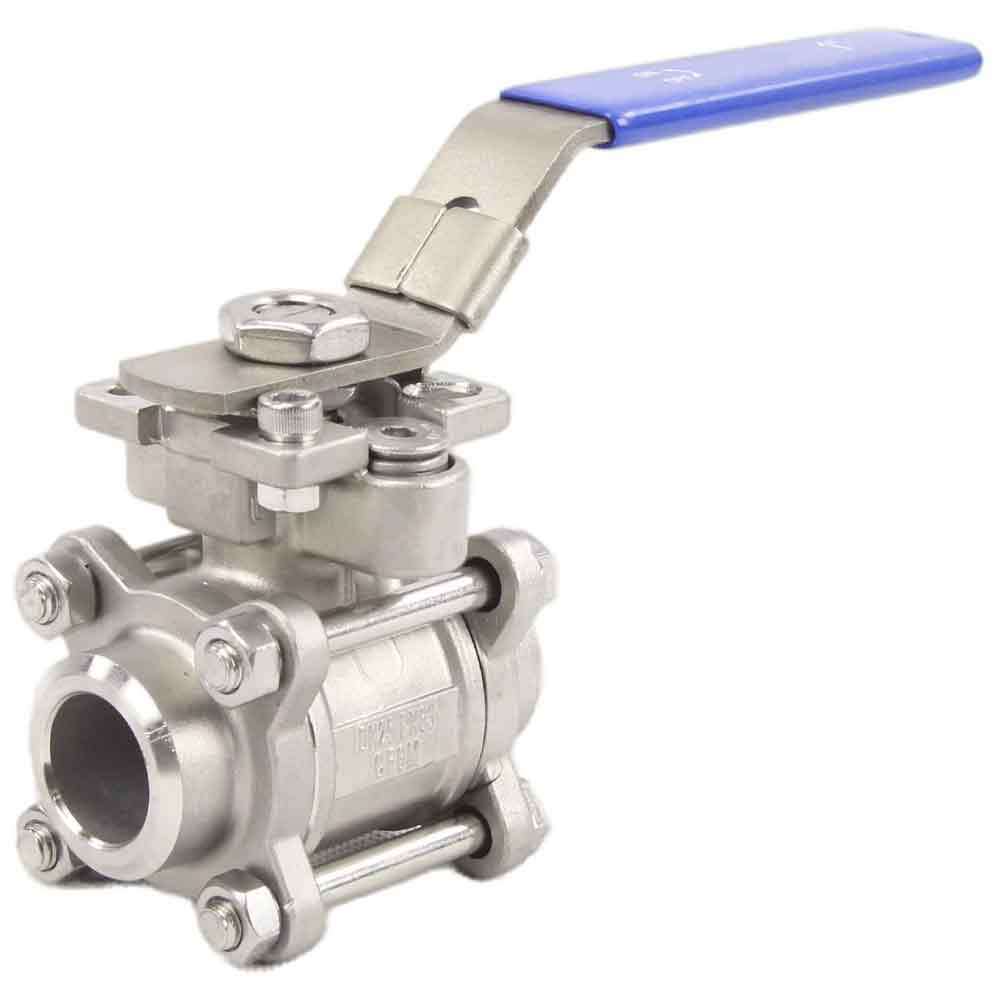

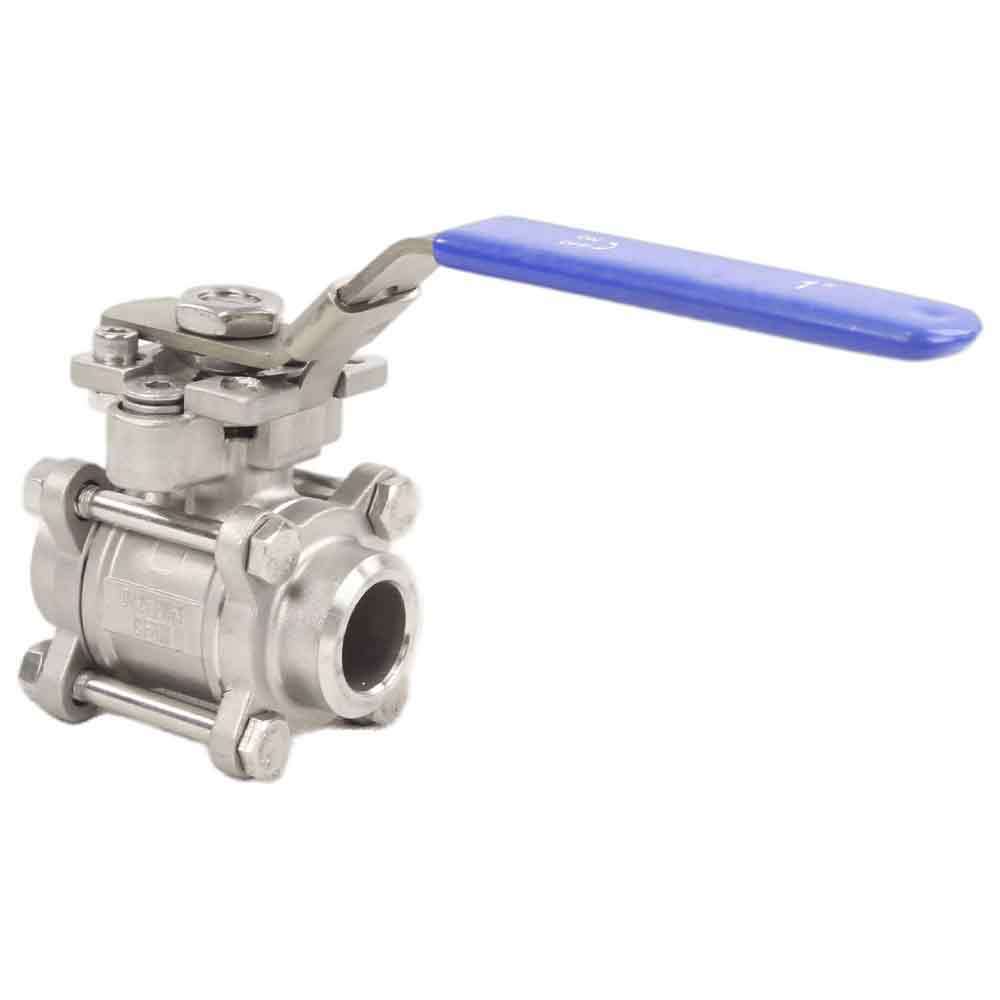

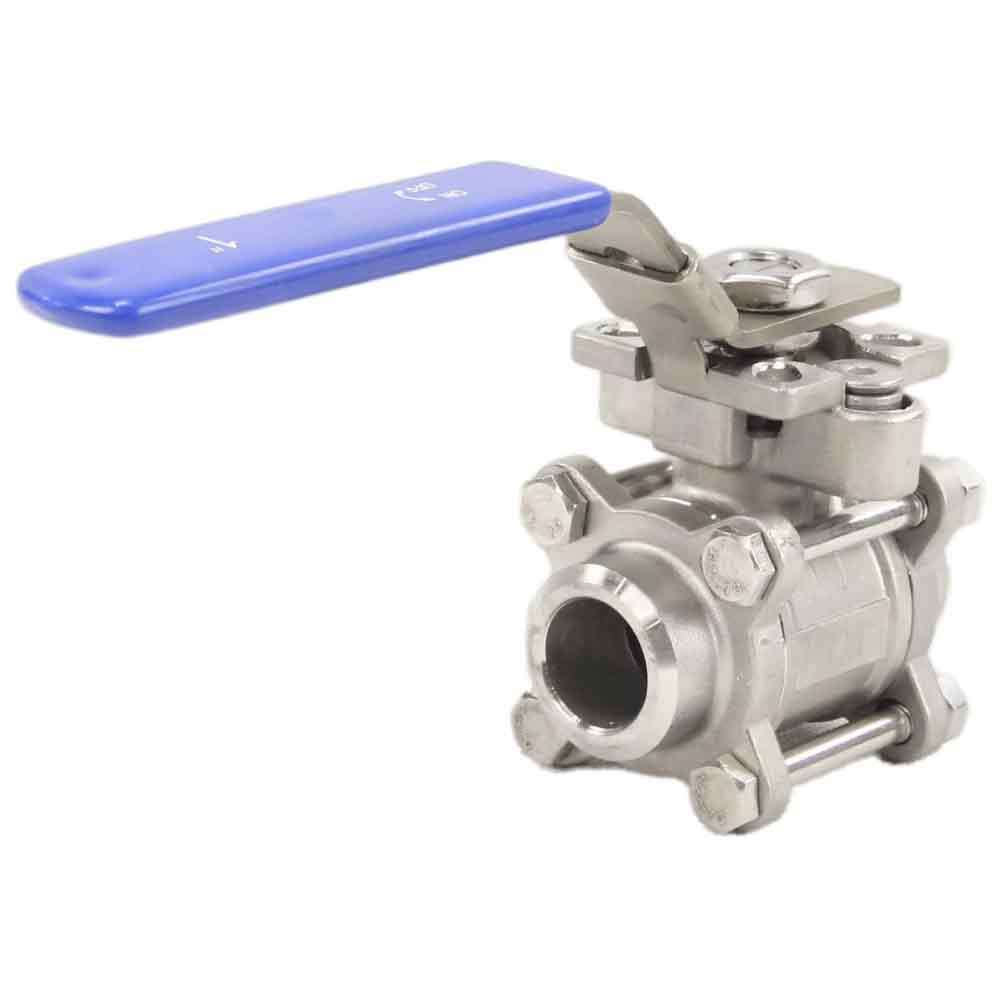

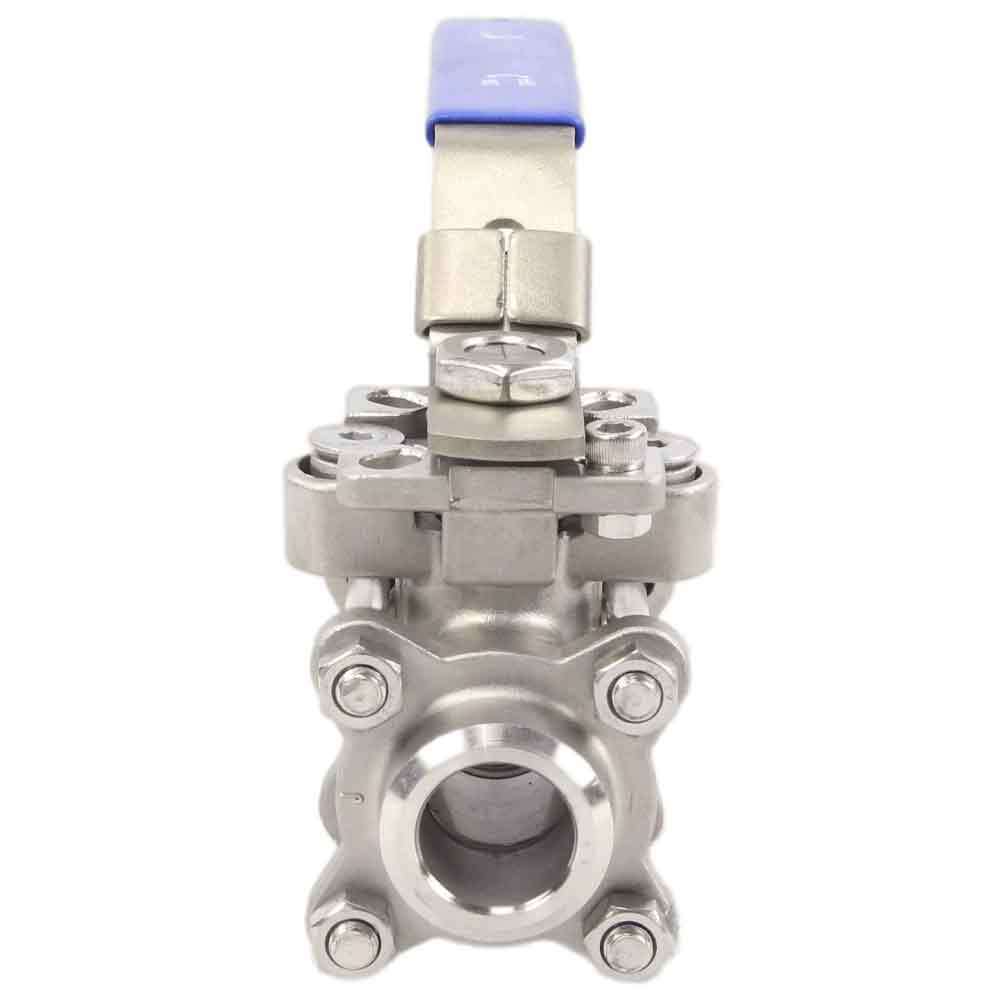

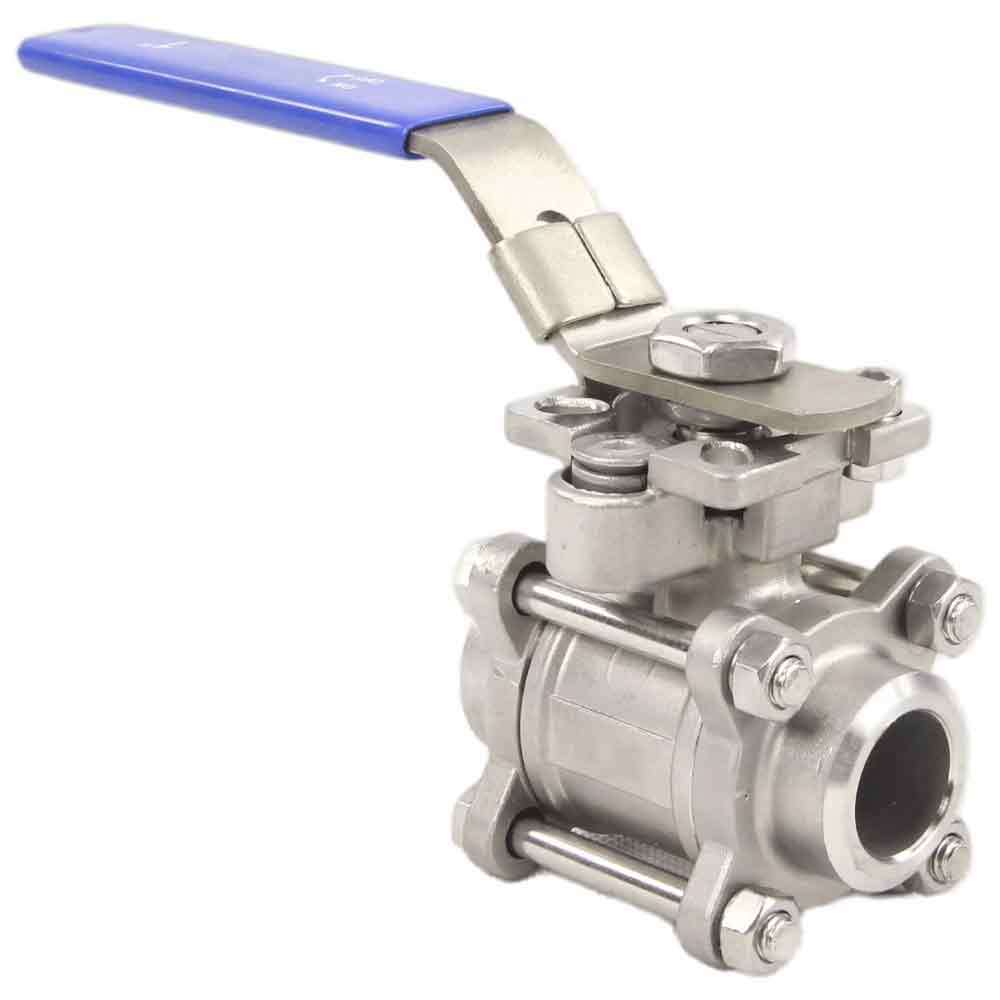

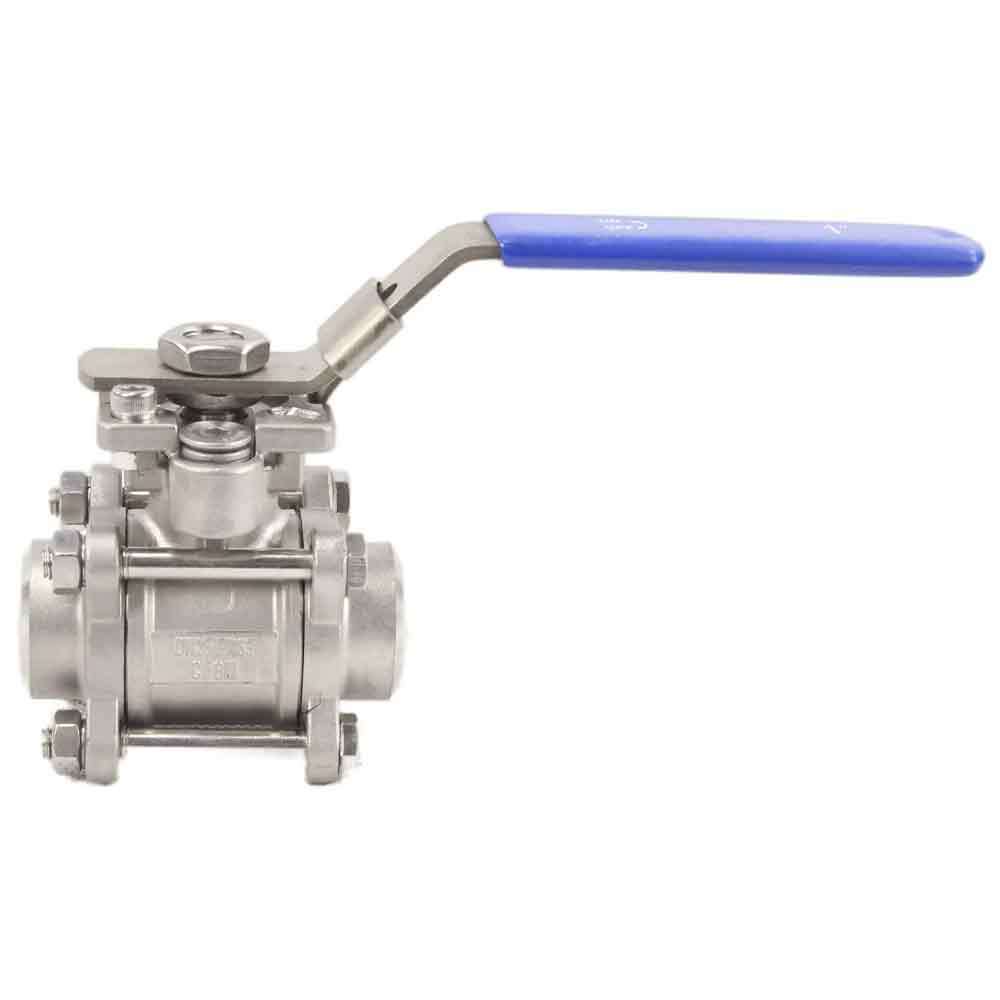

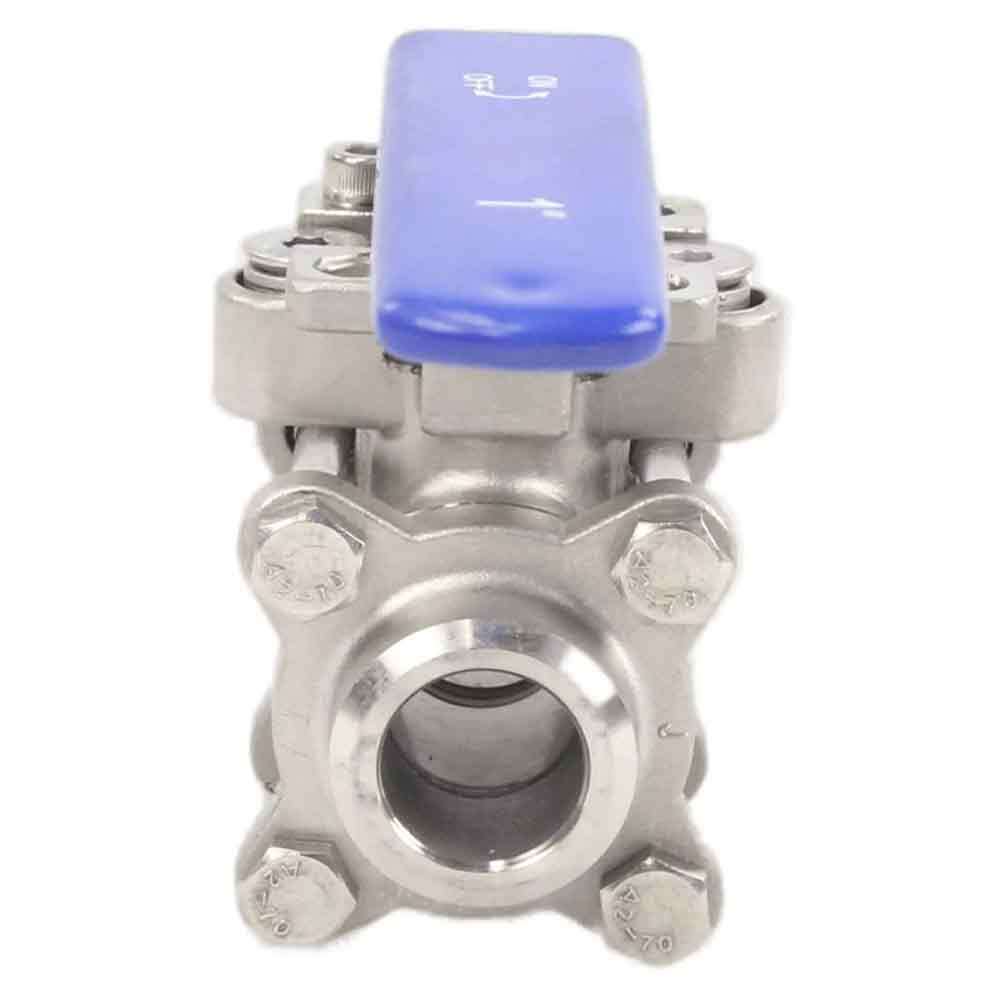

Ball valve overall dimensions DNOVA BV3232P(3pc)-FP-W-ISO-H full port, for welding, with ISO 5211 mounting pad and handle
| DN | L | D | H | W |
| mm | ||||
| 10 | 66 | 10 | 50 | 100 |
| 15 | 65 | 19 | 52 | 100 |
| 20 | 74 | 22 | 60 | 100 |
| 25 | 82 | 27 | 78 | 160 |
| 32 | 99 | 35 | 88 | 160 |
| 40 | 108 | 40 | 95 | 190 |
| 50 | 132 | 53 | 100 | 190 |
| 65 | 161 | 64 | 120 | 210 |
| 80 | 196 | 79 | 130 | 215 |
| 100 | 245 | 103 | 160 | 253 |
Ball Valve Detail Sketch DNOVA BV3232P(3pc)-FP-W-ISO-H, full port, for welding, with ISO 5211 mounting pad and handle
Ball valve component materials DNOVA BV3232P(3pc)-FP-W-ISO-H full port, for welding, with ISO 5211 mounting pad and handle
| No. | Part Name | Material |
| 1 | Cover | Stainless Steel AISI 316 |
| 2 | Seat Seal | PTFE |
| 3 | Ball | Stainless Steel AISI 316 |
| 4 | Stem | Stainless Steel AISI 316 |
| 5 | O-Ring | PTFE |
| 6 | Body | Stainless Steel AISI 316 |
| 7 | Seal | PTFE |
| 8 | Gland | Stainless Steel AISI 304 |
| 9 | Handle | Stainless Steel SS 201 |
| 10 | Nut | Stainless Steel AISI 304 |
| 11 | Screw | Stainless Steel AISI 304 |
| 12 | Nut | Stainless Steel AISI 304 |
Ball Valve Detail Sketch DNOVA BV3232P(3pc)-FP-W-ISO-H, full port, for welding, with ISO 5211 mounting pad and handle
- Port opening
- Standard Port
- Configuration
- Two-way
- Body material
- Stainless steel AISI 316
- Material ball
- Stainless steel AISI 316
- Material ball seal
- PTFE
- Maximum allowable temperature
- 200 °C
- Connection type
- For welding
- Control type
- Lever handle
- Operating environment
- Water, Air, and Oil Products
- Applications
- Water Supply and Heat Supply
- Country of origin
- China
