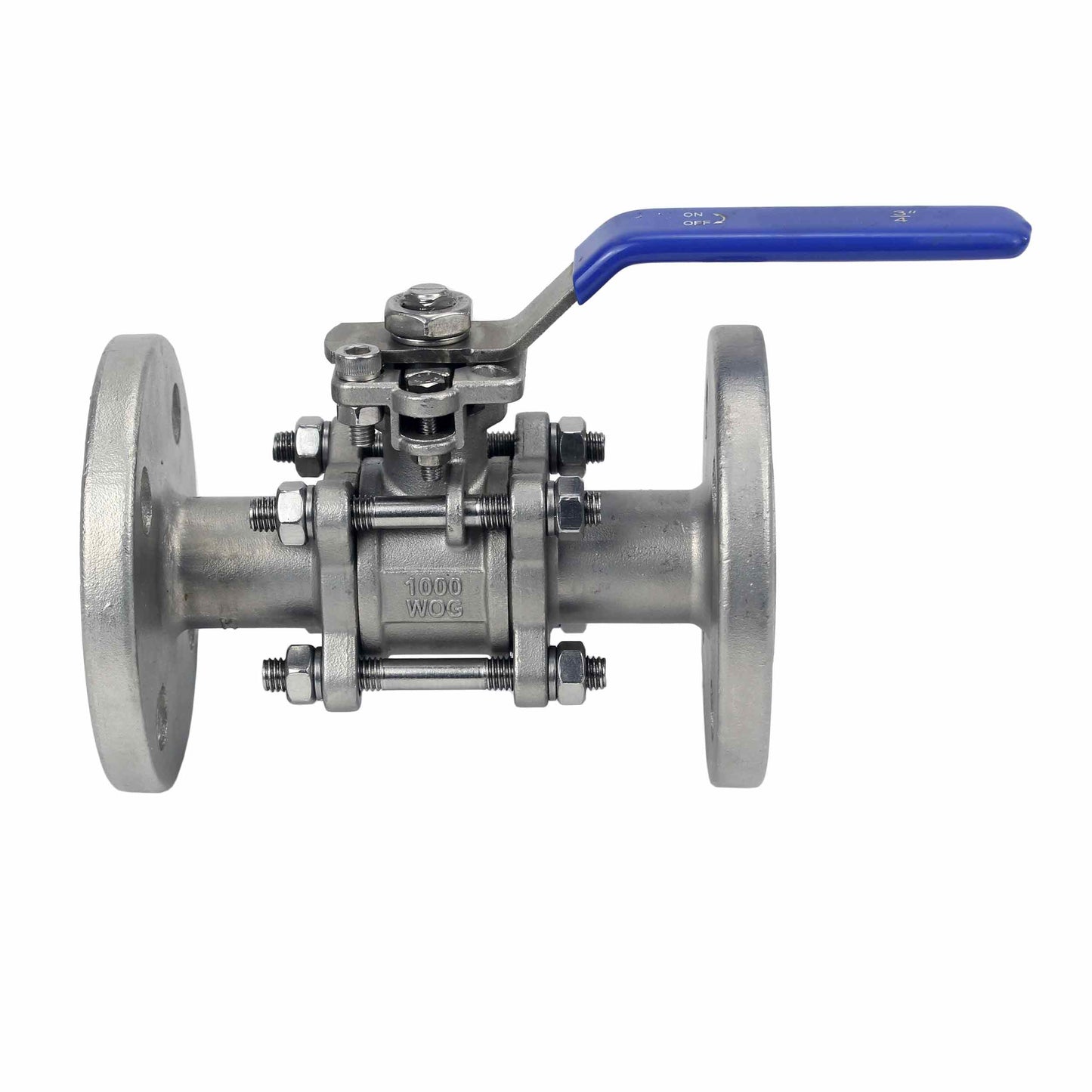

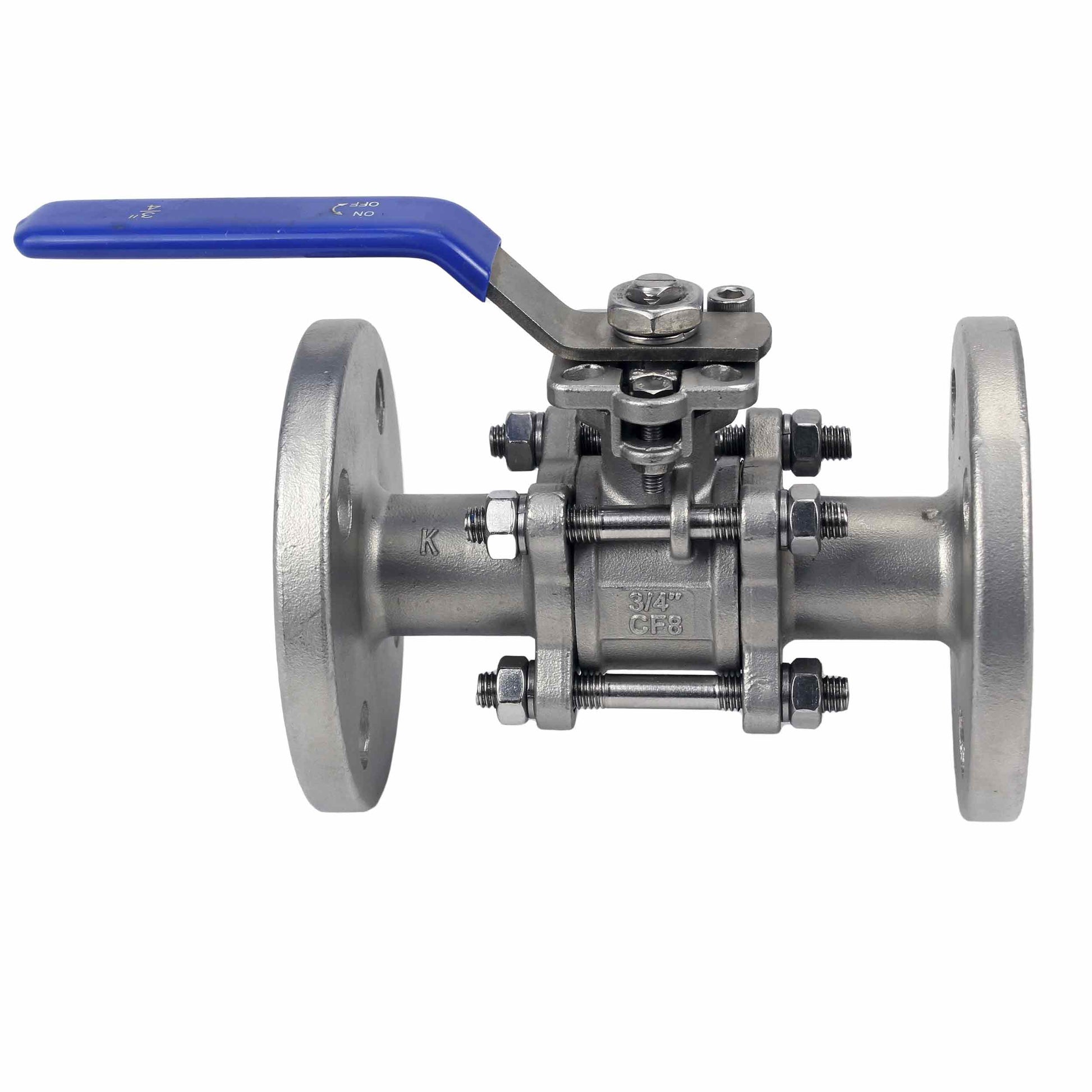

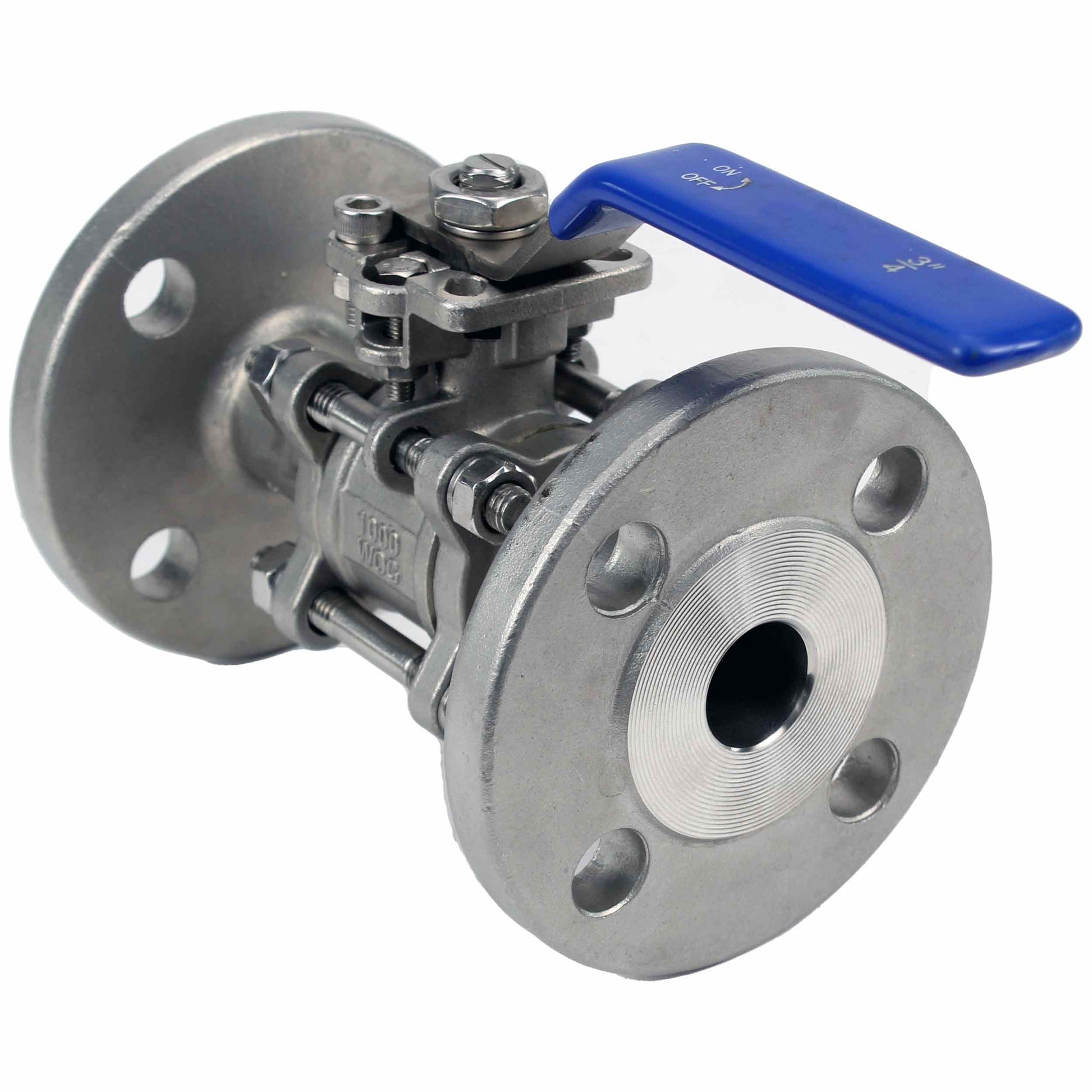

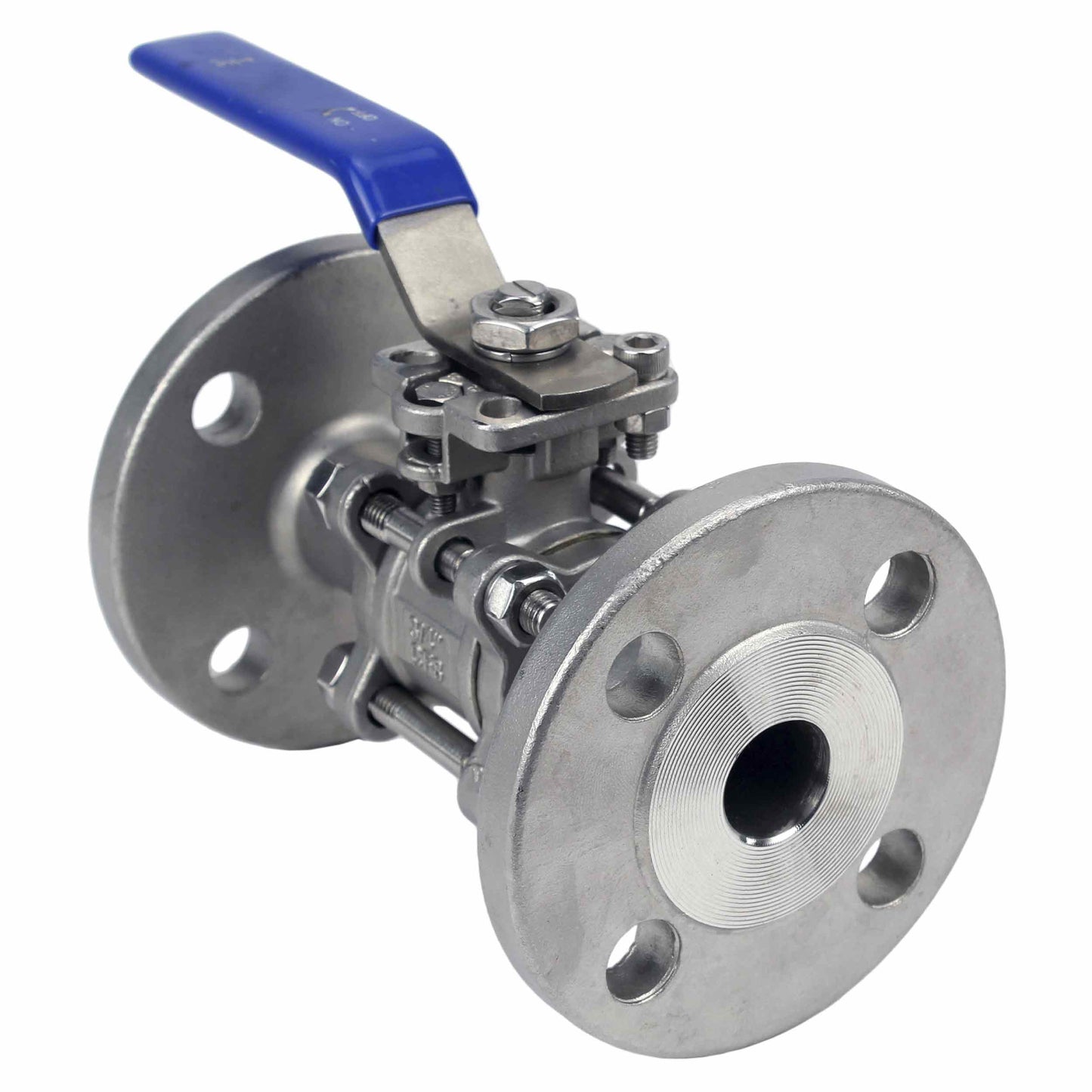

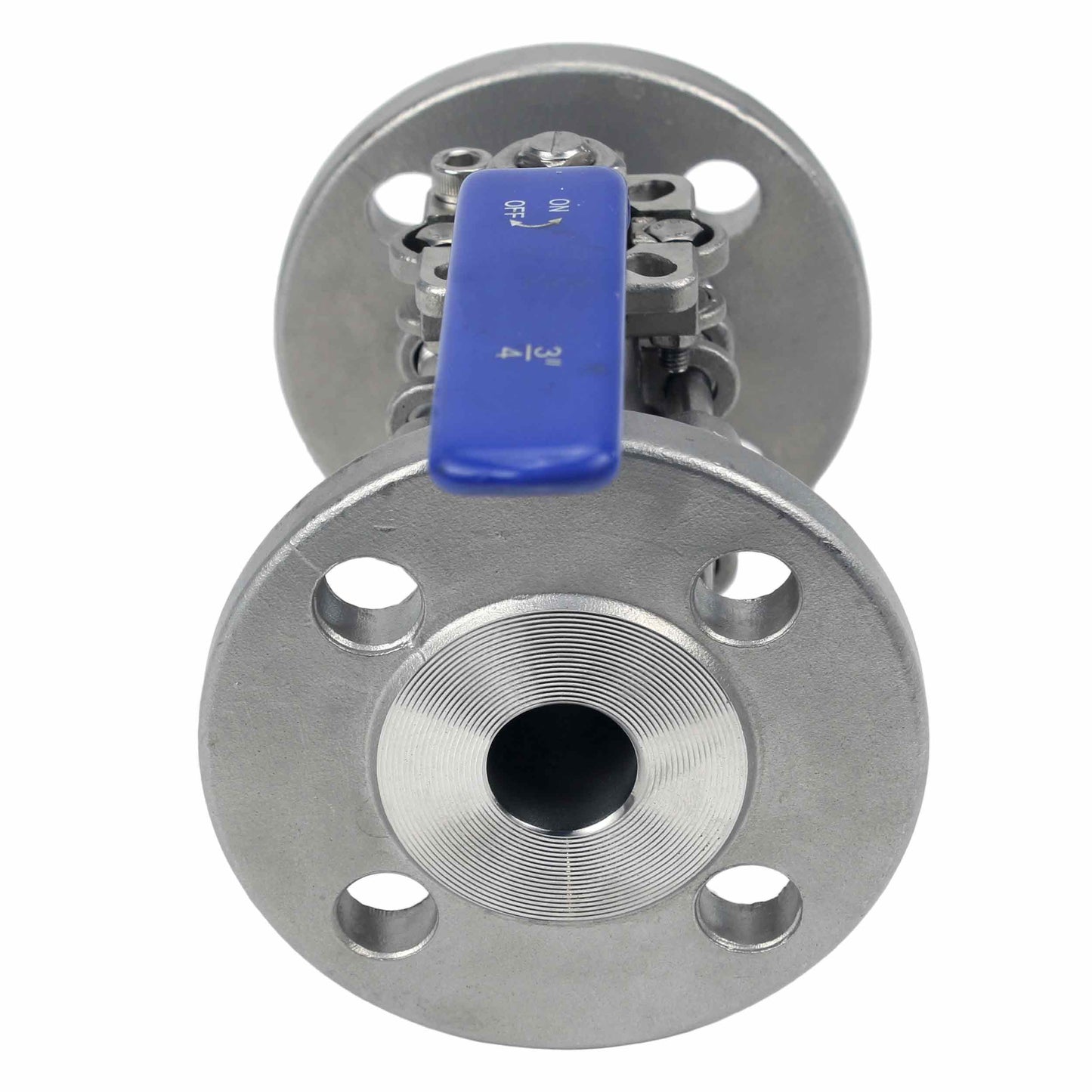

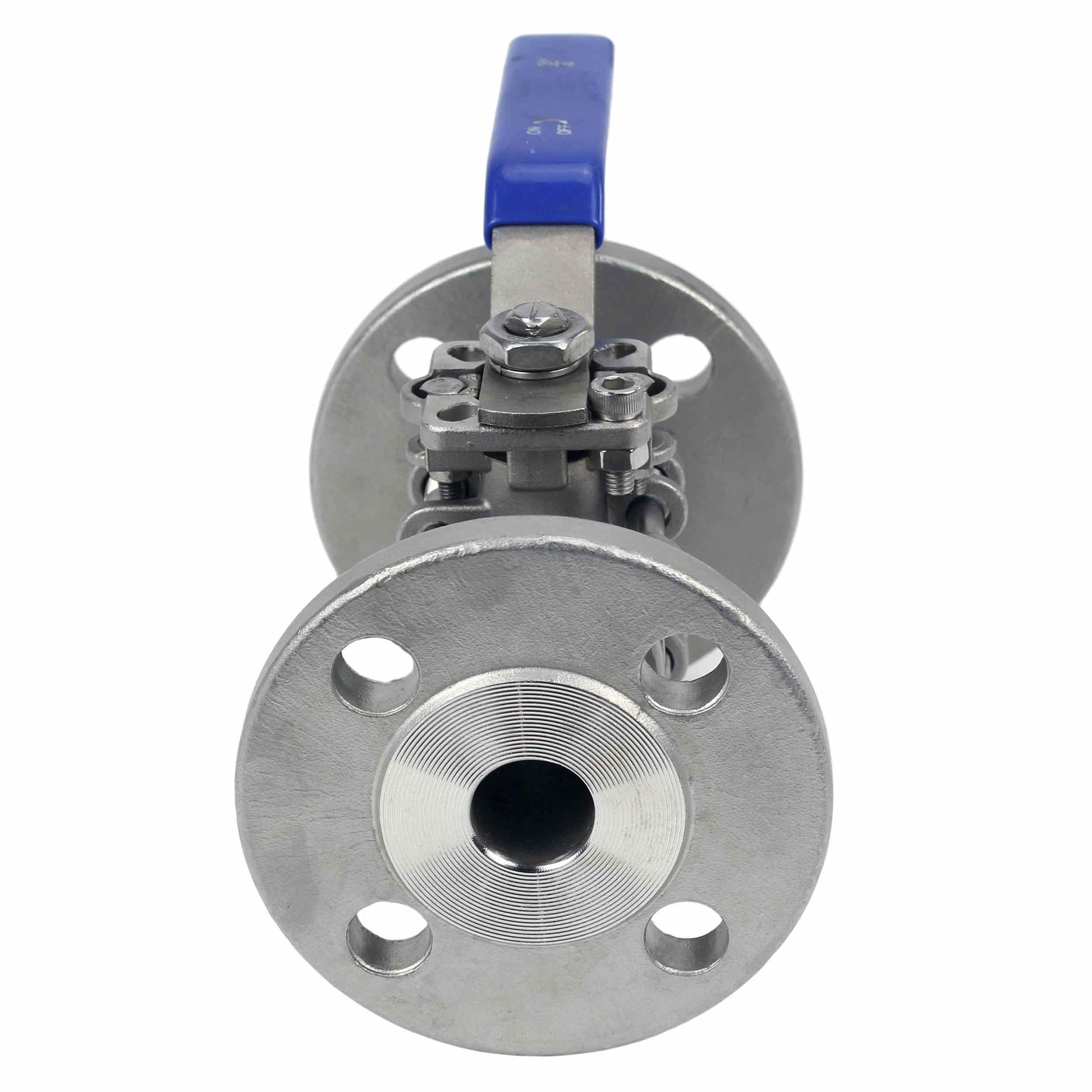

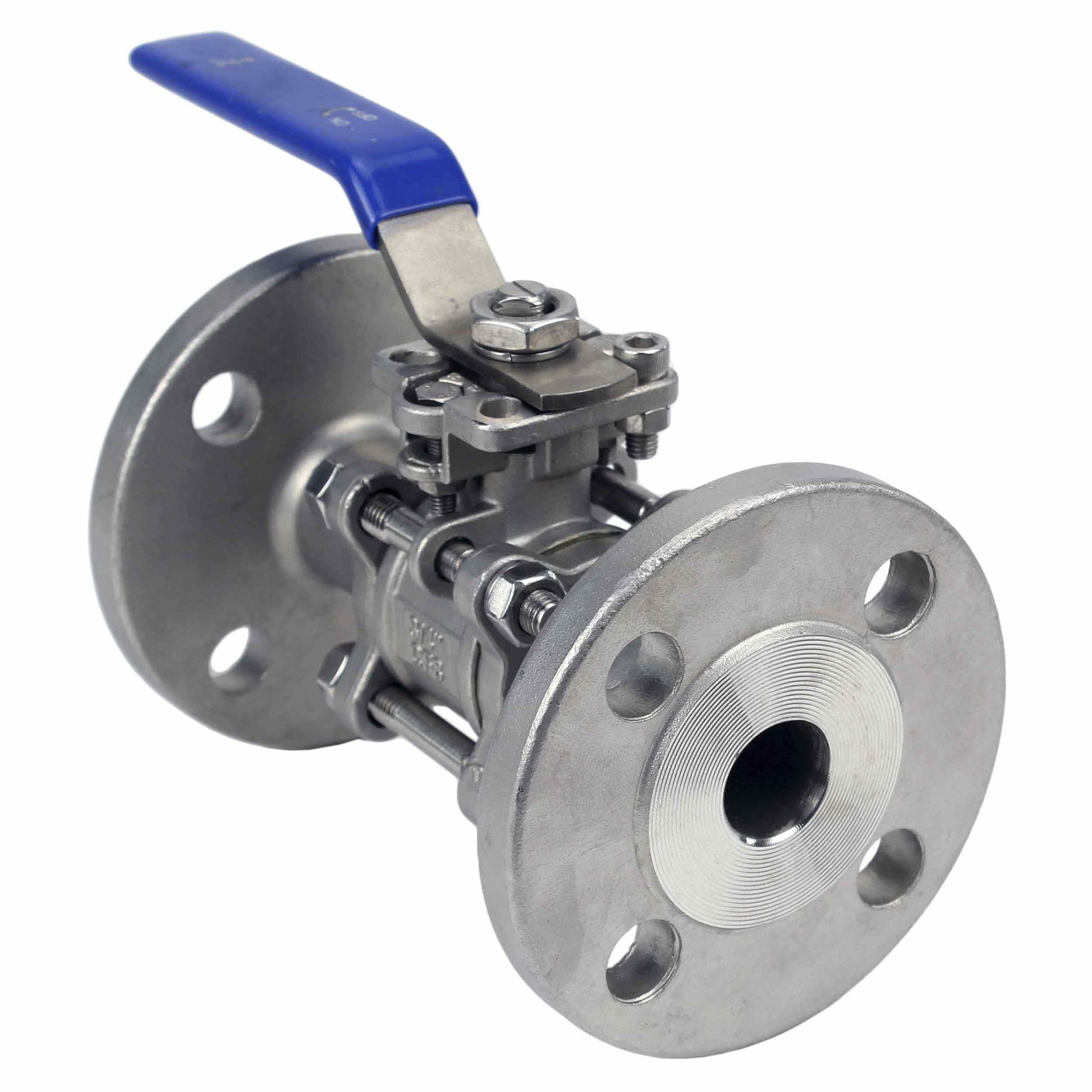

Stainless steel ball valve DNOVA BV.F.Fp.T.ISO.316.180 580 psi, SS316, full port, flanged connection, with ISO 5211 mounting pad

From $19.24 USD
From $19.24 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Stainless steel ball valve DNOVA BV.F.Fp.T.ISO.316.180 580 psi, SS316, full port, flanged connection, with ISO 5211 mounting pad is used as a shut-off valve in heat and water supply systems, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-aggressive to the materials of the valve.





Overall and installation dimensions of ball valve DNOVA BV3232P(3pc)-FP-F-ISO-H

DN d D D1 D2 W
15 15 95 65 45 16
20 20 105 75 58 18
25 25 115 85 68 18
32 32 140 100 78 18
40 38 150 110 88 18
50 50 165 125 102 20
65 64 184 145 122 20
80 79 200 160 138 20
100 99 220 180 158 20
DN f L±1.5 T H Weight, kg
15 2 130 128 71 2.08
20 2 150 129 74 2.945
25 2 160 167 97 3.775
32 2 180 167 110 5.215
40 3 200 193 117 6.505
50 3 230 193 125.5 8.405
65 3 290 242 135.5 13.055
80 3 310 272 157 18.045
100 3 350 295 181 27.755

Sketch of ball valve DNOVA BV3232P(3pc)-FP-F-ISO-H





Material Specification Ball Valve DNOVA BV3232P(3pc)-FP-F-ISO-H

№ Name Material Quantity
1 Case SS316 1
2 bolt ball SS316 1
3 Bolt SS304 4-6
4 Nut SS304 6-12
5 Sealing PTFE 1
6 Stem SS316 1
7 gland SSS304 1
8 Cover WCB/CF8/CF8M 2
9 Saddle rings PTFE 2
10 thrust washer PTFE 1
11 Nut SSS304 1
12 Handle SSS304 1
13 Handle shell PVC 1
14 Stopper SSS304 1

Sketch of ball valve DNOVA BV3232P(3pc)-FP-F-ISO-H

Specifications

Country of origin
China
Port opening
Full Port
Configuration
Two-way
Body material
Stainless steel AISI 316
Material ball
Stainless steel AISI 316
Material ball seal
PTFE
Maximum allowable temperature
180 °C
Connection type
Flanged
Control type
Lever handle
Operating environment
Water, Air, Oil Products
Applications
Water Supply, Heat Supply, Pneumatic Systems
