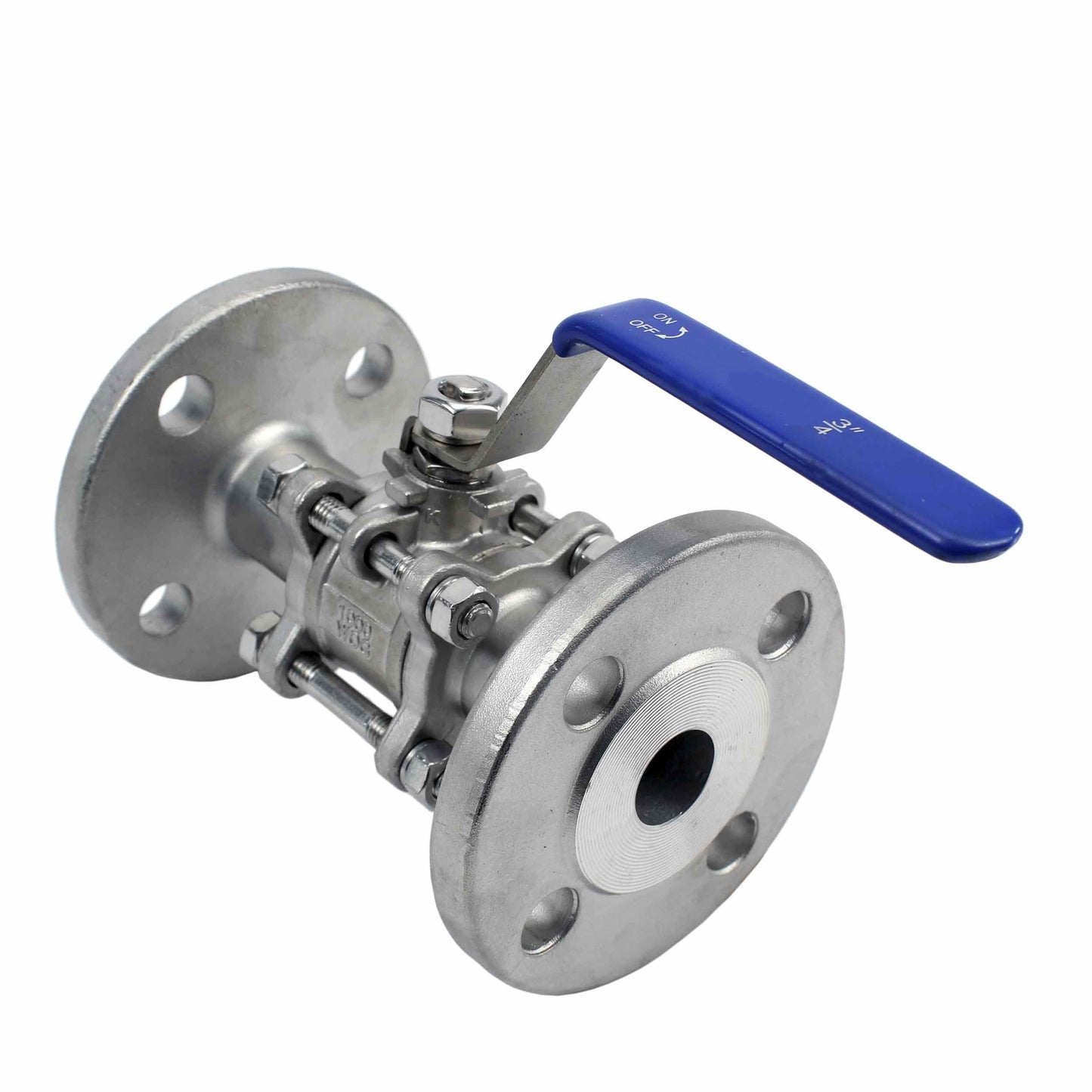

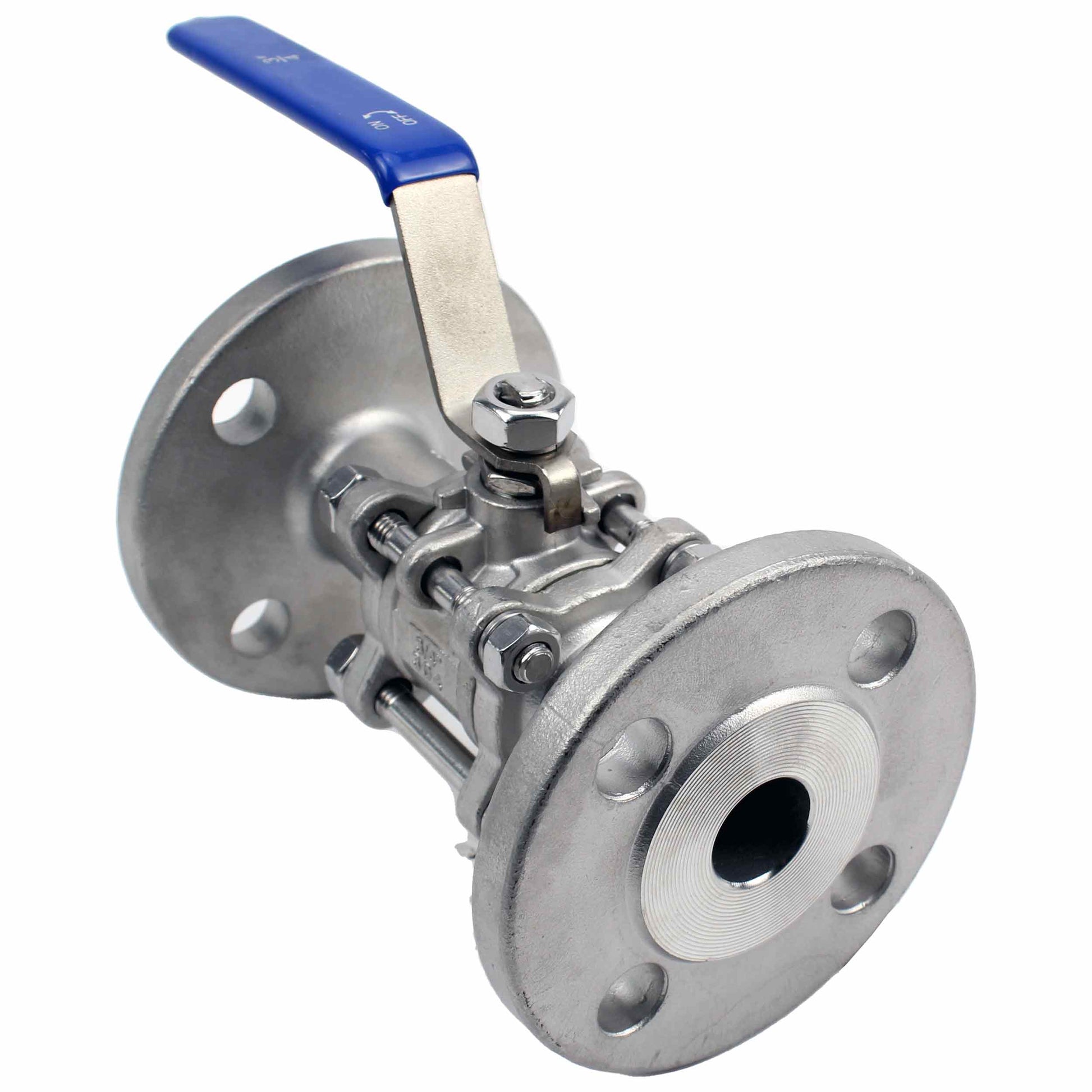

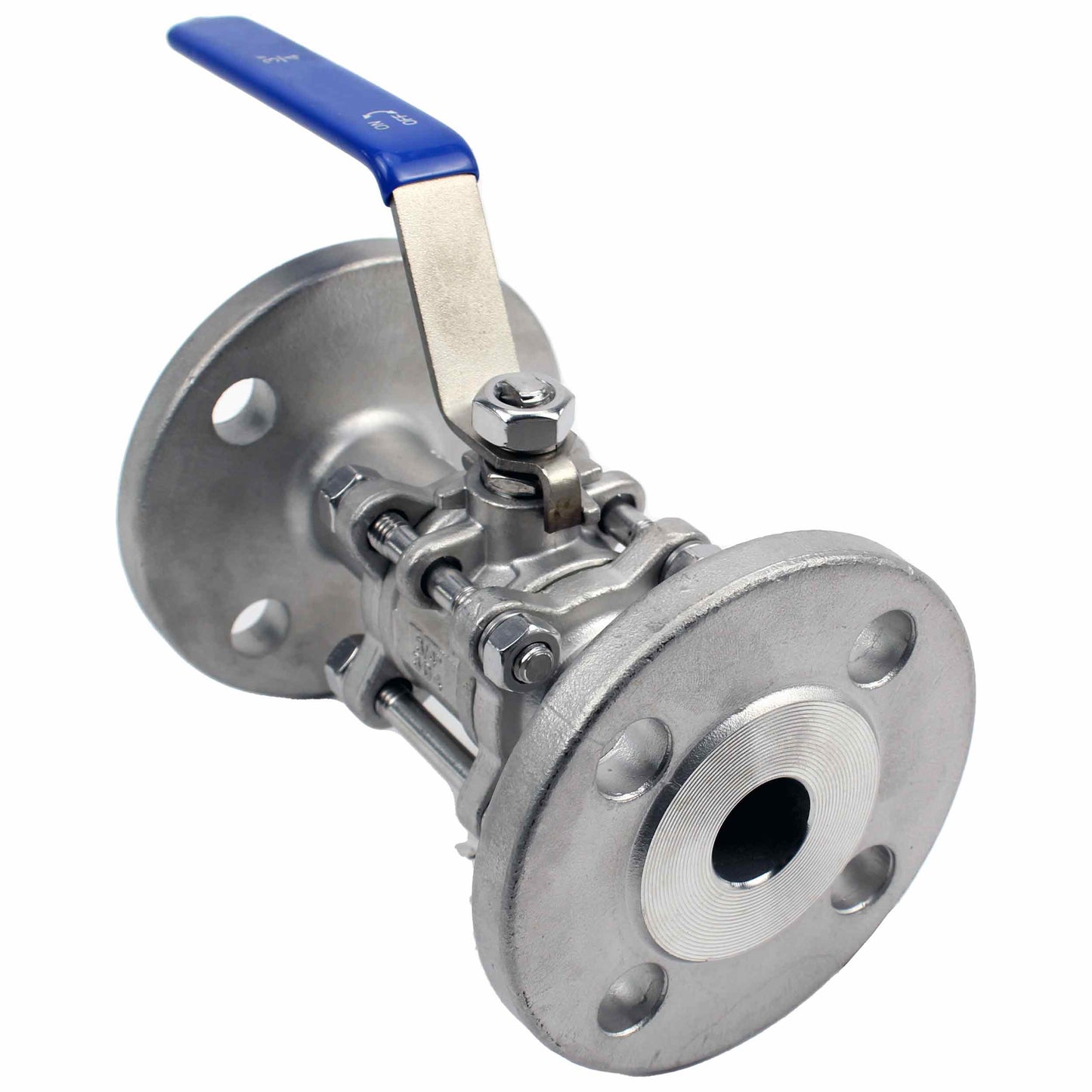

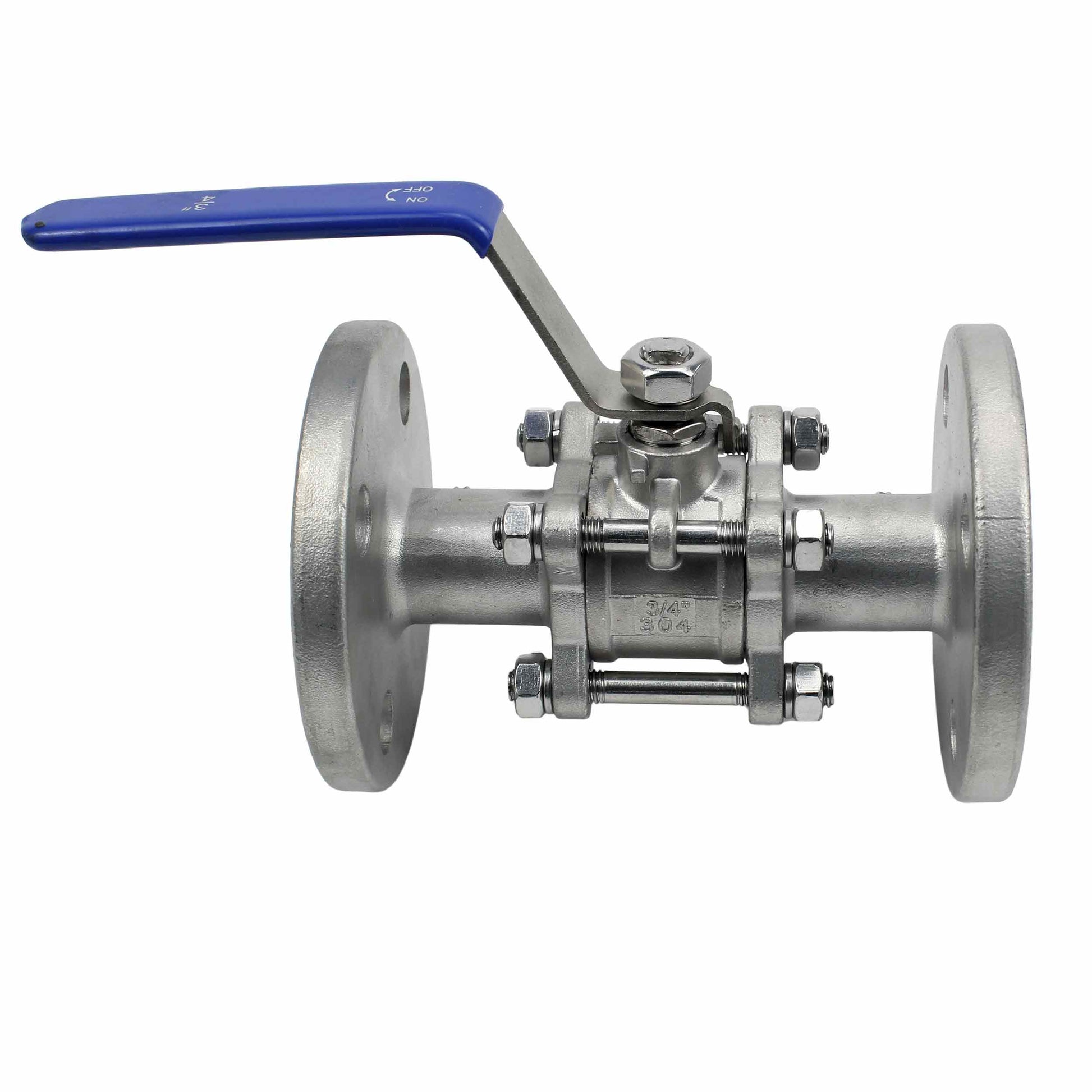

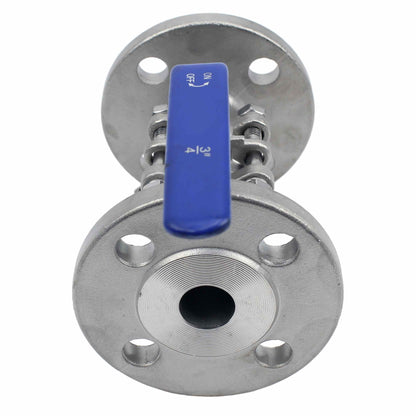

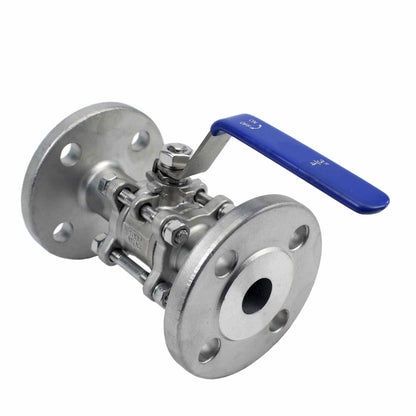

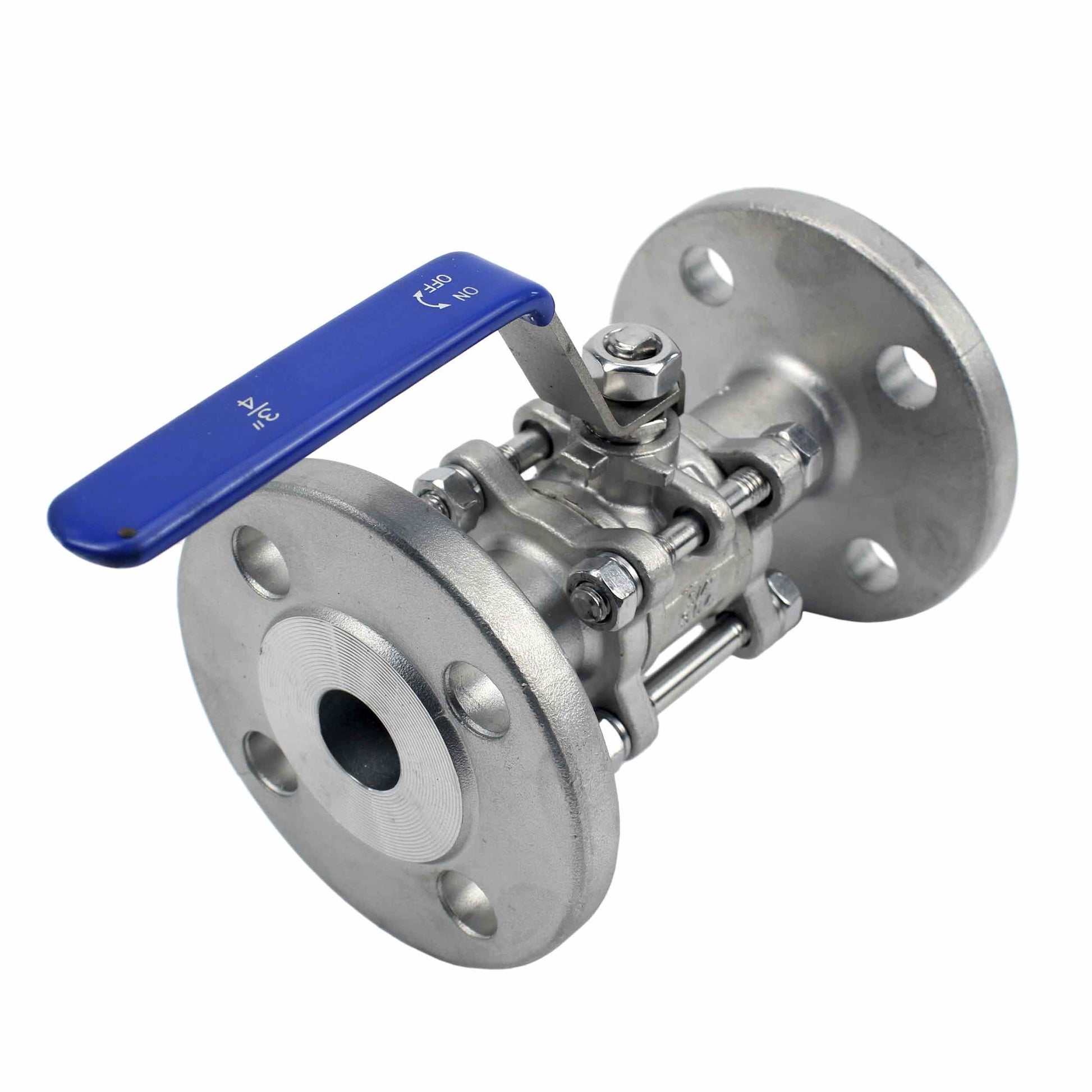

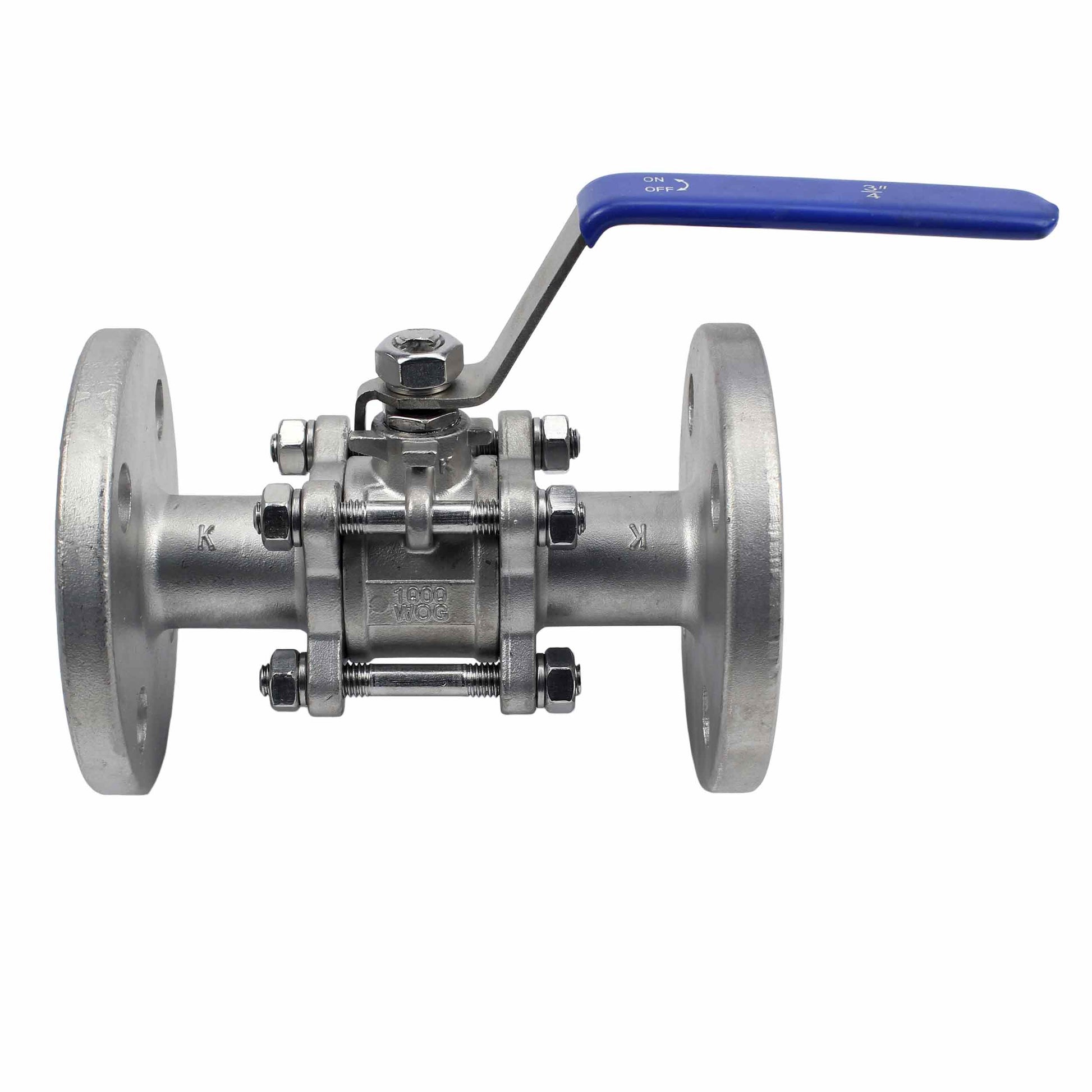

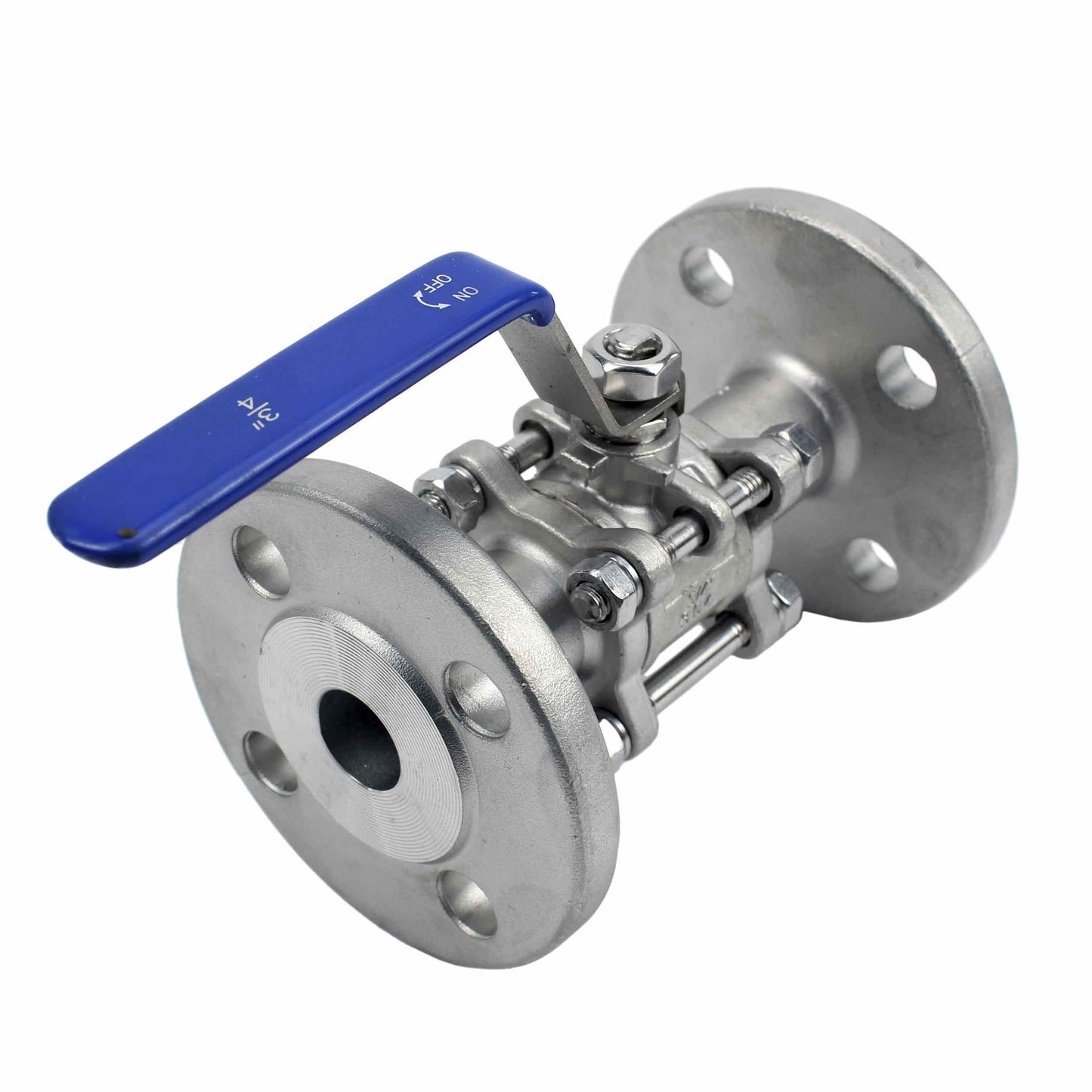

Stainless steel ball valve DNOVA BV.F.Fp.T.316.180 580 psi, SS316, full port, flanged connection, with handle

From $18.24 USD
From $18.24 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Stainless steel ball valve is used as a shut-off valve in heat and water supply systems, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-aggressive to the materials of the valve.





Weight and dimensional parameters of ball valves DNOVA KSHFPT.304.180

DN D D1 D2 b f
15 95 65 45 16 2
20 105 75 58 18 2
25 115 85 68 18 2
32 140 100 78 18 2
40 150 110 88 18 2
50 165 125 102 18 2
65 185 145 122 18 2
80 200 160 138 20 2
100 220 180 158 20 2
DN D D1 D2 b f
15 95 65 45 16 2
20 105 75 58 18 2
25 115 85 68 18 2
32 140 100 78 18 2
40 150 110 88 18 2
50 165 125 102 18 2
65 185 145 122 18 2
80 200 160 138 20 2
100 220 180 158 20 2



Sketch of ball valves  DNOVA KSHFPT.304.180





Materials of parts of ball valves DNOVA KSHFPT.304.180

№ Part name Material
1 Casing with flange steel 316
2 bolt ball steel 316
3 Case steel 316
4 Sealing PTFE
5 Nut steel A194
6 Bolt steel A193
7 Washer steel 316
8 Gasket PTFE
9 padding PTFE
10 gland steel 316
11 Washer steel 316
12 Stem nut steel A194
13 Stem steel 316
14 Handle steel 201



Sketch of ball valves  DNOVA KSHFPT.304.180



Specifications

Country of origin
China
Port opening
Full Port
Configuration
Two-way
Body material
Stainless steel AISI 316
Material ball
Stainless steel AISI 316
Material ball seal
PTFE
Maximum allowable temperature
180 °C
Connection type
Flanged
Control type
Lever handle
Operating environment
Water, Air, Oil Products
Applications
Water Supply, Heat Supply, Pneumatic Systems
