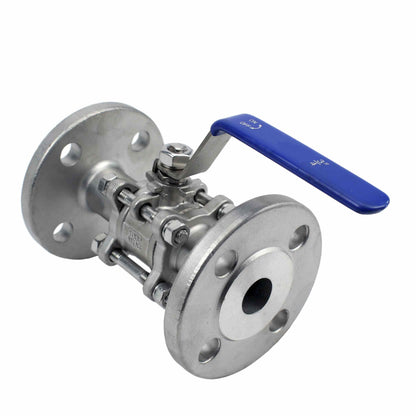

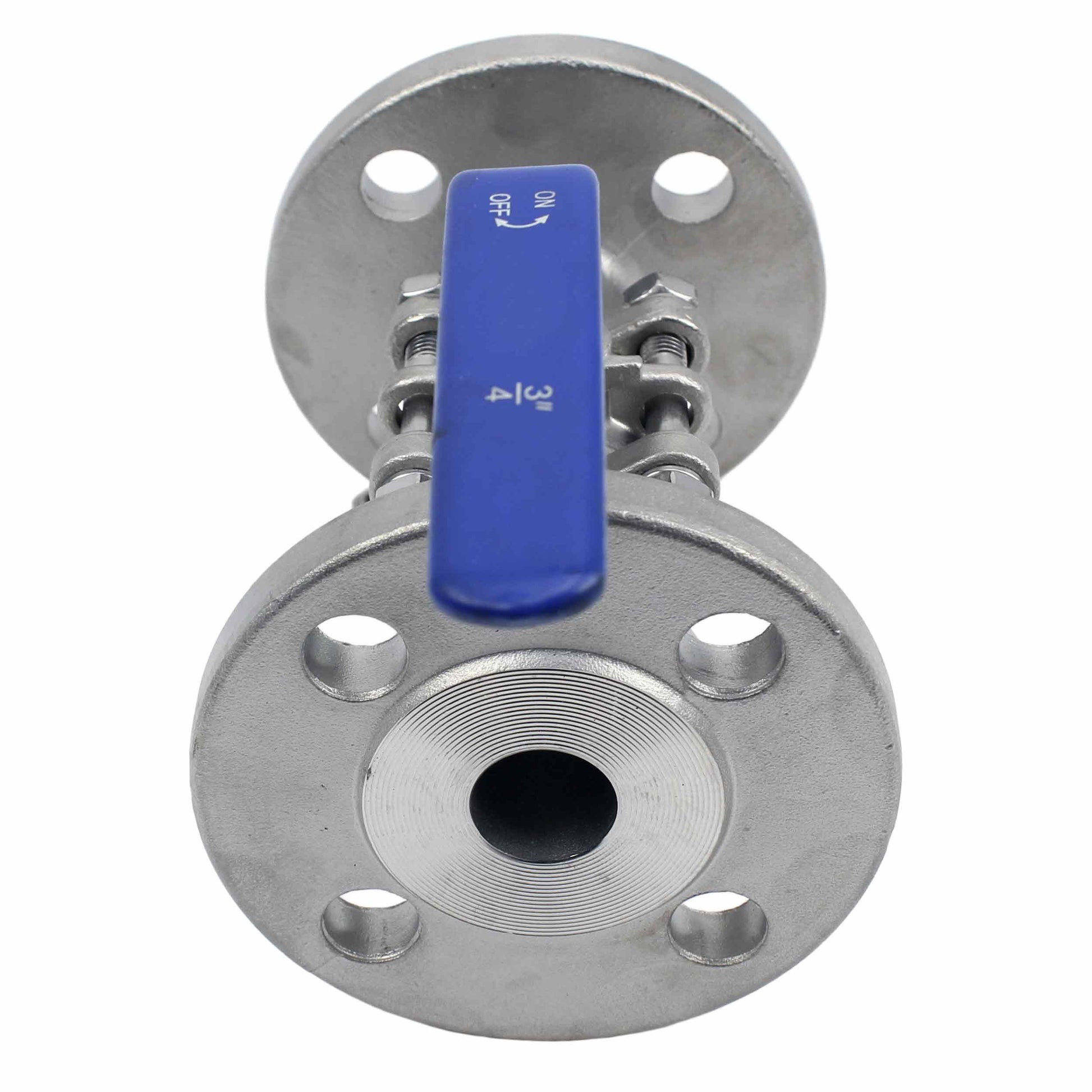

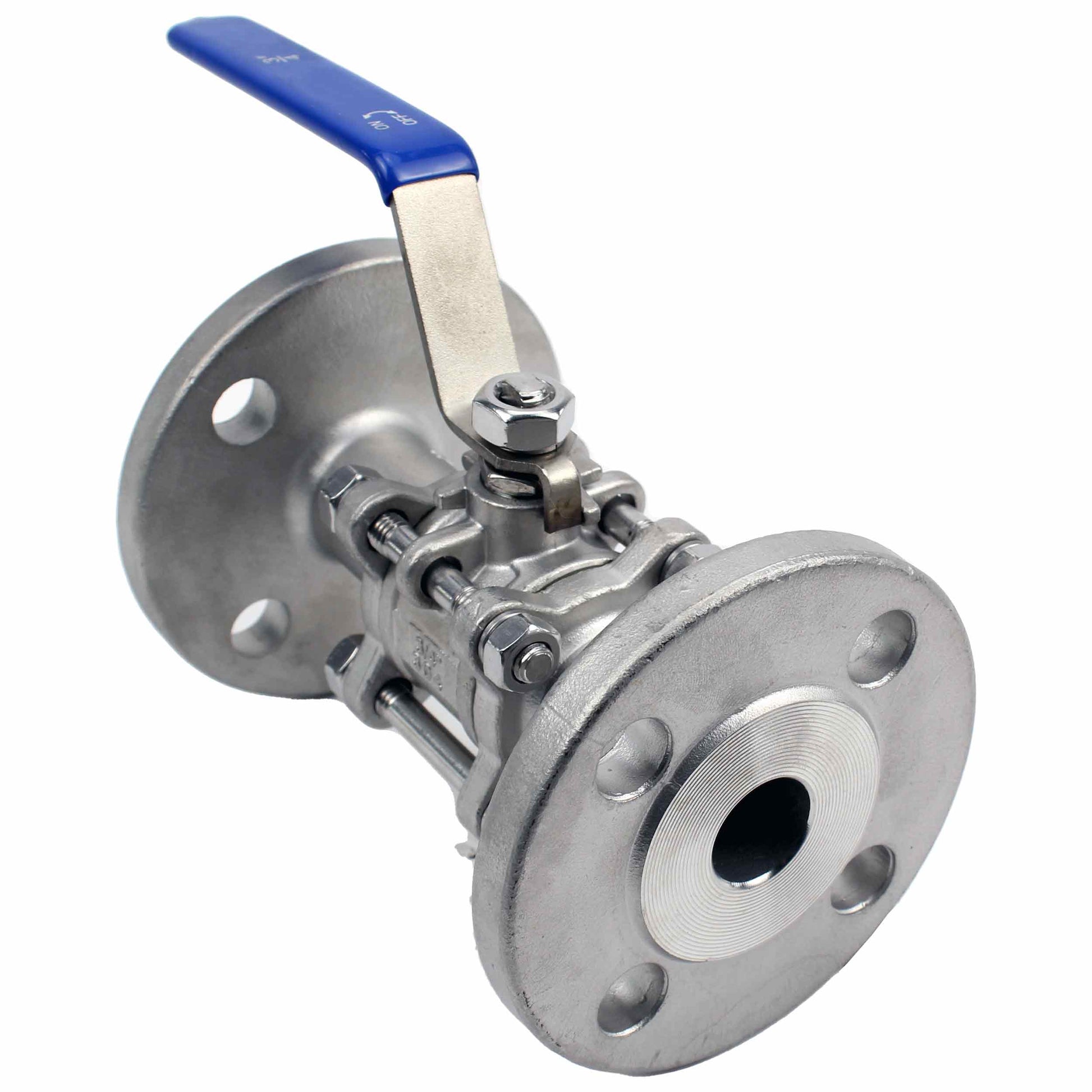

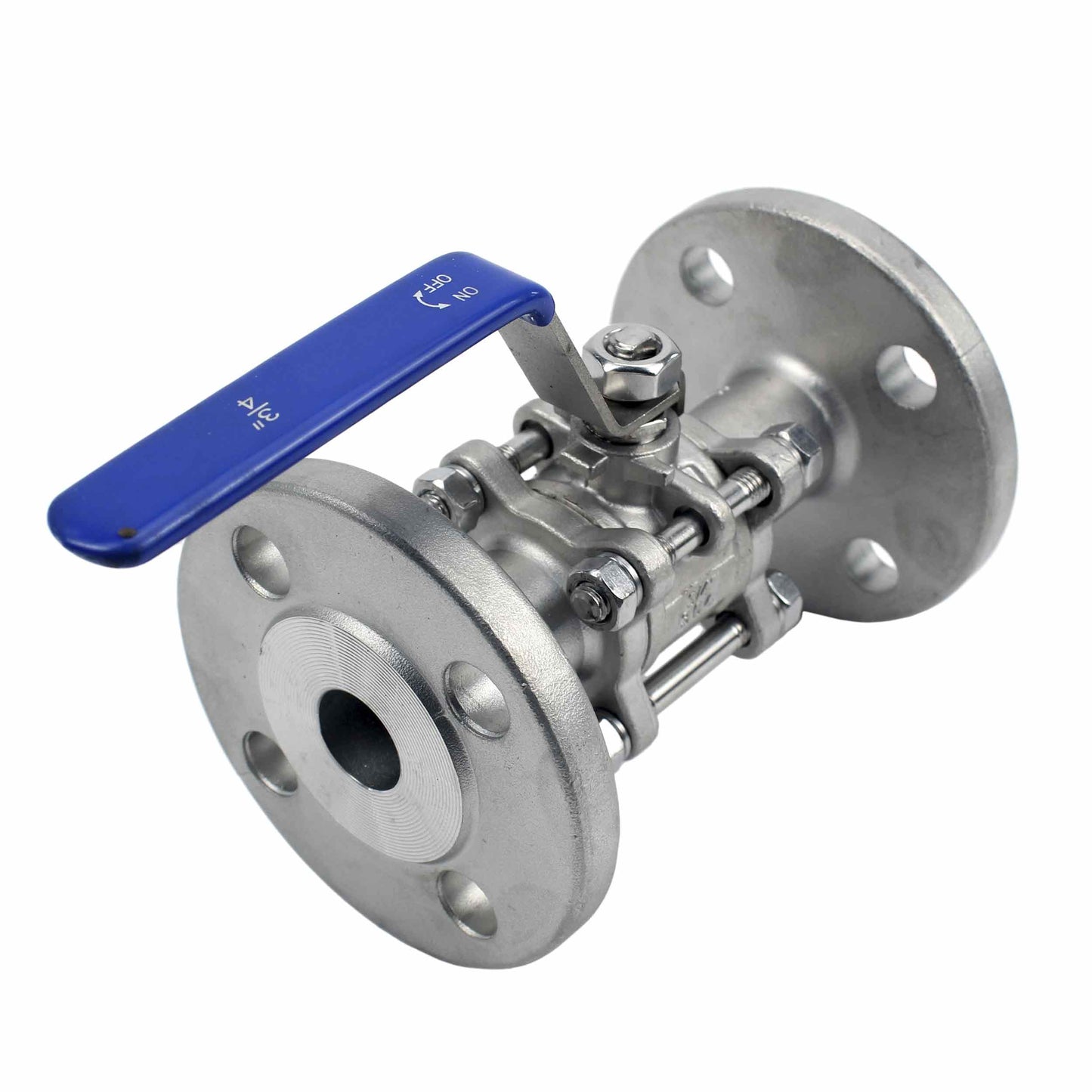

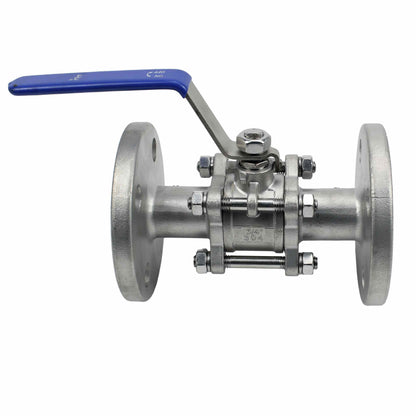

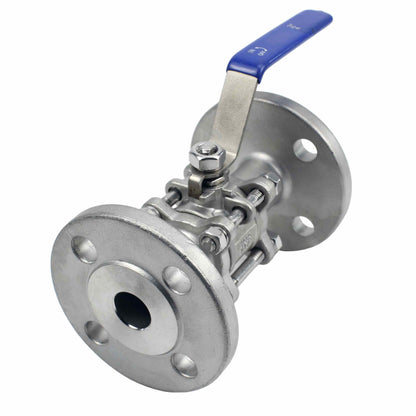

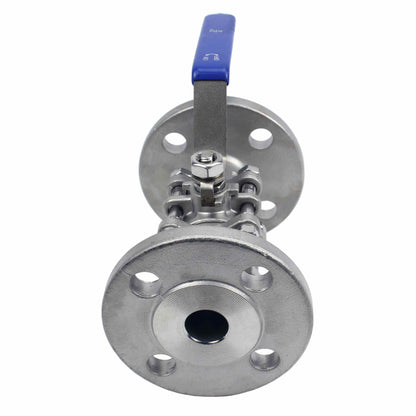

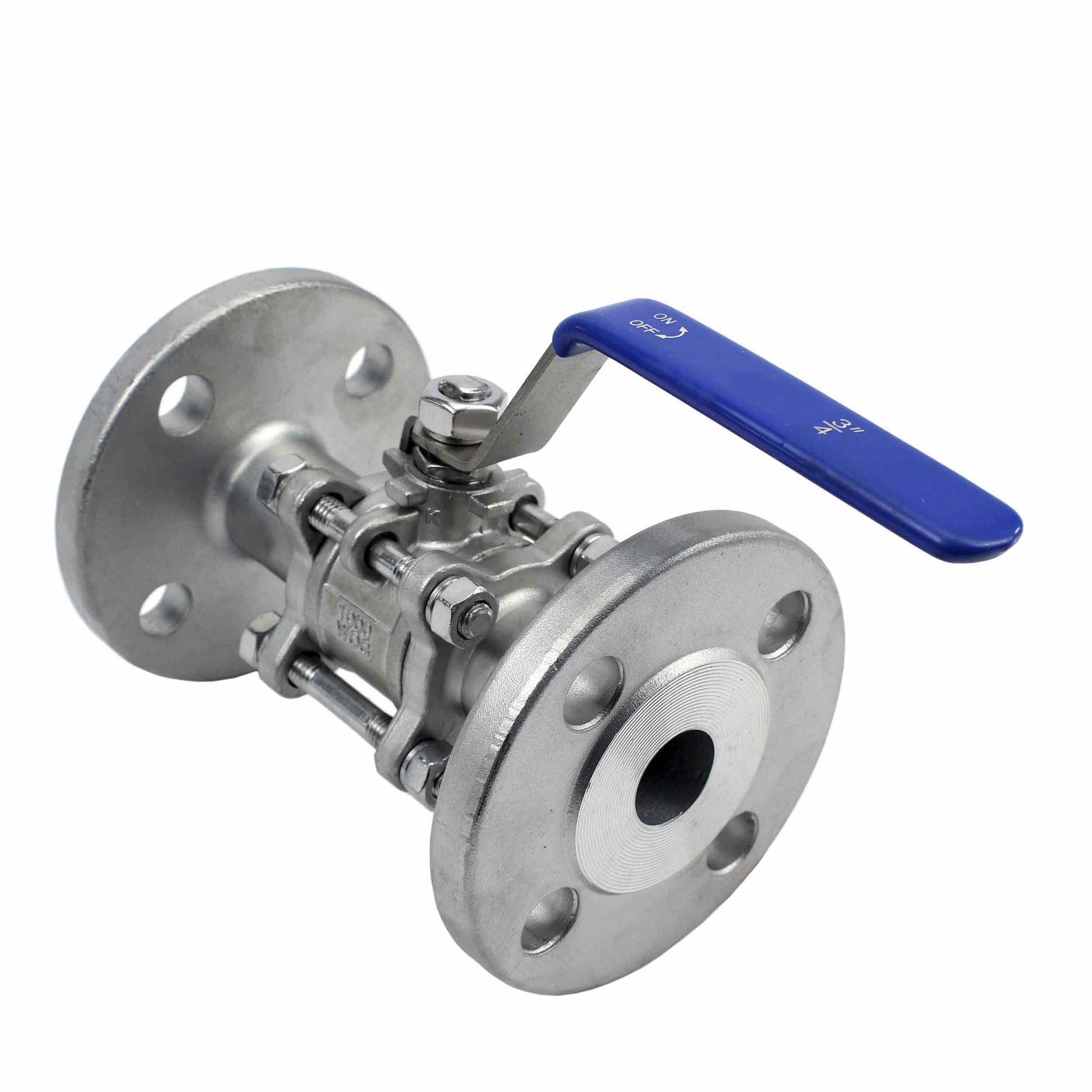

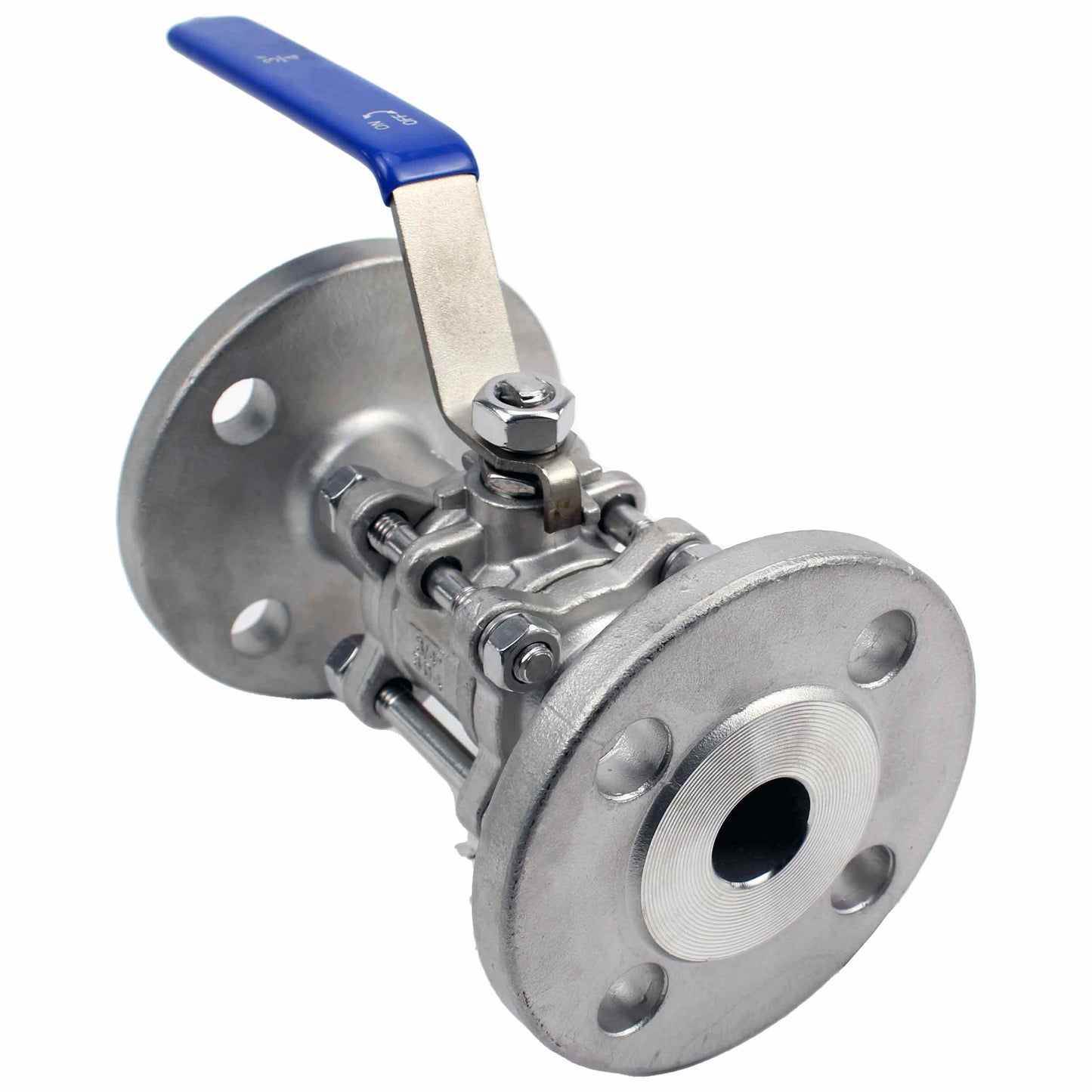

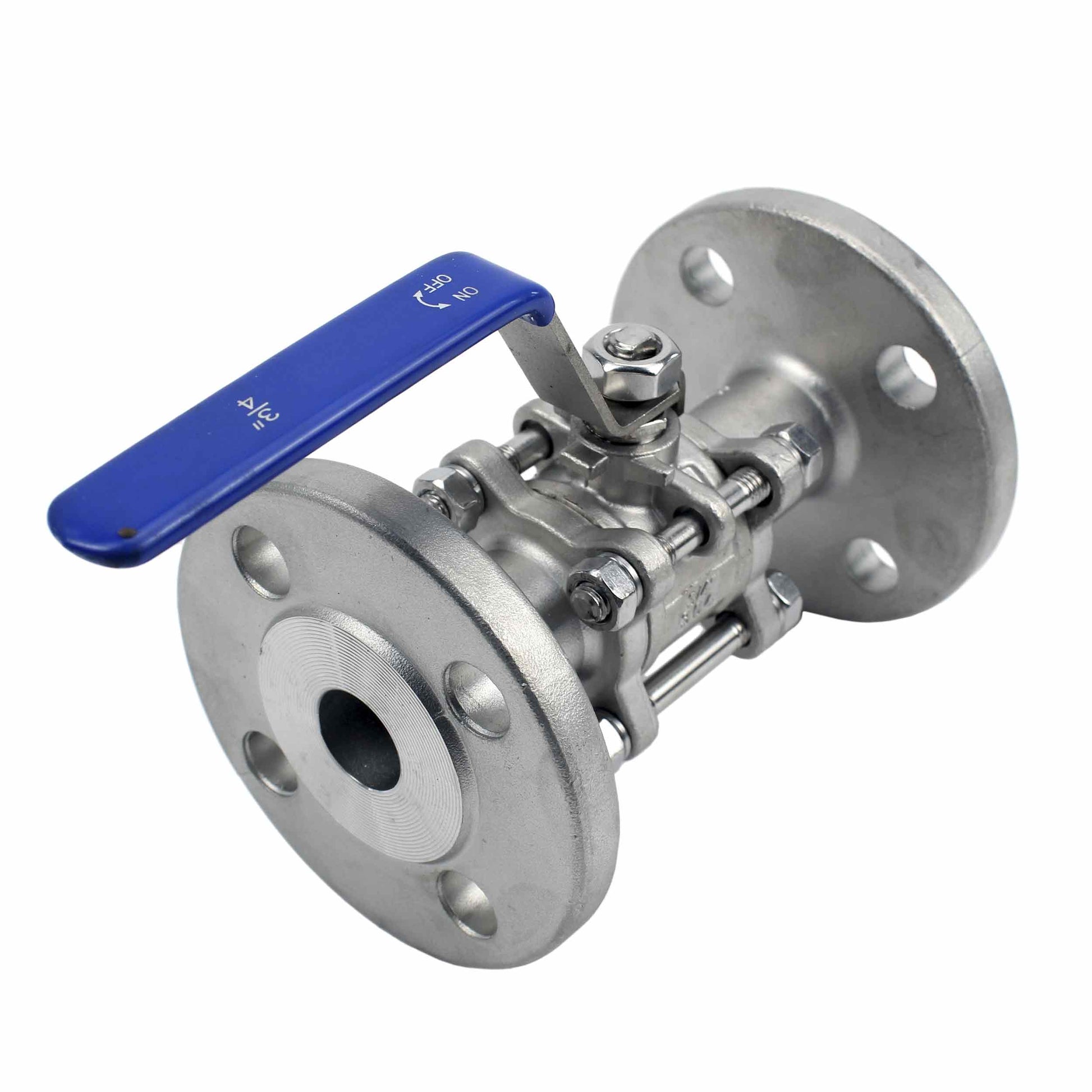

Stainless steel ball valve DNOVA BV3131P(3pc)-FP-F-H SS304, full port, flanged connection, with handle

From $13.72 USD
From $13.72 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Stainless steel ball valve DNOVA BV3131P(3pc)-FP-F-H, SS304, full port, flanged connection, with handle is used as a shut-off valve in heat and water supply systems, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-aggressive to the materials of the valve.

Ball valve overall dimensions DNOVA BV3131P(3pc)-FP-F-H SS304, full port, flanged connection, with handle

Ball Valve Detail Sketch DNOVA BV3131P(3pc)-FP-F-H SS304, full port, flanged connection, with handle

DN D D1 D2 b f L N - Ød Valve stem square Weight, max
15 95 65 45 16 2 127,5 4 - 14 9x9 1,9
20 105 75 58 18 2 149,5 4 - 14 9x9 2,7
25 115 85 68 18 2 153,5 4 - 14 11x11 3,4
32 140 100 78 18 2 169 4 - 18 11x11 4,35
40 150 110 88 18 2 190,5 4 - 18 14x14 5,7
50 165 125 102 18 2 228 4 - 18 14x14 7,45
65 185 145 122 18 2 287 8 - 18 17x17 12,4
80 200 160 138 20 2 295 8 - 18 17x17 15
100 220 180 158 20 2 345 8 - 18 17x17 23

Ball valve component materials DNOVA BV3131P(3pc)-FP-F-H SS304, full port, flanged connection, with handle

Ball Valve Detail Sketch DNOVA BV3131P(3pc)-FP-F-H SS304, full port, flanged connection, with handle

№ Part name Material
1 Casing with flange steel 304 / 316
2 bolt ball steel 304 / 316
3 Body steel 304 / 316
4 Sealing PTFE
5 Nut steel A194
6 Bolt steel A193
7 Washer steel 304
8 Gasket PTFE
9 padding PTFE
10 gland steel 304
11 Washer steel 304
12 Stem nut steel A194
13 Stem steel 304 / 316
14 Handle steel 201

Specifications

Country of origin
China
Port opening
Full Port
Configuration
Two-way
Body material
Stainless steel AISI 316
Material ball
Stainless steel AISI 316
Material ball seal
PTFE
Maximum allowable temperature
356 °F / 180 °C
Connection type
Flanged
Control type
Lever handle
Operating environment
Water, Air, Oil Products
Applications
Water Supply, Heat Supply, Pneumatic Systems

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN15 / 40 barD160-22792
DN15 / 40 barD160-22792
$13.72/ea		 $0.00
$13.72/ea $0.00
DN20 / 40 barD160-22793
DN20 / 40 barD160-22793
$17.59/ea		 $0.00
$17.59/ea $0.00
DN25 / 40 barD160-22794
DN25 / 40 barD160-22794
$22.83/ea		 $0.00
$22.83/ea $0.00
DN32 / 40 barD160-22795
DN32 / 40 barD160-22795
$39.56/ea		 $0.00
$39.56/ea $0.00
DN40 / 40 barD160-22796
DN40 / 40 barD160-22796
$44.21/ea		 $0.00
$44.21/ea $0.00
DN50 / 40 barD160-22797
DN50 / 40 barD160-22797
$58.05/ea		 $0.00
$58.05/ea $0.00
DN65 / 25 barD160-22798
DN65 / 25 barD160-22798
$92.70/ea		 $0.00
$92.70/ea $0.00
DN80 / 25 barD160-22799
DN80 / 25 barD160-22799
$110.29/ea		 $0.00
$110.29/ea $0.00
DN100 / 16 barD160-22800
DN100 / 16 barD160-22800
$198.19/ea		 $0.00
$198.19/ea $0.00
