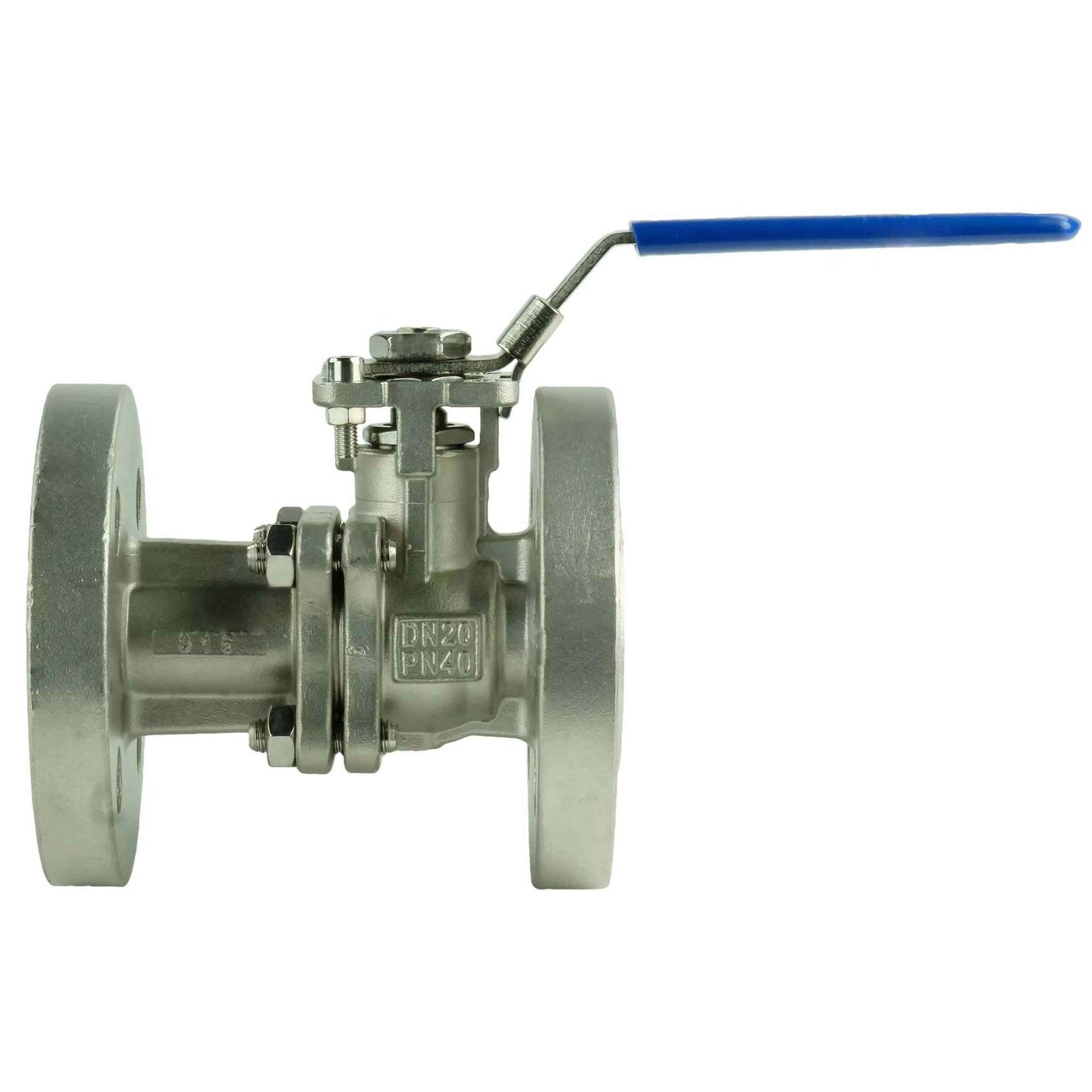

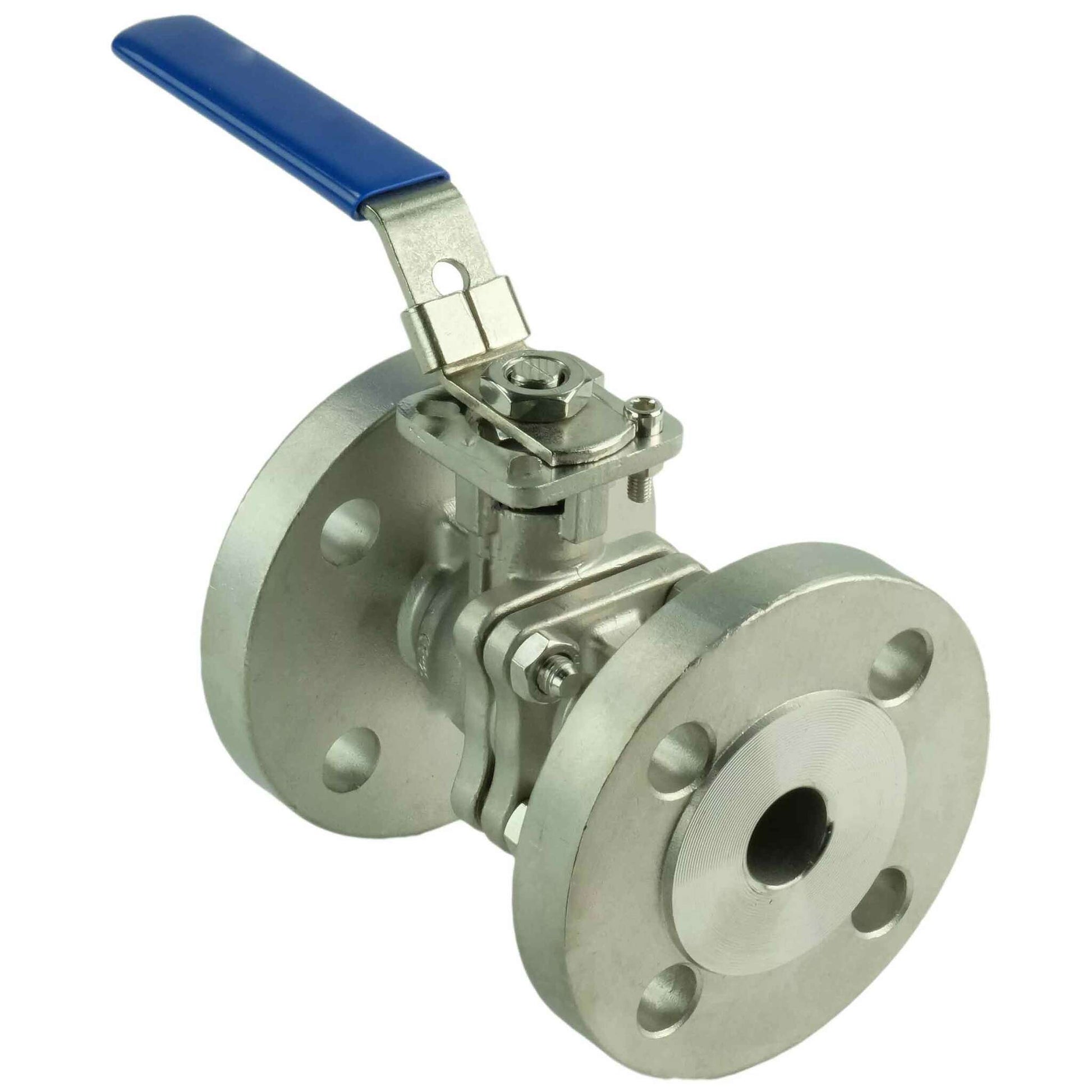

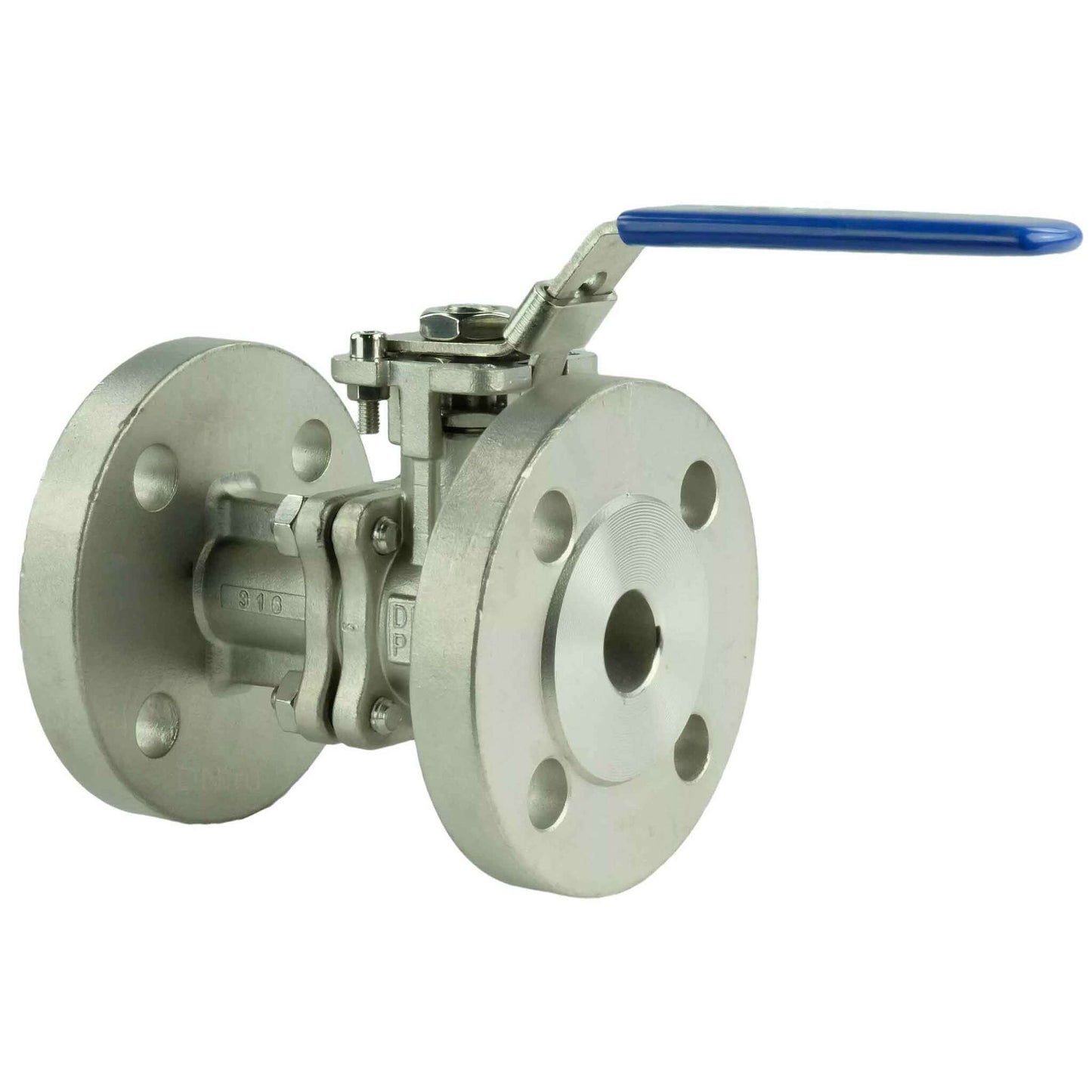

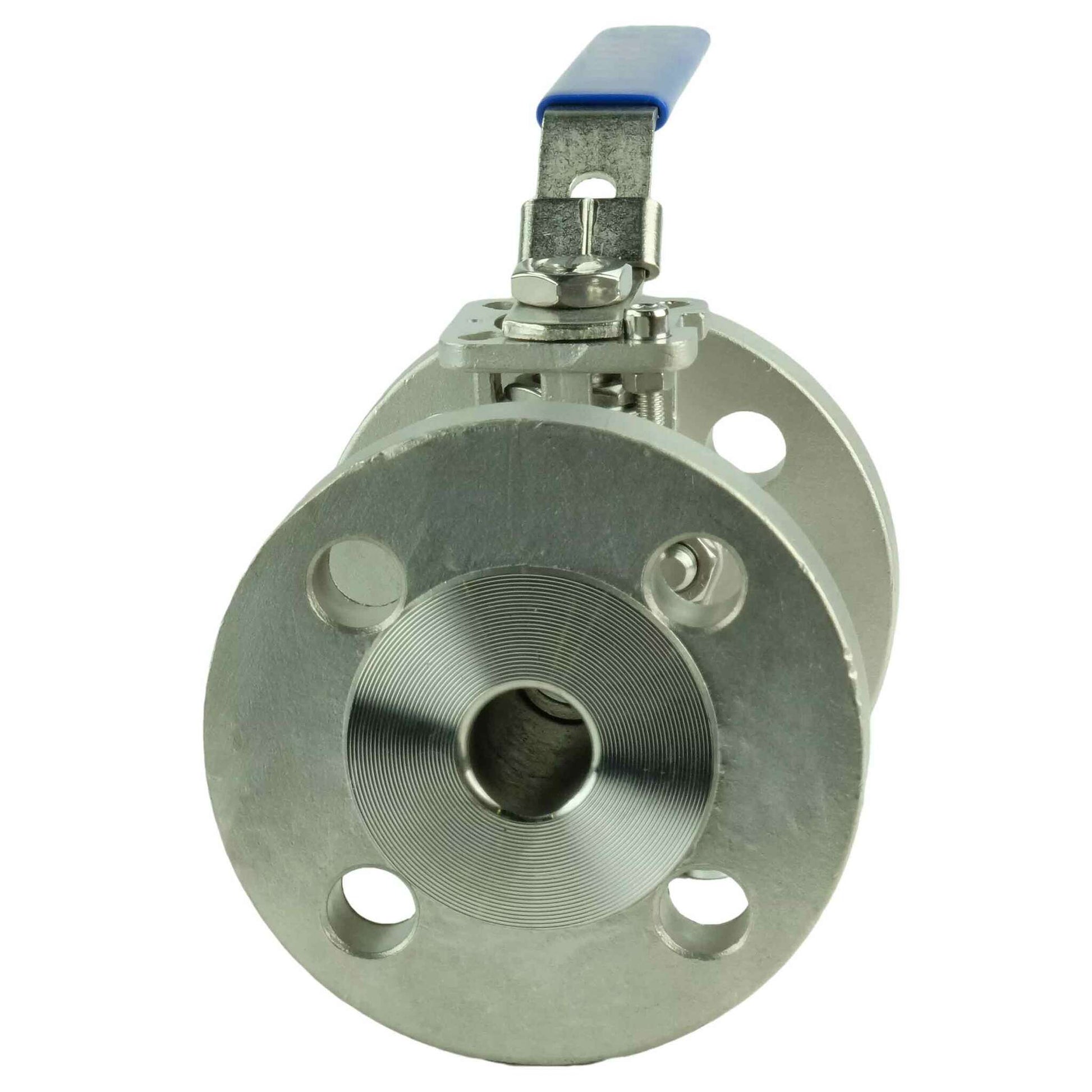

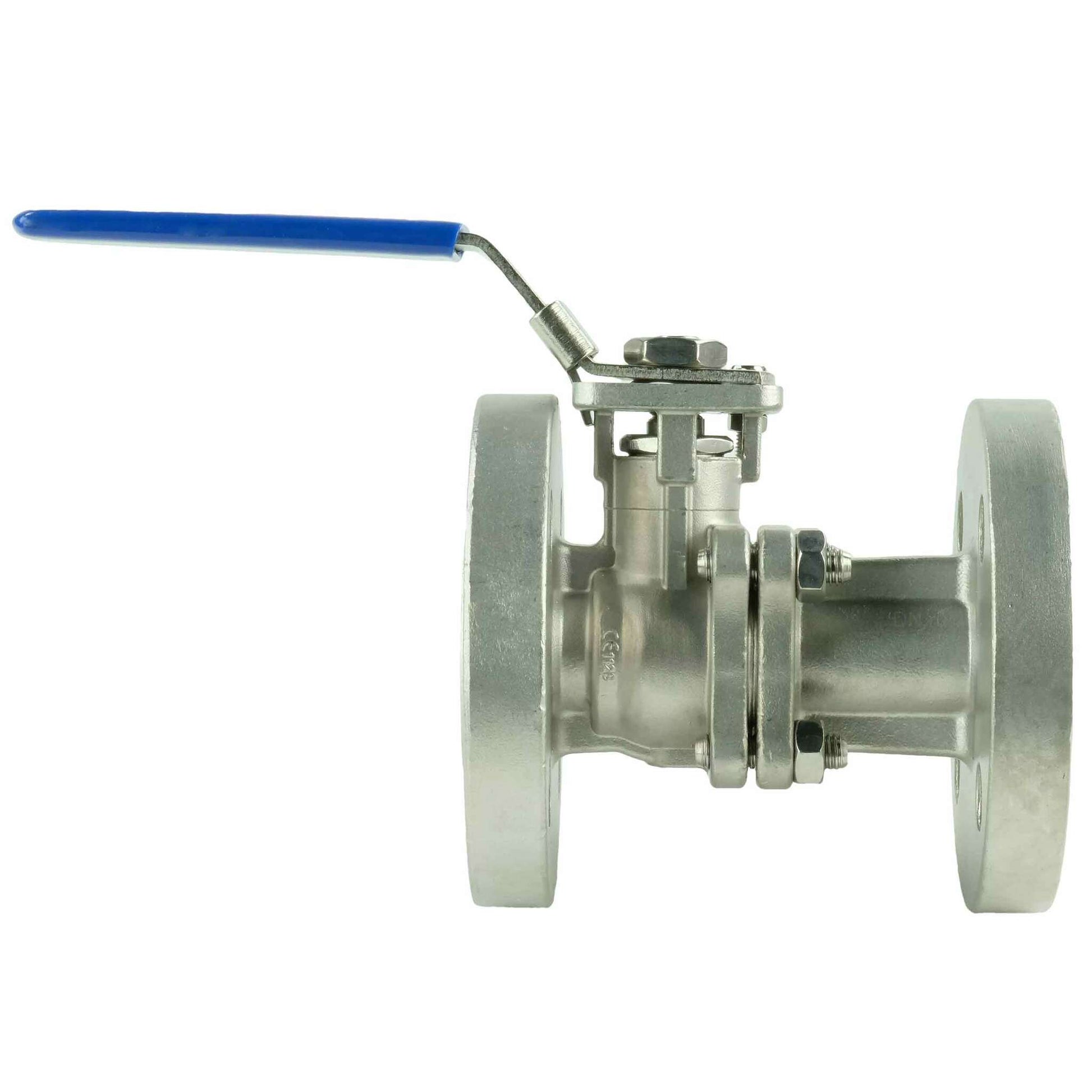

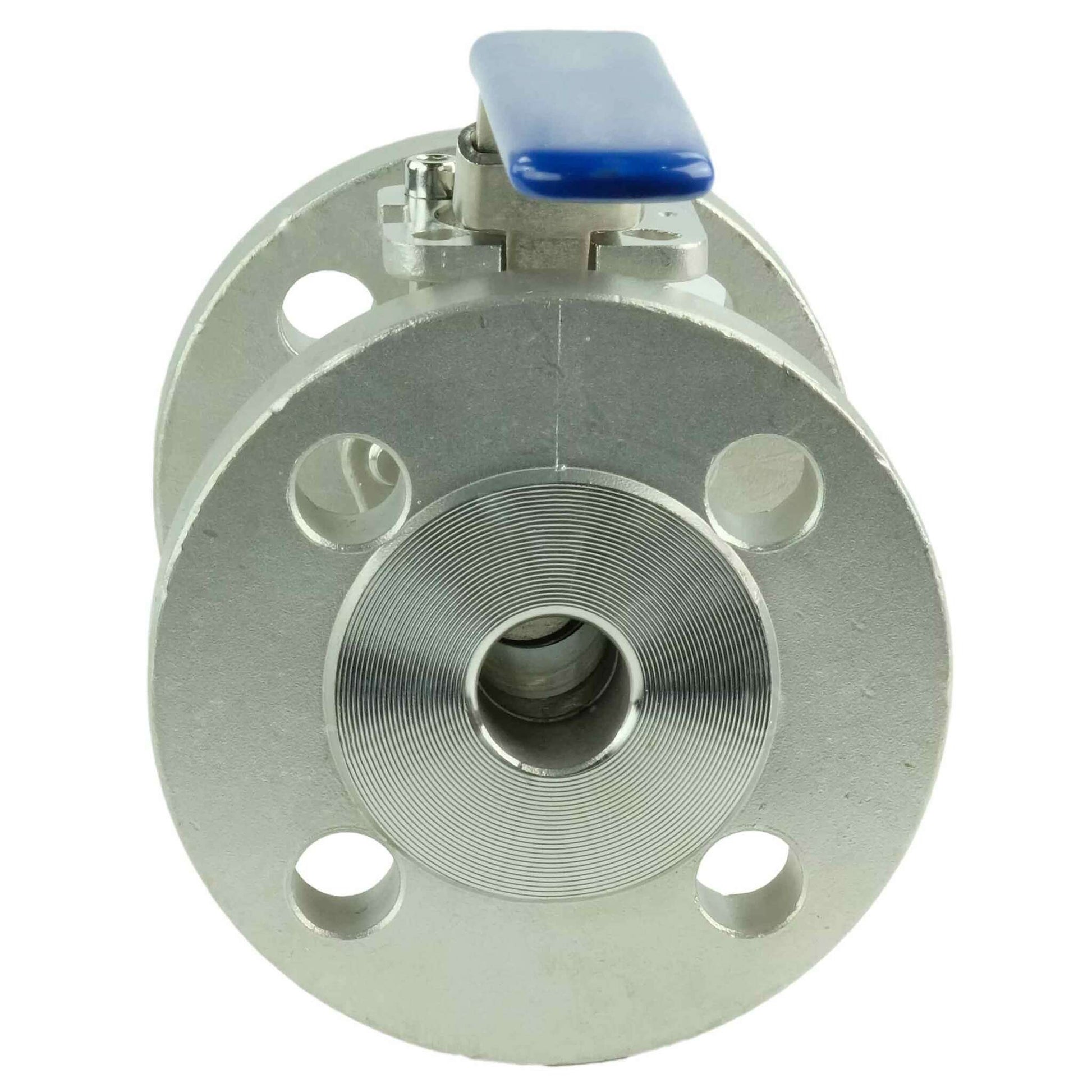

Stainless steel ball valve DNOVA BV3232P(2pc)-FP-F-ISO-H full port, flanged connection Class 150/300, with ISO 5211 mounting pad and handle

From $20.91 USD
From $20.91 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Ball valve series BV3232P(2pc)-FP-F-ISO-H is used as shut-off valves in heat supply systems, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases.





Ball valve overall dimensions DNOVA BV3232P(2pc)-FP-F-ISO-H full port, flanged connection Class 150/300, with ISO 5211 mounting pad and handle

DN PN L, mm H, mm d, mm D, mm D1, mm D2, mm KxK, mm
DN15 40 115 50 15 95 65 45 9x9
DN20 40 120 55 20 105 75 58 9x9
DN25 40 125 58 25 115 85 68 11x11
DN32 40 130 42 32 140 100 78 11x11
DN40 40 140 76 40 150 110 88 14x14
DN50 40 150 85 50 165 125 102 14x14
DN65 16 170 95 65 185 145 122 17x17
DN80 16 180 115 80 200 160 138 17x17
DN100 16 190 140 100 220 180 158 17x17
DN125 16 325 177 120 250 210 188 24x24
DN150 16 350 194 145 285 240 212 24x24
DN200 16 400 180 200 340 295 268 27x27
DN250 16 450 296 250 405 355 320 27x27
DN300 16 610 230 300 460 410 378 36x36
DN PN b f N–ØM Torque, N*m ISO 5211 Weight, kg
DN15 40 16 2 4–Ø14 18 F04 1,98
DN20 40 18 2 4–Ø14 22 F04 2,58
DN25 40 18 2 4–Ø14 26 F05 3,4
DN32 40 18 2 4–Ø18 32 F05 4,8
DN40 40 18 3 4–Ø18 38 F07 5,85
DN50 40 20 3 4–Ø18 50 F07 7,85
DN65 16 18 3 4–Ø18 50 F07 11,2
DN80 16 20 3 8–Ø18 65 F10 14,3
DN100 16 20 3 8–Ø18 125 F10 18,7
DN125 16 22 3 8–Ø18 250 F12 31
DN150 16 22 3 8–Ø22 340 F12 41
DN200 16 24 3 12–Ø22 485 F12/F14 62
DN250 16 26 3 12–Ø26 810 F12/F14 150
DN300 16 28 2 12–Ø22 1310 F14 210

Ball Valve Detail Sketch DNOVA BV3232P(2pc)-FP-F-ISO-H full port, flanged connection Class 150/300, with ISO 5211 mounting pad and handle





Ball valve component materials DNOVA BV3232P(2pc)-FP-F-ISO-H full port, flanged connection Class 150/300, with ISO 5211 mounting pad and handle

№ Part name Material
1 Body CF8M (analog of AISI 316 steel)
2 Char SS316 stainless steel
3 Bolt stainless steel
4 Lock SS316 stainless steel
5 Stem SS316 stainless steel
6 Flange element (2 pcs) CF8M (analog of AISI 316 steel)
7 Ball seal (2 pcs) PTFE
8 thrust washer PTFE
9 Handle stainless steel

Ball Valve Detail Sketch DNOVA BV3232P(2pc)-FP-F-ISO-H full port, flanged connection Class 150/300, with ISO 5211 mounting pad and handle

Specifications

Country of origin
China
Port opening
Full Port
Configuration
Two-way
Body material
Stainless steel AISI 316
Material ball
Stainless steel AISI 316
Material ball seal
PTFE
Maximum allowable temperature
200 °C
Connection type
Flanged
Control type
Lever handle
Operating environment
Water, Air, Oil Products
Applications
Water Supply
