Description
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

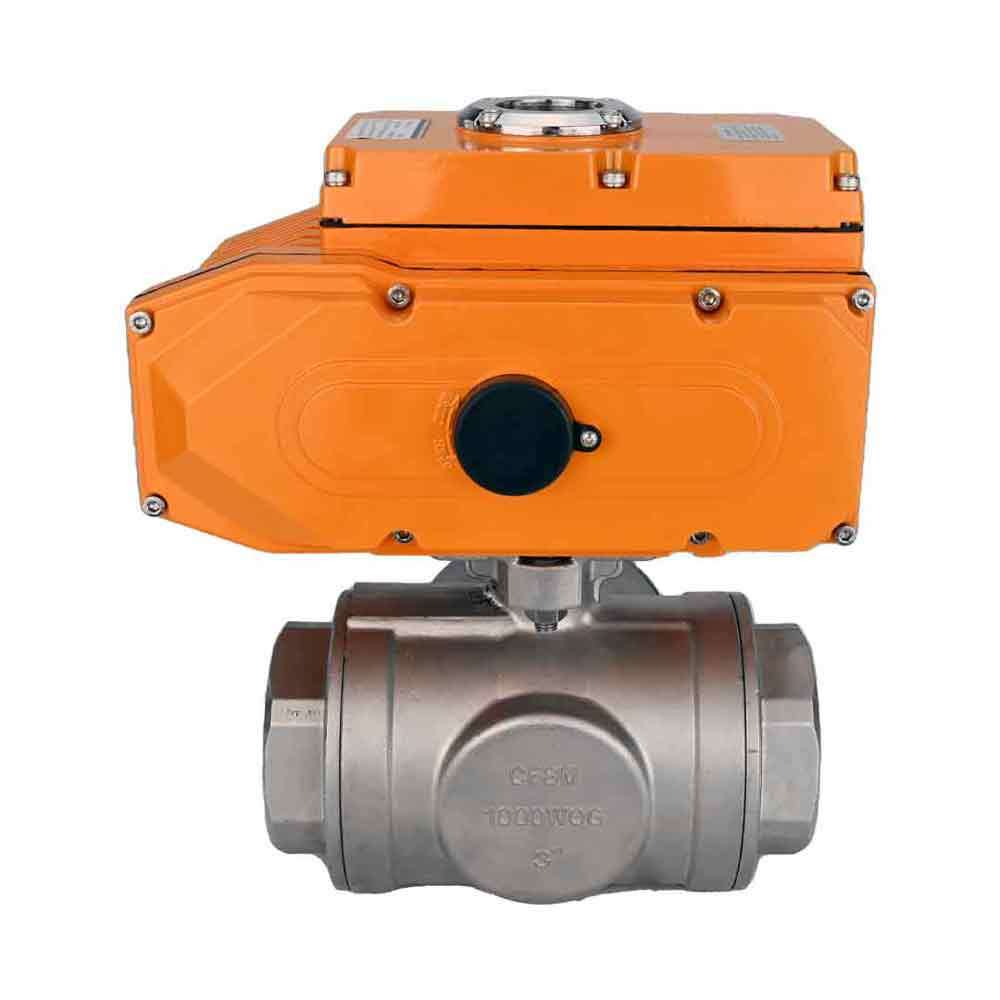

Technical data of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H E34-N-EM-O1-220VAC-U1
| Nominal diameter DN, mm | 10-100 |
| Working pressure PN, bar | 63/40 |
| Temperature of working environment t, ⁰C | from -20 to +200 |
| Working environment | water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | threaded |
| Type of flow section | standard pass |
| Control type | manual (handle) |
| Addition | installation of electric or pneumatic drive is possible (ISO 5211-2001) |
Details of ball valves DNOVA 3-way L-type RP.SS316.200.MM
Materials of parts for ball valves DNOVA 3-way L-type RP.SS316.200.MM
| Item No. | Part name | Material | Quantity |
|---|---|---|---|
| 1 | Lid | SS316 | 3 |
| 2 | Saddle rings | PPL | 4 |
| 3 | Laying the connection | PTFE/RPTFE | 3 |
| 4 | Thrust washer | PTFE/RPTFE | 1 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS304 | 1 |
| 8 | Ball valve | S304/S316 | 1 |
| 9 | Frame | SS316 | 1 |
Sketch of overall and installation dimensions of ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H E34-N-EM-O1-220VAC-U1
Ball valves DNOVA BV3232P(4pc)-SP-3WL-T-ISO-H E34-N-EM-O1-220VAC-U1 weight and dimensions parameters
| D.N. | 10 | 15 | 20 | 25 | 32 |
|
Electric drive model |
DNOVA-005 | DNOVA-005 | DNOVA-005 | DNOVA-003 | DNOVA-003 |
| D, mm | 10 | 12 | 15 | 18 | 25 |
| L±1.5, mm | 71 | 71 | 82 | 98 | 118 |
| L1, mm | 160 | 160 | 160 | 160 | 160 |
| H, mm | 149 | 148.5 | 157.5 | 160.5 | 166 |
| Height of the tap stem, mm | 13 | 13 | 10 | 13 | 12 |
| Crane torque, Nm | 2 | 1.6 | 3.1 | 4.5 | 11.5 |
| ISO 5211 | F03, F04 | F03, F04 | F03, F04 | F04, F05 | F04, F05 |
| Crane weight, kg | 0,530 | 0.475 | 0,800 | 1,165 | 2,255 |
| D.N. | 40 | 50 | 65 | 80 | 100 |
|
Electric drive model |
DNOVA-005 | DNOVA-005 | DNOVA-010 | DNOVA-010 | DNOVA-010 |
| D, mm | 32 | 38 | 50 | 64 | 78 |
| L±1.5, mm | 122 | 150 | 178 | 202 | 231 |
| L1, mm | 160 | 160 | 189 | 189 | 189 |
| H, mm | 178.5 | 182 | 198 | 210.5 | 225 |
| Height of the tap stem, mm | 20 | 19 | 20 | 18 | 25 |
| Crane torque, Nm | 19 | 24 | 41 | 58 | 64 |
| ISO 5211 | F05, F07 | F05, F07 | F07, F10 | F07, F10 | F07, F10 |
| Crane weight, kg | 3,555 | 4,730 | 7,000 | 9,970 | 14,245 |
Characteristics of actuators
| Electric drive model |
Torque |
Opening hours |
|---|---|---|
| Nm | sec | |
| DNOVA-005 | 50 | 30 |
| DNOVA-010 | 100 | 30 |
| Electric drive model | Current | Weight | Rod size square | |
|---|---|---|---|---|
| Tue | A | kg | mm | |
| DNOVA-005 | 10 | 0.25 | 3.6 | 14 |
| DNOVA-010 | 15 | 0.35 | 4.6 | 17 |
