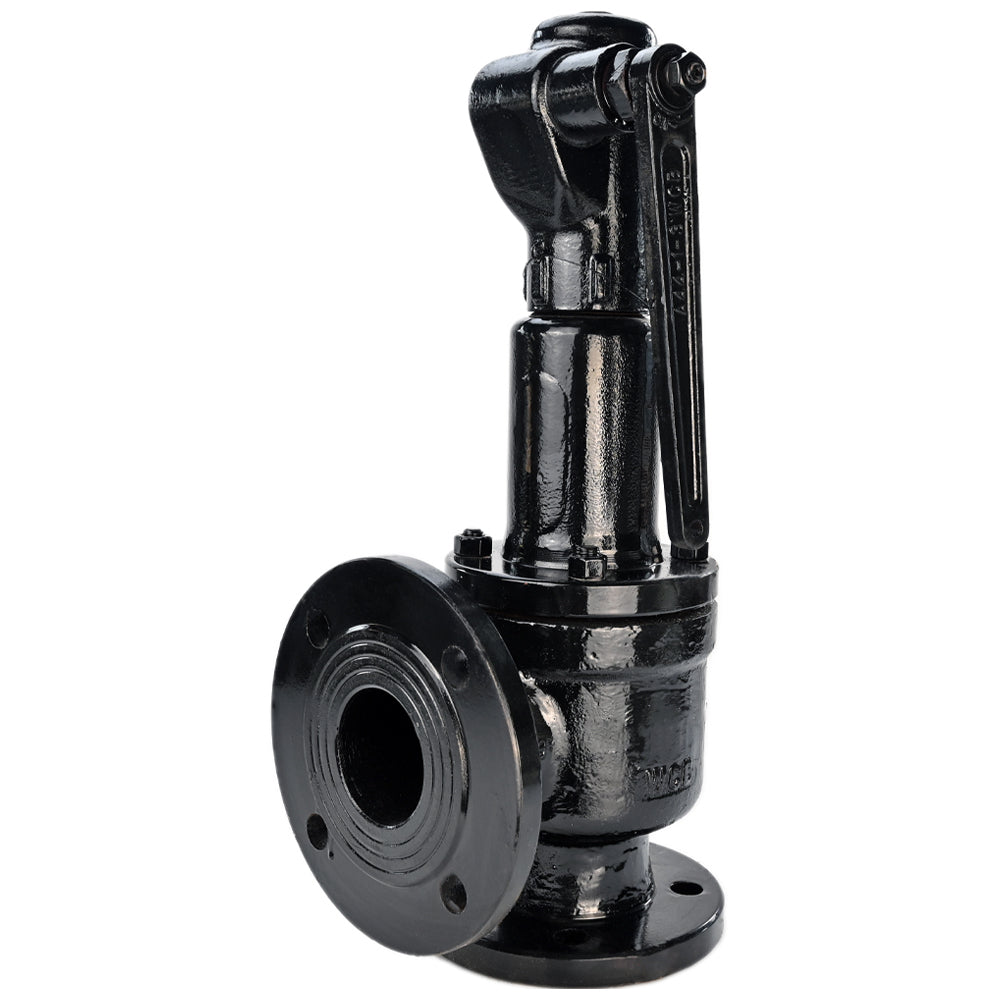

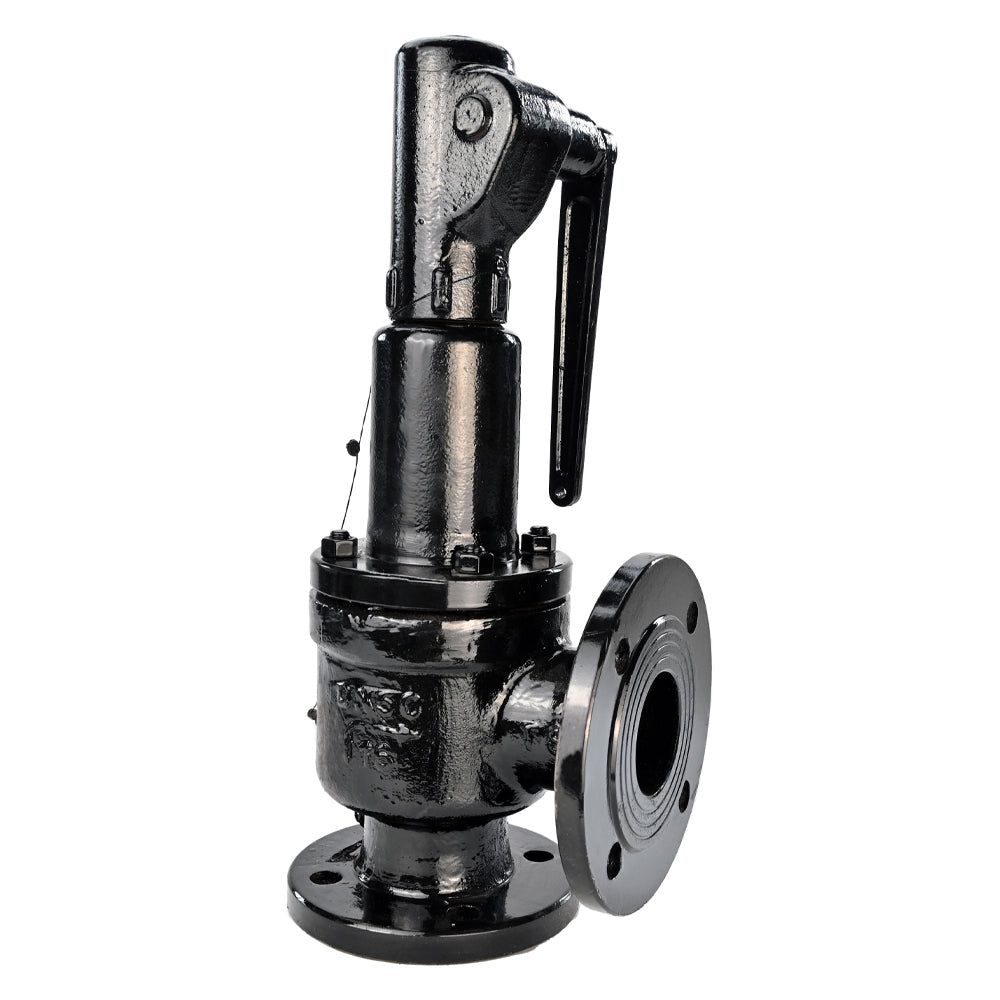

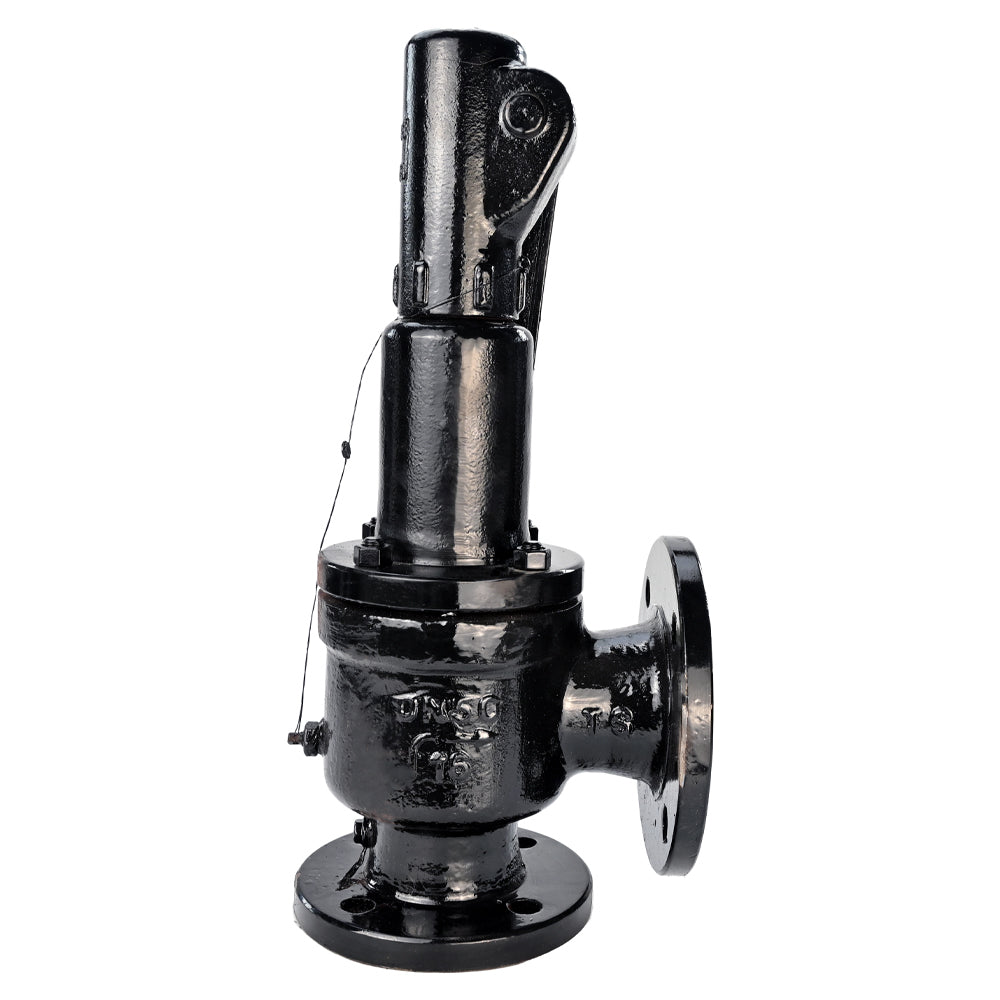

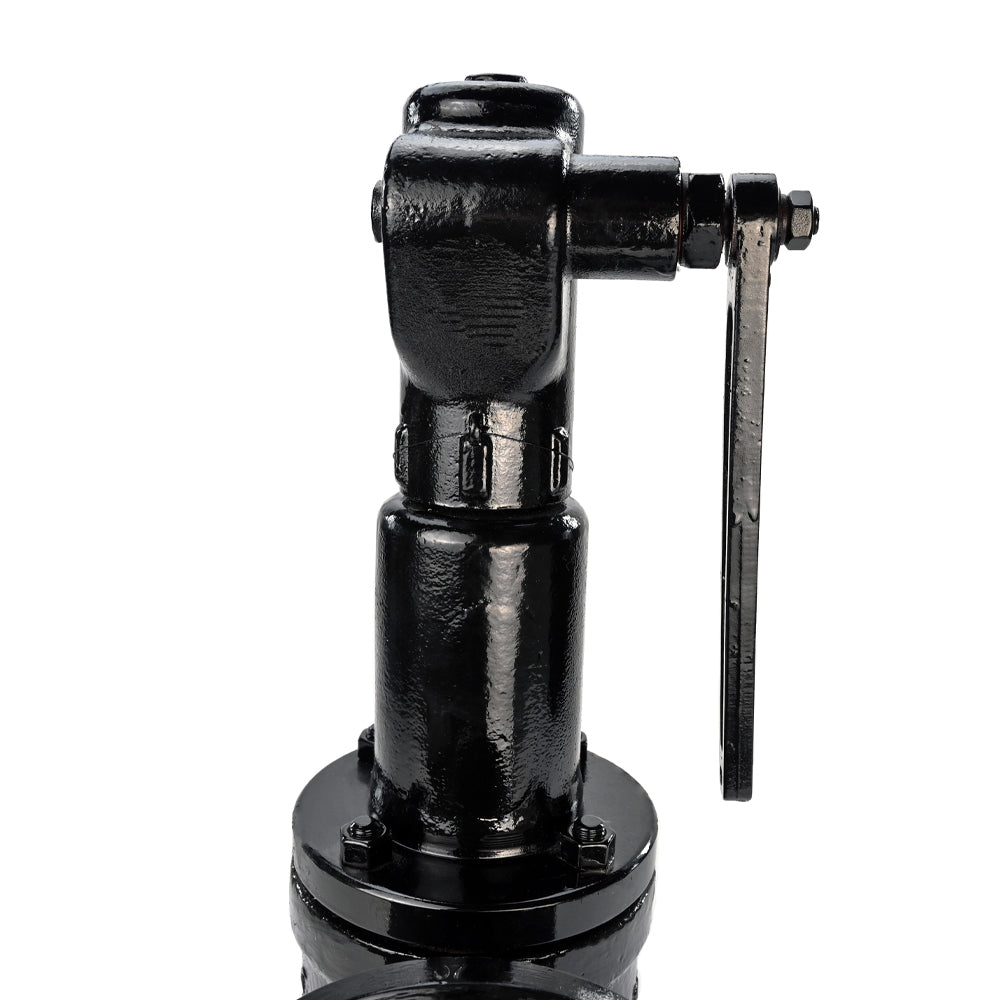

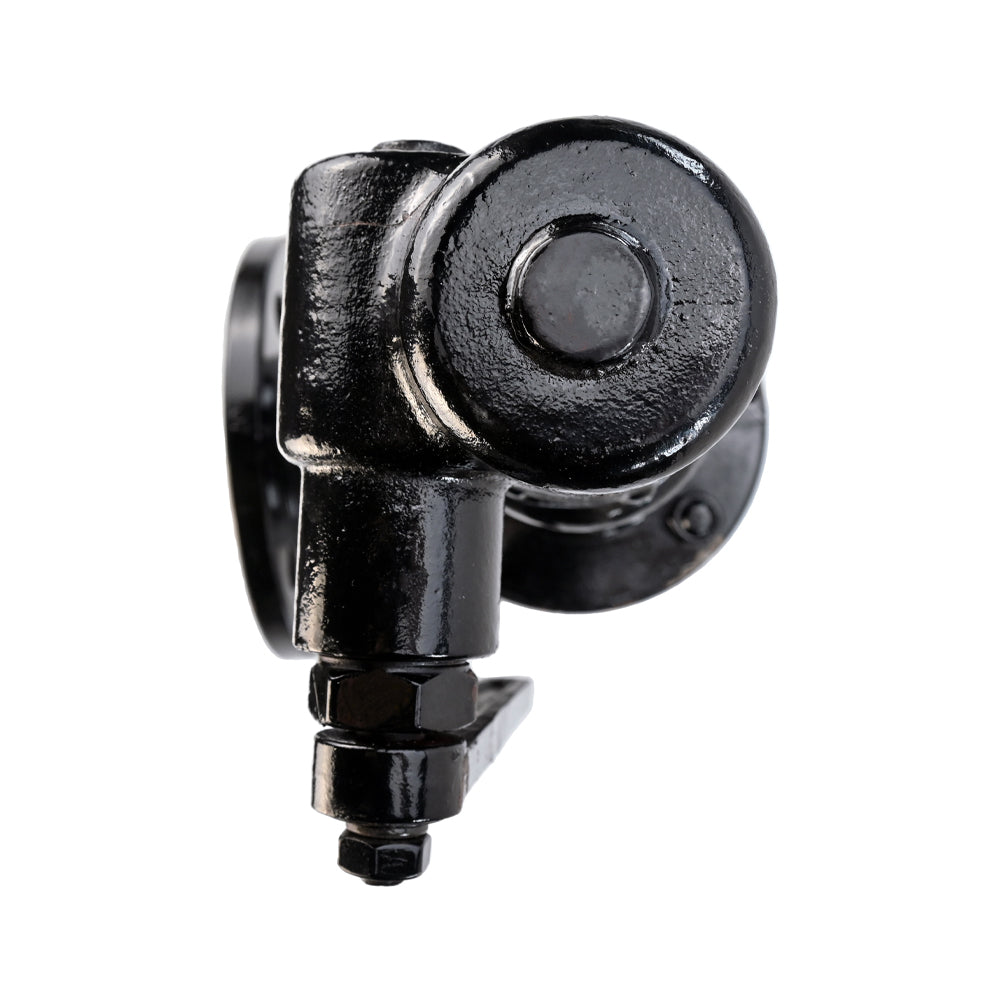

Spring safety valve DNOVA SAFE 7011 8-10, body material - stainless steel AISI A10, closure element material - stainless steel AISI 420, seal - METAL

From $54.35 USD
From $54.35 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

A spring safety valve is a device used to automatically reduce excess pressure in systems, preventing it from exceeding established safety limits. It consists of a valve, a spring, and a setting that determines the valve's opening pressure.

When the pressure in the system reaches a certain level, the spring activates, opening the valve and allowing excess pressure to escape, preventing damage to equipment or the system due to overpressure. Spring safety valves are widely used in various industrial and technical systems to ensure their safety and reliability.





Technical data of safety valves DNOVA VR2130M-F DN25x32-300x400 PN16

Nominal diameter DN, mm 25-300 (inlet);
32-400 (outlet)
Working pressure PN, bar 16
Setting pressure ranges, bar 0.6÷1; 1÷1.6; 1.6÷2.5; 2.5÷4;
4÷6; 6÷8; 8÷10; 10÷13; 13÷16
Allowable pressure behind the valve, bar 16
Temperature of working environment t, ⁰C ≤350
Working environment water, steam, air, ammonia, natural gas, fuel oil and other liquid petroleum products
Connection to the pipeline flanged
Body material steel 25L
Seal material steel 20X13
Application areas heating and water supply systems; compressed air pipelines; steam plants; industrial pipelines





Sketch of dimensions of safety valves DNOVA VR2130M-F DN25x32-300x400 PN16



Weight and dimensional parameters of safety valves DNOVA VR2130M-F DN25x32-300x400 PN16

D.N. ØD, mm ØD1, mm ØD2, mm b, mm f, mm n-Ød, mm L, mm
25 115 85 65 16 2 4-14 110
32 140 100 78 18 2 4-18 115
40 150 110 85 18 2 4-18 120
50 165 125 100 18 2 4-18 135
65 185 145 120 20 2 8-18 160
80 200 160 135 20 2 8-18 170
100 220 180 155 20 2 8-18 195
125 250 210 185 22 2 8-18 210
150 285 240 210 24 2 8-23 255
200 340 295 265 26 2 12-23 300
250 405 355 320 30 2 12-26 350
300 460 410 375 30 2 12-26 370





DN ' ØD1', mm ØD2', mm ØD3', mm b ', mm f ', mm n-Ød ', mm L1, mm
32 140 100 78 18 2 4-18 95
40 150 110 85 18 2 4-18 100
50 165 125 100 18 2 4-18 110
65 185 145 120 20 2 4-18 120
80 200 160 135 20 2 8-18 140
100 220 180 155 20 2 8-18 135
125 250 210 185 22 2 8-18 175
150 285 240 210 24 2 8-23 190
175 310 270 240 26 2 8-23 230
250 405 355 320 30 2 12-26 260
300 460 410 375 30 2 12-26 320
400 580 525 485 36 2 16-30 350





DN - DN' Area of ​​the flow channel, mm2 Weight, kg
25-32 177 12
32-40 314 13
40-50 491 14
50-65 804 18
65-80 1256 26
80-100 1963 33
100-125 3317 45
125-150 5024 53
150-175 7850 78
200-250 12266 130
250-300 17663 360
300-400 24041





Materials of parts of safety valves DNOVA VR2130M-F DN25x32-300x400 PN16



Materials of parts of safety valves DNOVA VR2130M-F DN25x32-300x400 PN16

Item No. Part name Material
1 Inlet manifold steel 20X13
2 Frame steel 25L
3 Disk steel 20X13
4 Lid steel 25L
5 Spring steel 50KhFA
6 Stock steel 20X13

Specifications

Country of origin
China
Body material
Stainless steel AISI A10
Maximum allowable temperature
350 °C
Connection type
Flanged
Operating environment
Water, Air, Steam, Petroleum Products, Fuel Oil
Applications
Heating Systems, Water Supply, Oil And Gas Industry
Nominal pressure
16 bar
Type of seal
Metal
Locking material
Stainless steel AISI 420/1.4031
