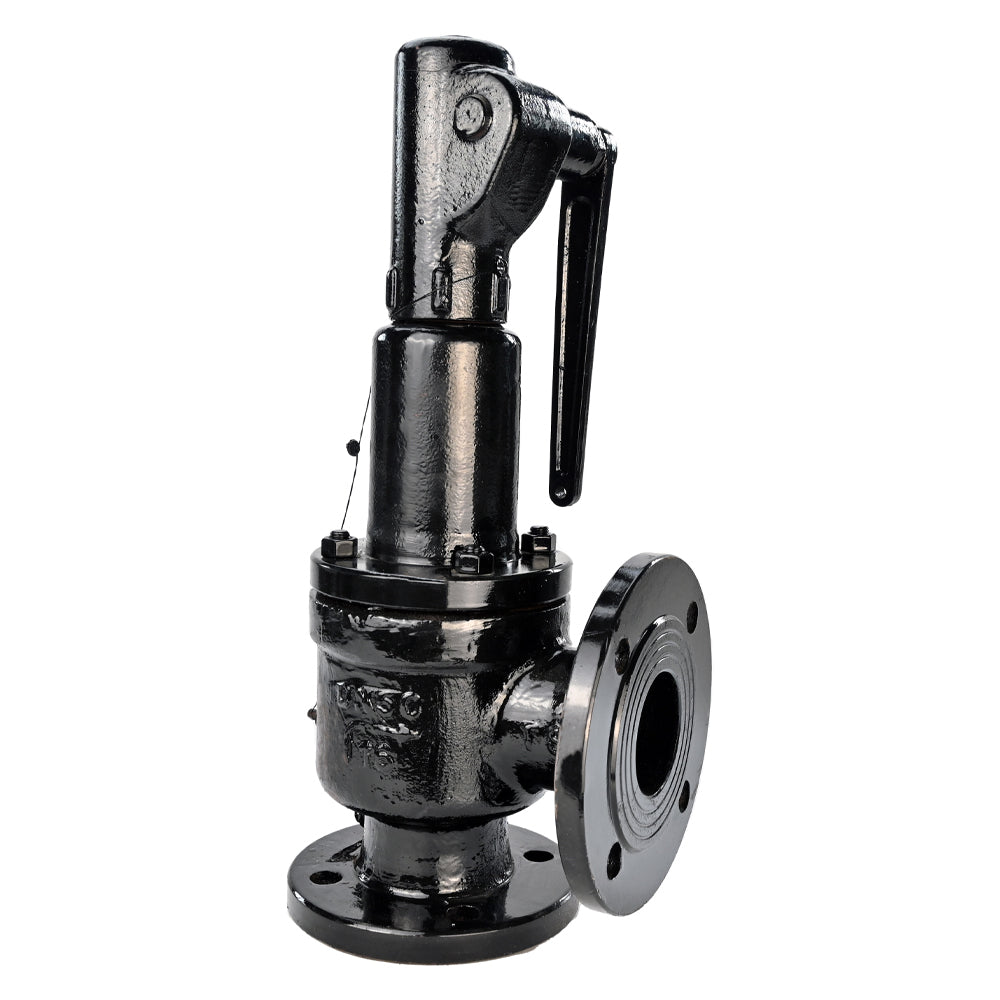

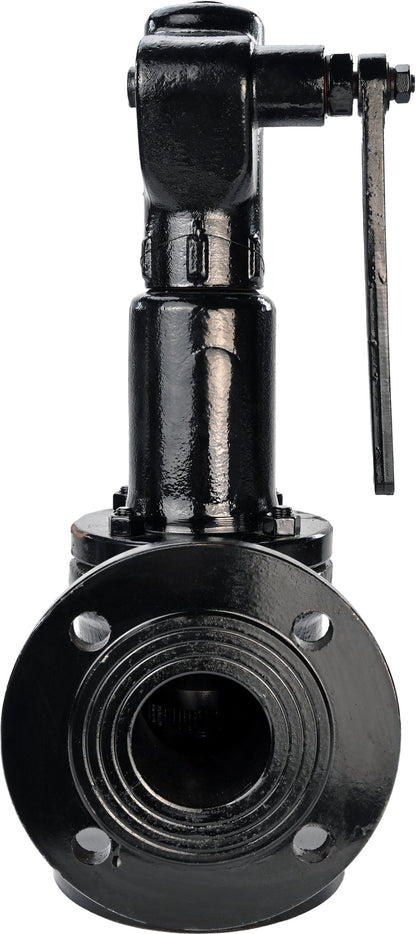

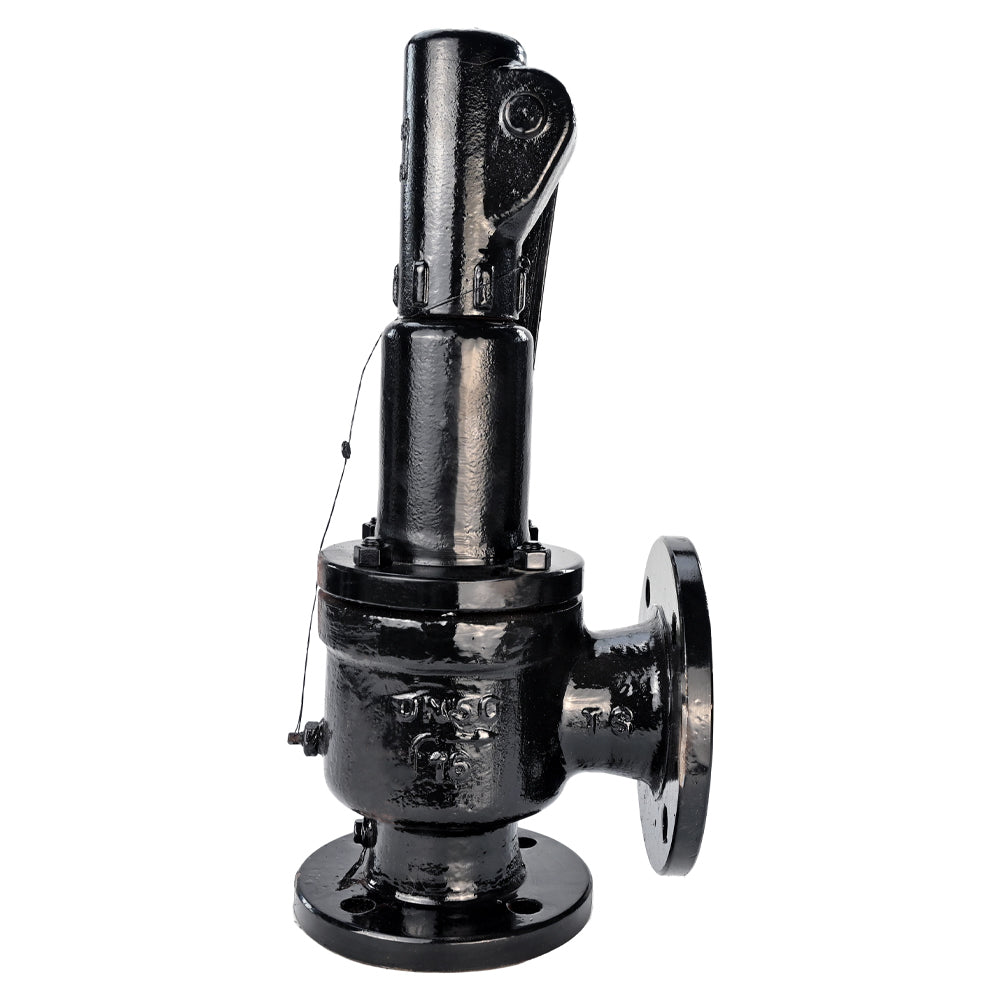

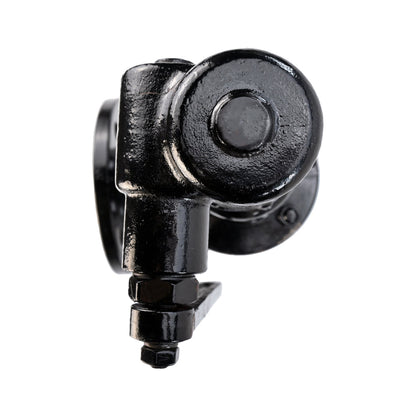

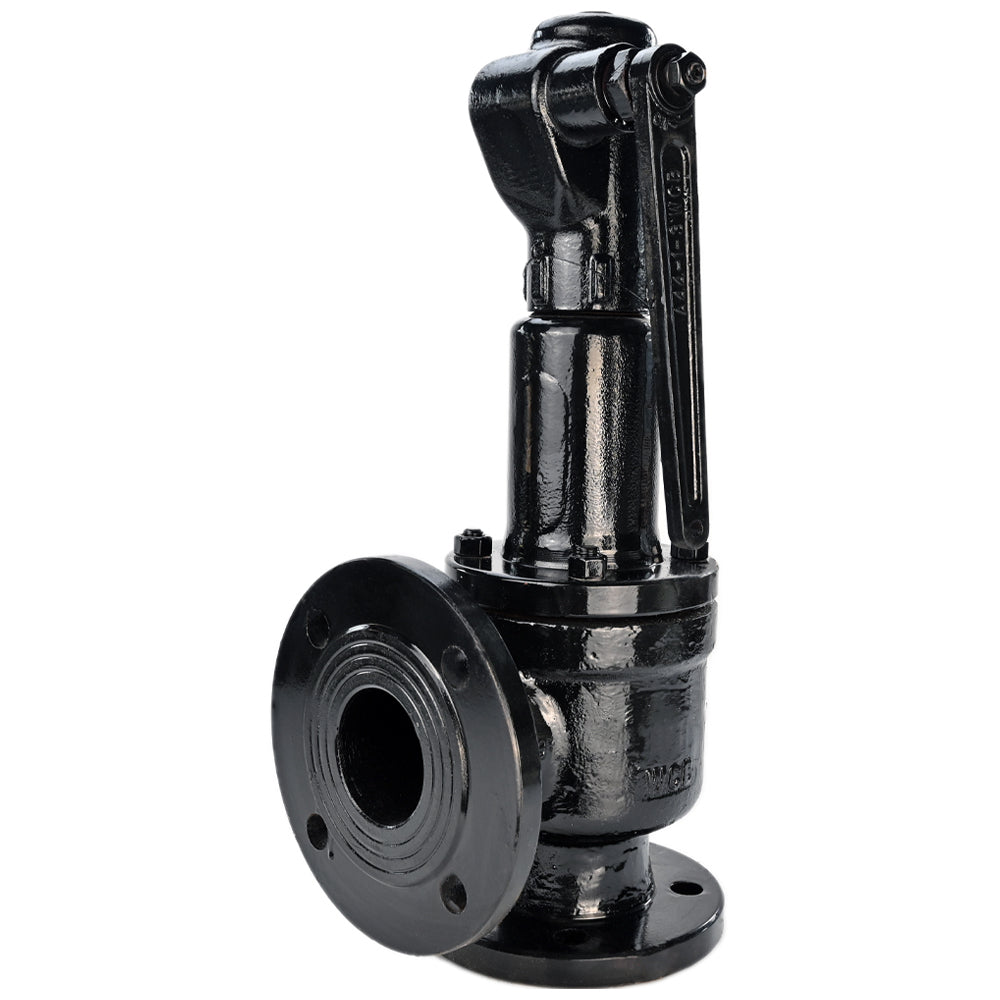

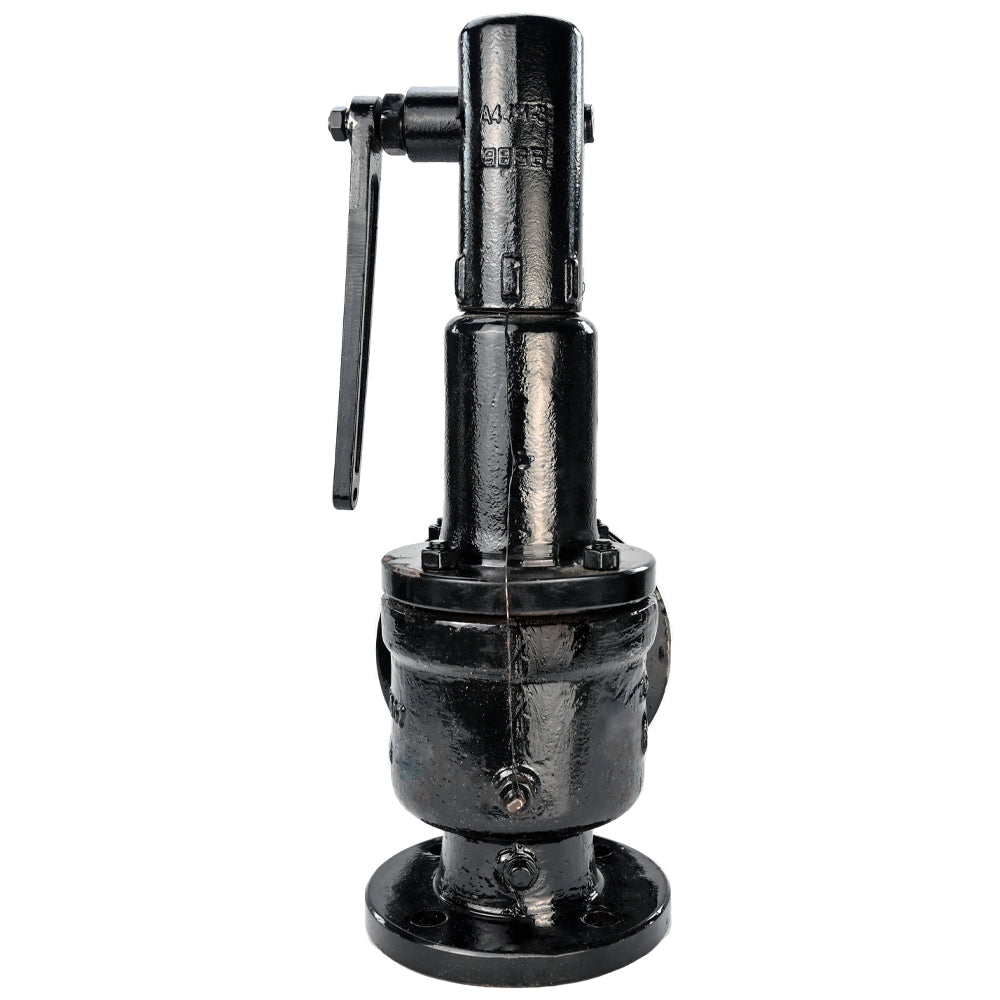

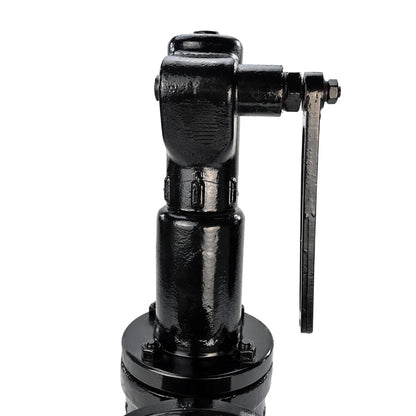

Spring safety valve DNOVA SAFE 7011 10-13, body material - stainless steel AISI A10, closure element material - stainless steel AISI 420, seal - METAL

From $54.35 USD
From $54.35 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

A spring safety valve is a device used to automatically reduce excess pressure in systems, preventing it from exceeding established safety limits. It consists of a valve, a spring, and a setting that determines the valve's opening pressure.

When the pressure in the system reaches a certain level, the spring activates, opening the valve and allowing excess pressure to escape, preventing damage to equipment or the system due to overpressure. Spring safety valves are widely used in various industrial and technical systems to ensure their safety and reliability.





Technical parameters of the safety relief valve

Parameter Value
Nominal diameter DN, mm 25–300 (inlet)
 32–400 (outlet)
Nominal pressure PN, bar 16
Pressure setting ranges, bar 0.6–1 / 1–1.6 / 1.6–2.5
2.5–4 / 4–6 / 6–8
8–10 / 10–13 / 13–16
Working medium temperature, °C ≤ +350
Ambient temperature, °C from -40 to +40
Working medium water, steam, air
Working medium category second
Allowable downstream pressure, bar 16
Tightness class B
Pipe connection flanged
Body material steel
Sealing material steel
Application areas "heating and water supply systems; compressed air pipelines; steam installations; industrial pipelines"
Service life, years 10





Weight and dimensional parameters of safety valves DNOVA SAFE 7011 10-13, body material - stainless steel AISI A10, closure element material - stainless steel AISI 420, seal - METAL

DN ØD ØD1 ØD2 b f n-Ød L
25 115 85 65 16 2 4-14 110
32 140 100 78 18 2 4-18 115
40 150 110 85 18 2 4-18 120
50 165 125 100 18 2 4-18 135
65 185 145 120 20 2 8-18 160
80 200 160 135 20 2 8-18 170
100 220 180 155 20 2 8-18 195
125 250 210 185 22 2 8-18 210
150 285 240 210 24 2 8-23 255
200 340 295 265 26 2 12-23 300
250 405 355 320 30 2 12-26 350
300 460 410 375 30 2 12-26 370



DN ’ ØD1 ’ ØD2 ’ ØD3 ’ b ’ f ’ n-Ød ’ L1
32 140 100 78 18 2 4-18 95
40 150 110 85 18 2 4-18 100
50 165 125 100 18 2 4-18 110
65 185 145 120 20 2 4-18 120
80 200 160 135 20 2 8-18 140
100 220 180 155 20 2 8-18 135
125 250 210 185 22 2 8-18 175
150 285 240 210 24 2 8-23 190
175 310 270 240 26 2 8-23 230
250 405 355 320 30 2 12-26 260
300 460 410 375 30 2 12-26 320
400 580 525 485 36 2 16-30 350



DN - DN ’ Permeable channel area, mm2 Weight, kg
25-32 177 12
32-40 314 13
40-50 491 14
50-65 804 18
65-80 1256 26
80-100 1963 33
100-125 3317 45
125-150 5024 53
150-175 7850 78
200-250 12266 130
250-300 17663 360
300-400 24041 630

Dimensional sketch of safety relief valves DNOVA SAFE 7011 10-13, body material - stainless steel AISI A10, closure element material - stainless steel AISI 420, seal - METAL





Materials of parts of safety relief valves DNOVA SAFE 7011 10-13, body material - stainless steel AISI A10, closure element material - stainless steel AISI 420, seal - METAL

№ Part name Material
1 Inlet connection steel 20X13
2 Case steel 25L
3 Disk steel 20X13
4 Cover steel 25L
5 Spring steel 50XFA
6 Stem steel 20X13

Detail sketch of safety relief valves DNOVA SAFE 7011 10-13, body material - stainless steel AISI A10, closure element material - stainless steel AISI 420, seal - METAL

Specifications

Country of origin
China
Body material
Stainless steel AISI A10
Maximum allowable temperature
350 °C
Connection type
Flanged
Operating environment
Water, Air, Steam
Applications
Heating Systems, Water Supply, Oil And Gas Industry
Nominal pressure
16 bar
Type of seal
Metal
Locking material
Stainless steel AISI 420/1.4031

Delivery
