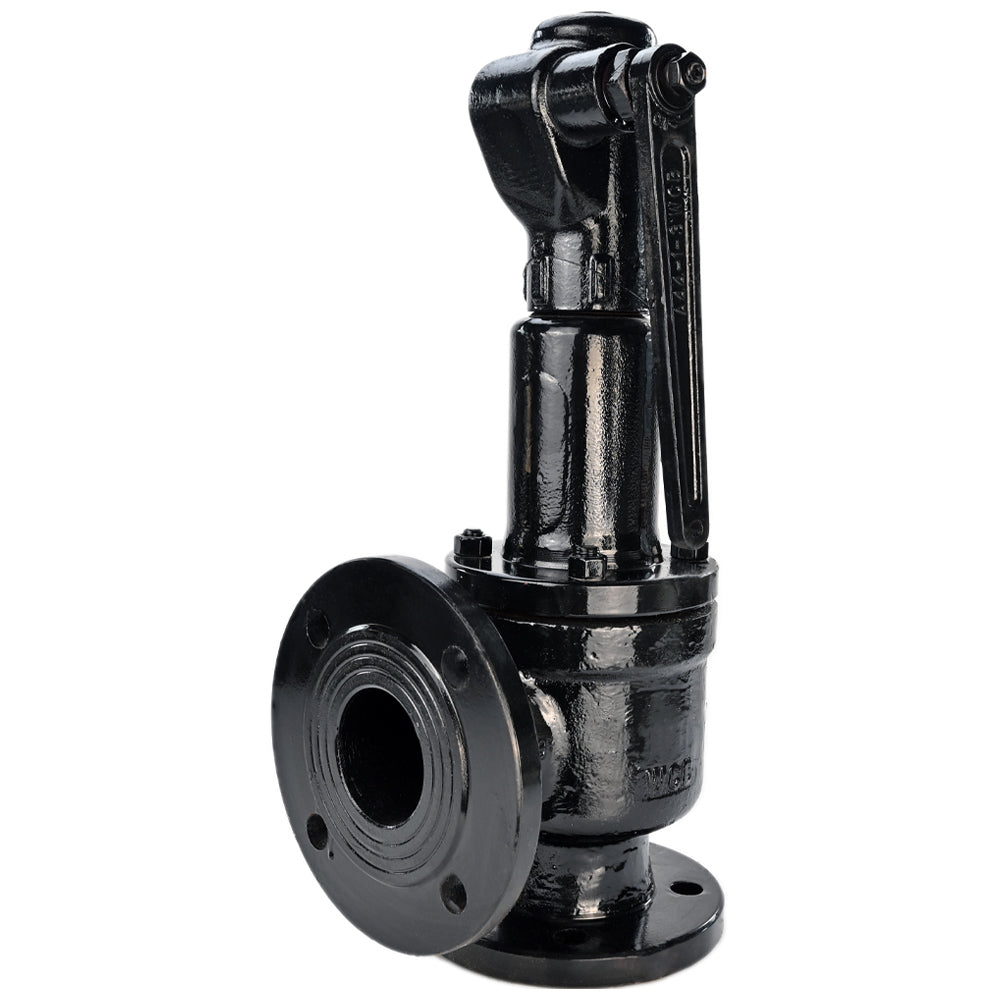

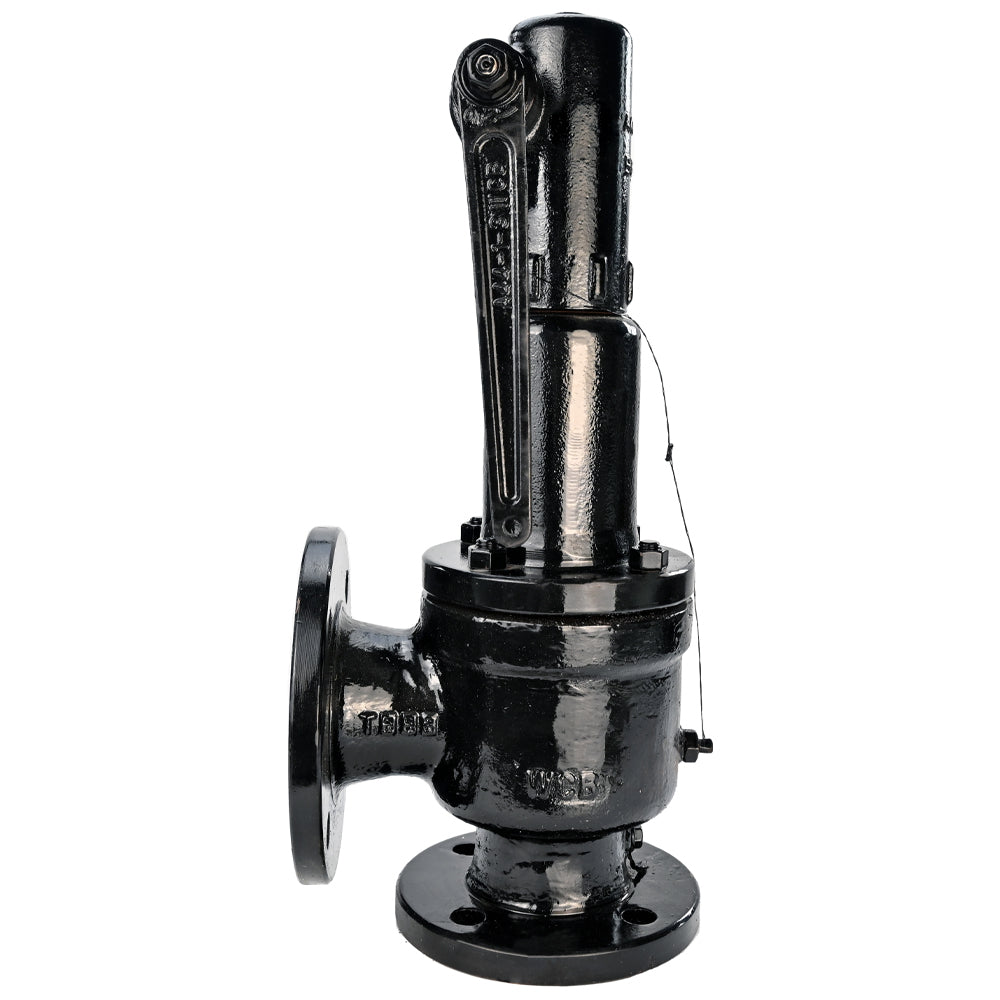

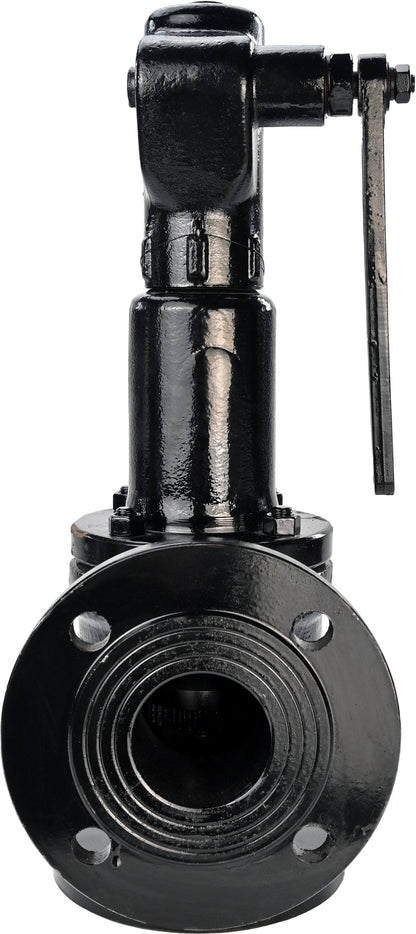

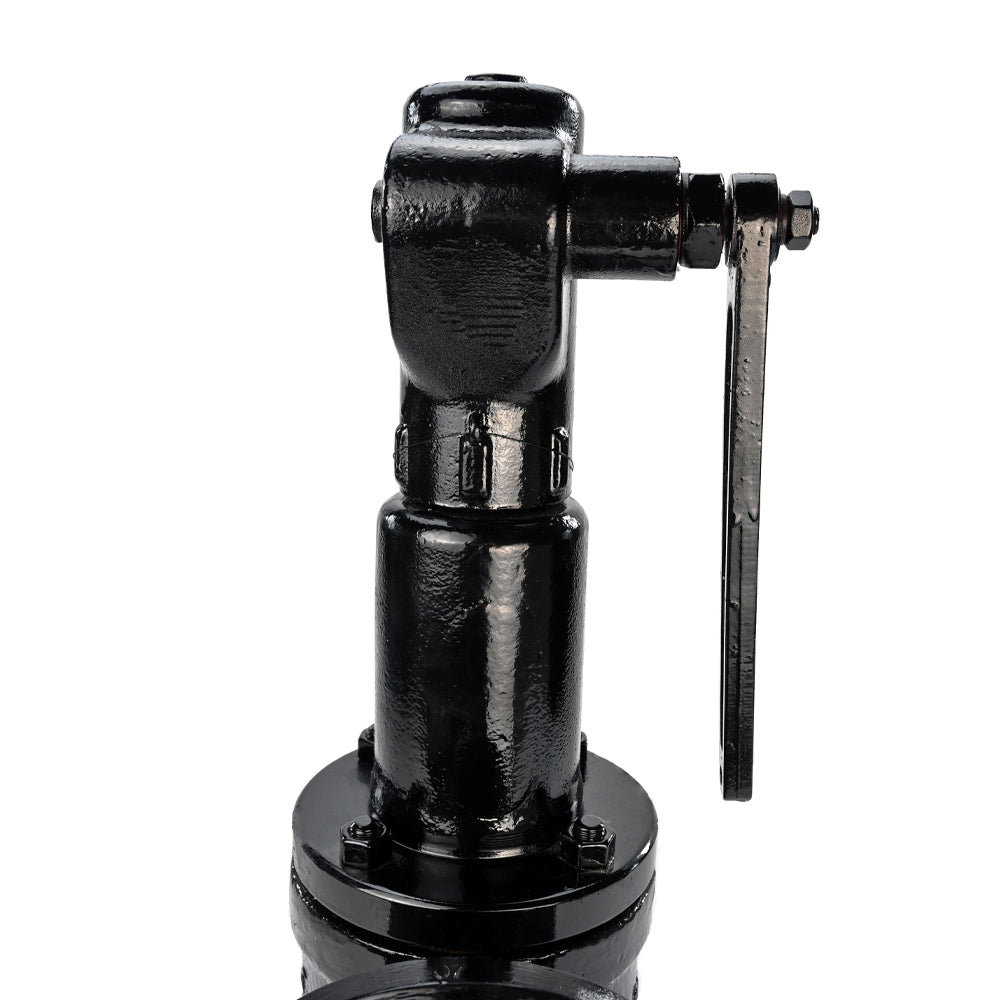

Description
A spring safety valve is a device used to automatically reduce excess pressure in systems, preventing it from exceeding established safety limits. It consists of a valve, a spring, and a setting that determines the valve's opening pressure.
When the pressure in the system reaches a certain level, the spring activates, opening the valve and allowing excess pressure to escape, preventing damage to equipment or the system due to overpressure. Spring safety valves are widely used in various industrial and technical systems to ensure their safety and reliability.
Technical data of safety valves DNOVA VR2130M-F DN25x32-300x400 PN16
| Nominal diameter DN, mm |
25-300 (inlet); 32-400 (outlet) |
| Working pressure PN, bar | 16 |
| Setting pressure ranges, bar |
0.6÷1; 1÷1.6; 1.6÷2.5; 2.5÷4; 4÷6; 6÷8; 8÷10; 10÷13; 13÷16 |
| Allowable pressure behind the valve, bar | 16 |
| Temperature of working environment t, ⁰C | ≤350 |
| Working environment | water, steam, air, ammonia, natural gas, fuel oil and other liquid petroleum products |
| Connection to the pipeline | flanged |
| Body material | steel 25L |
| Seal material | steel 20X13 |
| Application areas | heating and water supply systems; compressed air pipelines; steam plants; industrial pipelines |
Sketch of dimensions of safety valves DNOVA VR2130M-F DN25x32-300x400 PN16
Weight and dimensions of safety valves DNOVA VR2130M-F DN25x32-300x400 PN16
| D.N. | ØD, mm | ØD1, mm | ØD2, mm | b, mm | f, mm | n-Ød, mm | L, mm |
| 25 | 115 | 85 | 65 | 16 | 2 | 4-14 | 110 |
| 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 115 |
| 40 | 150 | 110 | 85 | 18 | 2 | 4-18 | 120 |
| 50 | 165 | 125 | 100 | 18 | 2 | 4-18 | 135 |
| 65 | 185 | 145 | 120 | 20 | 2 | 8-18 | 160 |
| 80 | 200 | 160 | 135 | 20 | 2 | 8-18 | 170 |
| 100 | 220 | 180 | 155 | 20 | 2 | 8-18 | 195 |
| 125 | 250 | 210 | 185 | 22 | 2 | 8-18 | 210 |
| 150 | 285 | 240 | 210 | 24 | 2 | 8-23 | 255 |
| 200 | 340 | 295 | 265 | 26 | 2 | 12-23 | 300 |
| 250 | 405 | 355 | 320 | 30 | 2 | 12-26 | 350 |
| 300 | 460 | 410 | 375 | 30 | 2 | 12-26 | 370 |
| DN ' | ØD1', mm | ØD2', mm | ØD3', mm | b ', mm | f ', mm | n-Ød ', mm | L1, mm |
| 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 95 |
| 40 | 150 | 110 | 85 | 18 | 2 | 4-18 | 100 |
| 50 | 165 | 125 | 100 | 18 | 2 | 4-18 | 110 |
| 65 | 185 | 145 | 120 | 20 | 2 | 4-18 | 120 |
| 80 | 200 | 160 | 135 | 20 | 2 | 8-18 | 140 |
| 100 | 220 | 180 | 155 | 20 | 2 | 8-18 | 135 |
| 125 | 250 | 210 | 185 | 22 | 2 | 8-18 | 175 |
| 150 | 285 | 240 | 210 | 24 | 2 | 8-23 | 190 |
| 175 | 310 | 270 | 240 | 26 | 2 | 8-23 | 230 |
| 250 | 405 | 355 | 320 | 30 | 2 | 12-26 | 260 |
| 300 | 460 | 410 | 375 | 30 | 2 | 12-26 | 320 |
| 400 | 580 | 525 | 485 | 36 | 2 | 16-30 | 350 |
| DN - DN' | Area of the flow channel, mm2 | Weight, kg |
| 25-32 | 177 | 12 |
| 32-40 | 314 | 13 |
| 40-50 | 491 | 14 |
| 50-65 | 804 | 18 |
| 65-80 | 1256 | 26 |
| 80-100 | 1963 | 33 |
| 100-125 | 3317 | 45 |
| 125-150 | 5024 | 53 |
| 150-175 | 7850 | 78 |
| 200-250 | 12266 | 130 |
| 250-300 | 17663 | 360 |
| 300-400 | 24041 | 630 |
Detail sketch of safety valves DNOVA VR2130M-F DN25x32-300x400 PN16
Materials of parts of safety valves DNOVA VR2130M-F DN25x32-300x400 PN16
| Item No. | Part name | Material |
| 1 | Inlet manifold | steel 20X13 |
| 2 | Frame | steel 25L |
| 3 | Disk | steel 20X13 |
| 4 | Lid | steel 25L |
| 5 | Spring | steel 50KhFA |
| 6 | Stock | steel 20X13 |
