Description

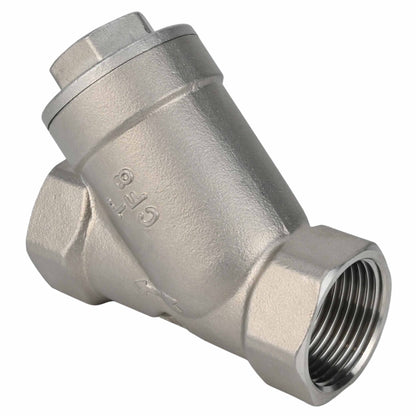

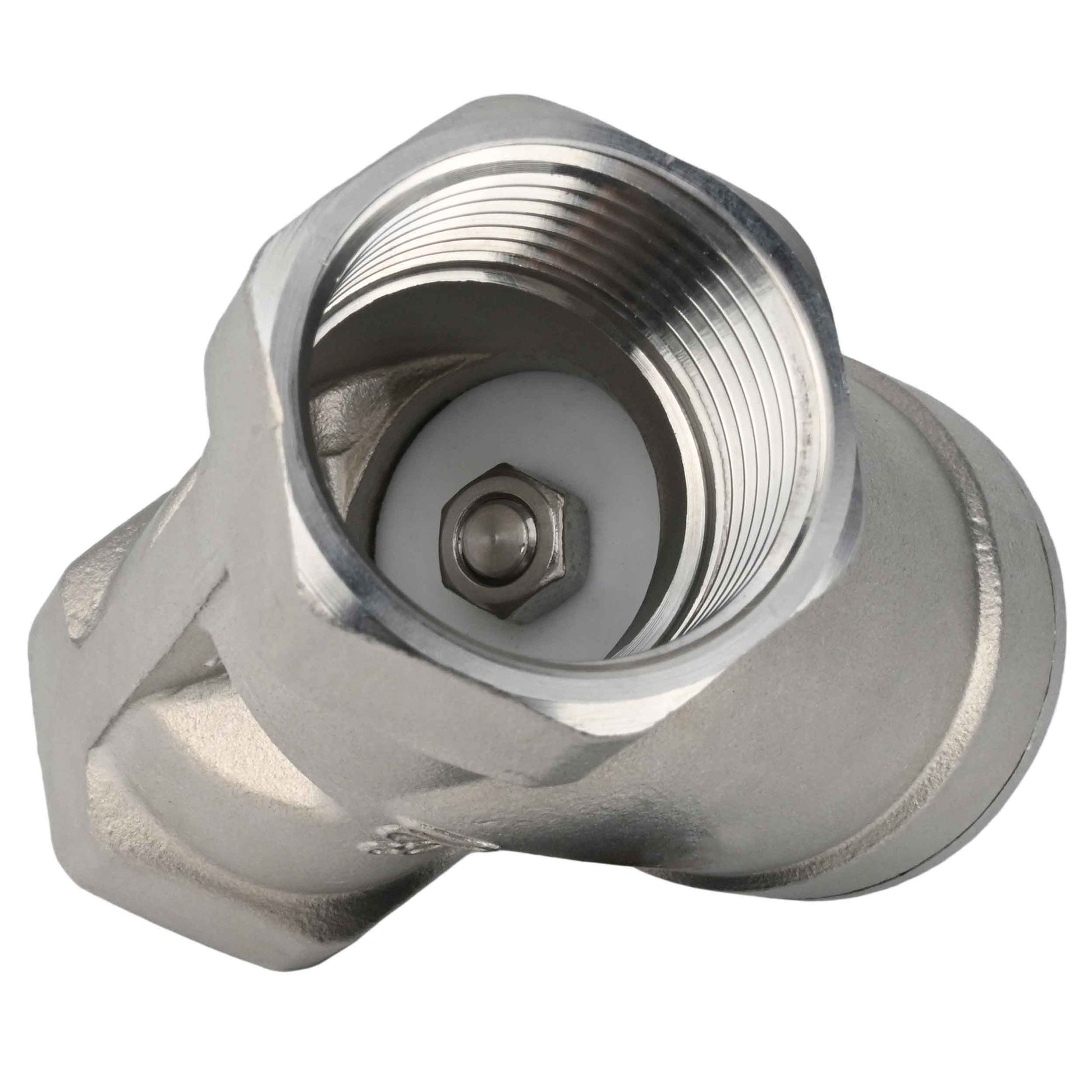

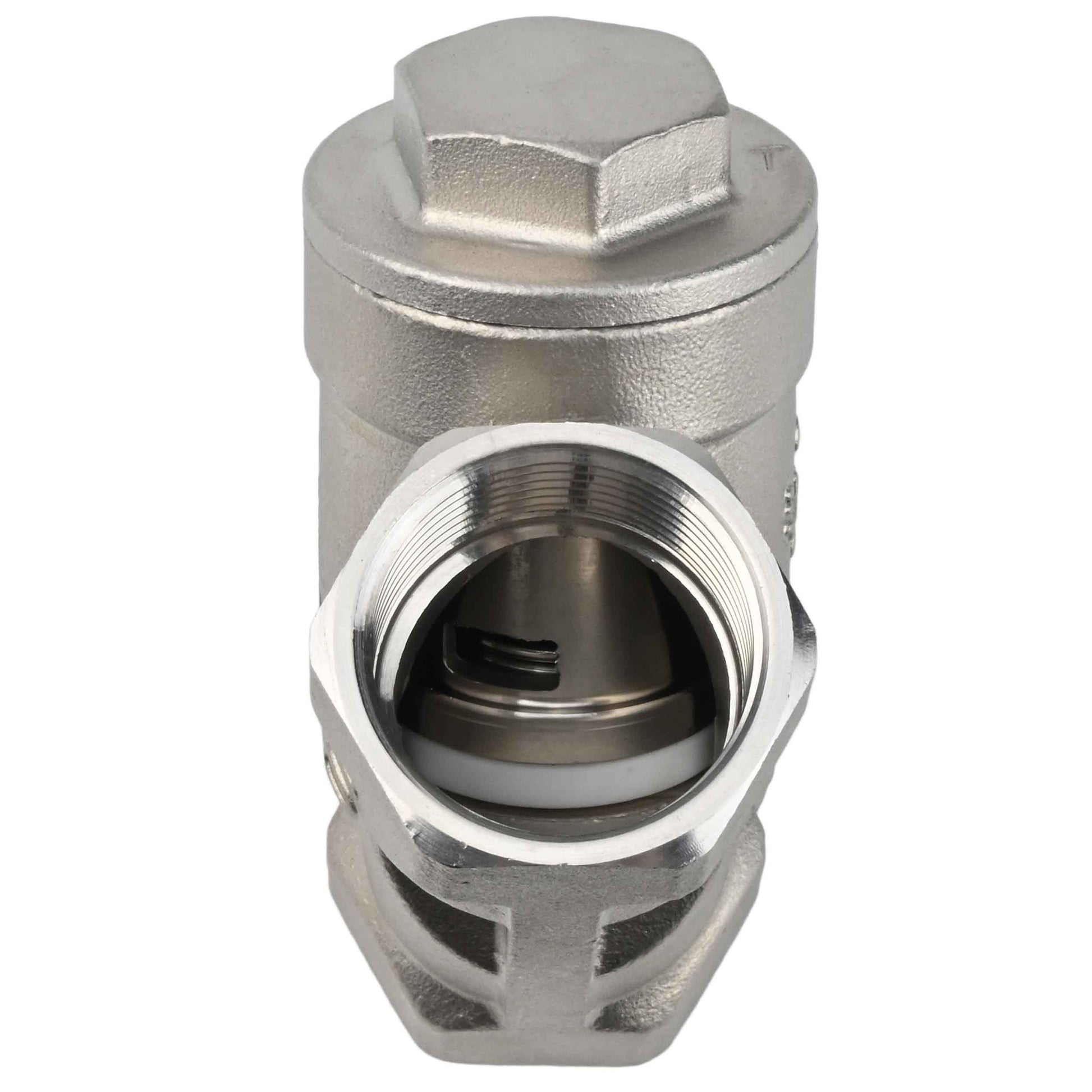

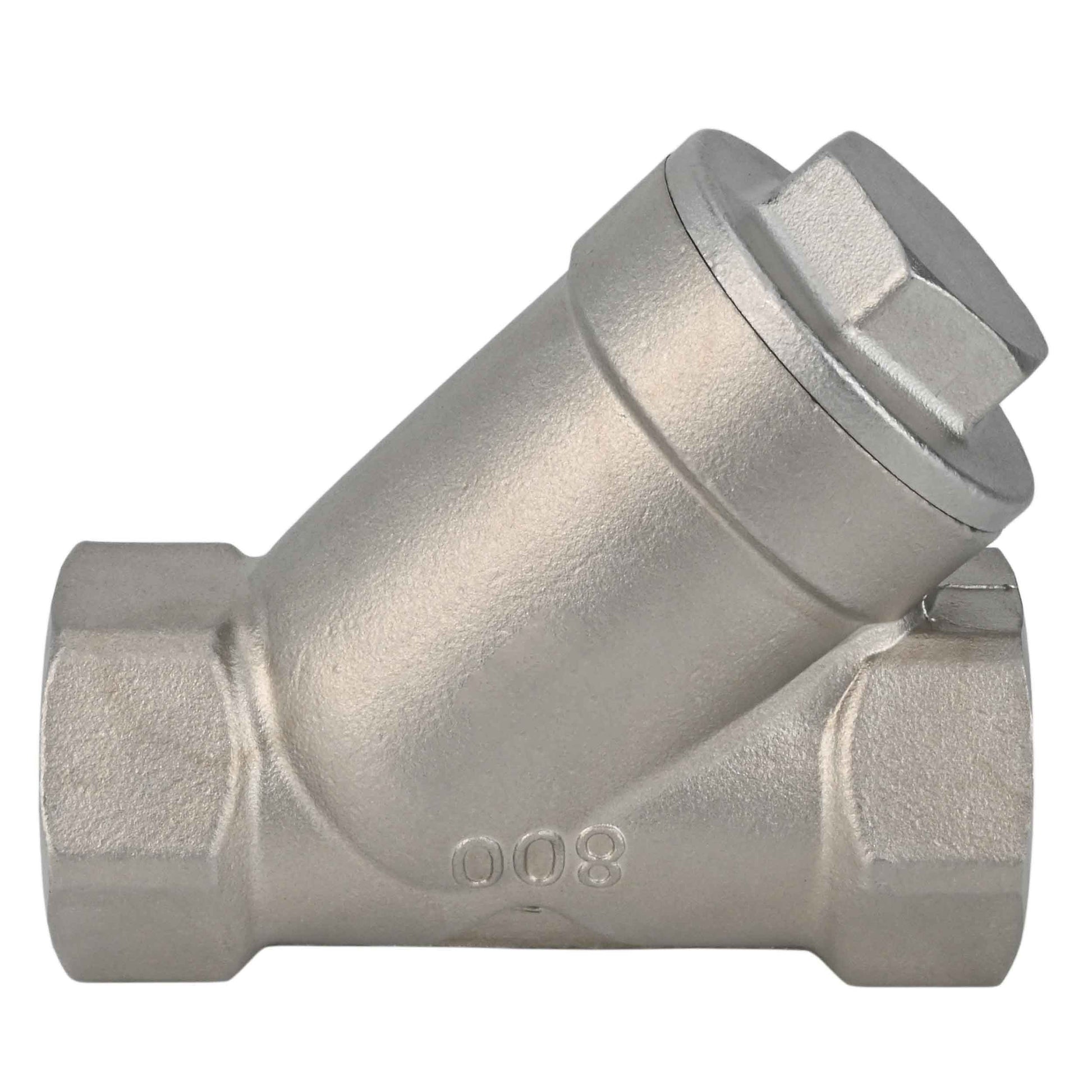

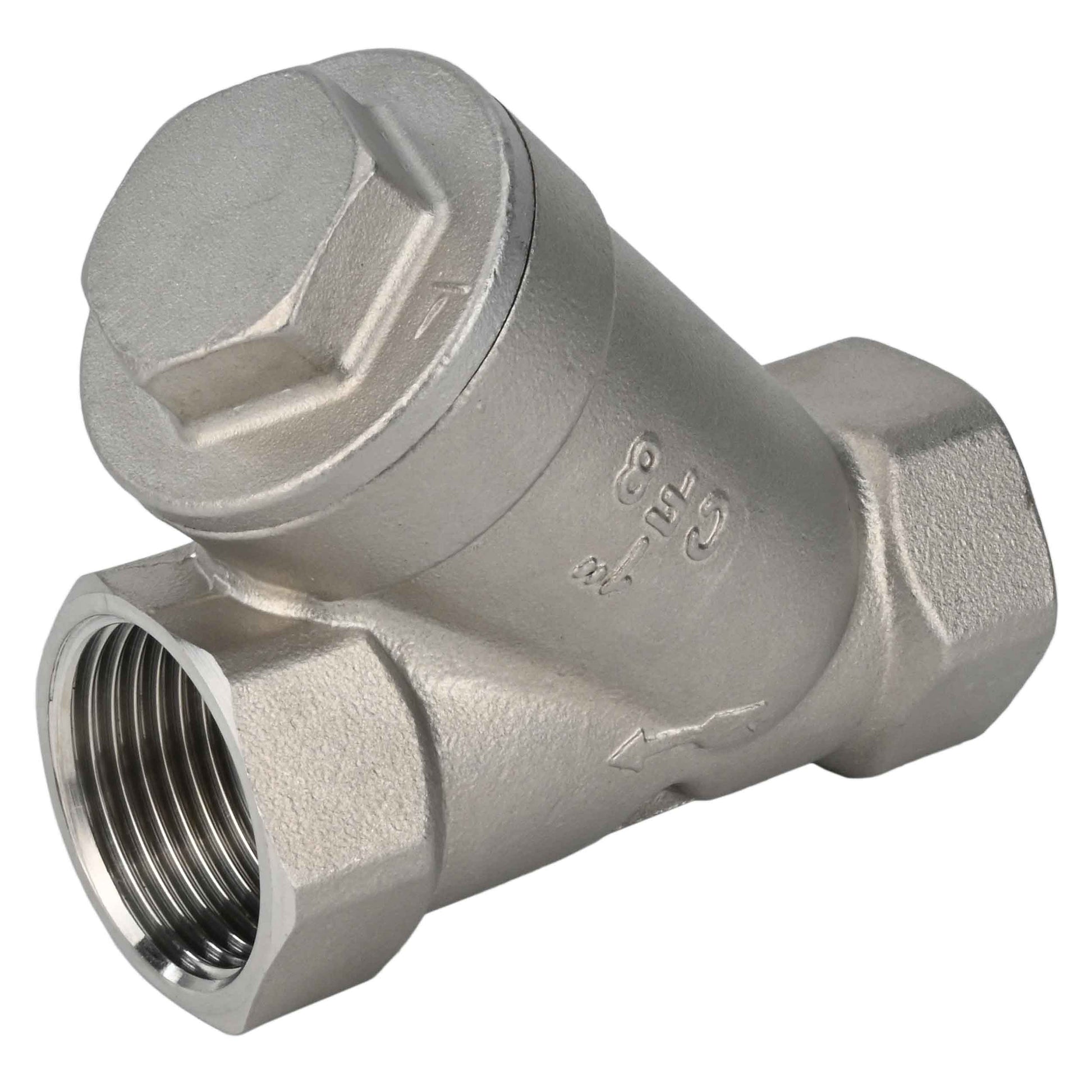

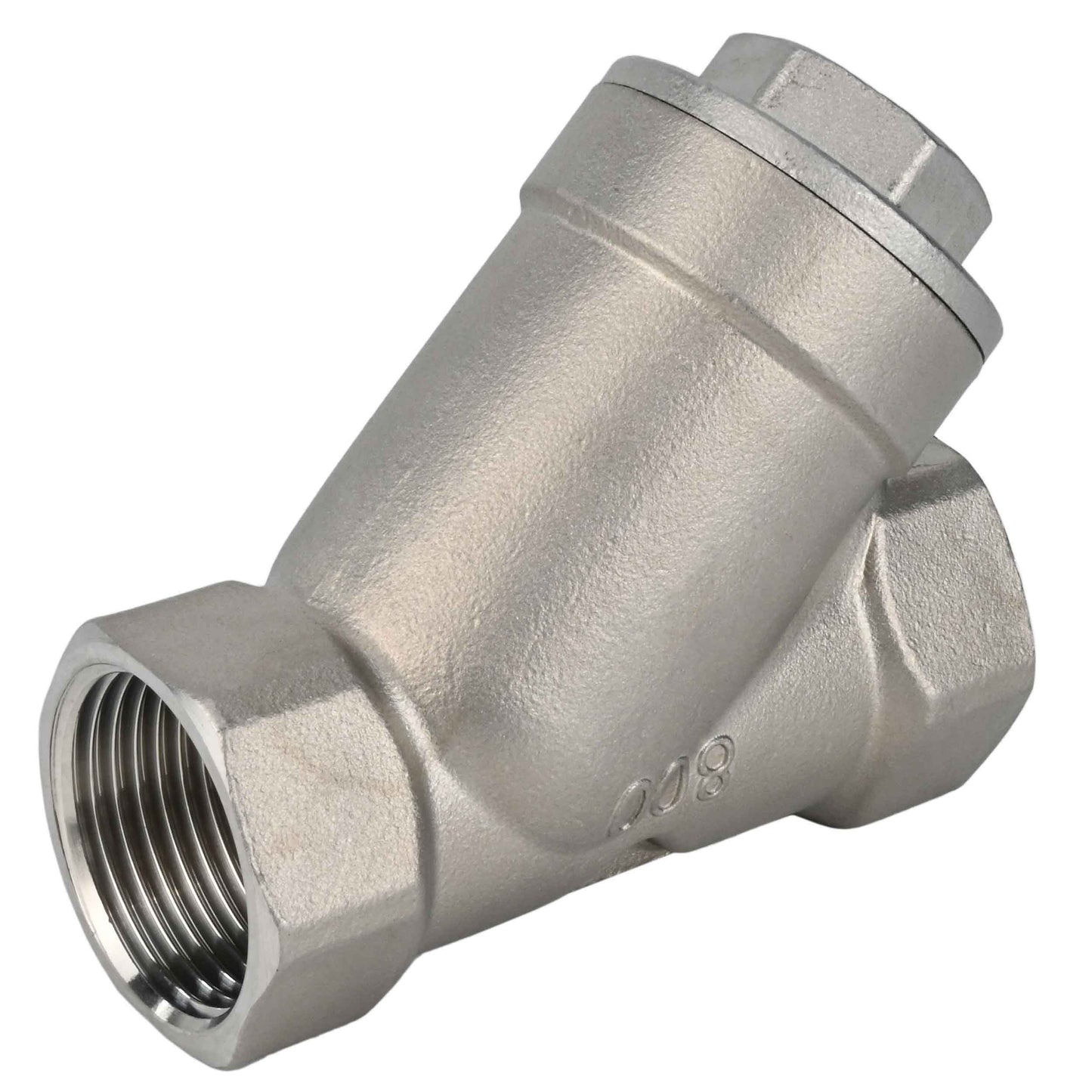

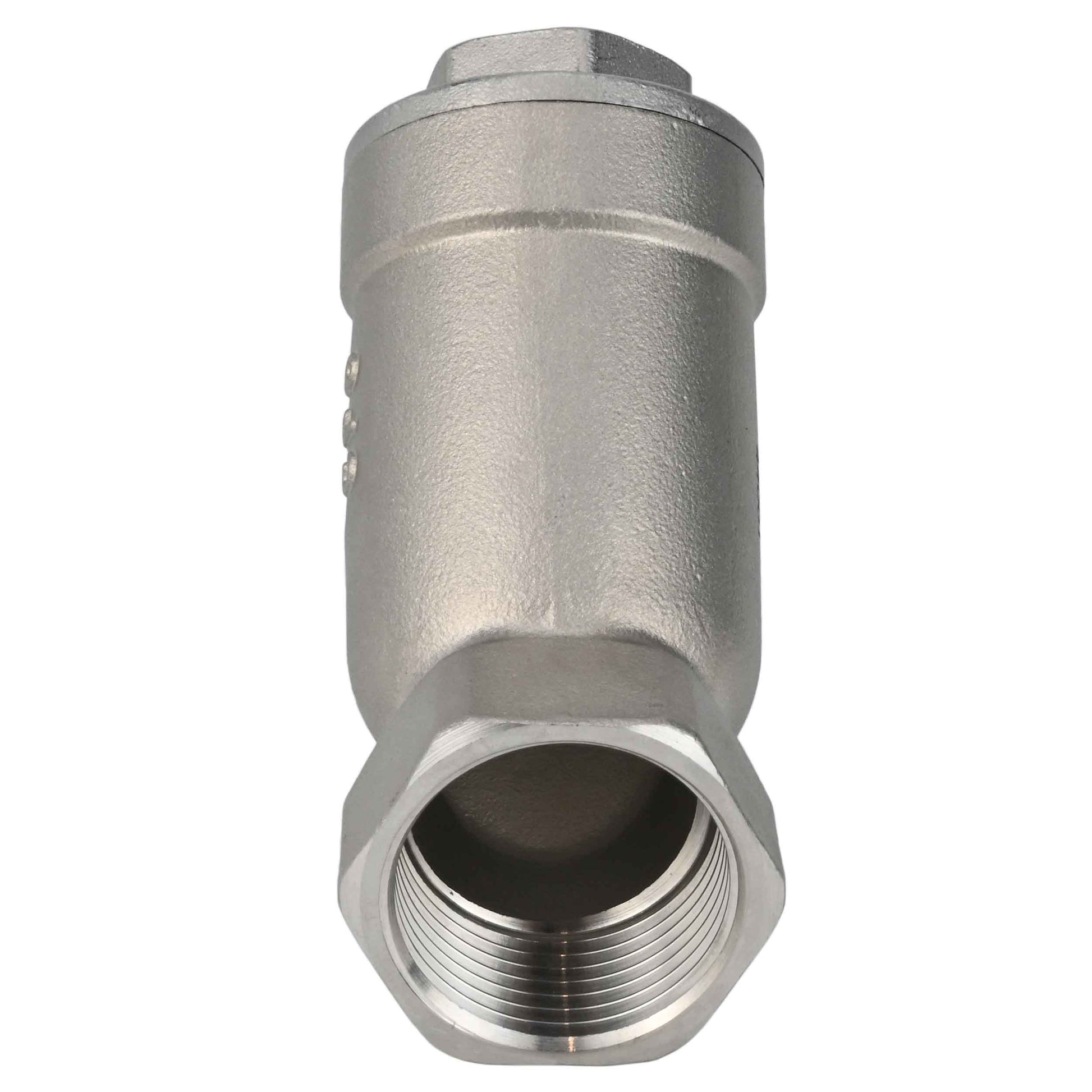

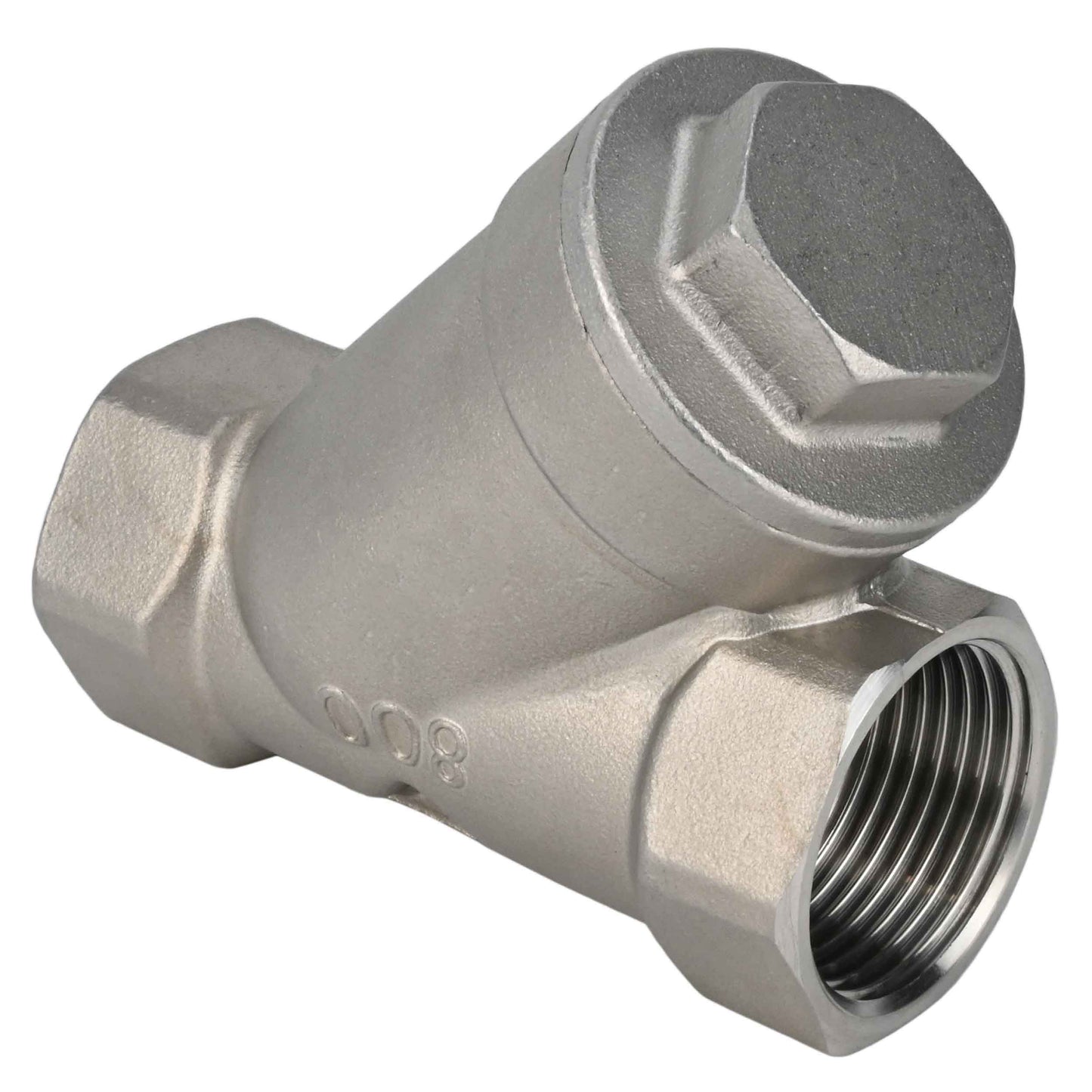

Spring check valves VCSY3131P-T Y-shaped stainless steel, threaded are designed to prevent reversal of the direction of flow of the working medium in the pipeline.
General technical data of DNOVA VCSY3232P-T Y-shaped spring check valves, body material - Stainless steel AISI 316, locking body material - Stainless steel 316, seal - PTFE, threaded:
| Parameters | Values |
| Diameter range DN, mm | 8-50 |
| Nominal pressure PN, bar | 40 |
| Working medium temperature, °C | from -40 to + 250 |
| Connection type | coupling (threaded) |
| Body material | Stainless steel AISI/SS 316/08X17H13M2 |
| Material of shut-off body | Stainless steel 316 |
| Body material class | stainless steel |
| Seal type | PTFE |
| Working medium | liquid media, gaseous media |
| Application | water supply, industry, pumping systems |
| Direction of medium flow | arrow on valve body |
| Warranty, months | 12 |
| Service life, years | 10 |
| Manufacturer's country | China |
Spring check valves VCSY3232P-T Y-shaped, body material - Stainless steel AISI 316, locking body material - Stainless steel 316, seal - PTFE, threaded
Dimensions and dimensions of check valves DNOVA VCSY3232P-T Y-shaped, body material - Stainless steel AISI 316, closing body material - Stainless steel 316, seal - PTFE, threaded:
| DN | d, mm | L, mm | H, mm |
| 8 | 15 | 64.5 | 48 |
| 10 | 15 | 64.5 | 48 |
| 15 | 15 | 64.5 | 48 |
| 20 | 20 | 79.5 | 55 |
| 25 | 25 | 88 | 65 |
| 32 | 32 | 104 | 75 |
| 40 | 40 | 117.5 | 80 |
| 50 | 49 | 134 | 95 |
Dimensional sketch of spring check valves VCSY3232P-T Y-shaped, body material - Stainless steel AISI 316, locking body material - Stainless steel 316, seal - PTFE, threaded
Materials of check valves DNOVA VCSY3232P-T Y-shaped, body material - Stainless steel AISI 316, closing body material - Stainless steel 316, sealing - PTFE, threaded:
| № | Name | Material |
| 1 | Cover | Stainless steel AISI/SS 316/08X17H13M2 |
| 2 | Sealing ring | PTFE |
| 3 | Spring | stainless steel 304 |
| 4 | Valve core | Stainless steel 316 |
| 5 | Seal | PTFE |
| 6 | Nut | stainless steel 304 |
| 7 | Body | Stainless steel AISI/SS 316/08X17H13M2 |
Material sketch of spring check valves VCSY3232P-T Y-shaped, body material - Stainless steel AISI 316, locking body material - Stainless steel 316, seal - PTFE, threaded
