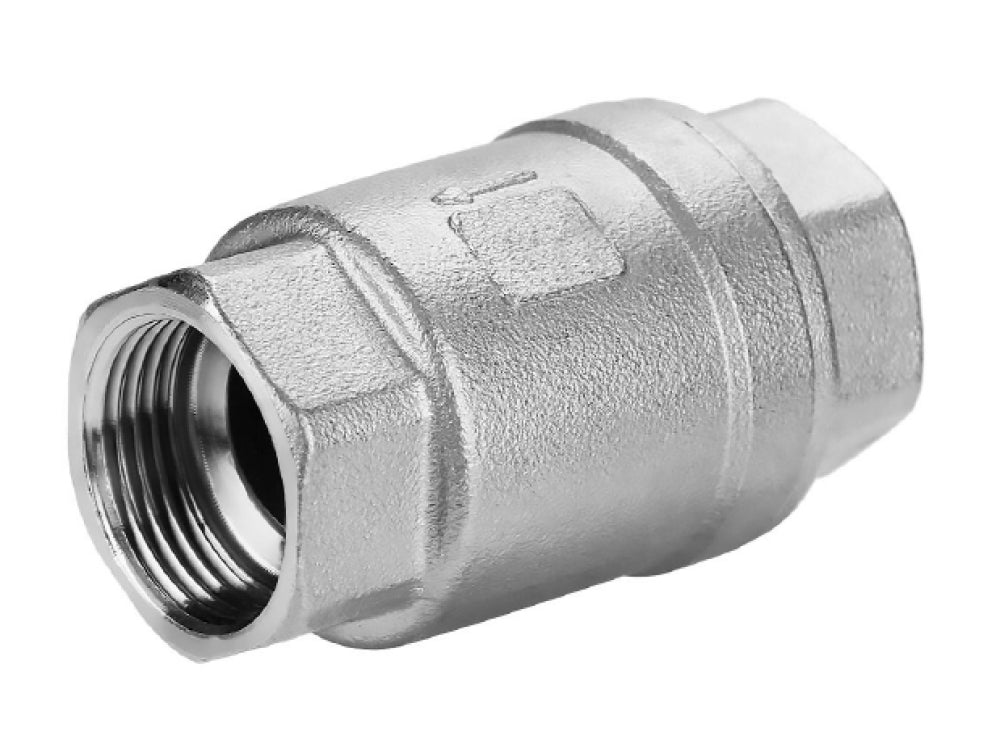

Spring check valve DNOVA VCS3232P-T 40 bar, 63 bar body material - stainless steel AISI 316, seal - PTFE, Threaded NPT/BSP connection

From $2.32 USD
From $2.32 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

A spring check valve is designed to prevent the reverse flow of the working medium in the pipeline. The reverse flow is blocked by pressing the valve disc against its seat under the action of the spring and the reverse flow pressure. The valve opens due to the pressure differential of the medium flow in the required direction, with the valve disc moving and compressing the spring.





Weight and dimensional parameters of spring check valves DNOVA VCS3232P-T 40 bar, 63 bar body material - stainless steel AISI 316, seal - PTFE, Threaded NPT/BSP connection

Size d, mm L, mm Weight, kg
DN15 15 58 0.21
DN20 20 62 0.29
DN25 25 76 0.4
DN32 32 87 0.65
DN40 40 102 0.98
DN50 50 113 1.4
DN65 65 133 2.44
DN80 80 157 3.8
DN100 100 180 6.6

Sketch of spring check valves DNOVA VCS3232P-T 40 bar, 63 bar body material - stainless steel AISI 316, seal - PTFE, Threaded NPT/BSP connection





Materials of parts of spring check valves DNOVA VCS3232P-T 40 bar, 63 bar body material - stainless steel AISI 316, seal - PTFE, Threaded NPT/BSP connection

№ Part name Material
1 Case SS316 stainless steel
2 Disk SS316 stainless steel
3 Spring SS316 stainless steel
4 Connecting cover SS316 stainless steel
5 O-ring PTFE



Material sketch of spring check valves DNOVA VCS3232P-T 40 bar, 63 bar body material - stainless steel AISI 316, seal - PTFE, Threaded NPT/BSP connection

Specifications

Country of origin
China
Body material
Stainless steel AISI 316
Maximum allowable temperature
200 °C
Connection type
Threaded NPT/BSP
Operating environment
Water, Air, Oil Products
Nominal pressure
63 bar##40 bar
Type of seal
PTFE
Locking material
Stainless steel AISI 316/1.4401
Check valve type
Spring

Delivery
