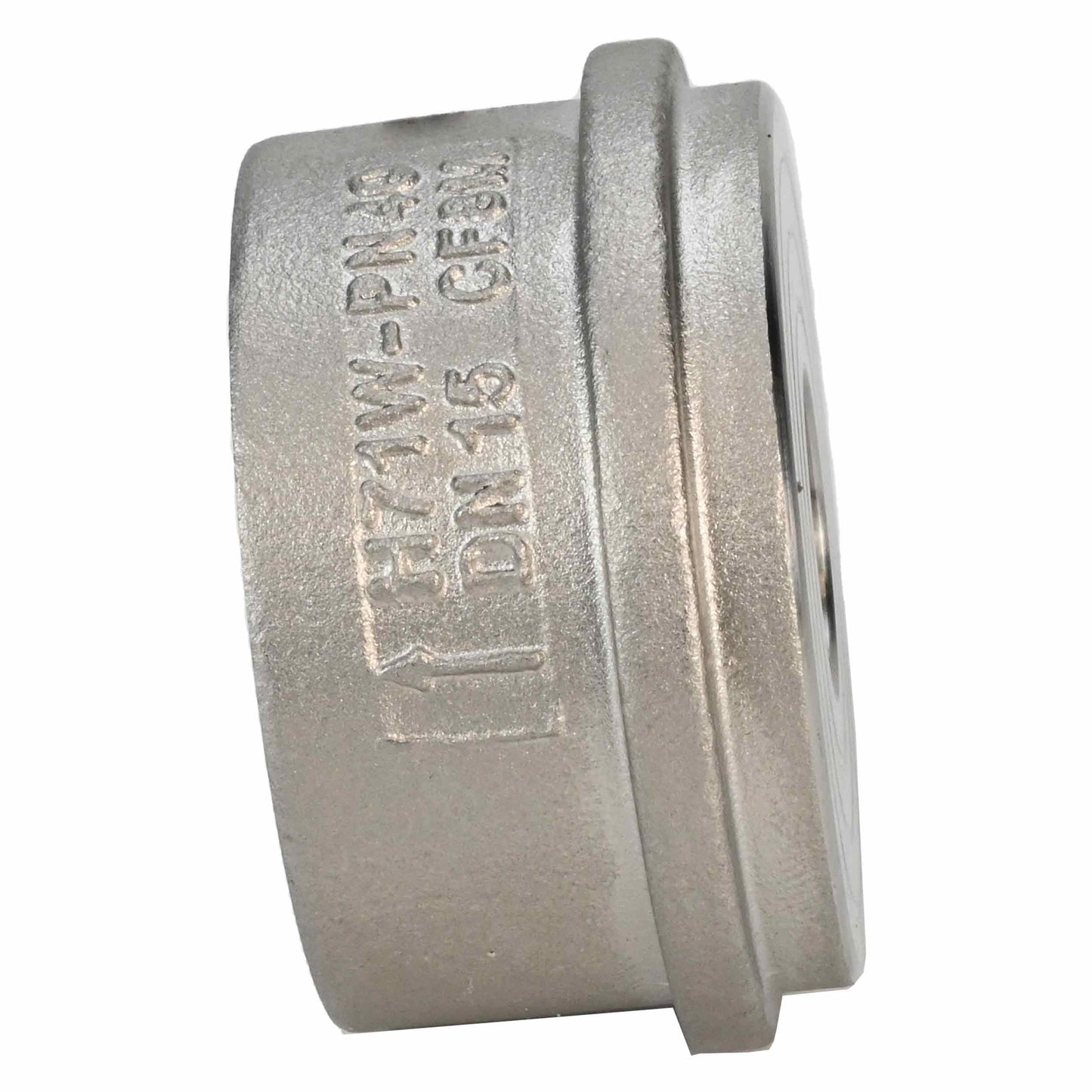

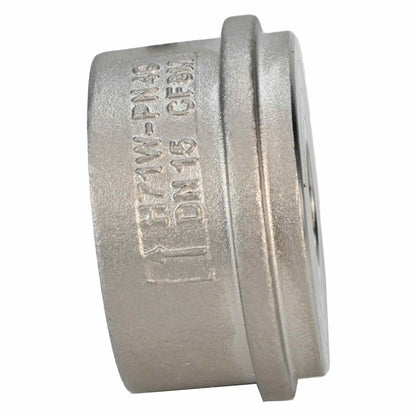

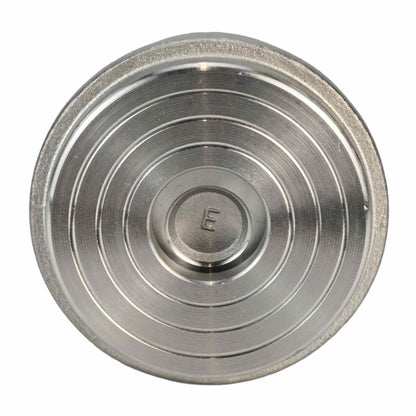

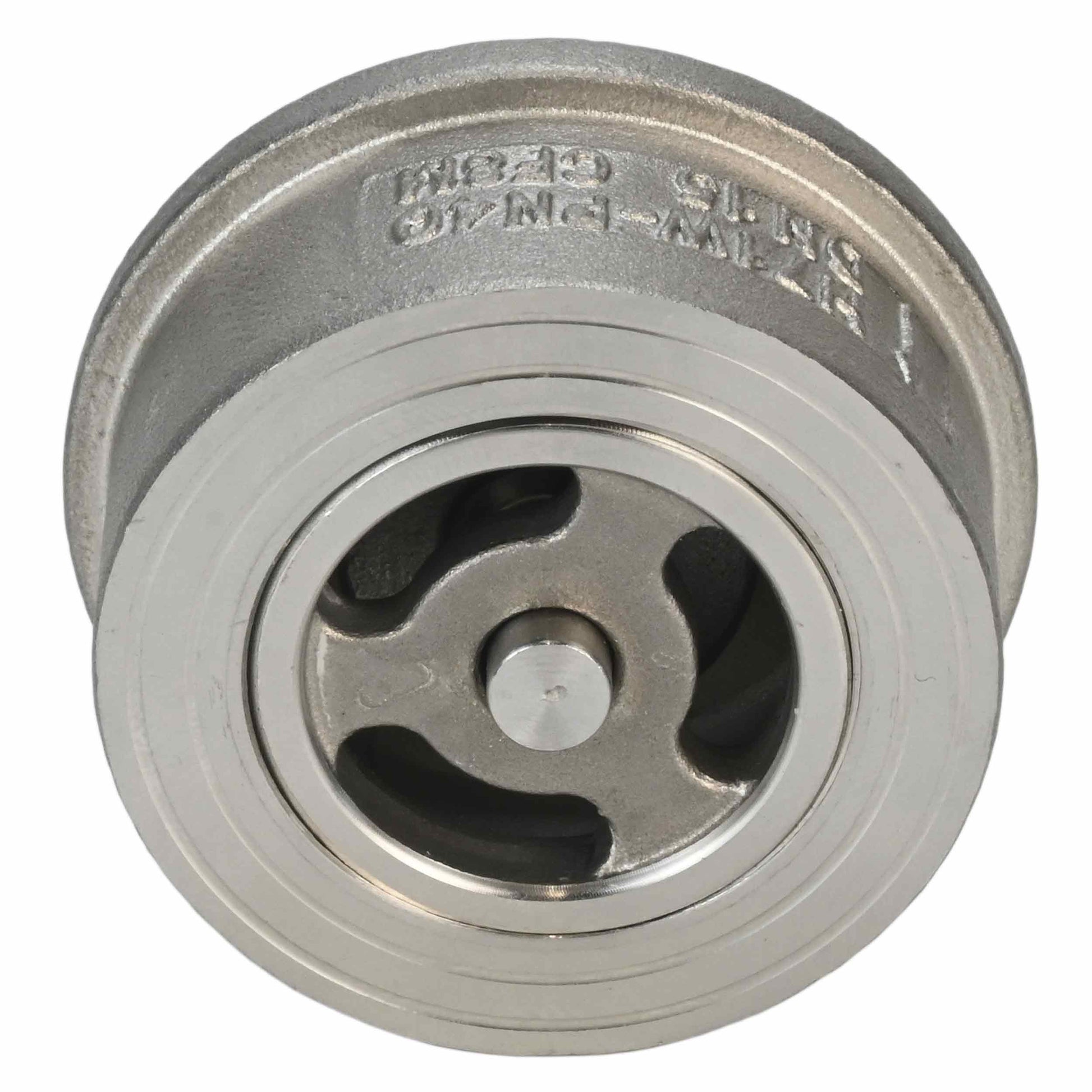

Spring check valve DNOVA VCS3232-Fb 40 bar body material - stainless steel AISI 316, locking material - stainless steel AISI 316, compact flanged

From $3.39 USD
From $3.39 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

A spring check valve is designed to prevent the reverse flow of the working medium in the pipeline. The reverse flow is blocked by pressing the valve disc against its seat under the action of the spring and the reverse flow pressure. The valve opens due to the pressure differential of the medium flow in the required direction, with the valve disc moving and compressing the spring.





Dimensions and installation dimensions of spring check valves DNOVA VCS3232-Fb body material - stainless steel AISI 316

Model

d, mm

D, mm

D1, mm

D2, mm

L, mm

H, mm

Weight, kg

DN15

15

39

28,5

32

16

3

0.09

DN20

20

46

36,2

40

19

3

0.12

DN25

25

54

43,3

46

21

3

0.16

DN32

32

70

56,0

60

27

3,5

0.31

DN40

40

83

68,5

72

31

3,5

0.43

DN50

49

96

80,5

84

40

4

0.78

DN65

62

115

99

103

46

5

1.03

DN80

75

135

117

123

50

5

1.54

DN100

85

153

135

140

60

6

2.25

Dimensional sketch of spring check valves DNOVA VCS3232-Fb body material - stainless steel AISI 316





Materials of spring check valves DNOVA VCS3232-Fb body material - stainless steel AISI 316

№

Part name

Material

1

Case

stainless steel 316

2

Back cover

stainless steel 316

3

Spring

stainless steel 316

4

Disk

stainless steel 316

Material sketch of spring check valves DNOVA VCS3232-Fb body material - stainless steel AISI 316

Specifications

Country of origin
China
Body material
Stainless steel AISI 316
Maximum allowable temperature
240 °C
Connection type
Compact flanged
Operating environment
Water, Gas, Cold And Hot Water, Wastewater, Oils, Water-Glycol Solutions, Fuels, Hfa Hfb Hfc Refrigerants
Applications
Water Supply, Industry, Pumping Systems
Nominal pressure
40 bar
Locking material
Stainless steel AISI 316/1.4401
Check valve type
Spring

Delivery

The cost and delivery time for your order depend on several factors, including the specific product you are ordering, the quantity, and the country of destination. Each product may have different manufacturing lead times and shipping requirements, which can affect the overall delivery schedule.

To get the most accurate and up-to-date information on delivery costs and timelines, we recommend contacting our sales managers. They will be happy to provide you with a detailed quote and estimated delivery time based on your specific requirements.

Please feel free to reach out to us for any questions or further assistance regarding your order.

Variant Variant total Quantity Price Variant total
DN15 / 40 barD100-03705
DN15 / 40 barD100-03705
$3.39/ea		 $0.00
$3.39/ea $0.00
DN20 / 40 barD100-03706
DN20 / 40 barD100-03706
$3.50/ea		 $0.00
$3.50/ea $0.00
DN25 / 40 barD100-03707
DN25 / 40 barD100-03707
$4.62/ea		 $0.00
$4.62/ea $0.00
DN50 / 40 barD100-03710
DN50 / 40 barD100-03710
$11.24/ea		 $0.00
$11.24/ea $0.00
DN80 / 40 barD100-03712
DN80 / 40 barD100-03712
$25.08/ea		 $0.00
$25.08/ea $0.00
DN100 / 40 barD100-03713
DN100 / 40 barD100-03713
$31.07/ea		 $0.00
$31.07/ea $0.00
DN40 / 40 barD100-03709
DN40 / 40 barD100-03709
$7.41/ea		 $0.00
$7.41/ea $0.00
DN65 / 40 barD100-03711
DN65 / 40 barD100-03711
$18.27/ea		 $0.00
$18.27/ea $0.00
DN32 / 40 barD100-03708
DN32 / 40 barD100-03708
$5.79/ea		 $0.00
$5.79/ea $0.00
